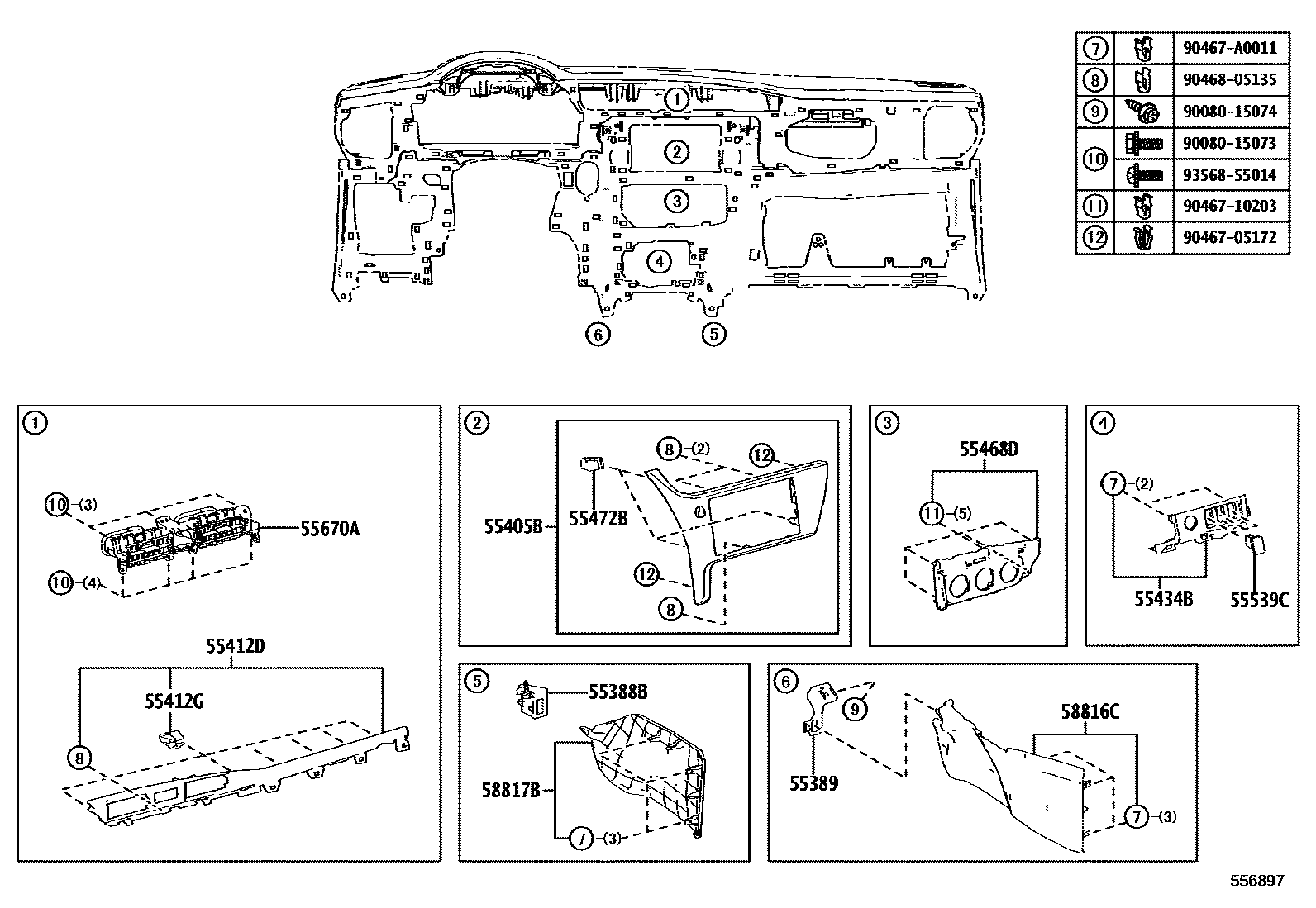

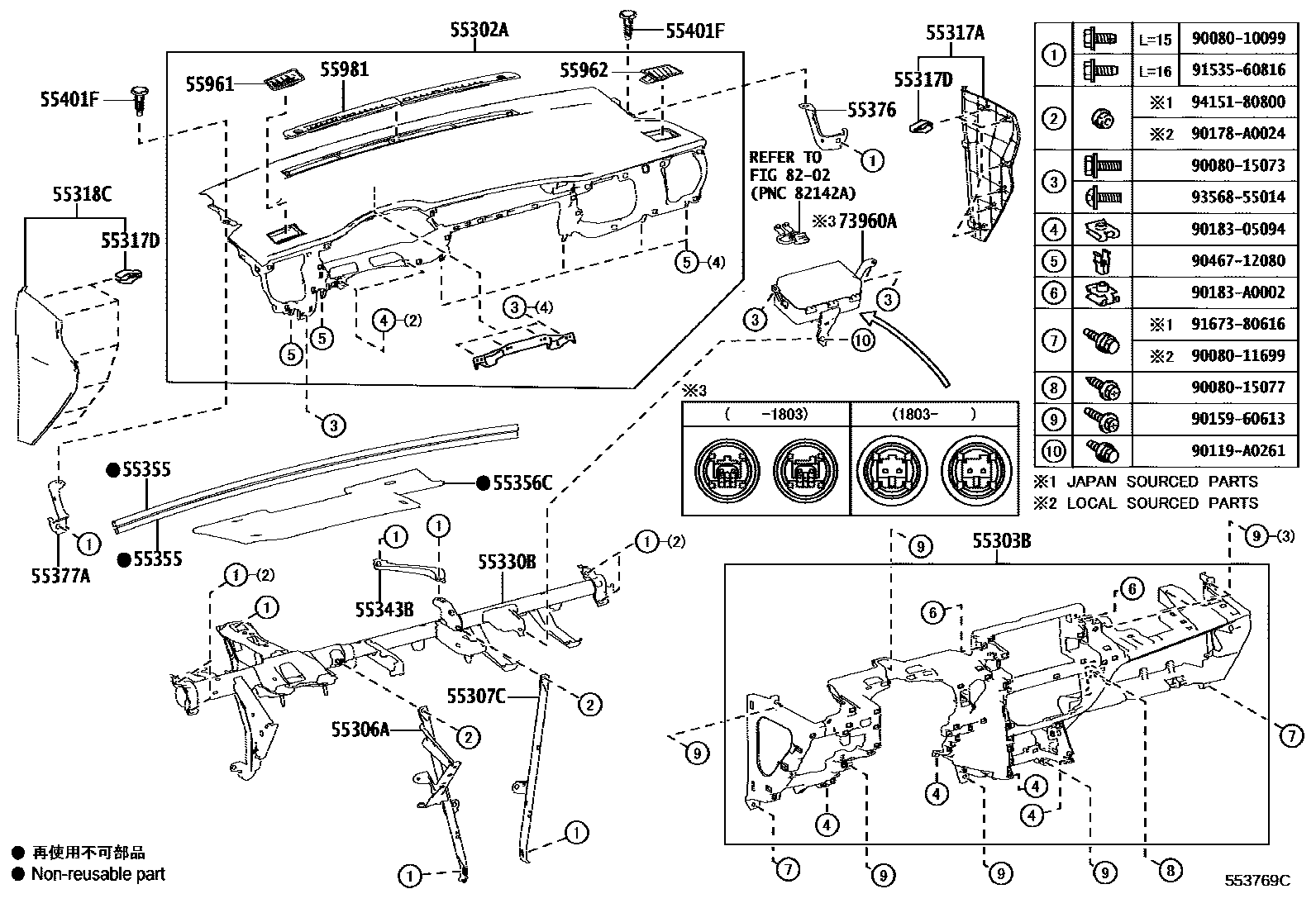

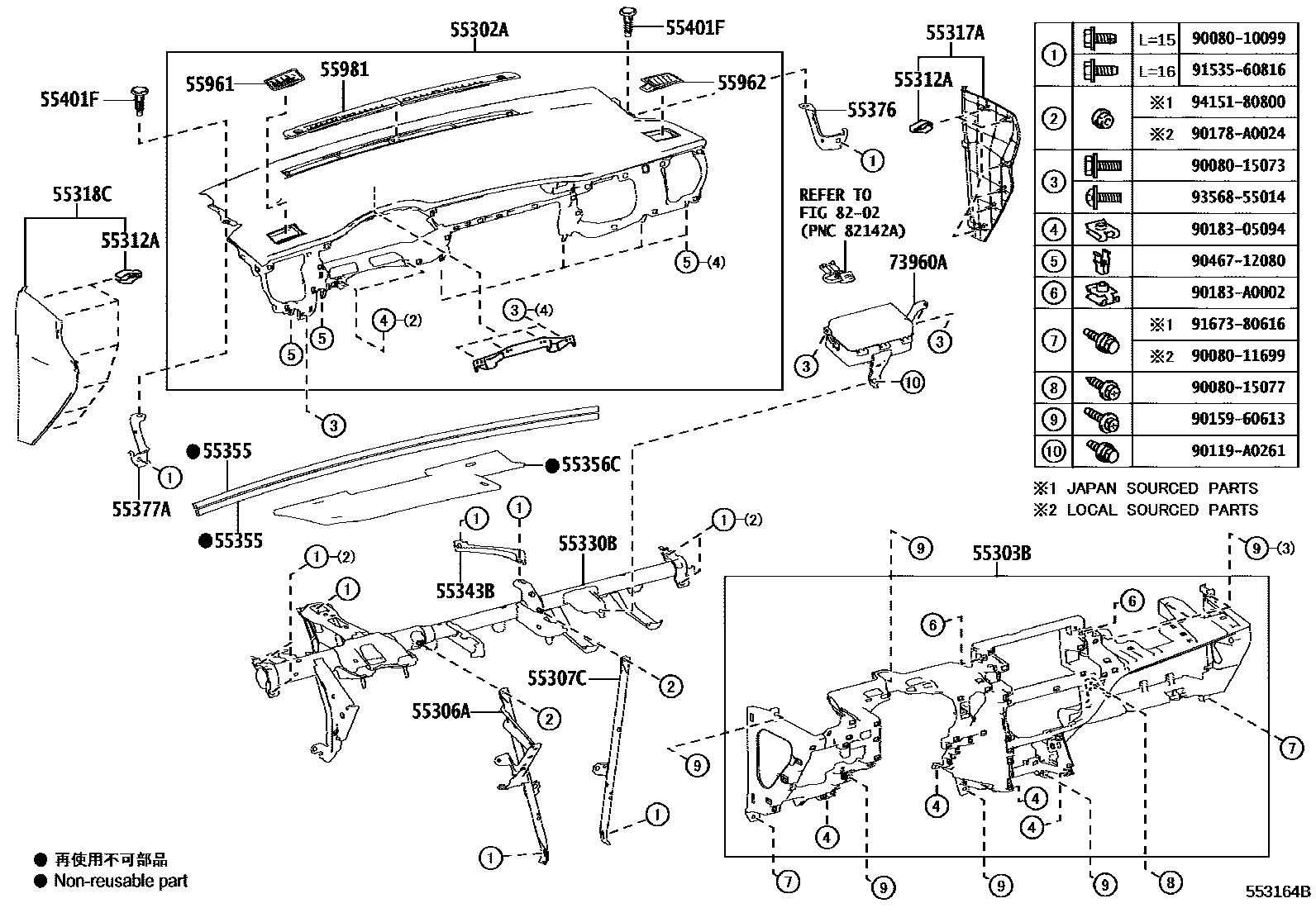

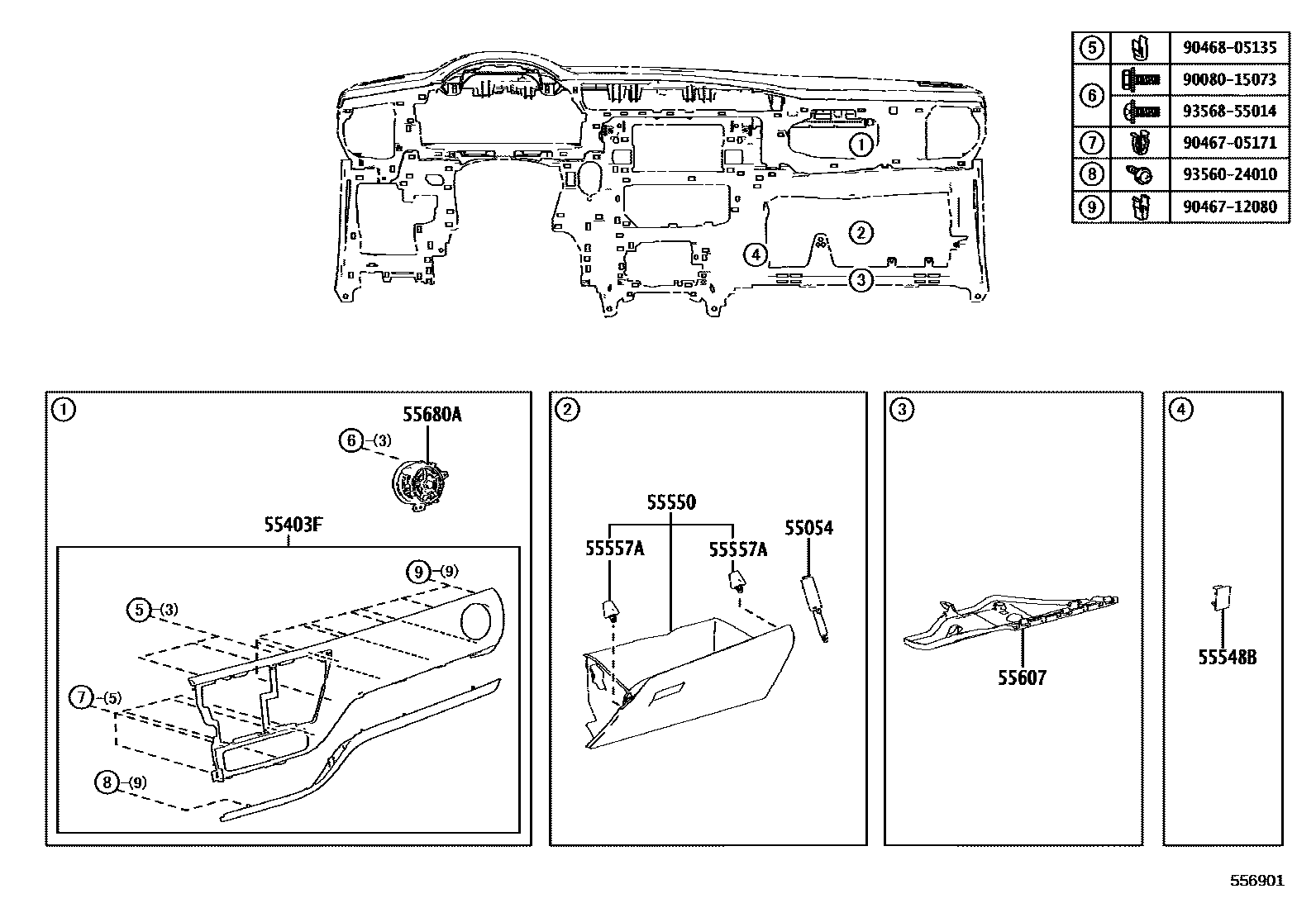

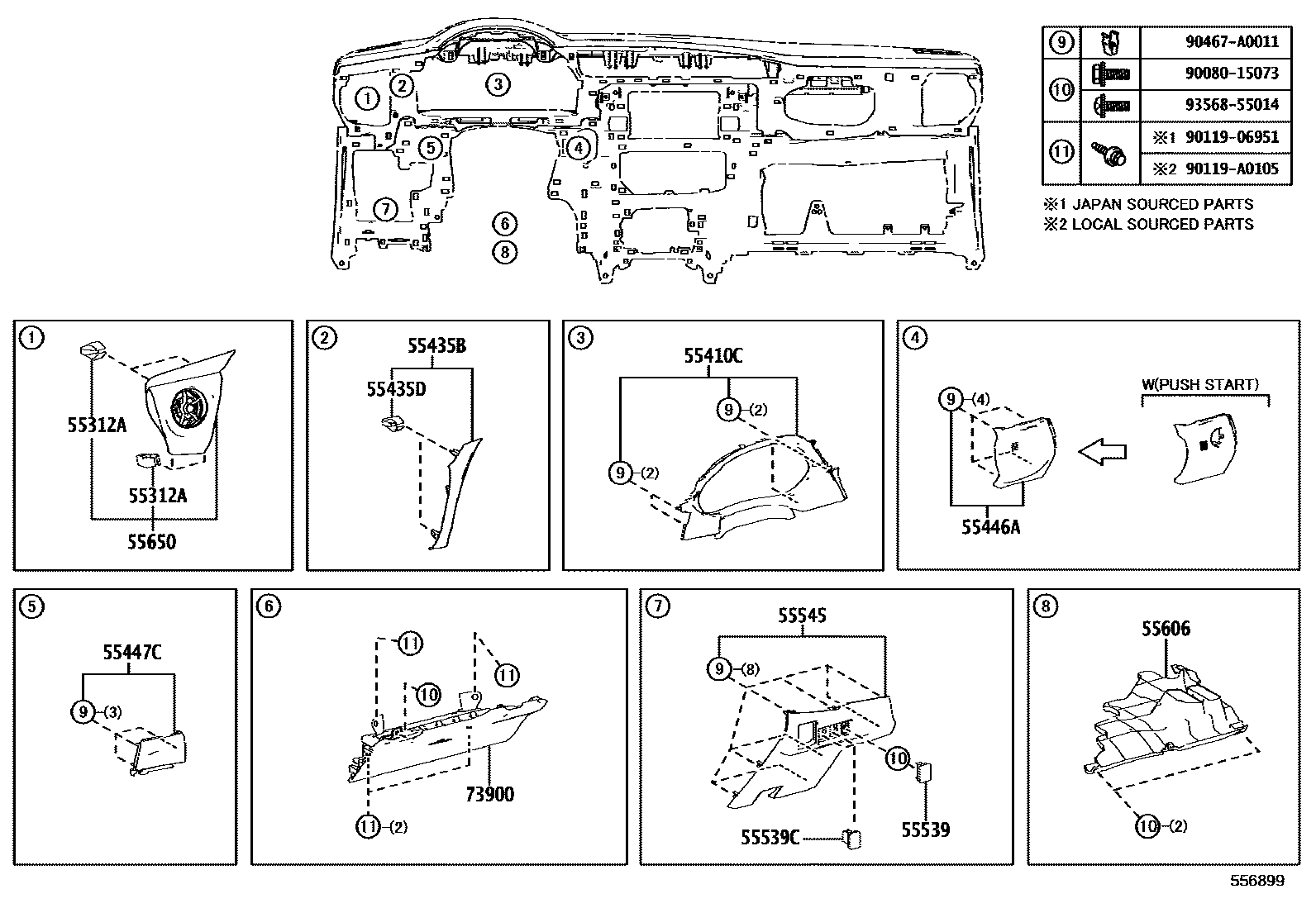

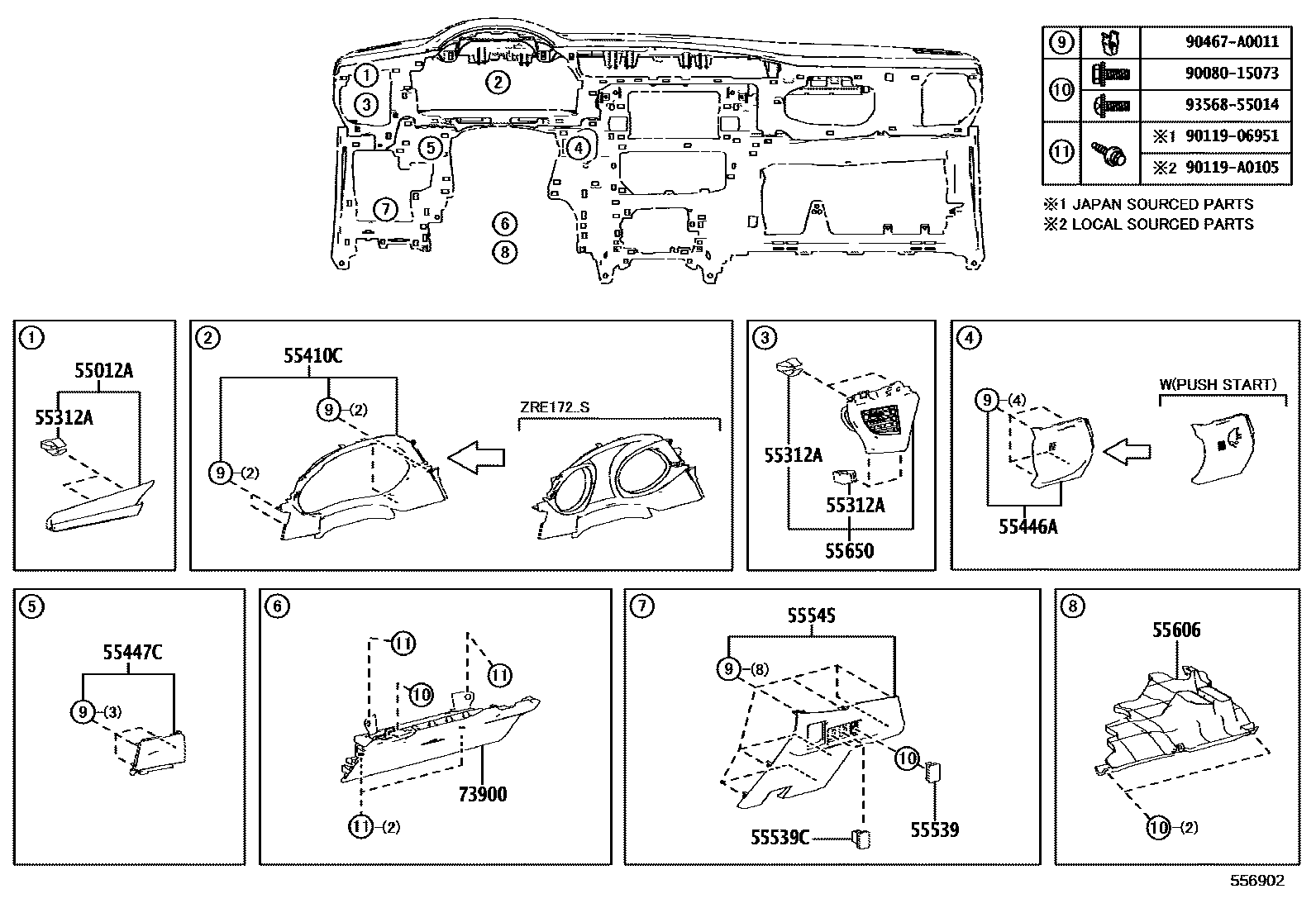

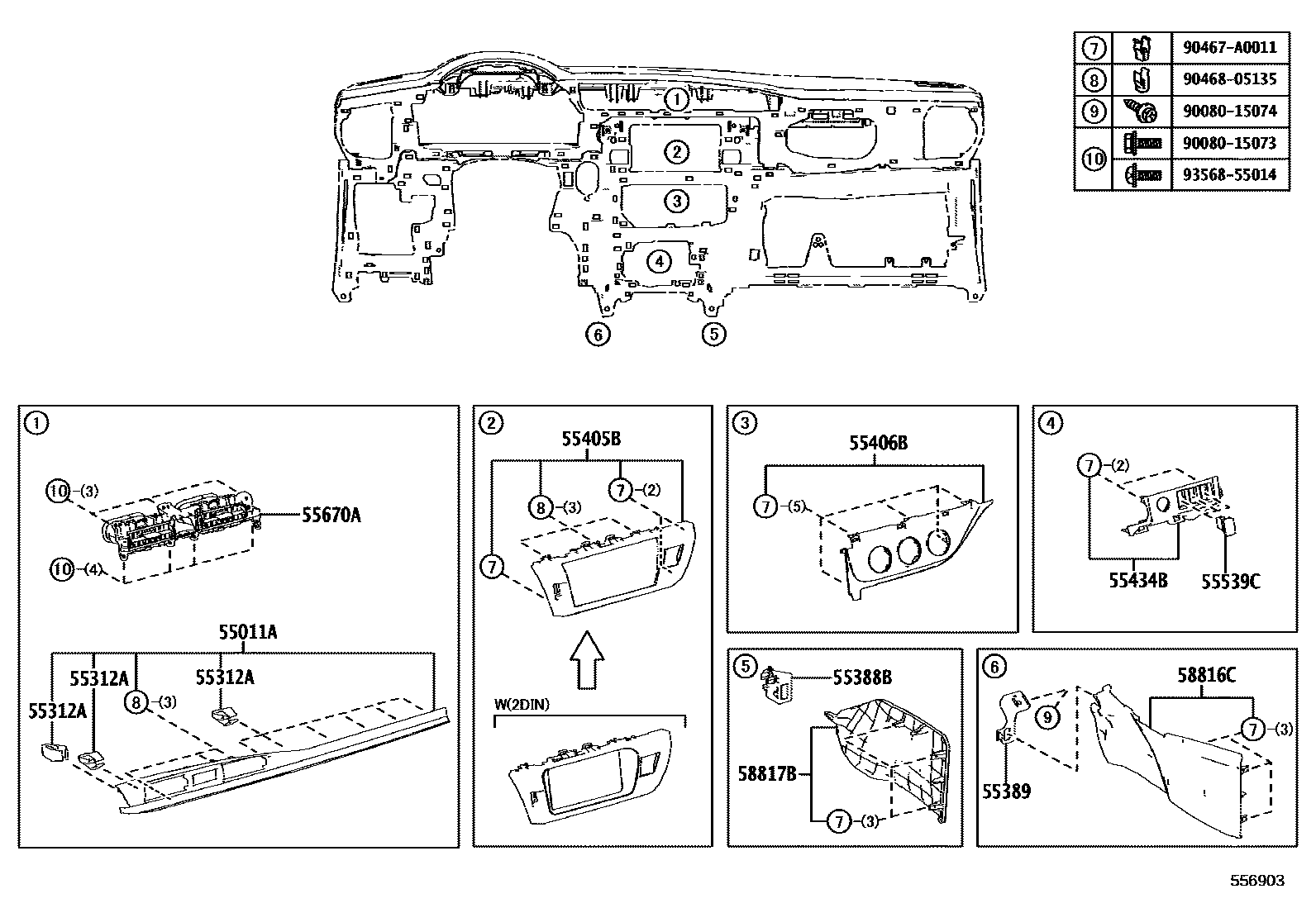

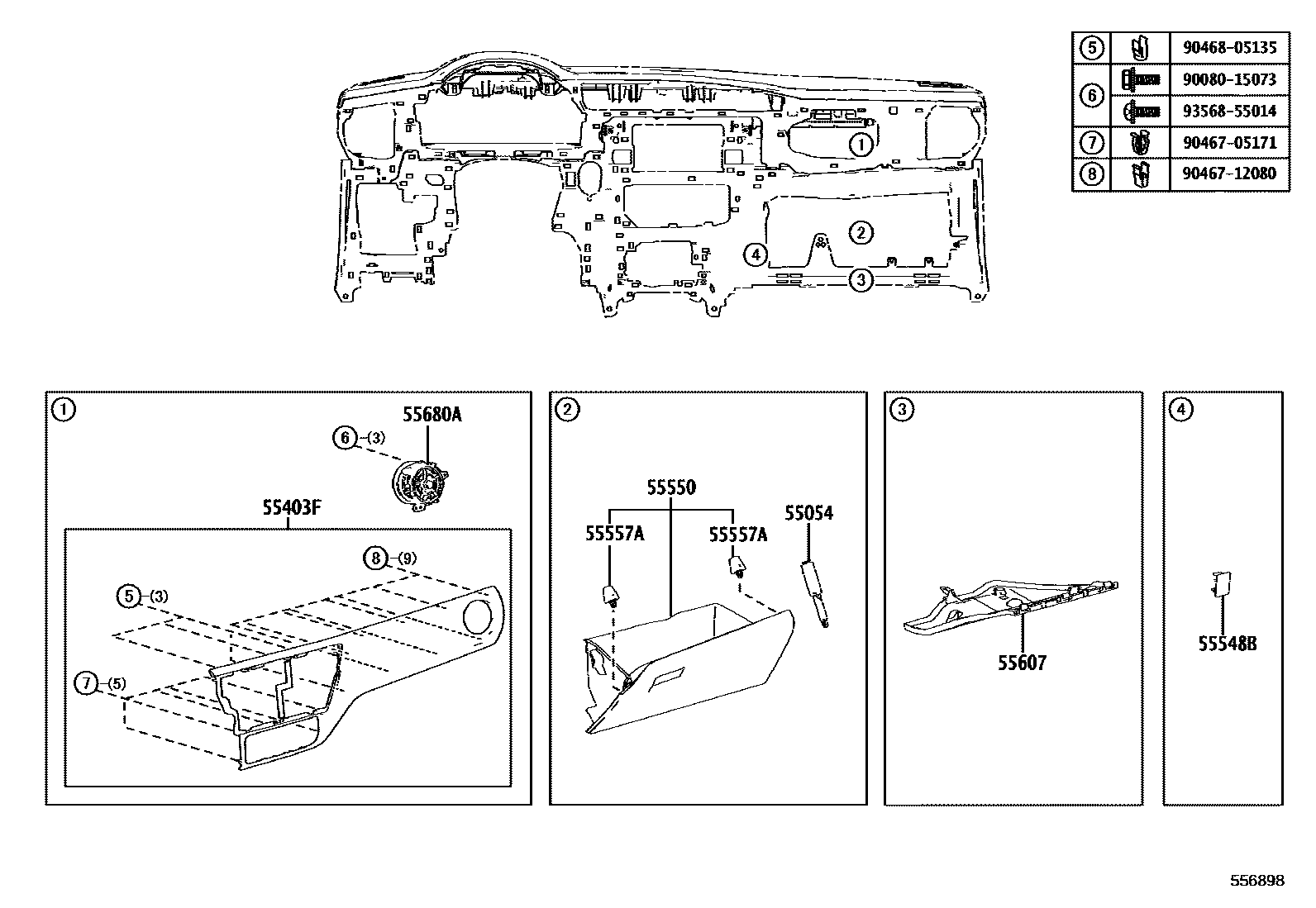

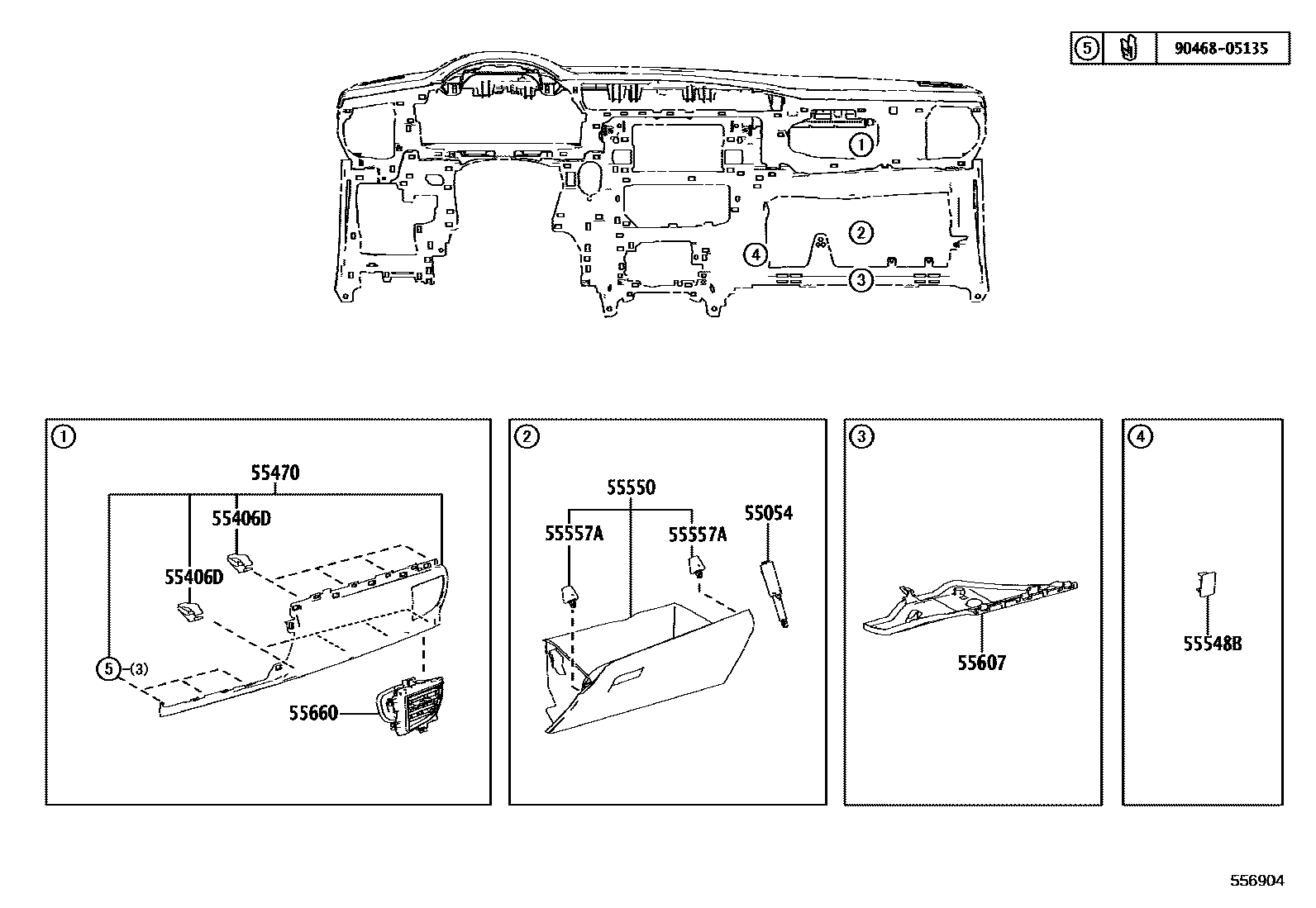

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 11 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02450 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02240 · 55307-02460 |
| 55330B | Instrument panel reinforcement assembly | 55330-02580 · 55330-02630 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02130 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02270 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02220 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-02080 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-02060 |
| 55388B | Mounting bracket on the right side of the console | 55388-02040 |
| 55389 | Console left side mounting bracket | 55389-02040 |
| 55401F | Clip (for safety mat) | 52161-02020 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02B20 · 55405-02E50 · 55405-02E80 |
| 55468D | ARRETOIR, REMBOURRAGE SECURITE TABLEAU DE BORD, CENTRAL | 55468-02050 · 55468-02060 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02230 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02130 |
| 55670A | Instrument panel central air register assembly | 55670-02370 · 55670-02380 · 55670-02490 · 55670-02570 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02170 · 73960-02171 |
