Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 30 PNC and OE references.

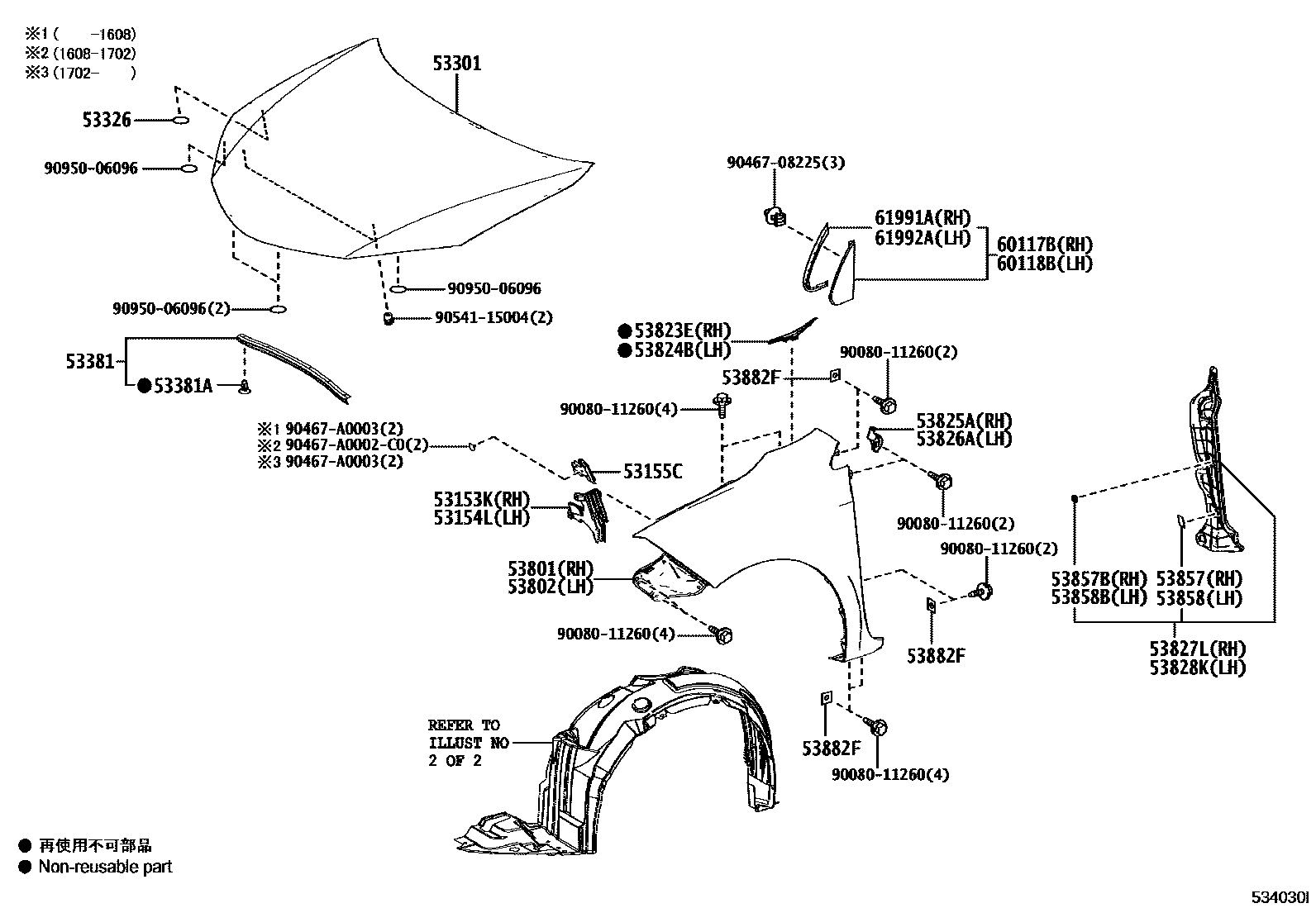

Toyota COROLLA 发动机盖和前翼子板 EPC diagram — 534030I
发动机盖和前翼子板 — 534030I (201308 – 999999)

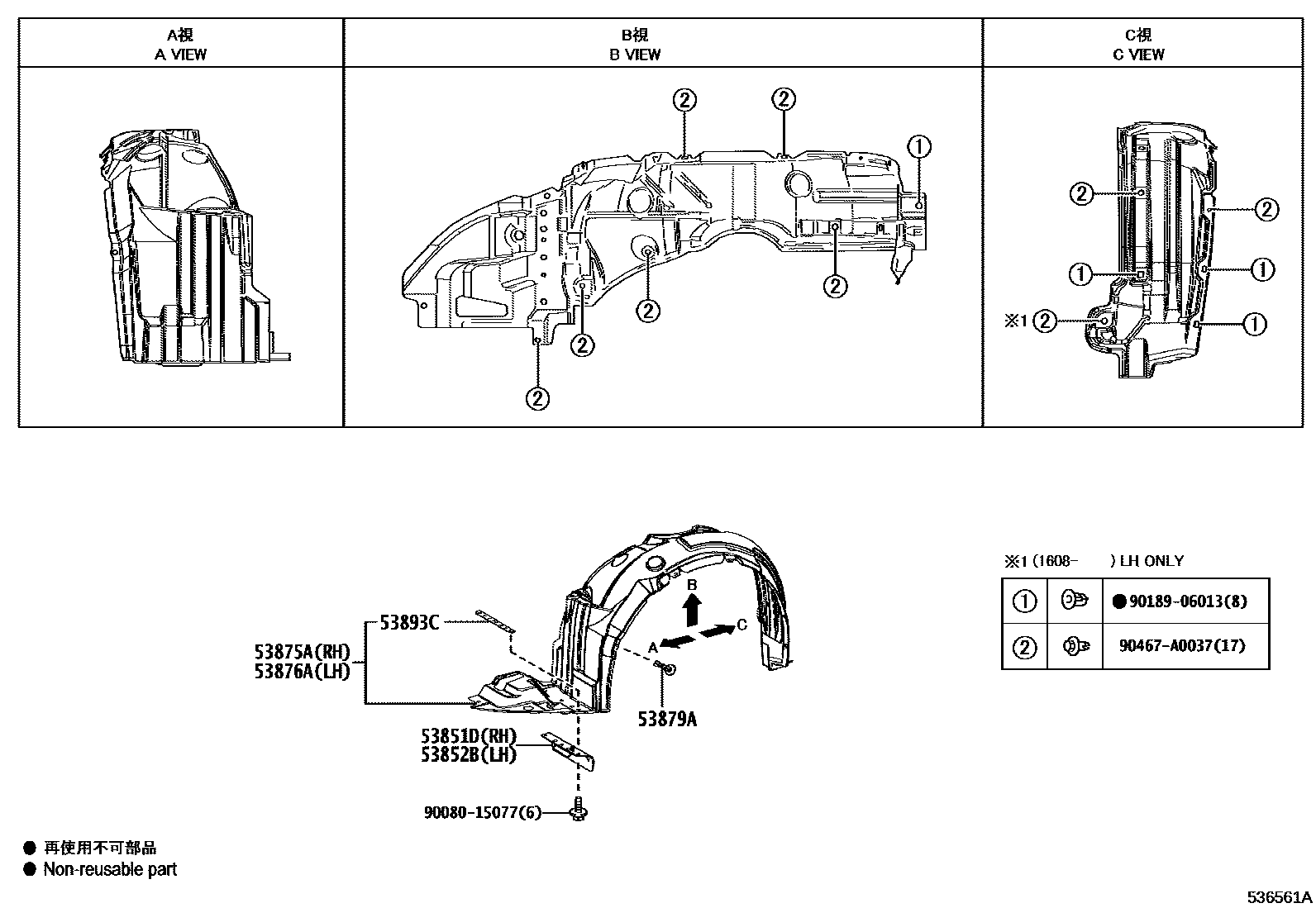

Toyota COROLLA 发动机盖和前翼子板 EPC diagram — 536561A
发动机盖和前翼子板 — 536561A (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
53153KRadiator grille right deflector53153-02020
53154LRadiator grille left deflector53154-02020
53155CRadiator grille seal No. 153155-02040 · 53155-02170
53301Engine cover sub-assembly53301-02270
53326Engine cover protector clip53326-52010 · 90333-30008
53381Engine cover to radiator bracket seal53381-02180
53381AClip (for engine cover to radiator bracket seal)90467-08011
53801Right front fender sub-assembly53801-02180
53802Left front fender sub-assembly53802-02170
53823ENo. 2 right front side panel protector53823-02070
53824BNo. 2 left front side panel protector53824-02070
53825ARight front fender protection piece53825-02100
53826AProtection piece on left front fender53826-02100
53827LRight front fender side panel protector53827-02190
53828KLeft front fender side panel protector53828-02180
53851DRight front fender outer panel pad53851-02140
53852BLeft front fender exterior panel pad53852-02120
53857Right front fender external panel fixing piece53857-12010
53857BRight front fender external panel fixing piece53857-47011
53858Left front fender external panel fixing piece53857-12010
53858BLeft front fender external panel fixing piece53857-47011
53875ARight front fender lining53875-02460 · 53875-02610
53876ALeft front fender lining53876-02480 · 53876-02660
53879AFront fender lining fixing parts47749-08010
53882Ffront fender seal53882-33060
53893CFront fender splash guard front fixings53893-02120
60117BRight front pillar upper cover sub-assembly60117-02120
60118BLeft front pillar upper cover sub-assembly60118-02120
61991ARight front pillar door hinge cover protector61991-02060
61992ALeft front pillar door hinge cover protector61992-02060
