Toyota COROLLA radiator grille — Figure 5301

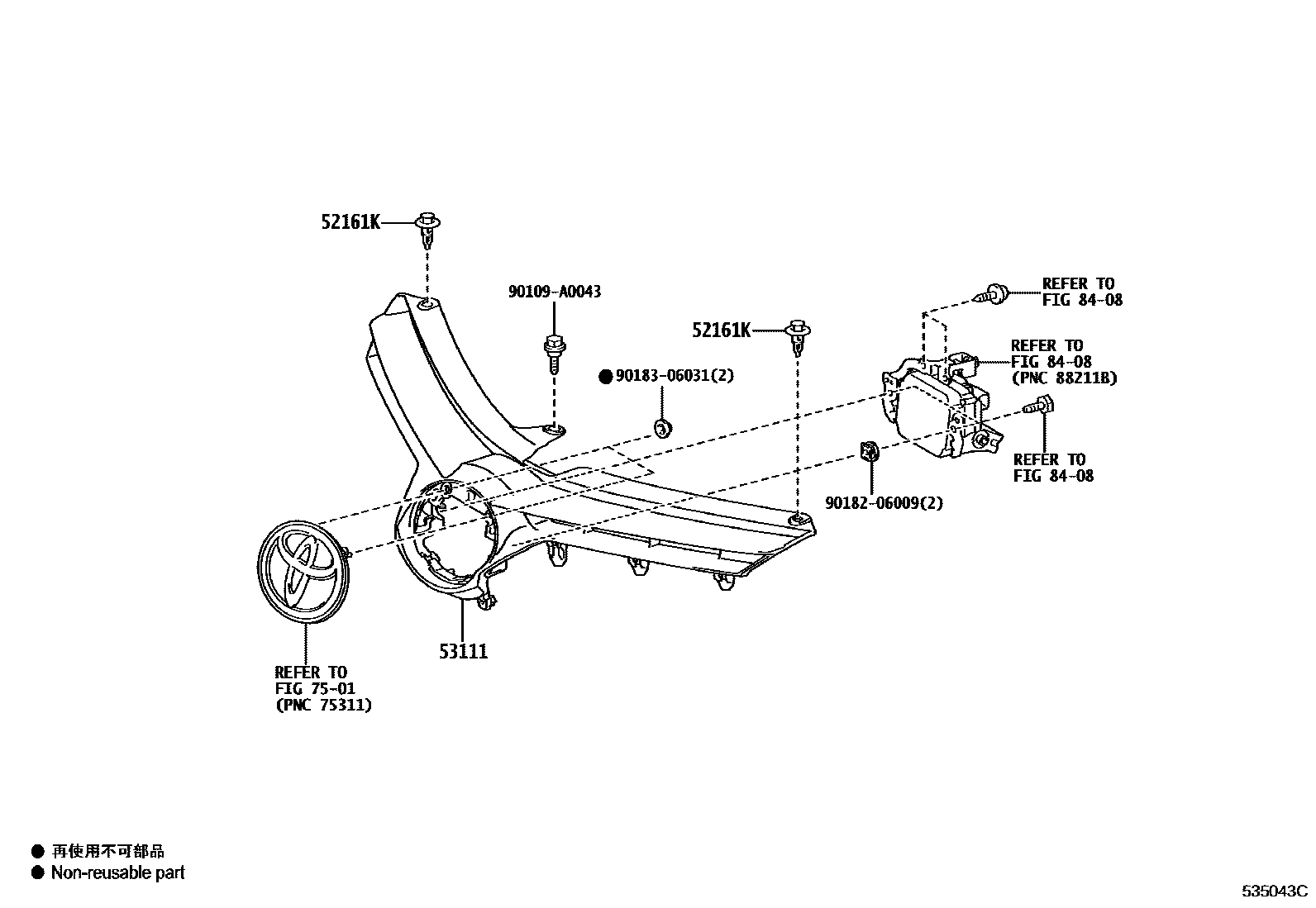

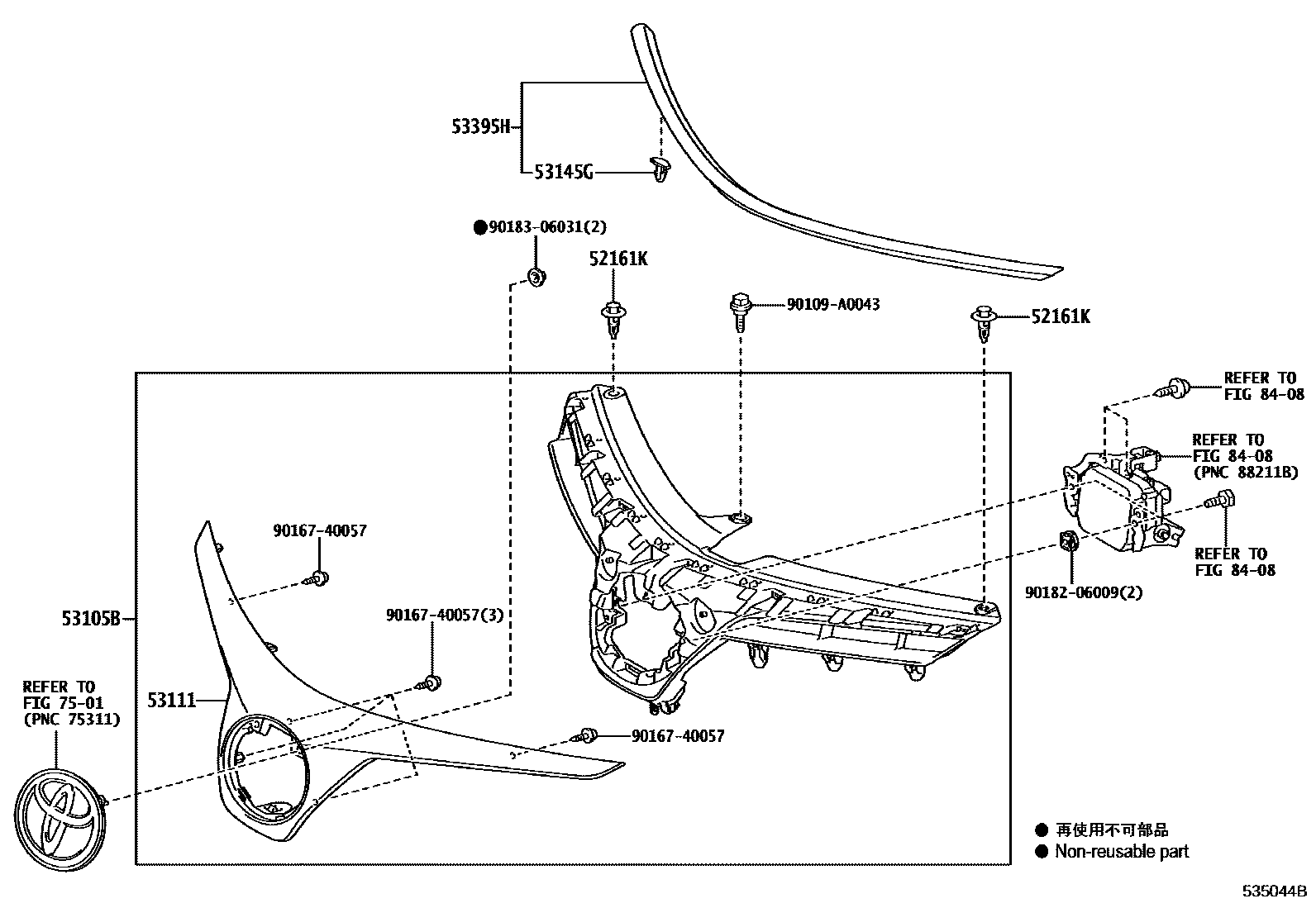

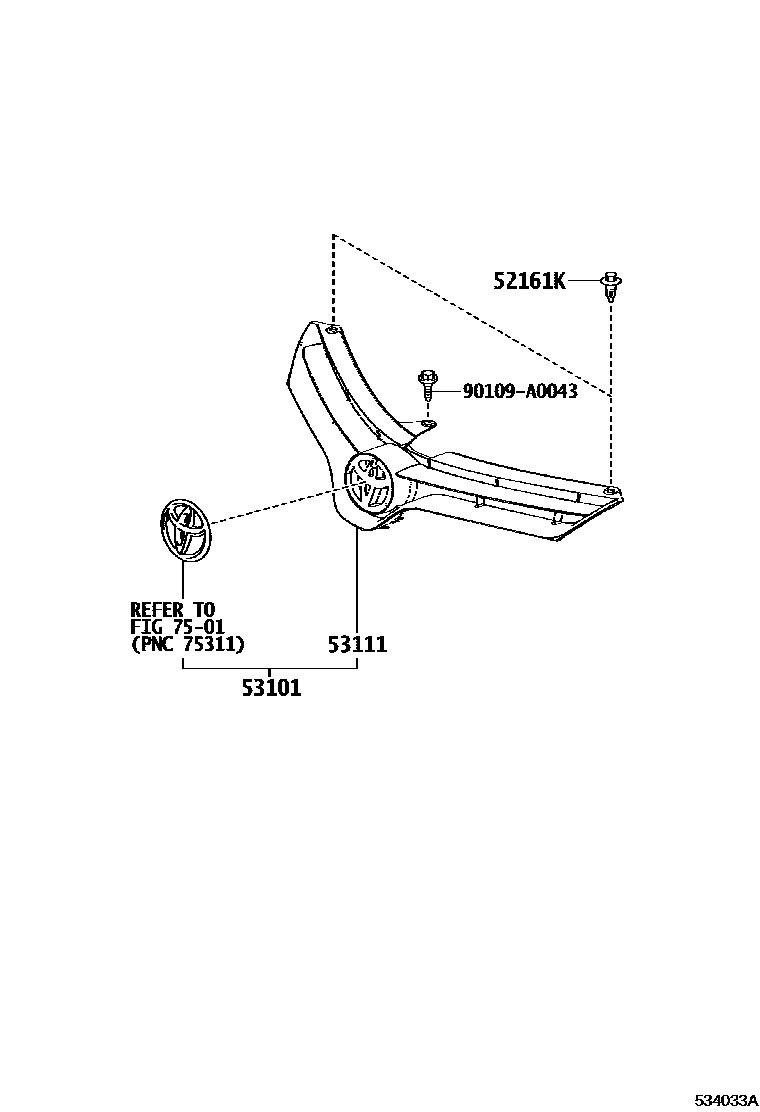

Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-02020 |
| 53101 | Radiator grille sub-assembly | 53100-02560 · 53100-02570 · 53100-02810 |
| 53111 | radiator grille | 53111-02760 · 53111-02770 · 53111-02880 · 53111-02B00 · 53111-02E60 |
| 53145G | Radiator grille clip | 53145-60030 |
| 53395H | Engine cover to radiator grille seal | 53395-02210 |
