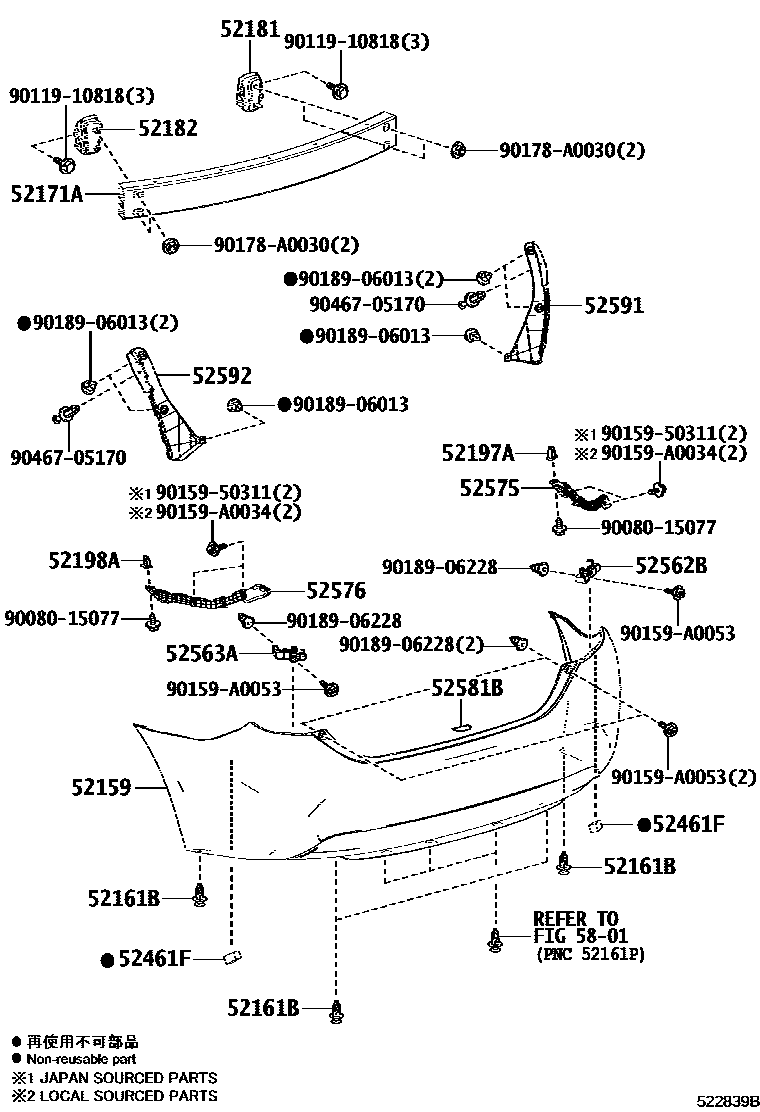

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-03901 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-02230 |
| 52181 | Rear bumper right arm | 52181-02160 |
| 52182 | Rear bumper left arm | 52182-02130 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52198A | Rear bumper left seal support | 52197-22020 |
| 52461F | rear bumper lining | 52462-02150 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02210 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02210 |
| 52575 | Rear bumper right side fixing bracket | 52575-02110 |
| 52576 | Rear bumper left side fixing bracket | 52576-02110 |
| 52581B | rear bumper protector | 52581-02020 |
| 52591 | Rear bumper right seal | 52591-02270 · 52591-02271 |
| 52592 | Rear bumper left seal | 52592-02260 · 52592-02261 |
