Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 23 PNC and OE references.

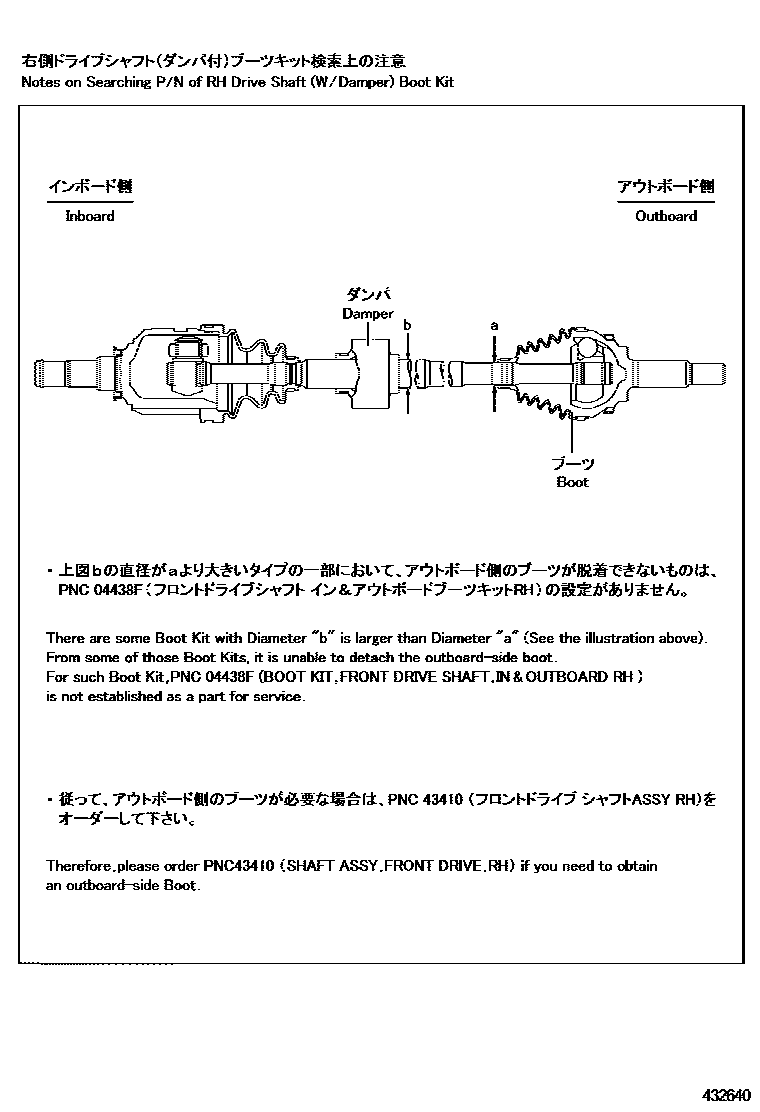

Toyota COROLLA Front Drive Shaft EPC diagram — 432640
Front Drive Shaft — 432640 (201308 – 999999)

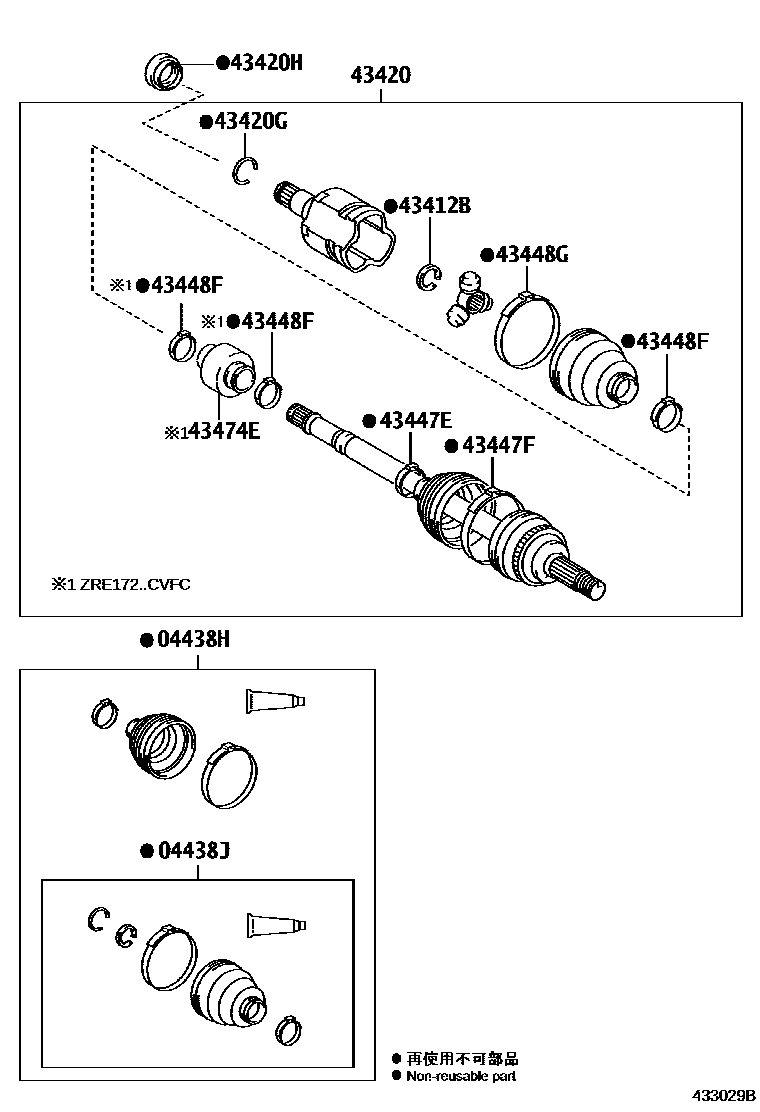

Toyota COROLLA Front Drive Shaft EPC diagram — 433029B
Front Drive Shaft — 433029B (201308 – 999999)

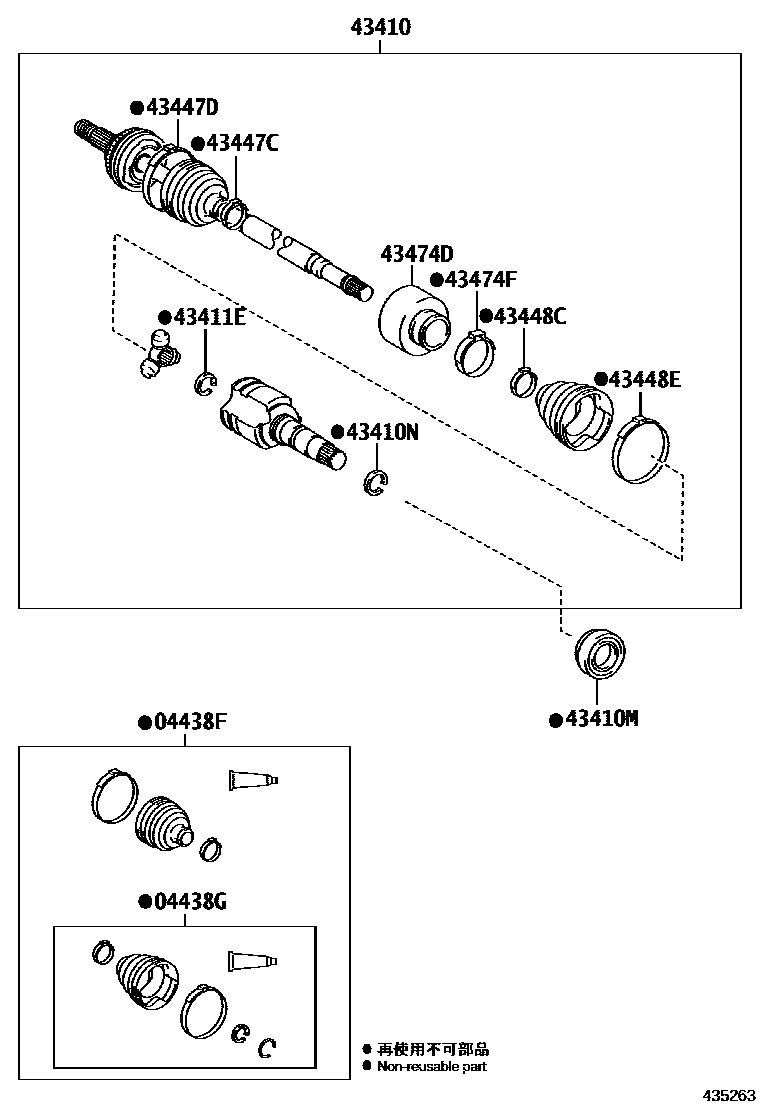

Toyota COROLLA Front Drive Shaft EPC diagram — 435263
Front Drive Shaft — 435263 (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-01080
04438GRight front drive shaft inner universal joint dust boot assembly04437-01020
04438HLeft front driveshaft inboard and outboard dust boot assembly04427-01090 · 04428-02610
04438JLeft front drive shaft inner universal joint dust boot assembly04437-01020
43410Right front driveshaft assembly43410-02A01 · 43410-02A02 · 43410-02A03
43410MJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD90311-35055 · 90311-35065 · 90311-35069 · 90311-35076
43410NHole snap ring (for right front driveshaft)43425-01030
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-01040
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-01040
43420Left front drive shaft assembly43420-02B10 · 43420-02B11 · 43420-02B12 · 43420-02B60 · 43420-02B61 · 43420-02B62
43420GHole snap ring (for left front driveshaft)43425-01030
43420HJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG90311-35066 · 90311-35068 · 90311-35075 · 90311-35080
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-0R080
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-0R070
43447EClamp (for left front axle outer universal joint dust cover)42345-0R080
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-0R070
43448CClamp (for the universal joint dust cover inside the right front axle)42345-01040
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-01030
43448FClamp (for left front axle inner universal joint dust cover)42345-01040
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-01030
43474DRight front driveshaft shock absorber43474-01021
43474ELeft front driveshaft shock absorber43474-02430
43474FClamp (for right front driveshaft shock absorber)42345-02871
