Toyota COROLLA 车轮和车轮盖 — Figure 4103

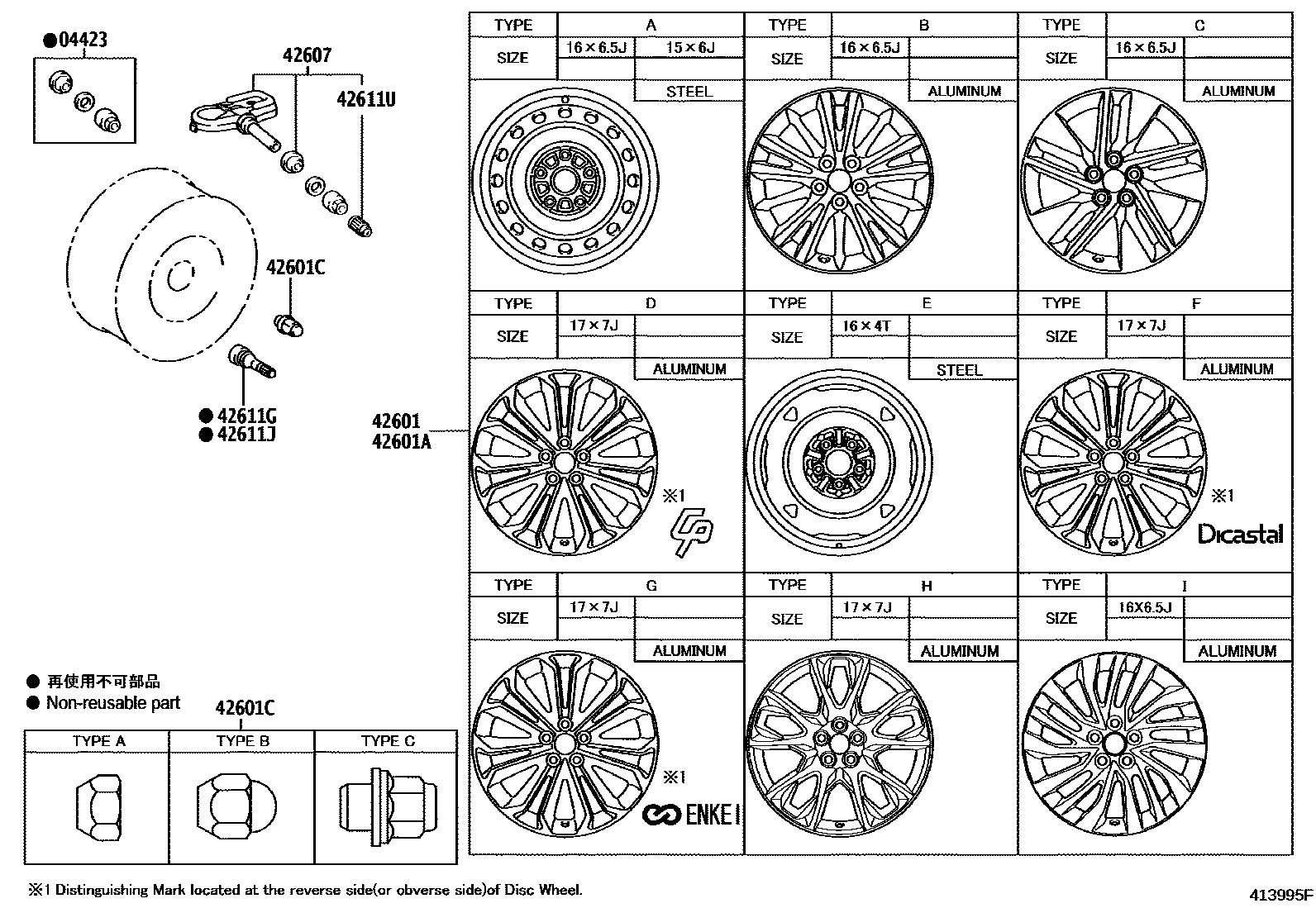

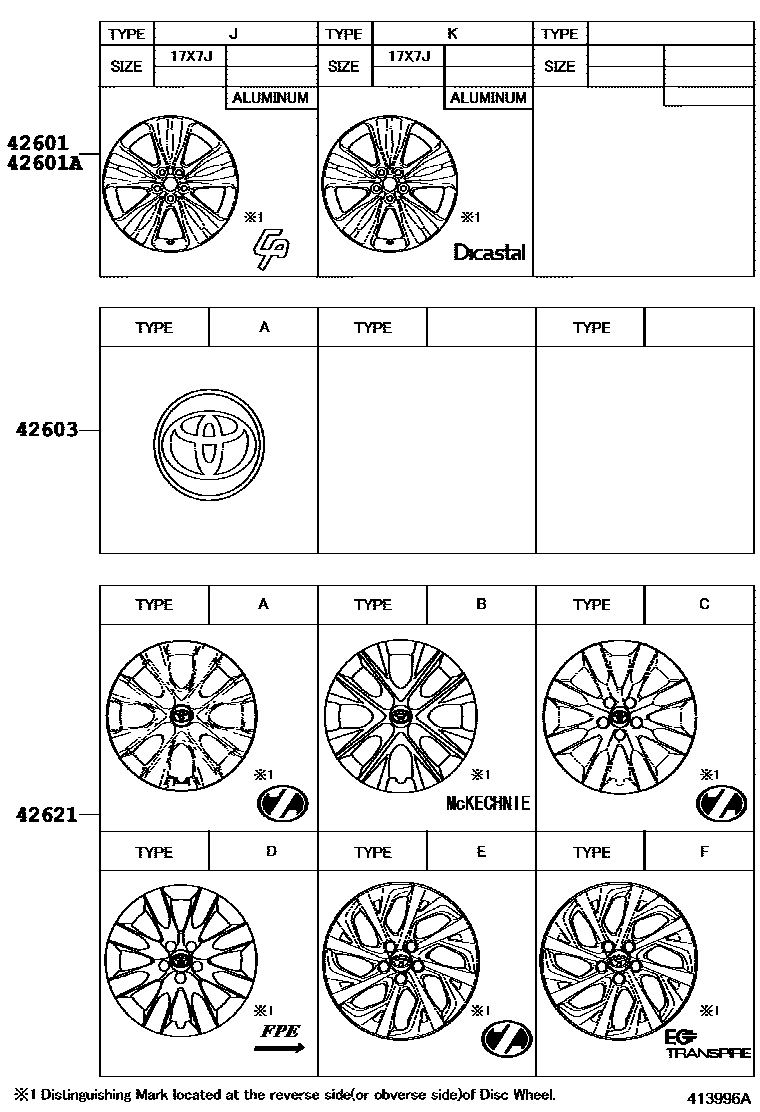

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0E010 |
| 42601 | spoke wheel | 42611-02880 · 42611-02A00 · 42611-02F70 · 42611-02F80 · 42611-02G20 · 42611-02J20 · 42611-02L30 · 42611-02L70 · 42611-02M50 · 42611-02M90 · 42611-02N00 · 42611-02N10 · 42611-02P80 · 42611-YY650 |
| 42601A | Spoke wheel (for spare tire) | 42611-02480 · 42611-02L70 |
| 42601C | Hub nut (for axle) | 90084-94001 · 90942-01007 · 90942-01021 · 90942-01082 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02220 · 42603-12780 · 42603-52170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06020 |
| 42611G | Valve (for tubeless tires) | 90080-45001 · 90080-45006 |
| 42611J | Valve (for tubeless spare tire) | 90080-45001 · 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 |
| 42621 | wheel cover | 42602-02350 · 42602-02360 · 42602-02420 · 42602-02430 · 42602-02520 · 42602-02530 |
