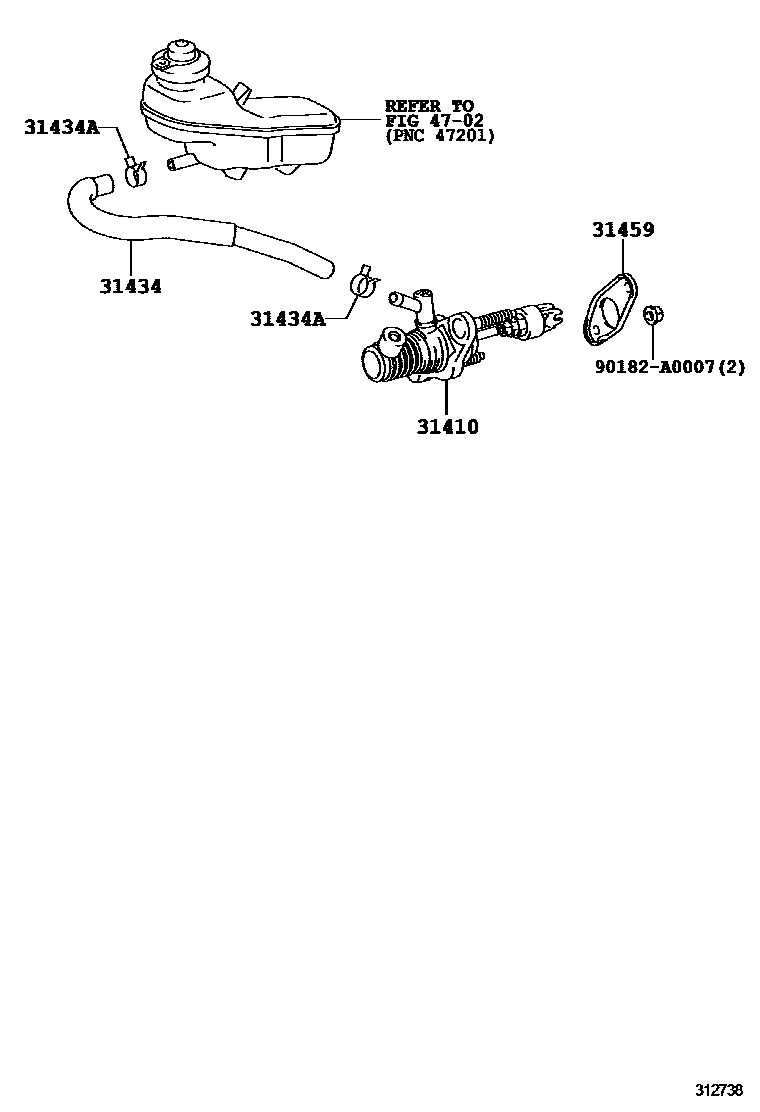

Toyota COROLLA 离合器总泵 — Figure 3103
Toyota COROLLA EPC diagram 3103, 离合器总泵, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-12030 |
| 31434 | Clutch reservoir connecting pipe | 31434-02060 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 90466-A0013 |
| 31459 | Clutch master cylinder bracket | 31459-42040 |
