Toyota COROLLA 燃油喷射系统 — Figure 2211

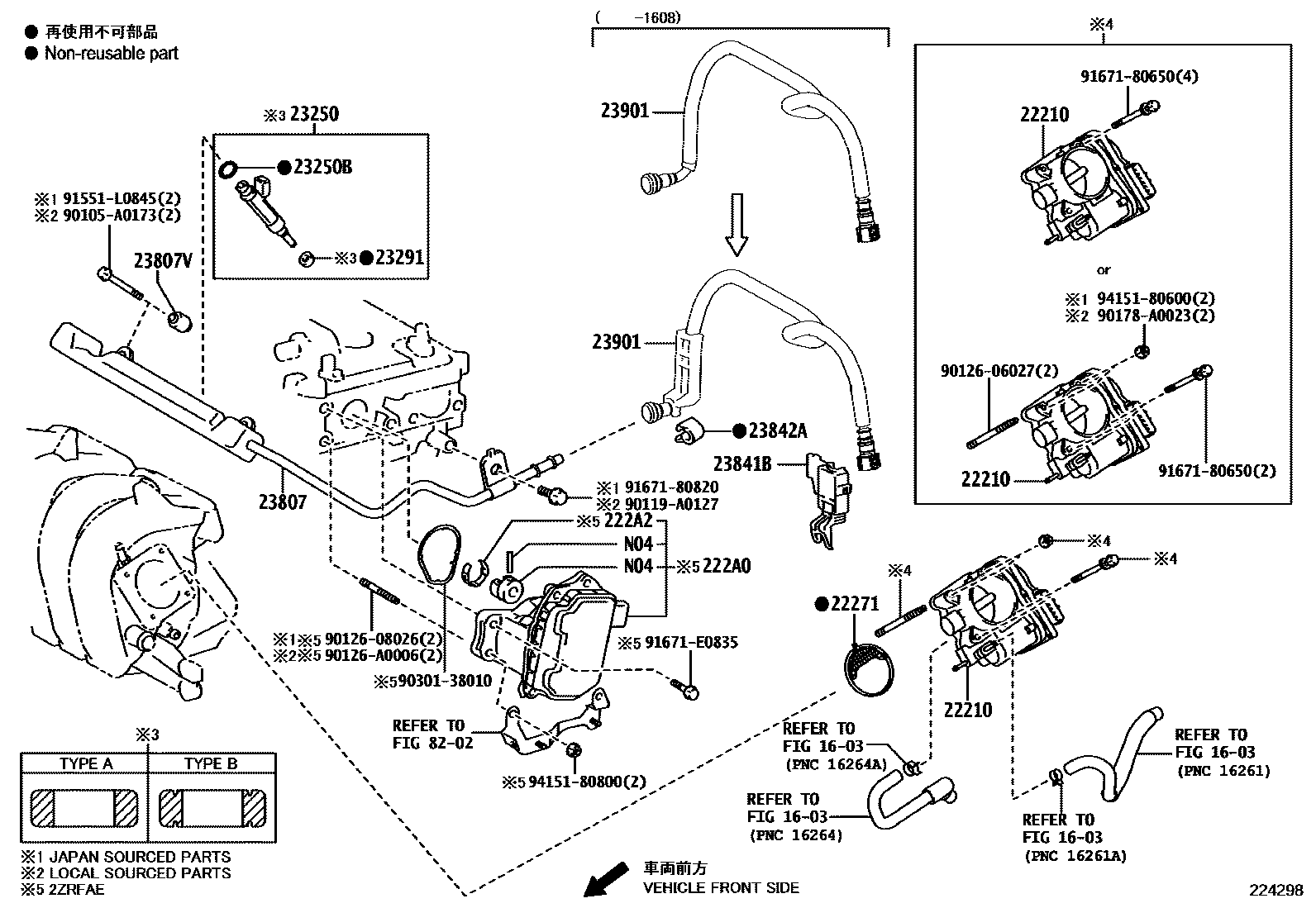

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22030-0T080 · 22030-37050 |
| 22271 | Throttle body gasket | 22271-0D051 · 22271-75031 |
| 222A0 | Continuously variable valve lift controller assembly | 222A0-37019 · 222A0-37020 · 222A0-37021 · 222A0-37022 · 222A0-37023 · 222A0-37024 |
| 222A2 | Valve lifter control actuator connector clip | 222A2-37011 |
| 23250 | Fuel injector assembly | 23209-09140 · 23209-09240 · 23209-39145 · 23209-39146 · 23209-39235 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-A0036 |
| 23291 | Injector vibration isolation pad | 23291-23010 · 23291-28020 |
| 23807 | Oil pipe sub-assembly | 23814-37051 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0T030 · 23841-0T031 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-0T030 |
| 23901 | Fuel pipe sub-assembly | 23901-0T120 · 23901-0T240 |
