Toyota COROLLA 起动机 — Figure 1904

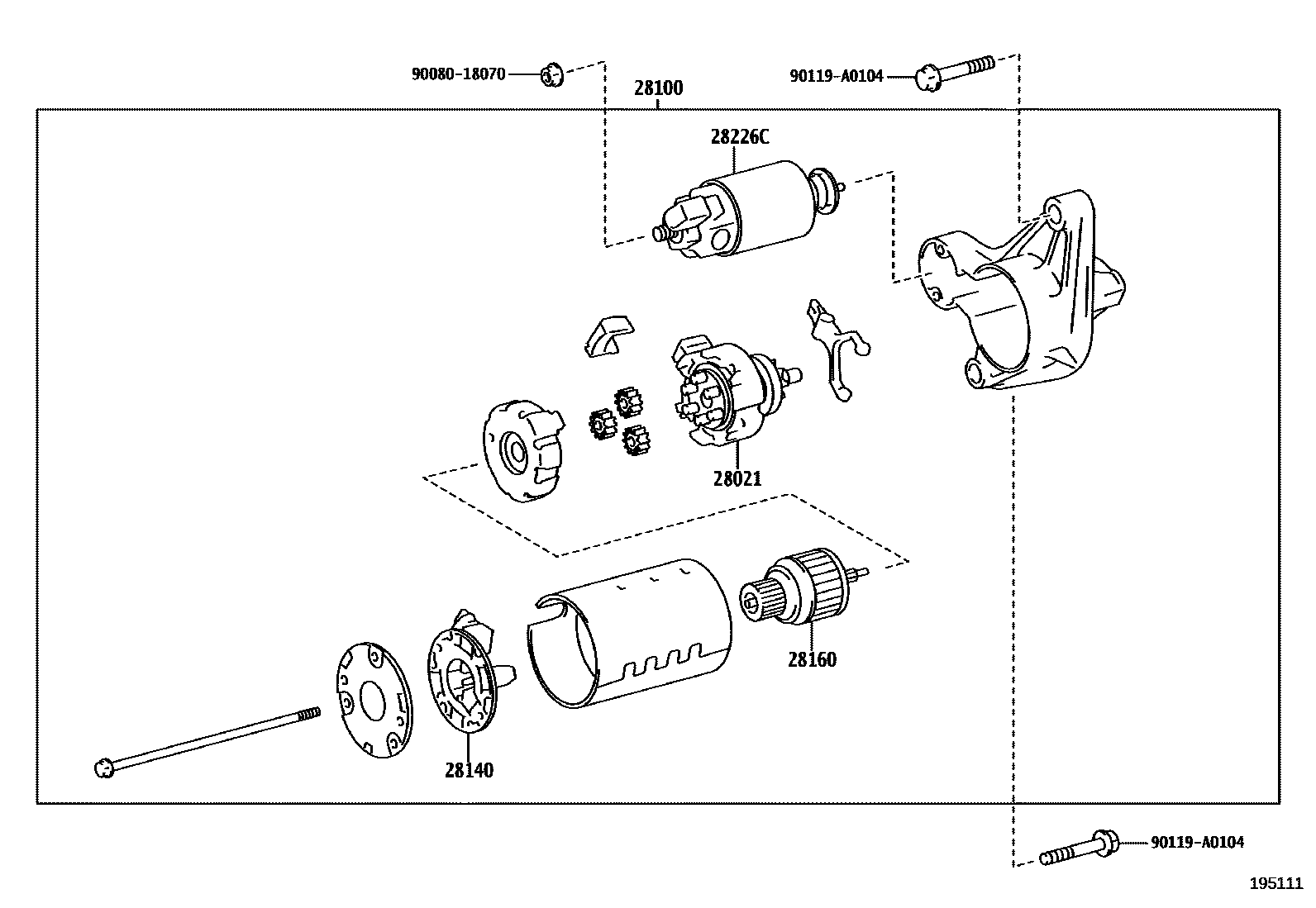

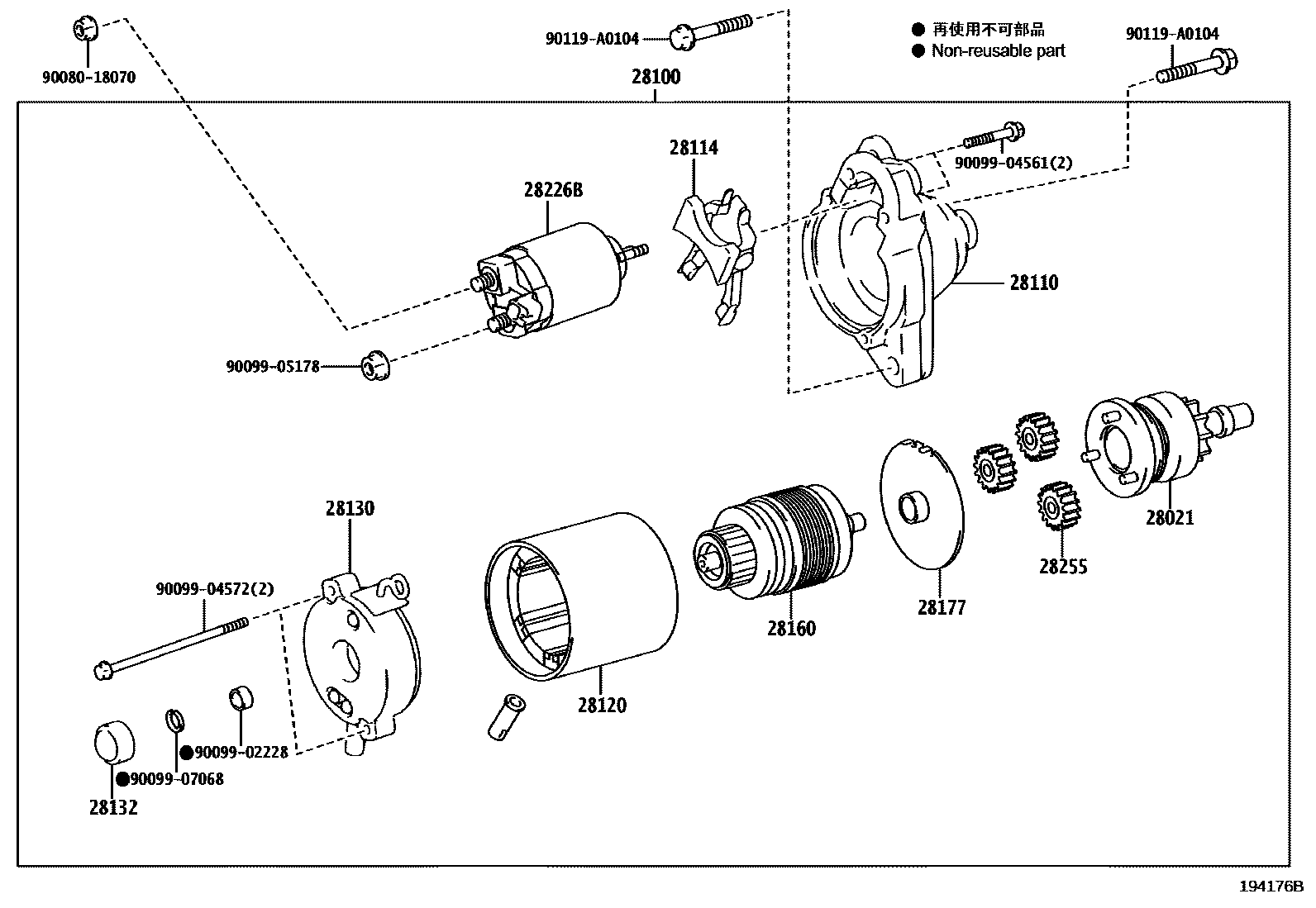

Toyota COROLLA EPC diagram 1904, 起动机, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-21060 · 28021-47170 |
| 28100 | Starter assembly | 28100-0T260 · 28100-0T290 · 28100-0T340 |
| 28110 | Starter drive end housing assembly | 28110-37040 |
| 28114 | starter drive lever | 28114-21060 |
| 28120 | Starter yoke assembly | 28120-28060 · 28120-28080 |
| 28130 | Starter commutator end frame assembly | 28130-37120 |
| 28132 | Starter bearing cap (for drive end housing) | 28132-28040 |
| 28140 | Starter brush holder assembly | 28140-21070 |
| 28160 | Starter armature assembly | 28160-21060 · 28160-21080 |
| 28177 | Plate (for starter armature) | 28177-28040 |
| 28226B | starter magnetic switch | 28226-37120 · 28226-47170 |
| 28226C | No. 2 starter magnetic switch | 28226-0T340 · 28226-37130 |
| 28255 | Planetary gear | 28255-28040 |
