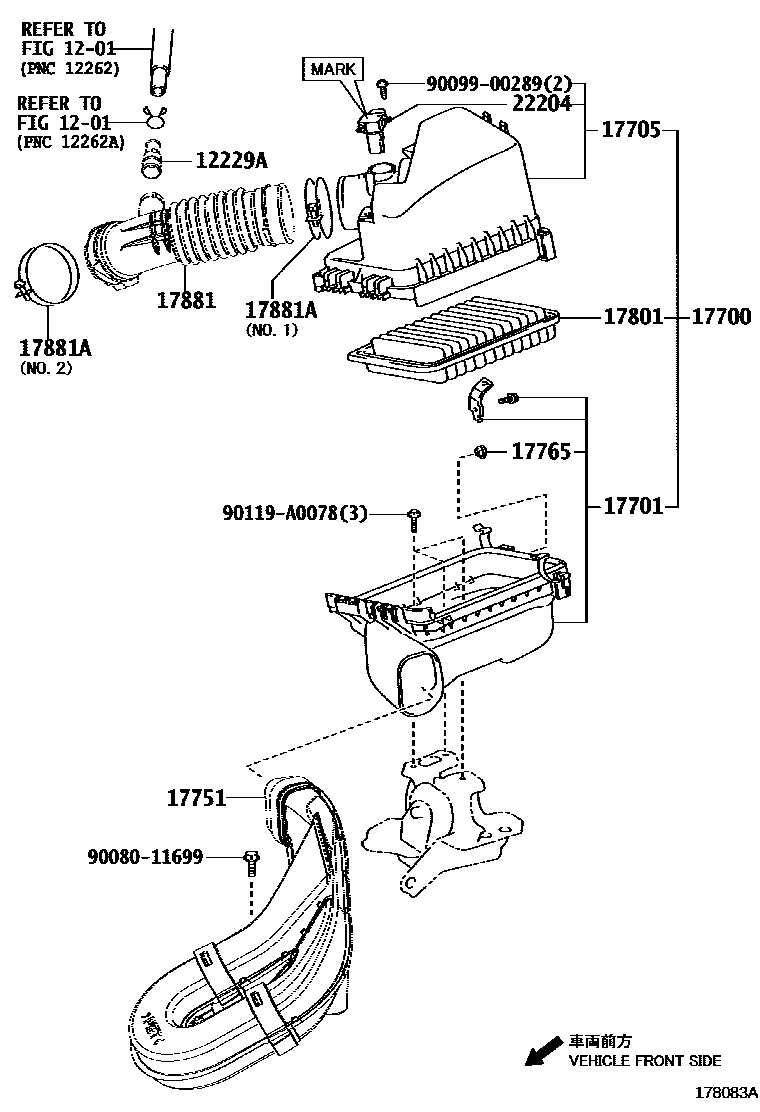

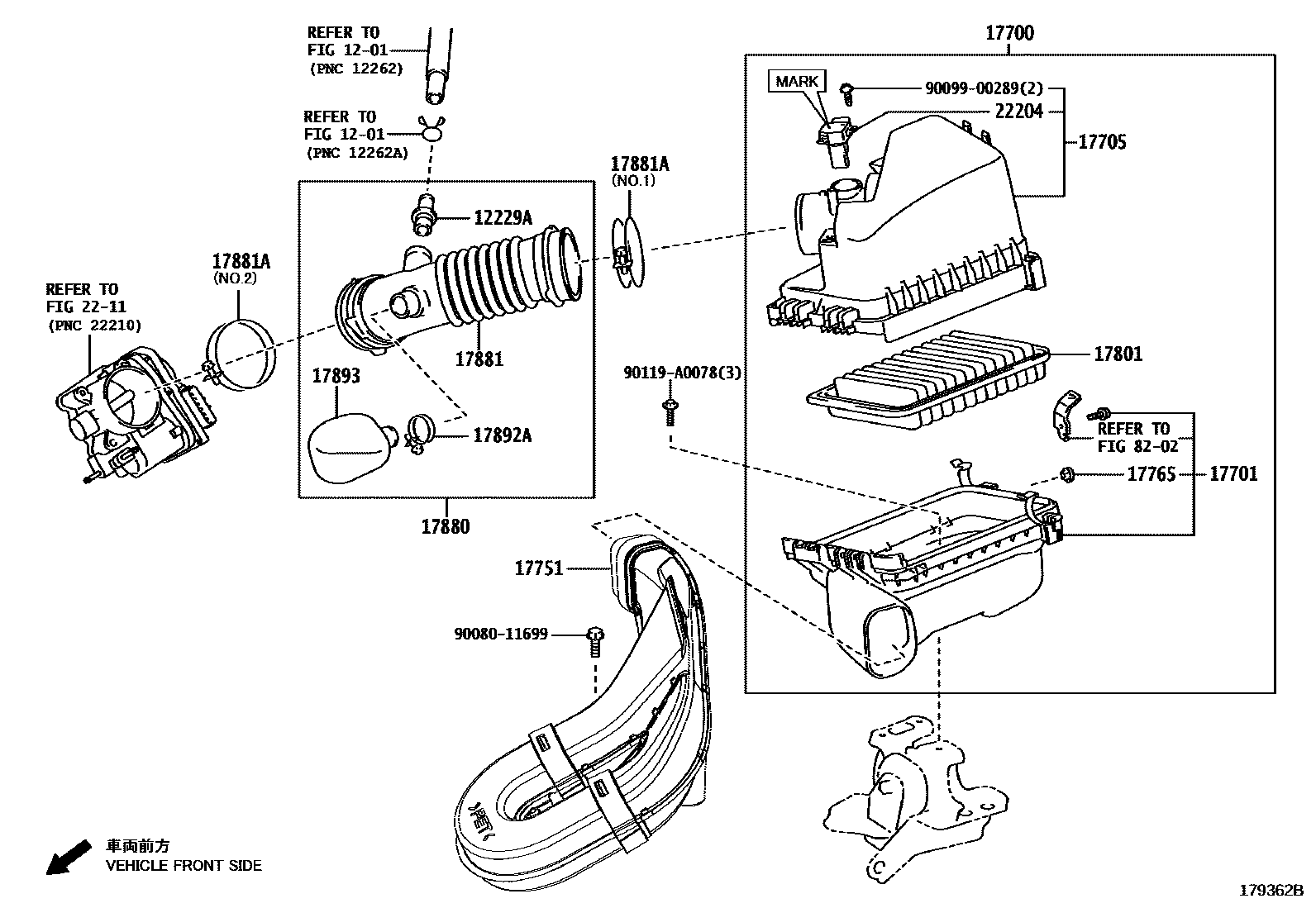

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-0T030 |
| 17700 | air filter assembly | 17700-0T043 |
| 17701 | Air filter housing sub-assembly | 17701-0T040 |
| 17705 | Air filter cover sub-assembly | 17705-0T043 |
| 17751 | No. 1 air filter air inlet | 17751-0T130 · 17751-0T210 |
| 17765 | No. 1 air filter stay | 17706-22010 |
| 17801 | Air filter element sub-assembly | 17801-0T030 |
| 17880 | Air cleaner hose assembly | 17880-37120 |
| 17881 | No. 1 air cleaner hose | 17881-0T080 · 17881-0T480 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10750 · 96111-10780 |
| 17892A | Clamp (for intake resonator hose) | 96111-10400 |
| 17893 | Intake resonator | 17893-0T110 · 17893-37090 |
| 22204 | Intake air flow meter assembly | 22204-0V010 · 22204-0V020 · 22204-28010 |
