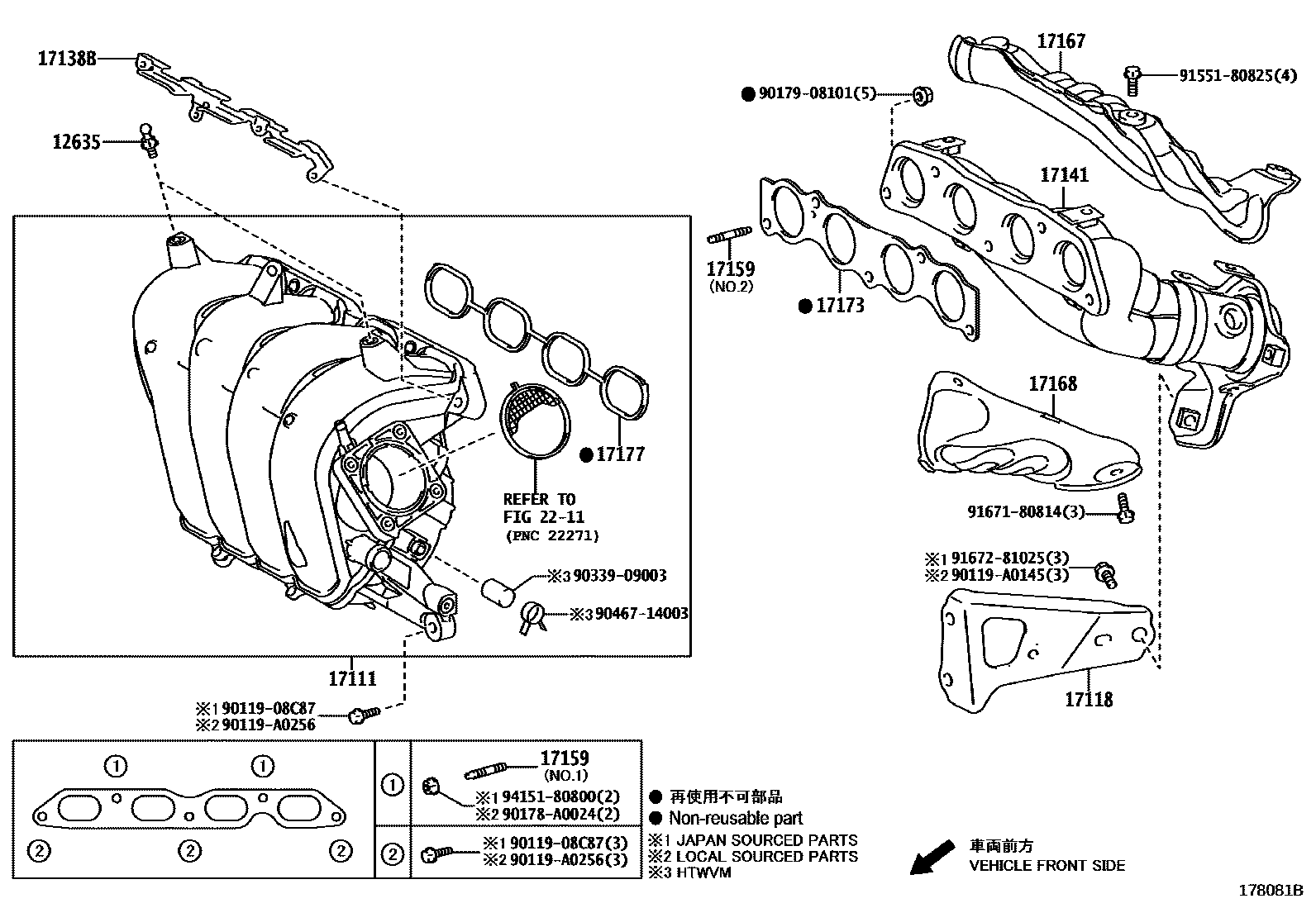

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12635 | hood connector | 90109-06385 |
| 17111 | Intake Manifold | 17120-0T012 · 17120-0T080 · 17120-37022 · 17120-37031 |
| 17118 | Manifold stays | 17118-0T060 · 17118-37010 |
| 17138B | Intake manifold stay | 17138-0T010 · 17138-0T011 · 17138-37011 |
| 17141 | exhaust manifold | 17141-0T080 · 17141-37130 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08052 · 90126-A0006 · 90126-A0019 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0T060 · 17167-37110 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0T090 · 17168-37100 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0T030 · 17173-37010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0T020 · 17177-37030 |
