Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 12 PNC and OE references.

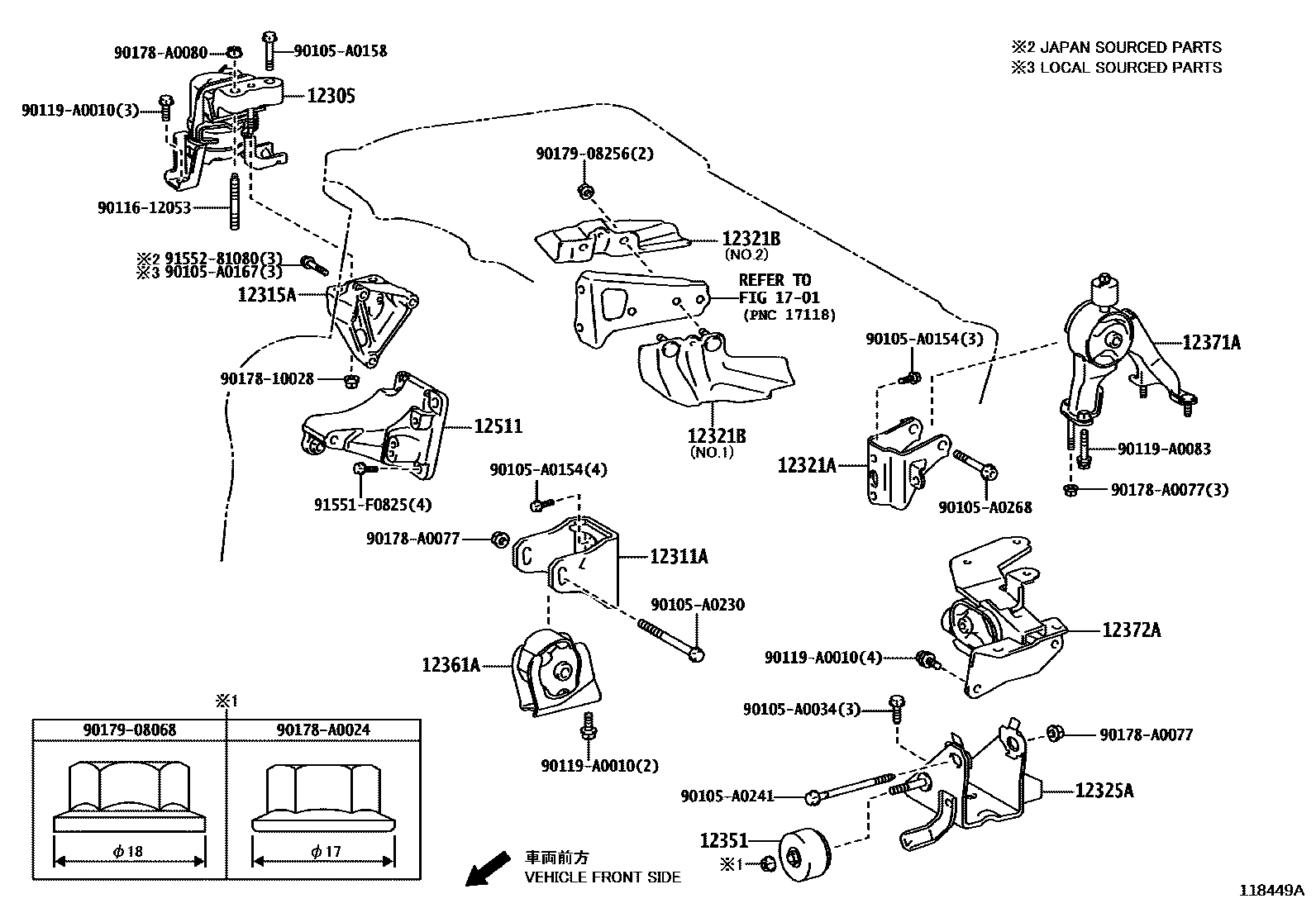

Toyota COROLLA Engine Mounting EPC diagram — 118449A
Engine Mounting — 118449A (201308 – 999999)

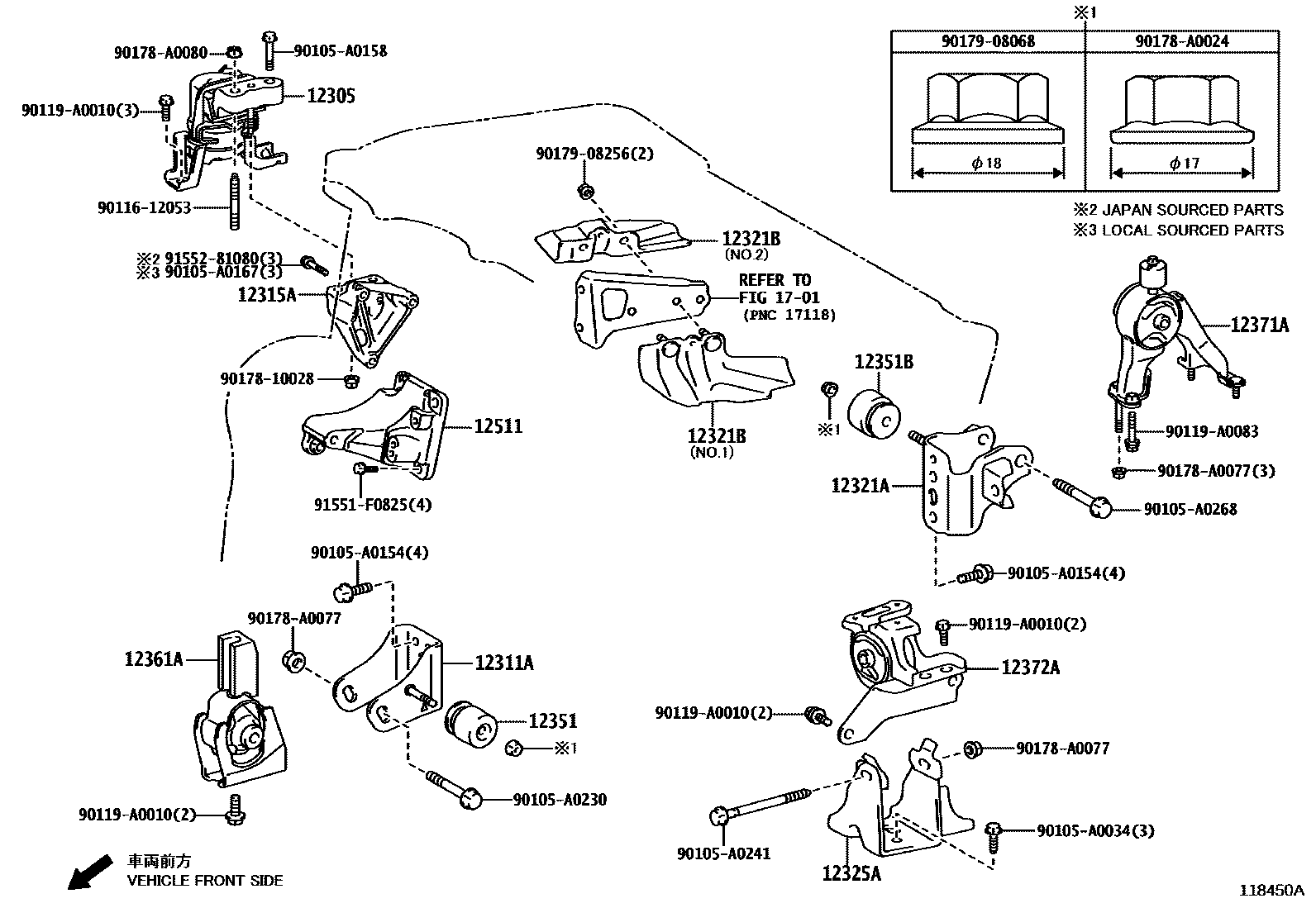

Toyota COROLLA Engine Mounting EPC diagram — 118450A
Engine Mounting — 118450A (201308 – 999999)

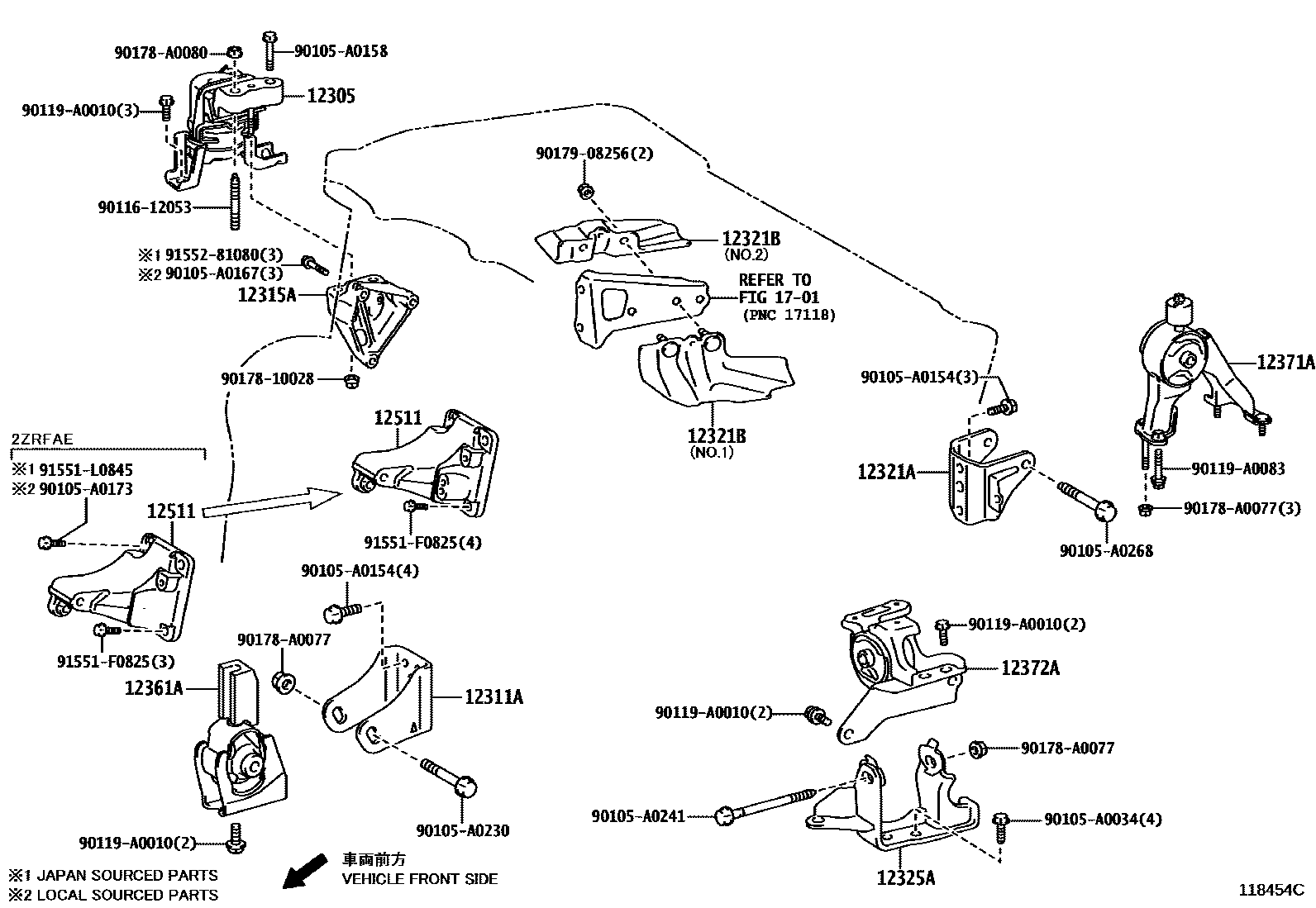

Toyota COROLLA Engine Mounting EPC diagram — 118454C
Engine Mounting — 118454C (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
12305Engine right side mounting vibration isolation pad sub-assembly12305-0T170 · 12305-0T171
12311AEngine front mounting bracket (for transverse engine)12311-0T360 · 12311-0T370 · 12311-0T380
12315AEngine right side mounting bracket (for transversely mounted engine)12315-0T040 · 12315-37030
12321ARear engine mounting bracket (for transverse engine)12321-0T070 · 12321-0T410 · 12321-0T420
12321BDrive shaft heat insulation pad sub-assembly43409-02010 · 43498-02020
12325AEngine left side mounting bracket (for transversely mounted engine)12325-0T080 · 12325-0T360 · 12325-0T370
12351engine mount shock absorber12351-26010 · 12351-37120
12351Bengine mount shock absorber12351-37120
12361AEngine front mounting vibration isolation pad (for transversely mounted engine)12361-0T210 · 12361-0T220 · 12361-0T230
12371AEngine rear mount vibration isolation pad12371-0T260 · 12371-0T270 · 12371-0T280
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-0T060 · 12372-0T330 · 12372-0T340
12511No. 1 generator bracket12501-0T040 · 12501-37010 · 12511-0T030 · 12511-37010
