Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 2 PNC and OE references.

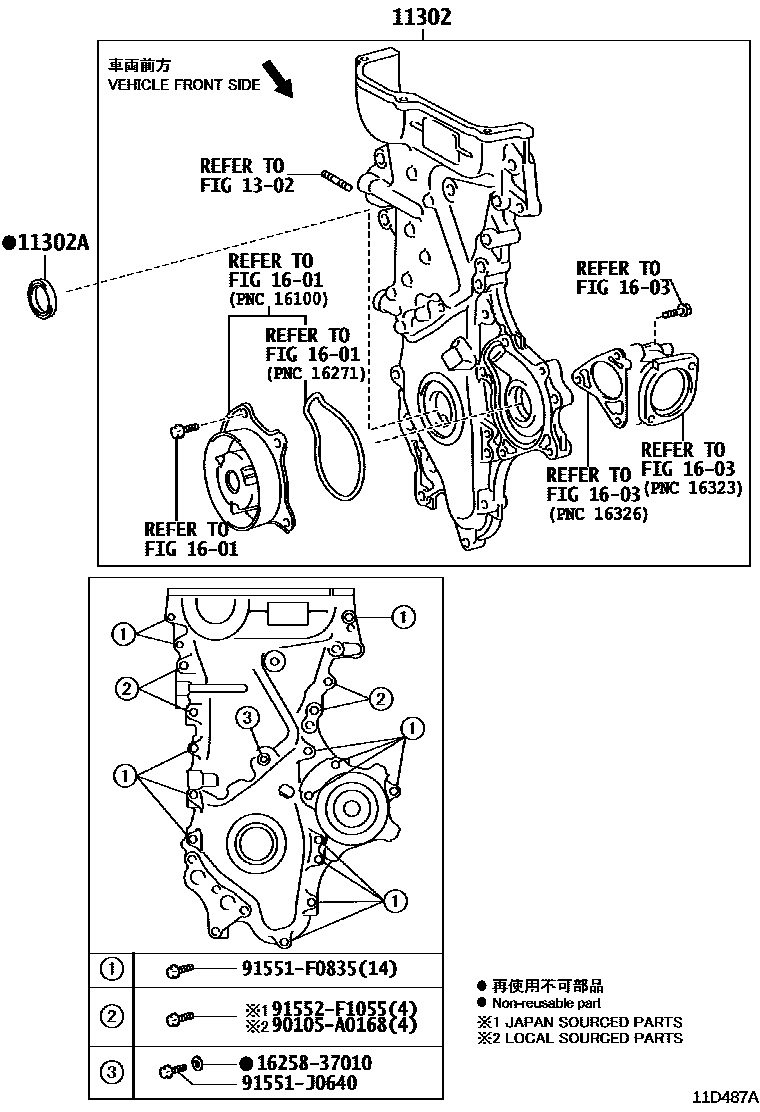

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11D487A
Timing Gear Cover & Rear End Plate — 11D487A (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0T010 · 11310-0T042 · 11310-37011 · 11310-37040
11302AOil seal (for timing chain or timing belt cover)90311-38096 · 90311-A0018
