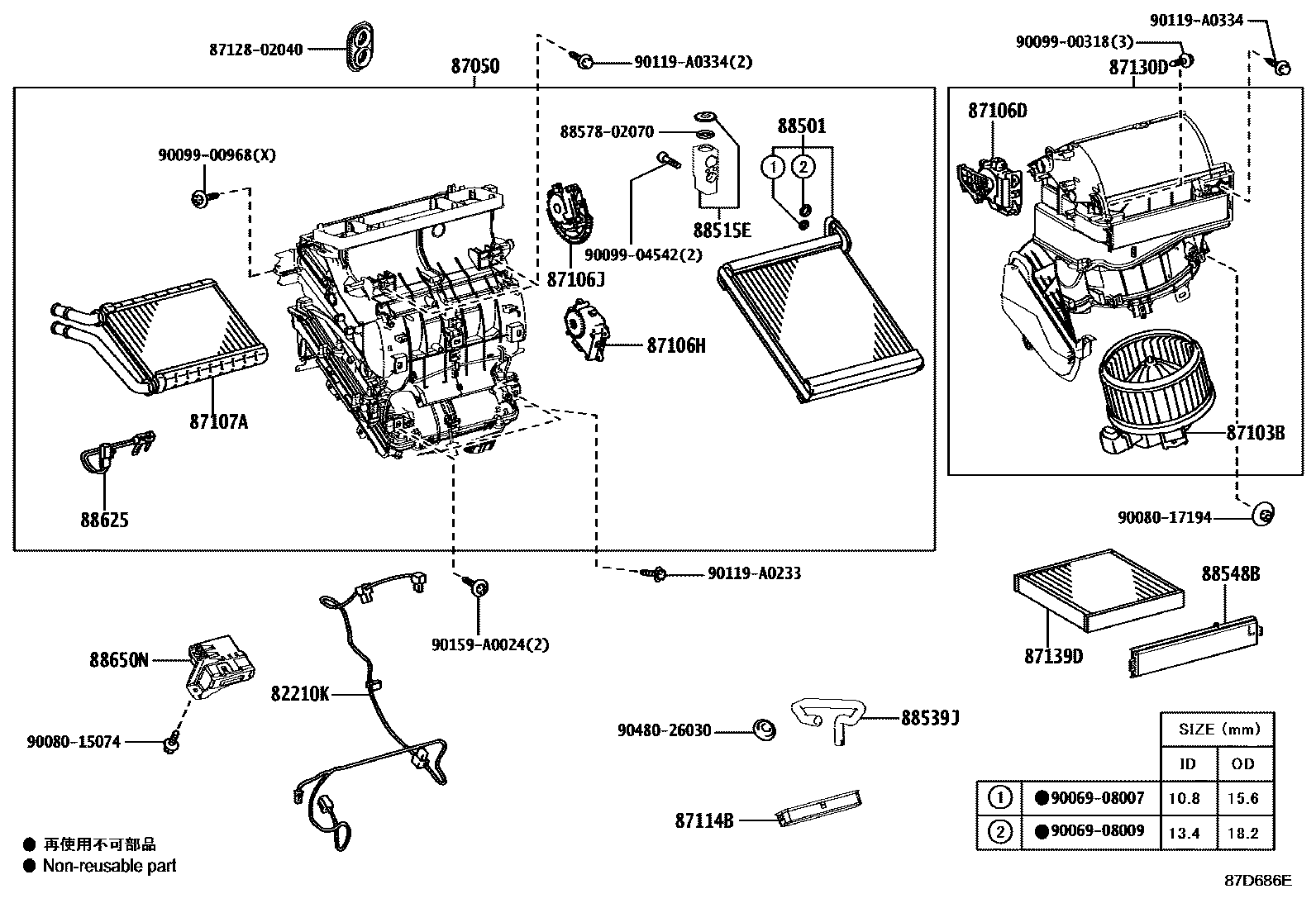

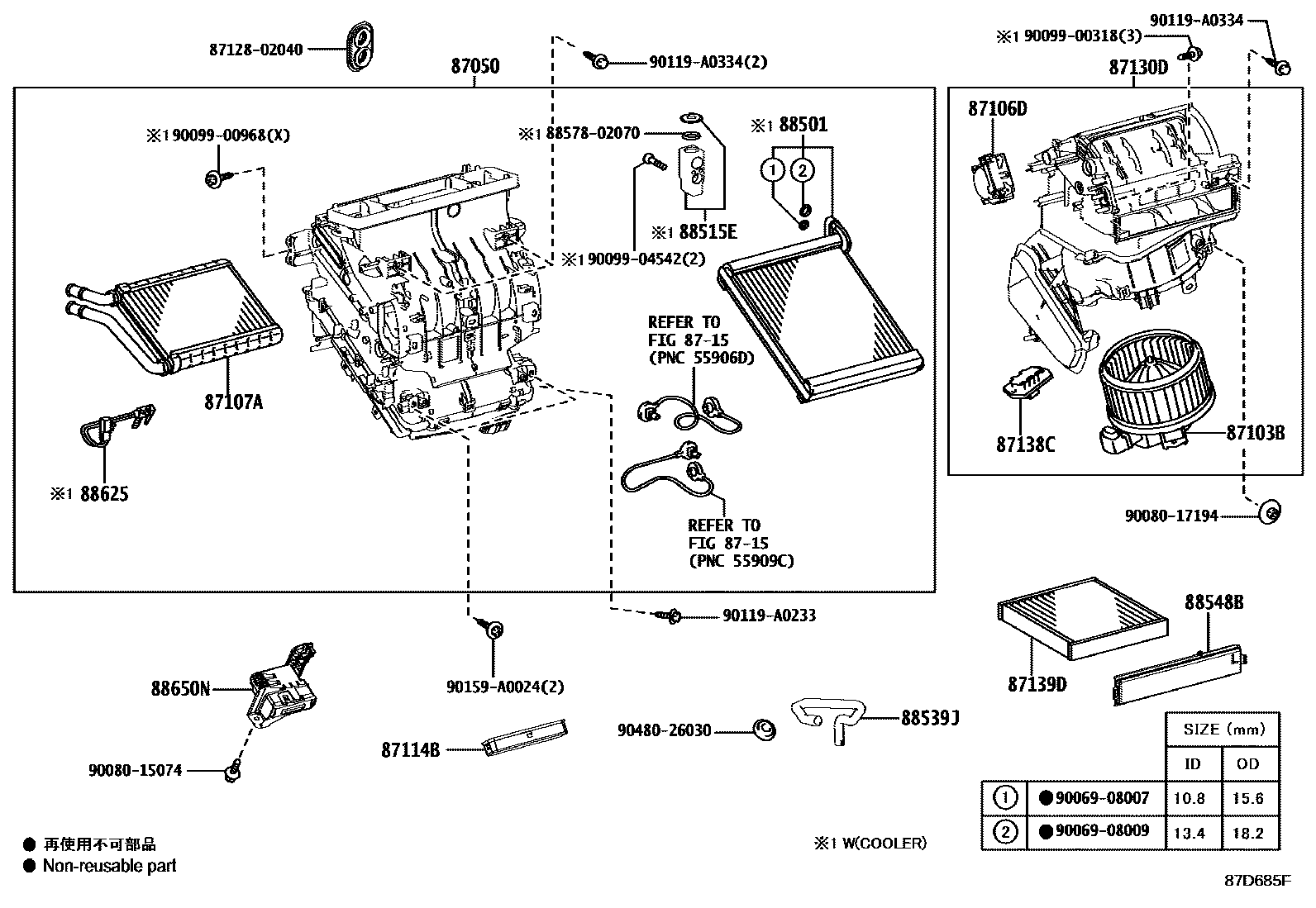

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02040 |
| 87050 | Air conditioning radiator assembly | 87050-02B70 · 87050-02B80 · 87050-02B90 |
| 87103B | Blower motor sub-assembly with fan | 87103-02200 · 87103-02210 |
| 87106D | No. 1 damper servo mechanism sub-assembly | 87106-02210 · 87106-02220 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02190 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02200 |
| 87107A | Heater radiator device sub-assembly | 87107-02230 |
| 87114B | heater cover | 87114-02030 |
| 87130D | Blower assembly | 87130-02A10 · 87130-02A20 |
| 87138C | Blower resistor | 87138-02110 |
| 87139D | Air fine filter element | 87139-07020 · 87139-50100 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02222 |
| 88515E | Cooler expansion valve with seal | 88515-02420 · 88515-02530 |
| 88539J | Cooler drain hose | 88539-02270 |
| 88548B | air filter housing | 88548-02110 |
| 88625 | Cooler No. 1 Thermistor | 88625-02120 |
| 88650N | Air conditioning amplifier assembly | 88650-02B10 · 88650-02B11 · 88650-02B30 · 88650-02B31 · 88650-02F70 · 88650-02F80 |
