Toyota COROLLA 后视镜 — Figure 8701

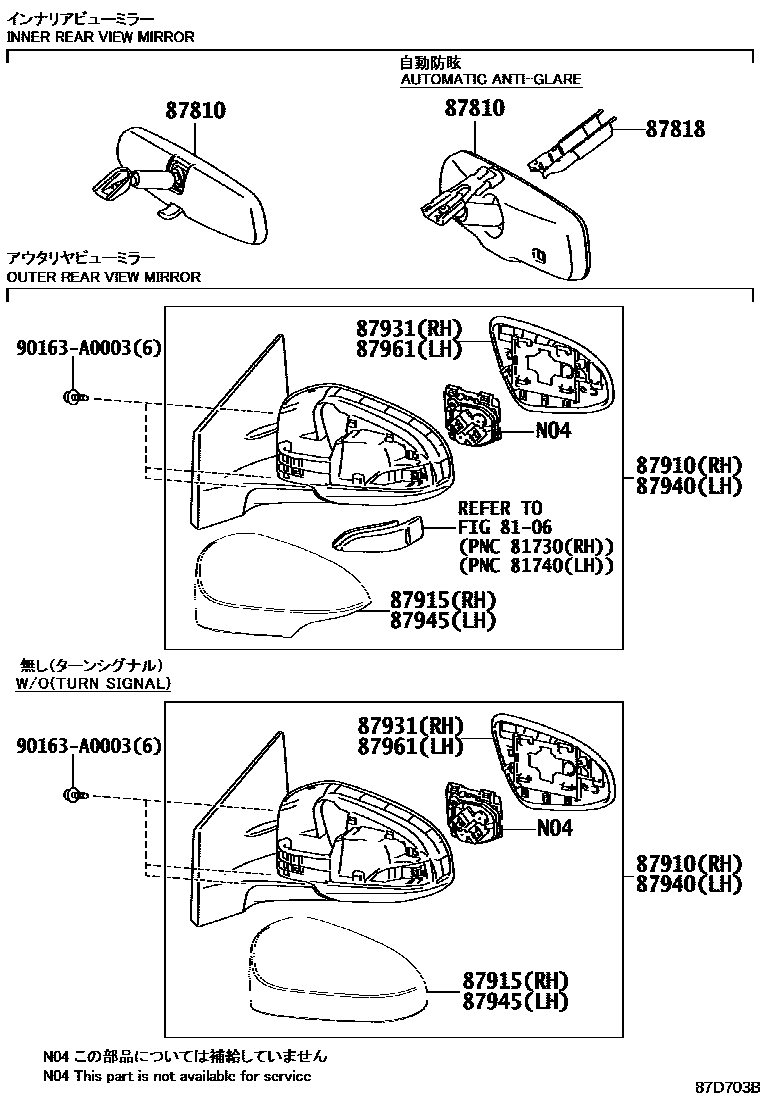

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02200 · 87810-06080 |
| 87818 | Interior rearview mirror cover | 87818-06020 |
| 87931 | Right exterior rearview mirror | 87931-02F80 · 87931-02F90 |
| 87961 | Left exterior rearview mirror | 87961-02F20 · 87961-02F30 |
