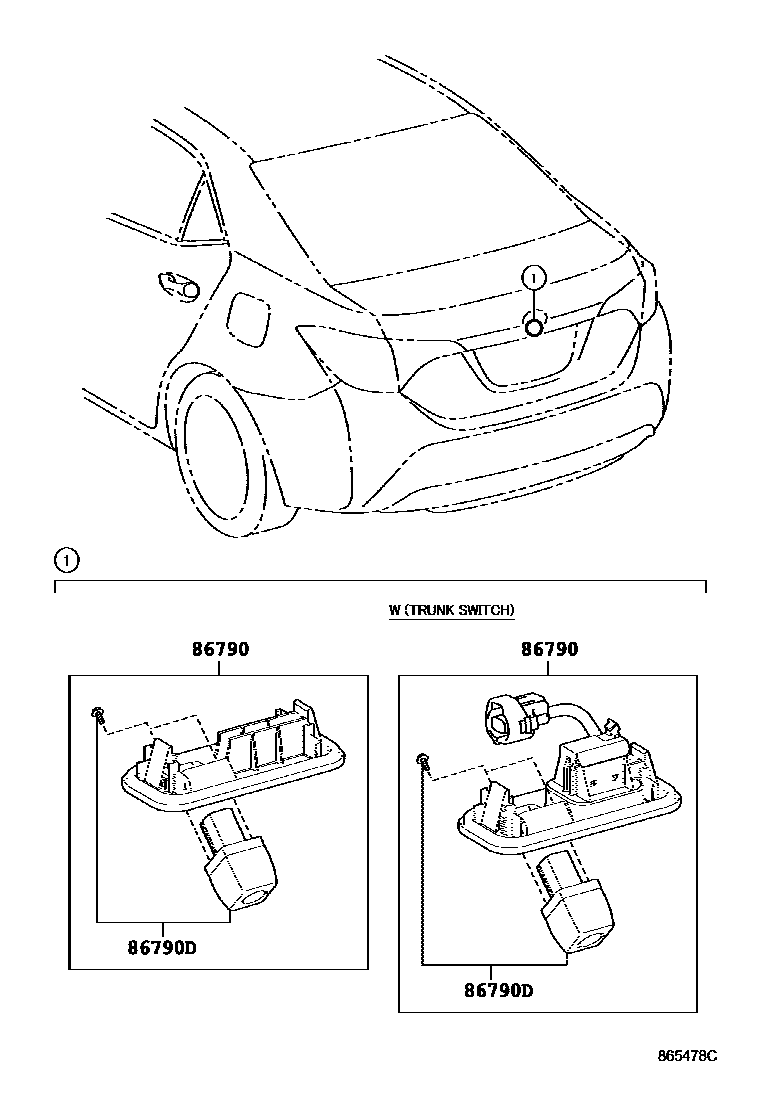

Toyota COROLLA 倒车影像和摄像头 — Figure 8606
Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790 | Reversing image camera assembly | 867A0-02010 · 867A0-02020 · 867A0-02030 · 867A0-02040 · 867A0-12010 · 867A0-12020 |
| 86790D | Rear reversing image camera assembly | 86790-02110 · 86790-02170 |
