Toyota COROLLA 超速档和电子控制变速器 — Figure 8410

Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 3 PNC and OE references.

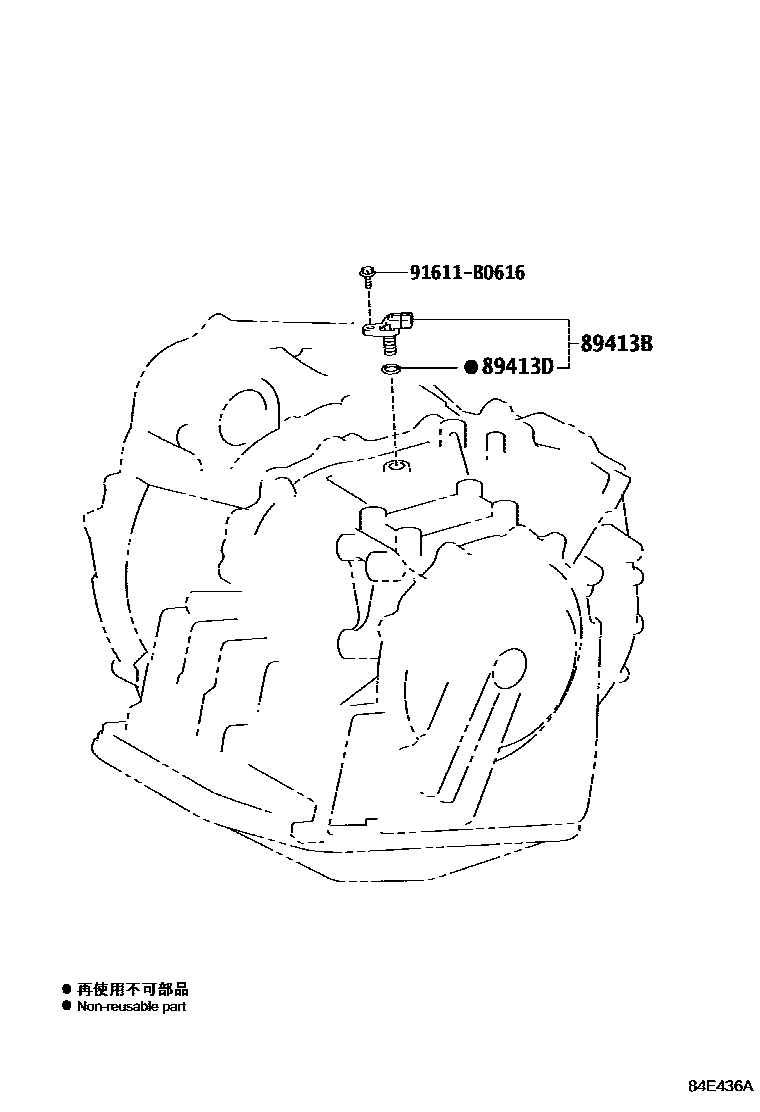

Toyota COROLLA 超速档和电子控制变速器 EPC diagram — 84E436A
超速档和电子控制变速器 — 84E436A (201308 – 999999)

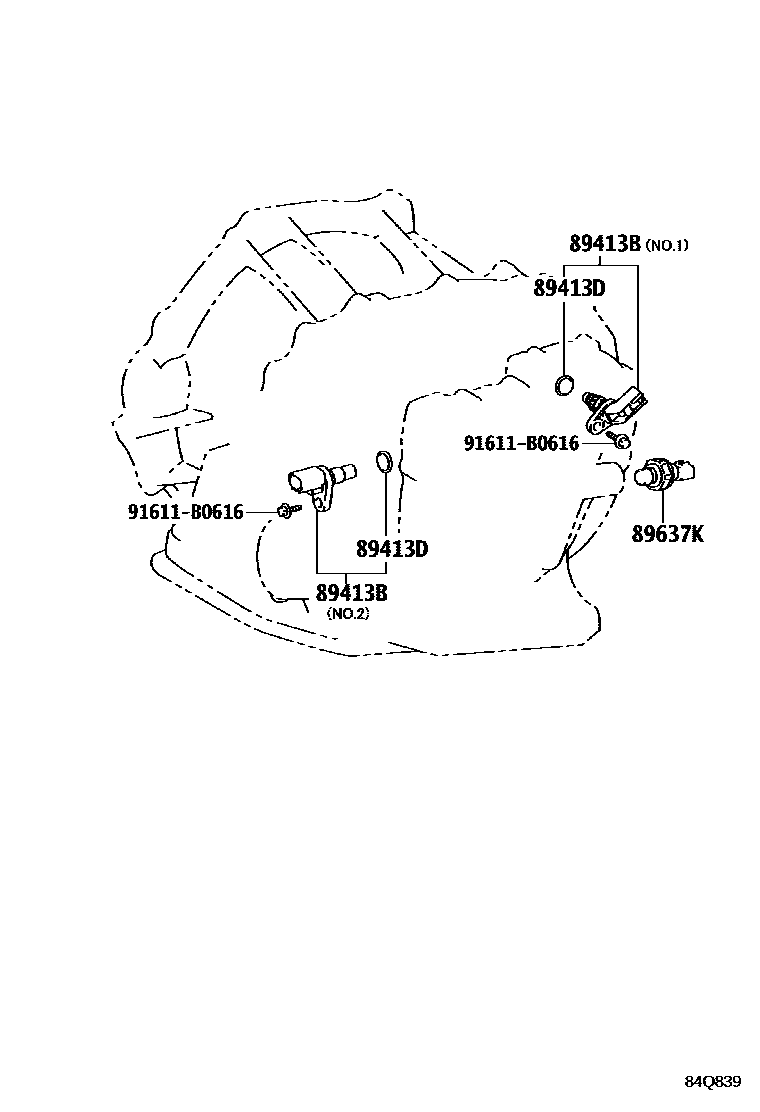

Toyota COROLLA 超速档和电子控制变速器 EPC diagram — 84Q839
超速档和电子控制变速器 — 84Q839 (201401 – 999999)

PNC and OE references

PNCPart nameOE numbers
89413BTransmission speed sensor89413-12020 · 89413-32010 · 89413-60020 · 89413-60021
89413DO-ring (for transmission speed sensor)90301-11008
89637Koil pressure sensor89637-63010
