Toyota COROLLA 电子燃油喷射系统 — Figure 8404

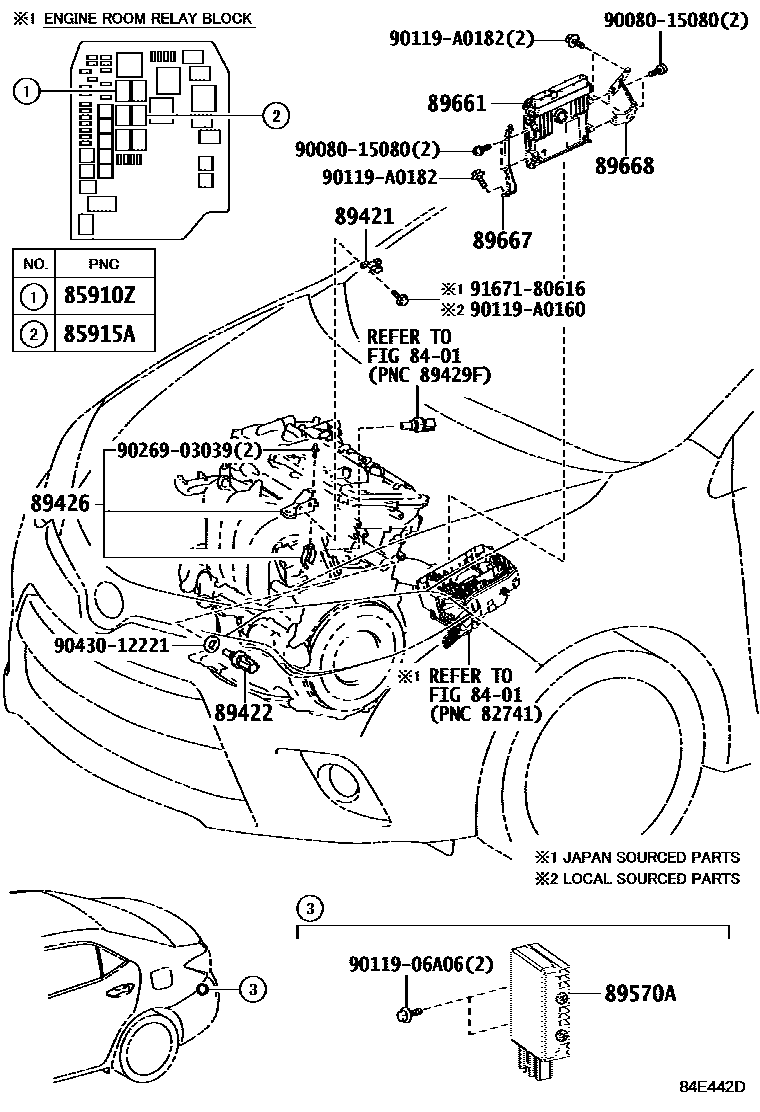

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910Z | Injection relay (for EFI) | 90080-87026 |
| 85915A | main relay | 90080-87026 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89426 | Vacuum sensor holder | 89426-13020 |
| 89570A | Fuel pump control ECU assembly | 89570-12390 |
| 89661 | Engine control ECU | 89661-0Z670 · 89661-0Z680 · 89661-0Z690 · 89661-0ZB70 · 89661-0ZB71 · 89661-0ZB80 · 89661-0ZB81 · 89661-0ZE00 · 89661-0ZE01 · 89661-0ZE10 · 89661-0ZE11 · 89661-0ZE20 · 89661-0ZE21 · 89661-0ZR80 · 89661-0ZR90 · 89661-0ZS00 · 89666-02650 · 89666-02660 · 89666-02670 |
| 89667 | Engine control ECU bracket | 89667-02320 |
| 89668 | No. 2 engine control ECU bracket | 89668-02300 |
