Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

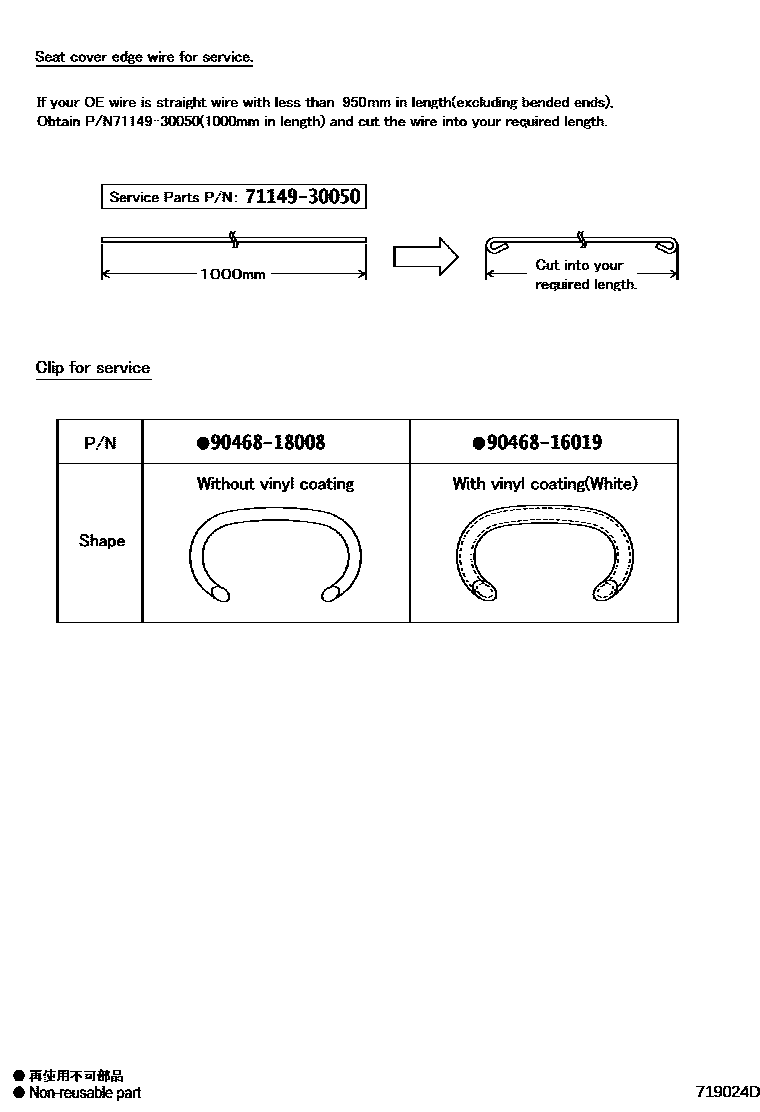

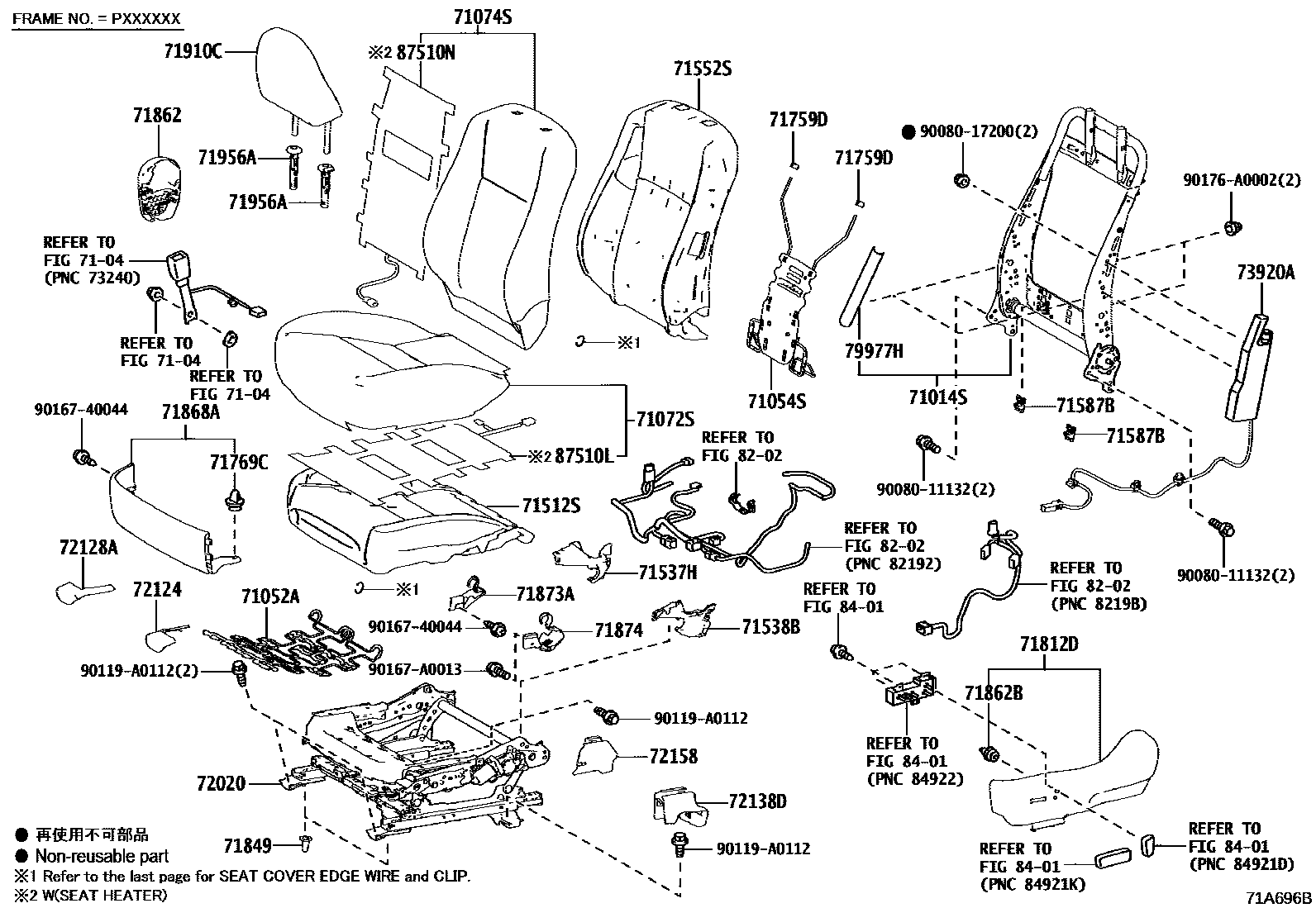

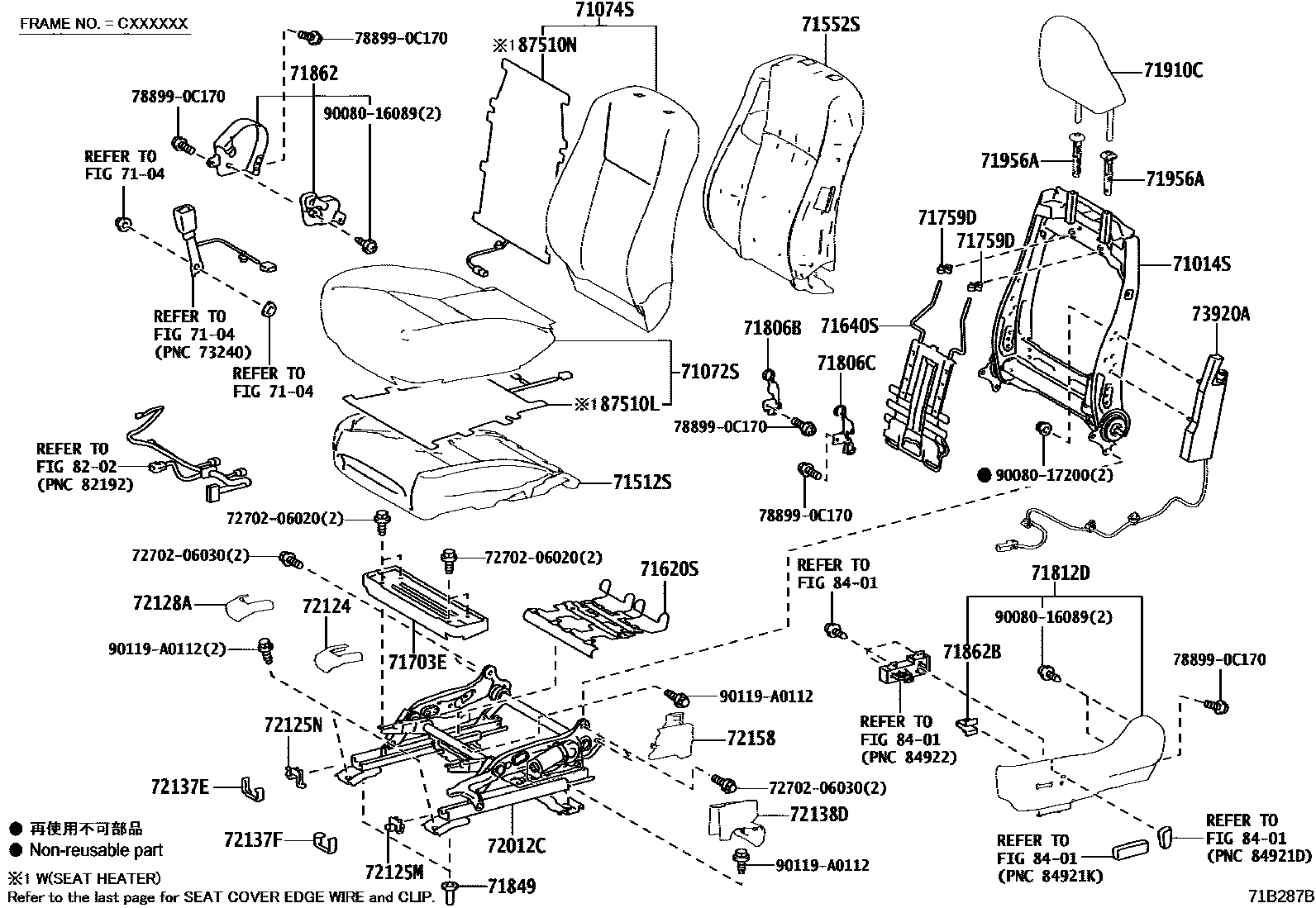

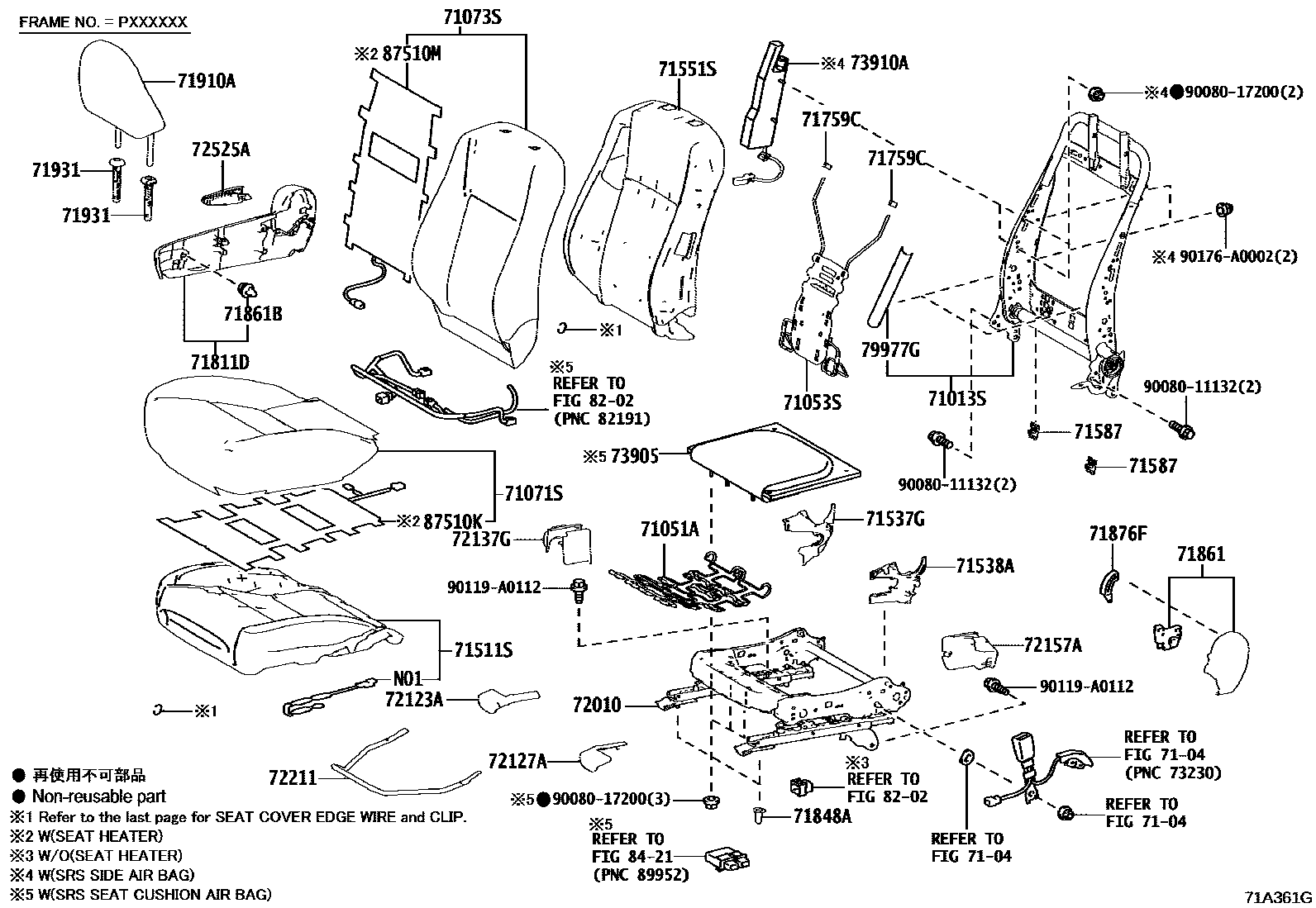

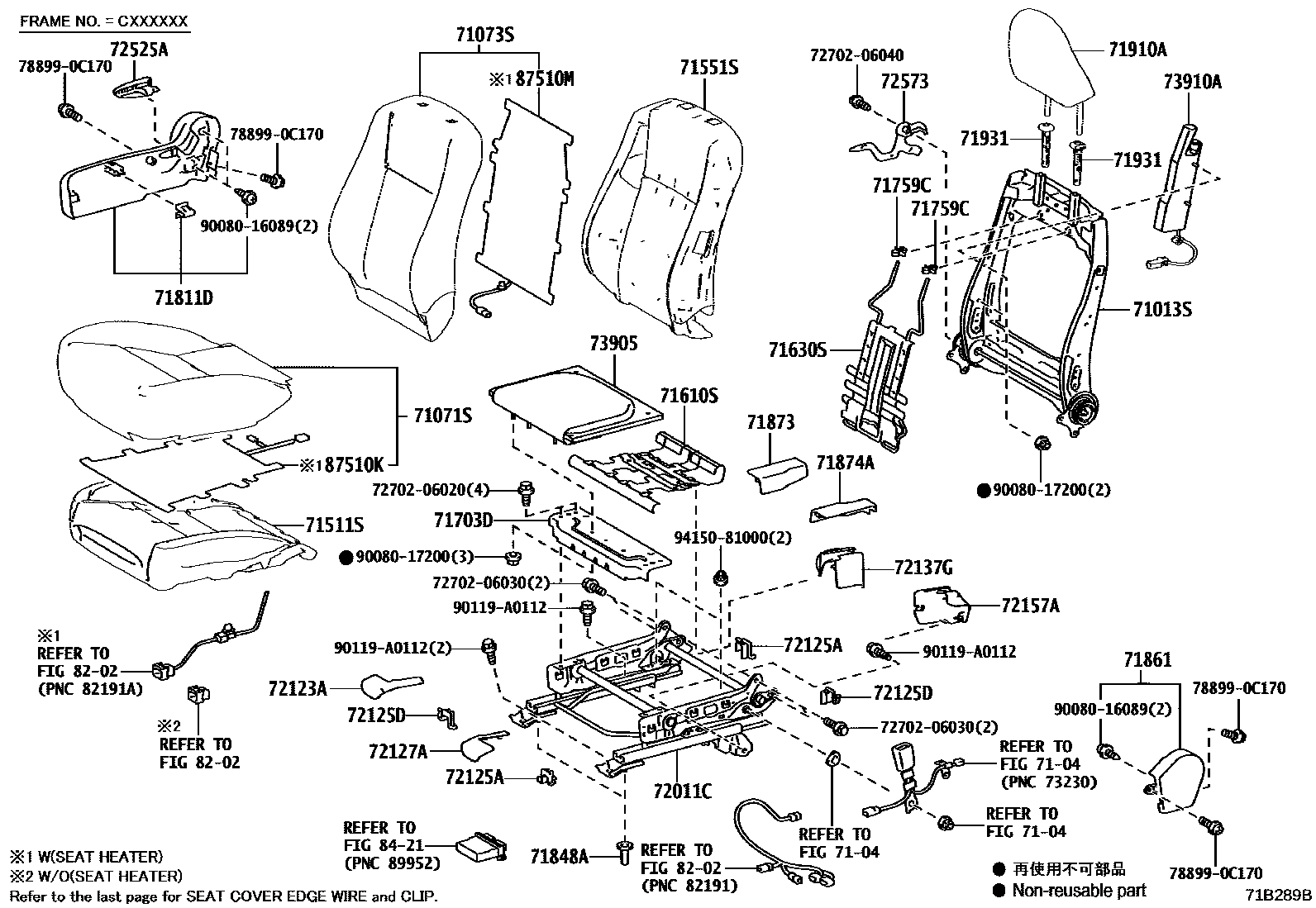

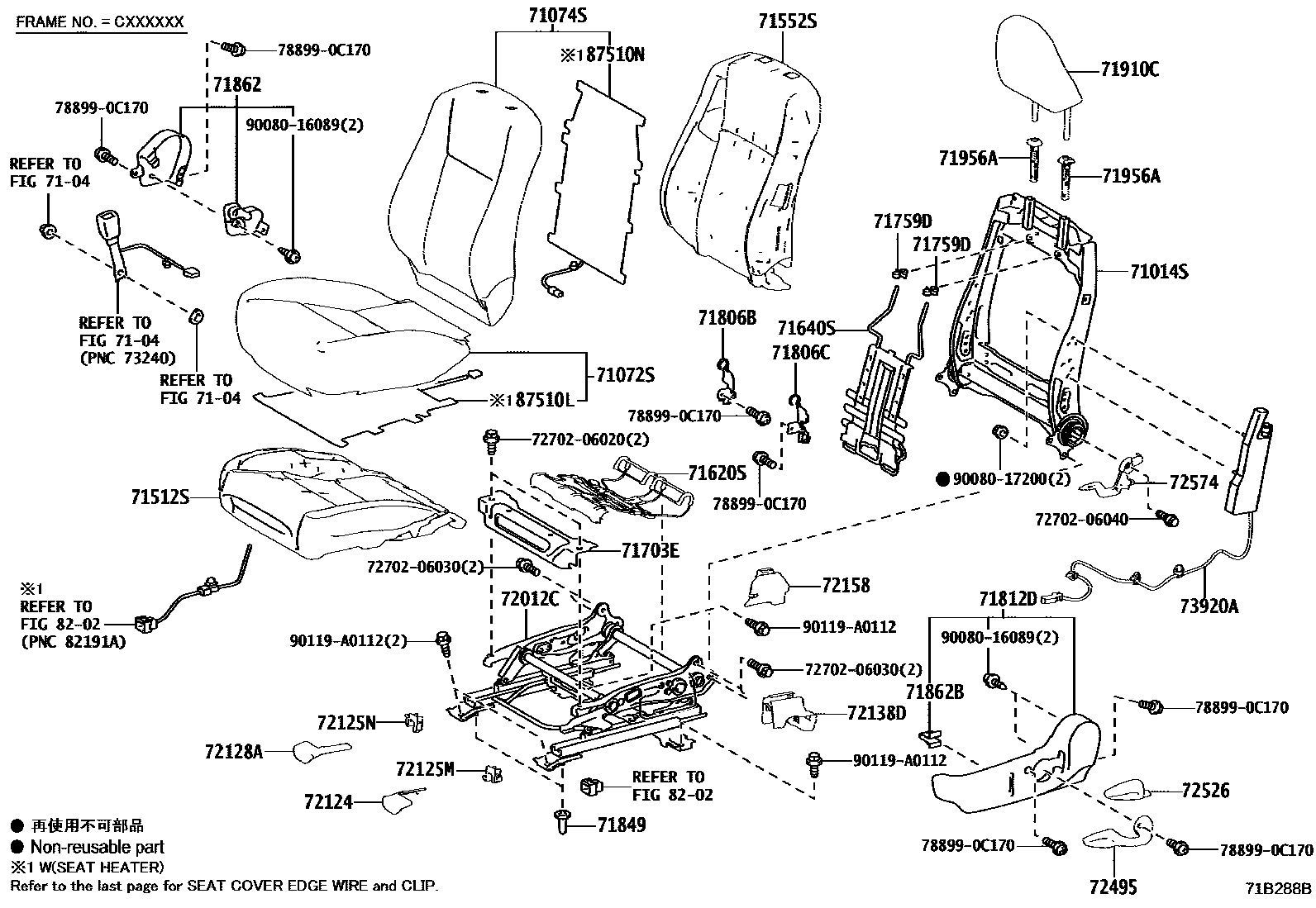

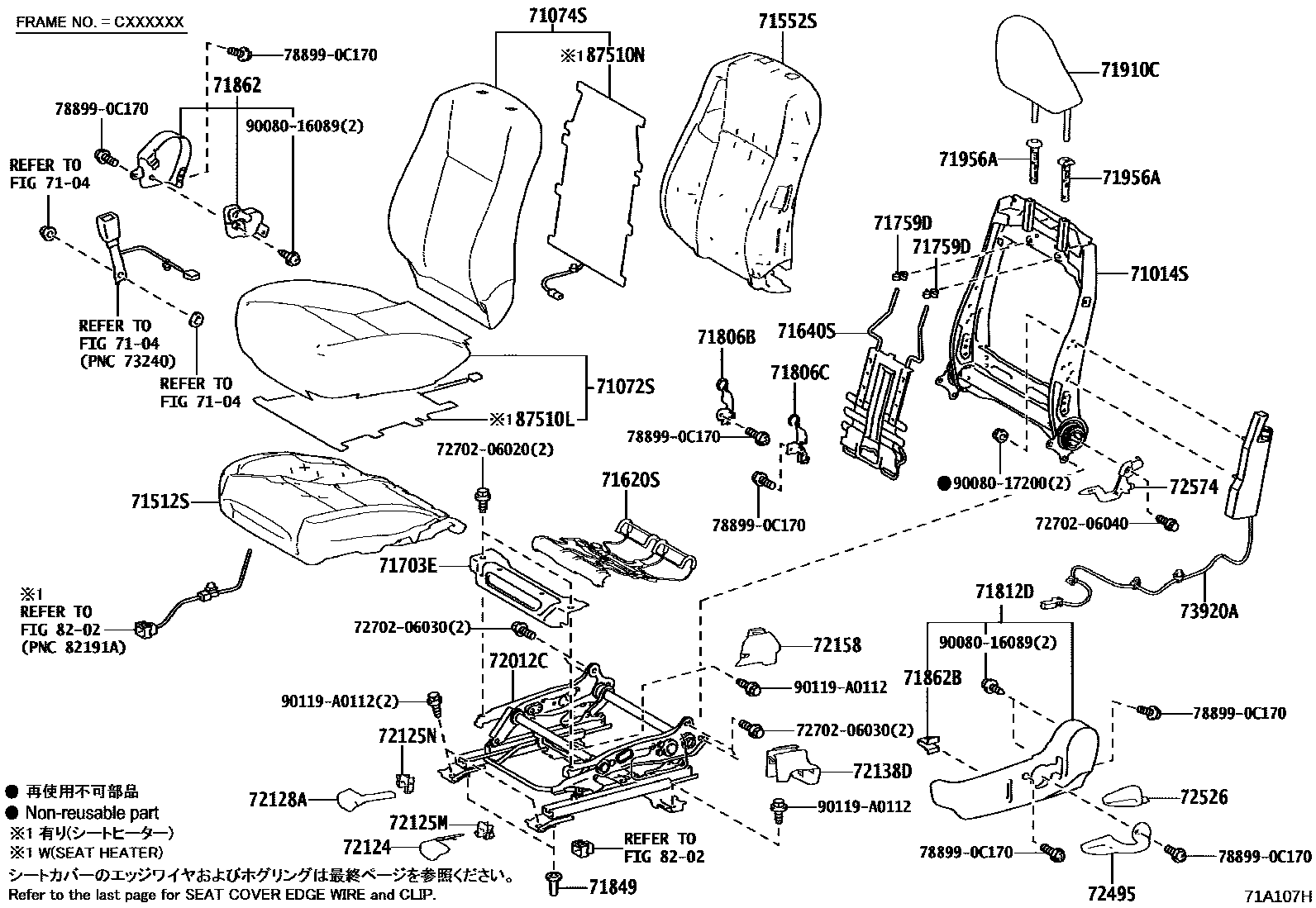

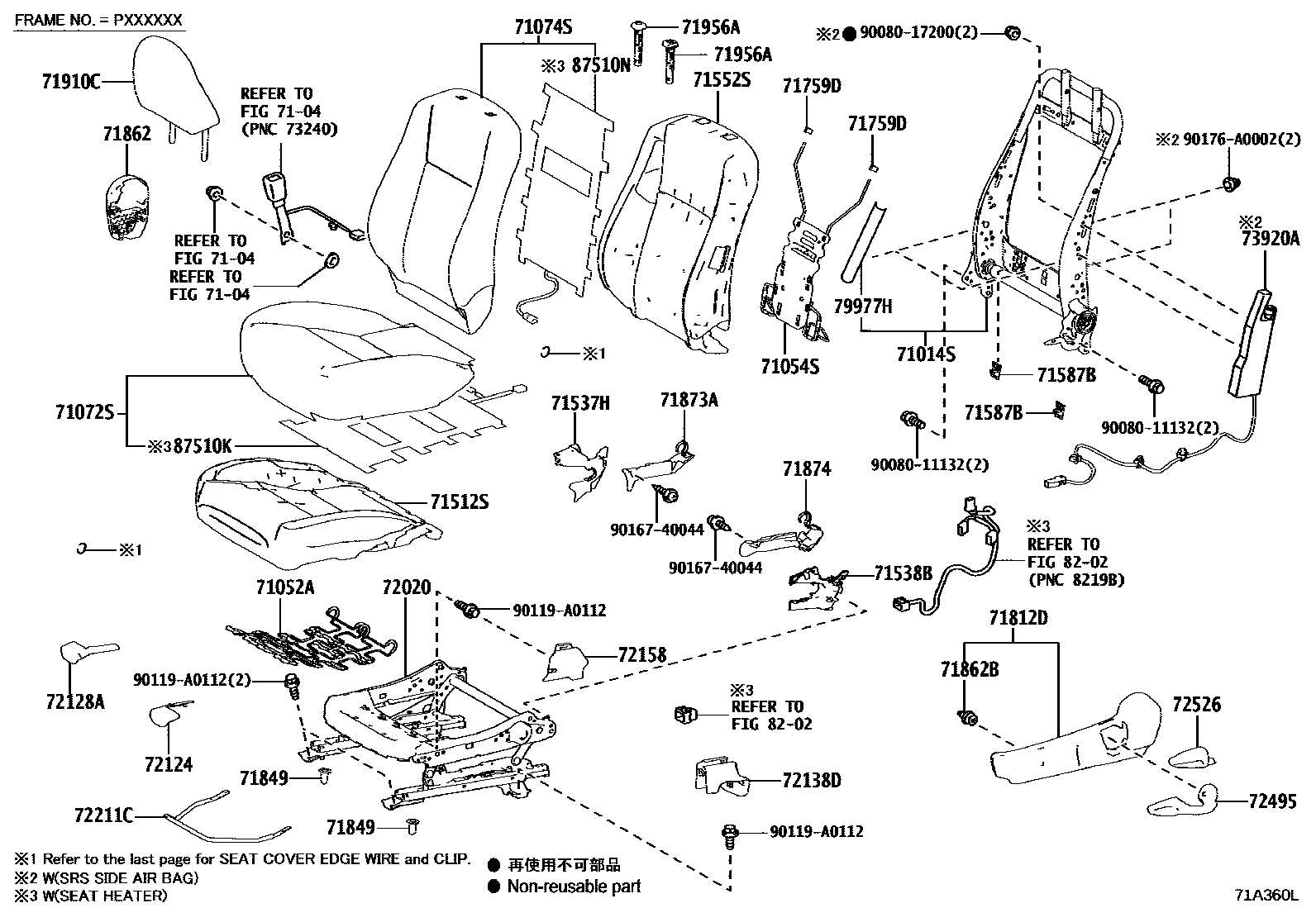

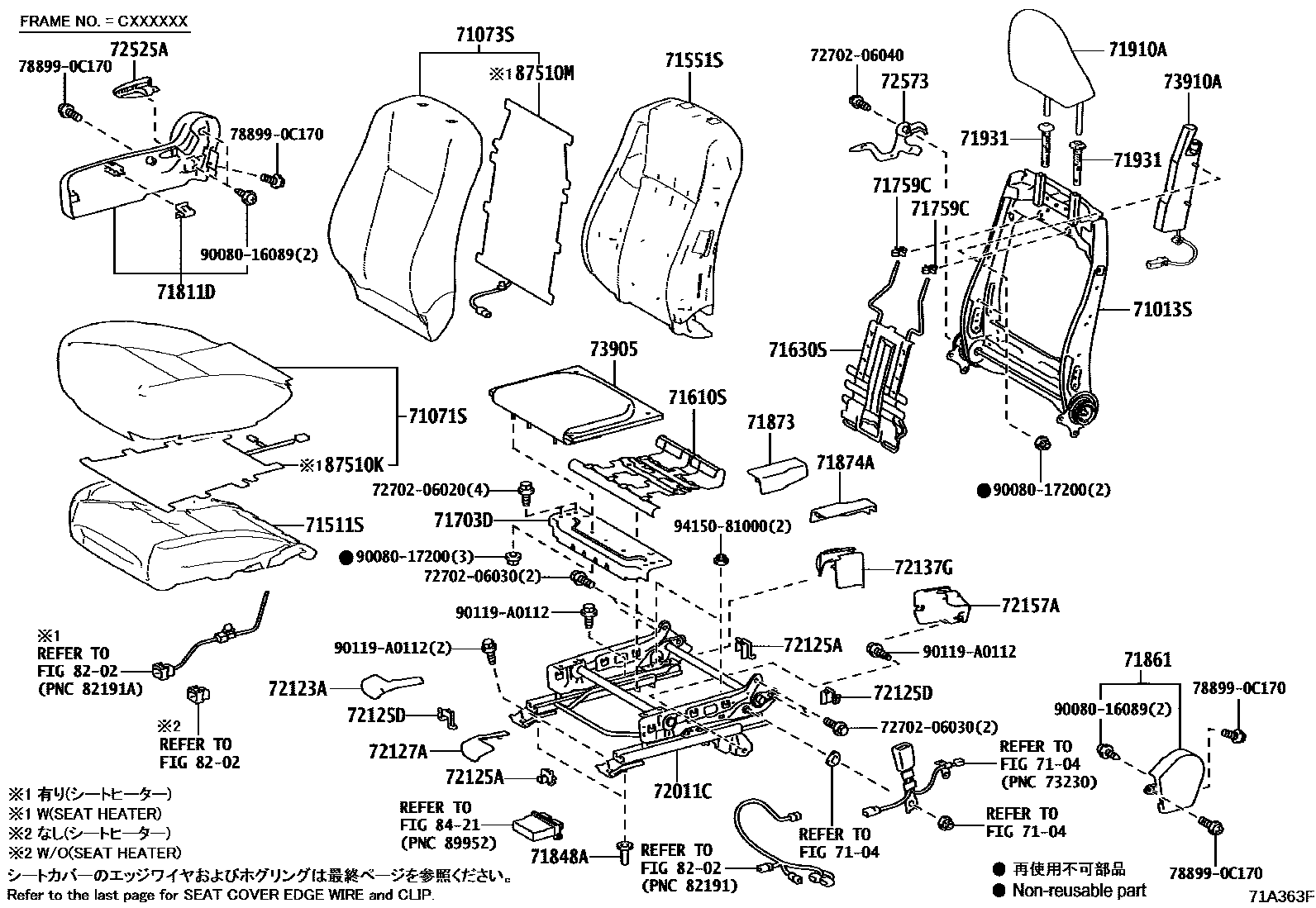

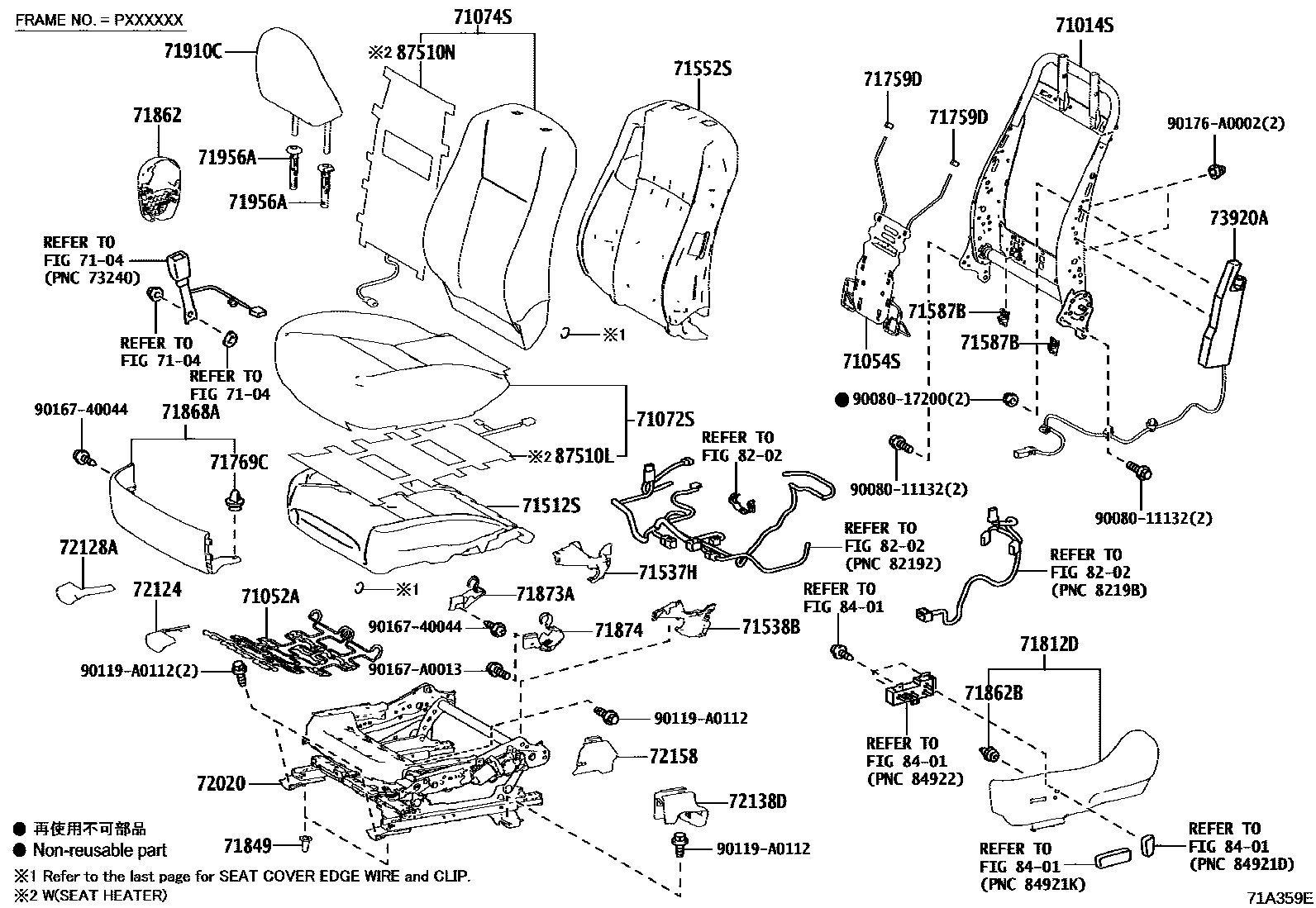

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 11 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-02190 · 71013-02210 · 71013-0R020 |
| 71014S | Front left seat back frame sub-assembly | 71013-02130 · 71013-02320 · 71014-02120 · 71014-06140 · 71014-0R030 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-08010 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-08010 |
| 71053S | Front right seat back spring sub-assembly | 71053-06090 |
| 71054S | Front left seat back spring sub-assembly | 71053-06090 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02180 · 71501-02181 · 71501-02190 · 71501-02191 · 71511-02670 · 71511-02671 · 71511-02680 · 71511-02681 · 71511-02690 · 71511-02700 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-02450 · 71512-02451 · 71512-02460 · 71512-02461 · 71512-02470 · 71512-02471 · 71512-02480 · 71512-02490 · 71512-02540 · 71512-02541 · 71512-02660 · 71512-02670 |
| 71537G | Front right seat cushion edge protective cover (for right seat) | 71537-02130 |
| 71537H | Front right-hand seat cushion edge guard (for left-hand seat) | 71537-0R020 |
| 71538A | Front seat cushion left edge guard (for right seat) | 71538-02070 |
| 71538B | Front seat cushion left edge guard (for left seat) | 71538-0R020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02850 · 71551-02870 · 71551-02A30 · 71551-02B60 · 71551-02B80 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02680 · 71552-02690 · 71552-02750 · 71552-02880 · 71552-02890 |
| 71587 | Front seat back edge protective cover | 71587-52030 |
| 71587B | Front seat back edge protective cover | 71587-52030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-02160 · 71610-06380 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-02230 · 71620-02360 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-06381 · 71630-0R040 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-06381 · 71640-0R080 |
| 71703D | SOUS-ENS. PANNEAU, COUSSIN SIEGE AVANT, MD | 71703-02090 |
| 71703E | SOUS-ENS. PANNEAU, COUSSIN SIEGE AVANT, MG | 71703-02100 · 71703-06010 |
| 71759C | Front seat back hook No. 1 | 71759-06020 · 71759-0E010 · 71759-47010 |
| 71759D | Front seat back hook 2 | 71759-06020 · 71759-0E010 · 71759-47010 |
| 71769C | Front seat cushion cover clip | 71769-47020 |
| 71806B | Front left seat No. 1 seat cushion guard sub-assembly | 71806-06010 |
| 71811D | Front right seat cushion guard | 71811-02560 · 71811-06180 |
| 71812D | Front left seat cushion guard | 71812-02690 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71861 | Front right seat cushion inner guard | 71861-02190 |
| 71861B | Clip (for front right seat guard) | 71769-0C020 · 71769-47020 |
| 71862 | Front left seat cushion inner guard | 71862-0R050 |
| 71862B | Clip (for front left seat guard) | 71769-0C020 · 71769-47020 |
| 71873A | Front seat cushion lower guard | 71873-08010 · 71873-08020 |
| 71874 | Front left seat cushion lower guard | 71874-06540 · 71874-08010 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-06490 |
| 71931 | Front seat headrest bracket | 71930-47020 · 71931-47020 |
| 71956A | Front seat headrest bracket | 71930-47020 · 71931-47020 |
| 72010 | Front right seat adjuster assembly | 72010-02500 · 72010-02501 · 72010-02502 · 72010-02600 · 72010-02601 |
| 72011C | Front right seat adjuster sub-assembly | 72011-02230 · 72011-02280 |
| 72012C | Front left seat adjuster sub-assembly | 72012-02270 · 72012-02280 · 72012-02281 |
| 72020 | Front left seat adjuster assembly | 72020-02480 · 72020-02481 · 72020-02490 · 72020-02491 |
| 72125A | Rear seat upper slide rail cover | 72125-06010 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-06020 |
| 72125M | No. 3 upper seat outer slide rail cover | 72125-06010 |
| 72125N | No. 4 seat outer slide rail upper cover | 72125-06020 |
| 72137E | No. 1 seat slide rail cover | 72125-06030 |
| 72137F | No. 2 seat slide rail cover | 72125-06040 |
| 72211 | Seat slide adjustment handle | 72211-02120 |
| 72211C | Seat slide adjustment handle | 72211-02120 |
| 72495 | Left height adjuster handle | 72495-02040 |
| 72525A | Right seat back recliner release handle | 72525-0R020 |
| 72526 | Left seat back recliner release handle | 72526-08010 |
| 72573 | Right seat back tilt control lever | 72573-06010 |
| 72574 | Left seat back tilt control lever | 72574-06010 |
| 73905 | Front right seat airbag sub-assembly | 73905-02010 · 73905-02020 |
| 73910A | Front right seat airbag assembly | 73910-02120 · 73910-02220 |
| 73920A | Front left seat airbag assembly | 73920-02190 · 73920-02220 |
| 79977G | FEUTRE, DOSSIER DE SIEGE AVANT, MD | 79977-0R010 |
| 79977H | FEUTRE, DOSSIER DE SIEGE AVANT, MG | 79977-0R010 |
| 87510K | Front right seat cushion heater assembly | 87510-02290 · 87510-02291 · 87510-02292 · 87510-02300 |
| 87510L | Front left seat cushion heater assembly | 87510-02290 · 87510-02291 · 87510-02292 · 87510-02310 |
| 87510M | Front right seat back heater assembly | 87530-02030 · 87530-02031 · 87530-02032 · 87530-02040 · 87530-02050 |
| 87510N | Front left seat back heater assembly | 87530-02030 · 87530-02031 · 87530-02032 · 87530-02040 · 87530-02050 |
