Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

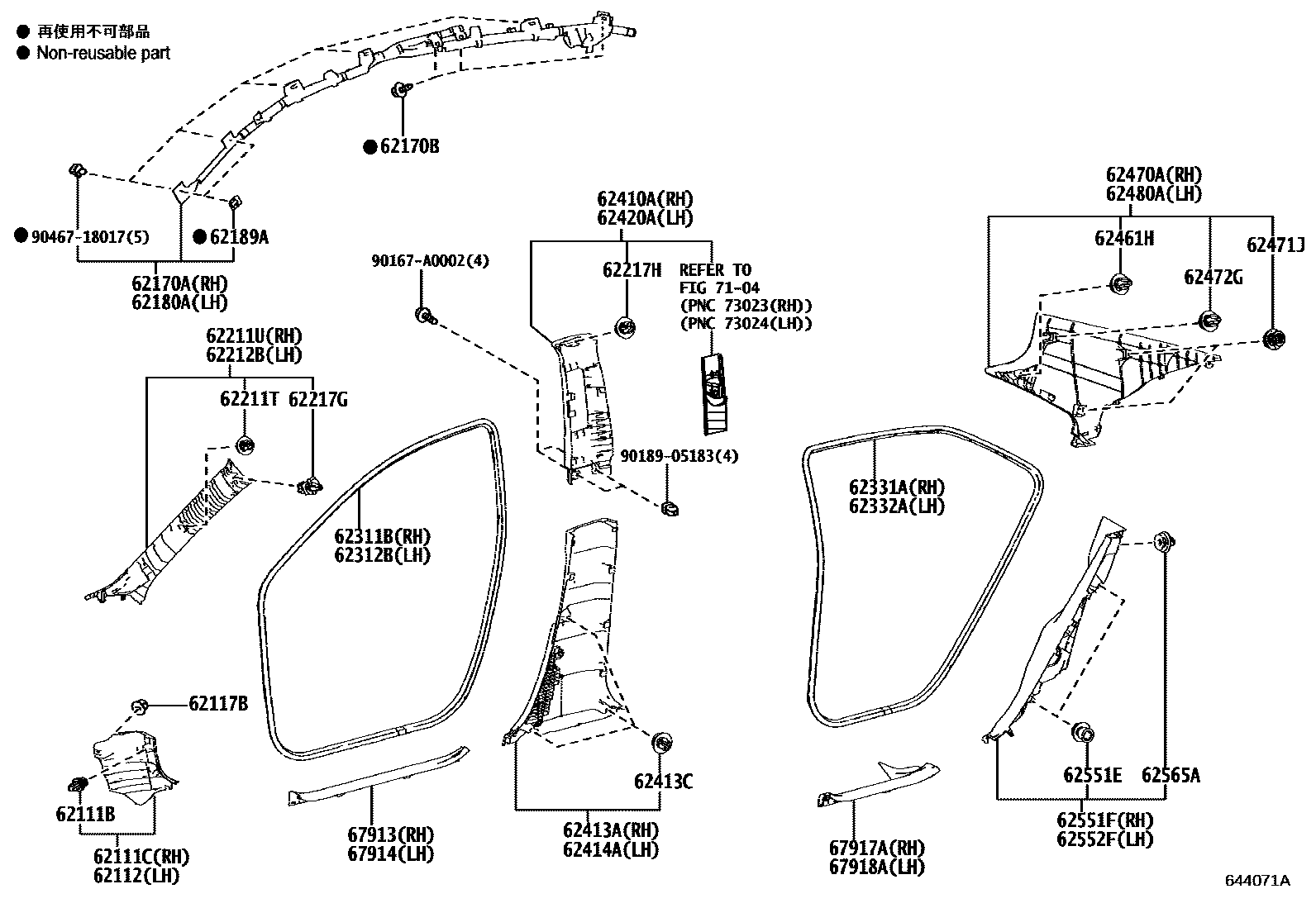

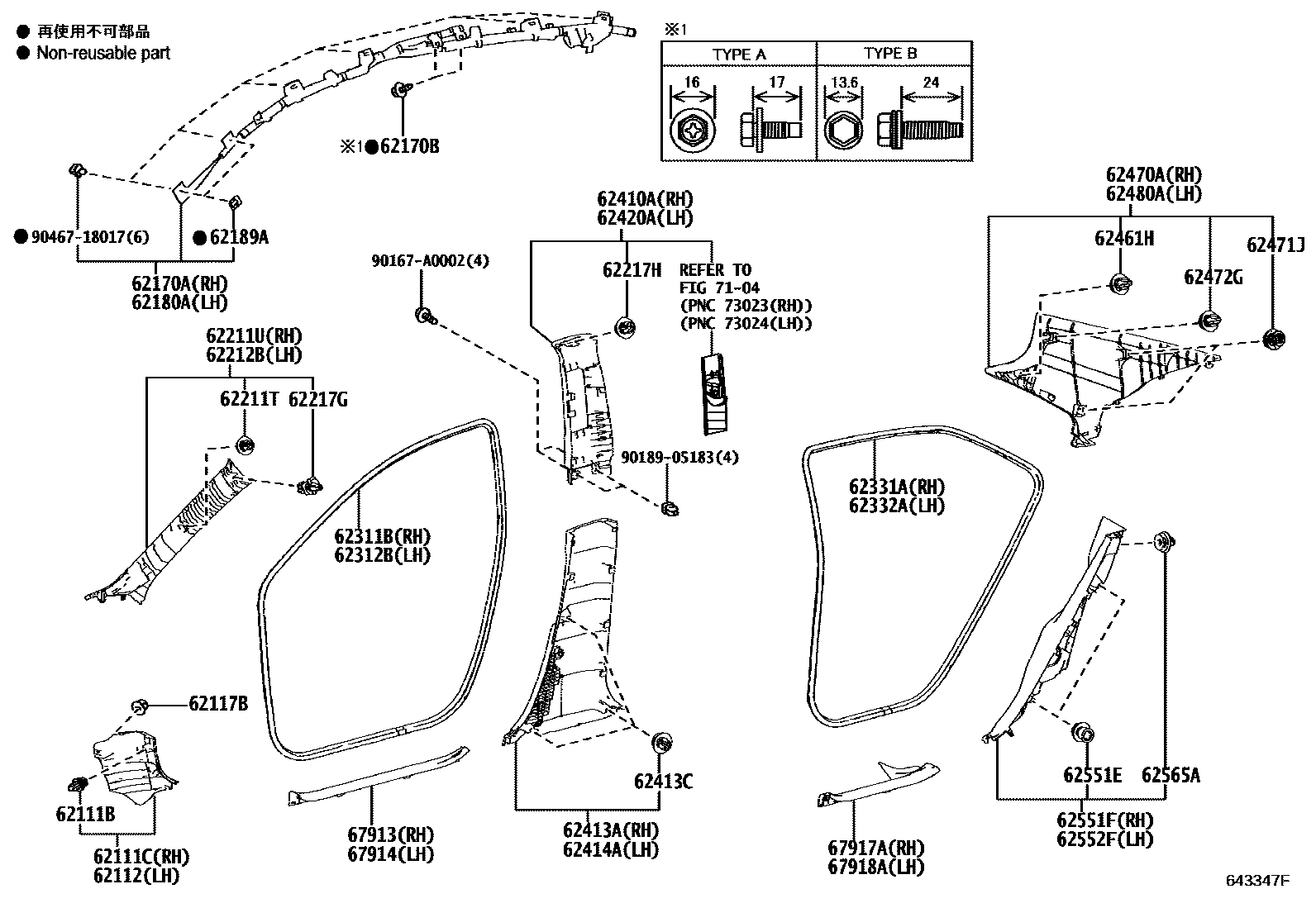

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-A0006 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06155 |
| 62170A | Right curtain air bag assembly | 62170-02140 · 62170-02190 |
| 62170B | Bolts with washers | 90080-11628 · 90080-11699 · 90119-A0296 |
| 62180A | Left curtain air bag assembly | 62180-02130 · 62180-02180 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211T | Clip (for front pillar decorative panel) | 90467-A0006 |
| 62217G | Front pillar decorative plate clip | 62217-02010 · 62217-24020 |
| 62217H | Center pillar decorative plate clip | 62217-13010 · 90467-10188 |
| 62311B | Right front door opening waterproof tape | 62311-02250 |
| 62312B | Left front door opening waterproof tape | 62312-02240 · 62312-02290 |
| 62331A | Right rear door opening waterproof tape | 62331-02270 |
| 62332A | Left rear door opening waterproof tape | 62332-02270 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10167 |
| 62461H | Clips (for roof side interior panels) | 62489-06010 · 90467-10188 |
| 62471J | Clips (for roof side trim panels) | 90467-A0033 |
| 62472G | Clips (for roof side trim panels) | 62489-06010 · 90467-A0033 |
| 62551E | Clips (for rear seat side trim panels) | 62489-0E010 |
| 62565A | Clips (for rear seat side trim panels) | 90467-10167 |
