Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 13 PNC and OE references.

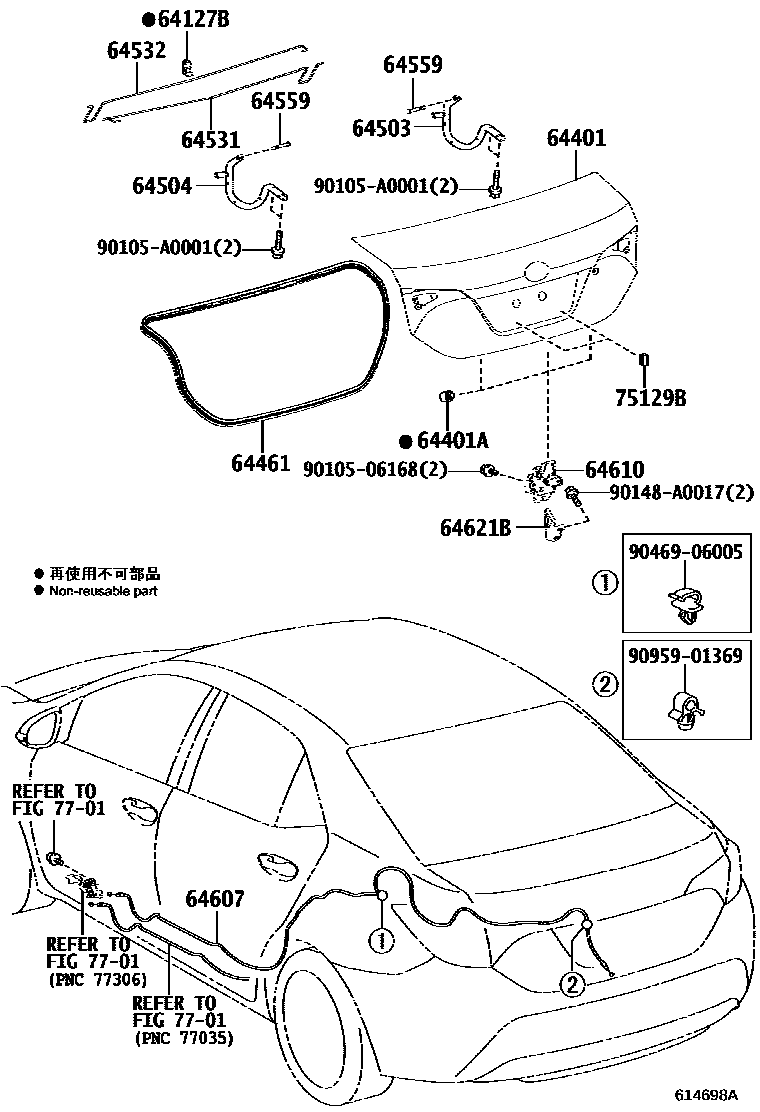

Toyota COROLLA 行李箱门和行李箱锁 EPC diagram — 614698A
行李箱门和行李箱锁 — 614698A (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
64127BTrunk door torsion bar bracket64127-06052
64401Trunk door panel sub-assembly64401-02830 · 64401-02850 · 64401-02B10 · 64401-02B30
64401ACushion pad (for luggage compartment door panel)90541-09069
64461Trunk door seal64461-02180
64503Trunk door right hinge arm sub-assembly64503-02120
64504Trunk door left hinge arm sub-assembly64503-02120
64531Trunk door right hinge torsion bar64531-02130 · 64531-02140 · 64531-02680 · 64531-02690
64532Trunk door left hinge torsion bar64532-02130 · 64532-02140 · 64532-02680 · 64532-02690
64559Trunk door hinge pin64559-12040
64607Trunk door lock control cable sub-assembly64607-02330
64610Trunk door lock assembly64600-02030 · 64600-02031
64621BTrunk door latch64621-02020
75129Brear license plate cushion75129-AC010
