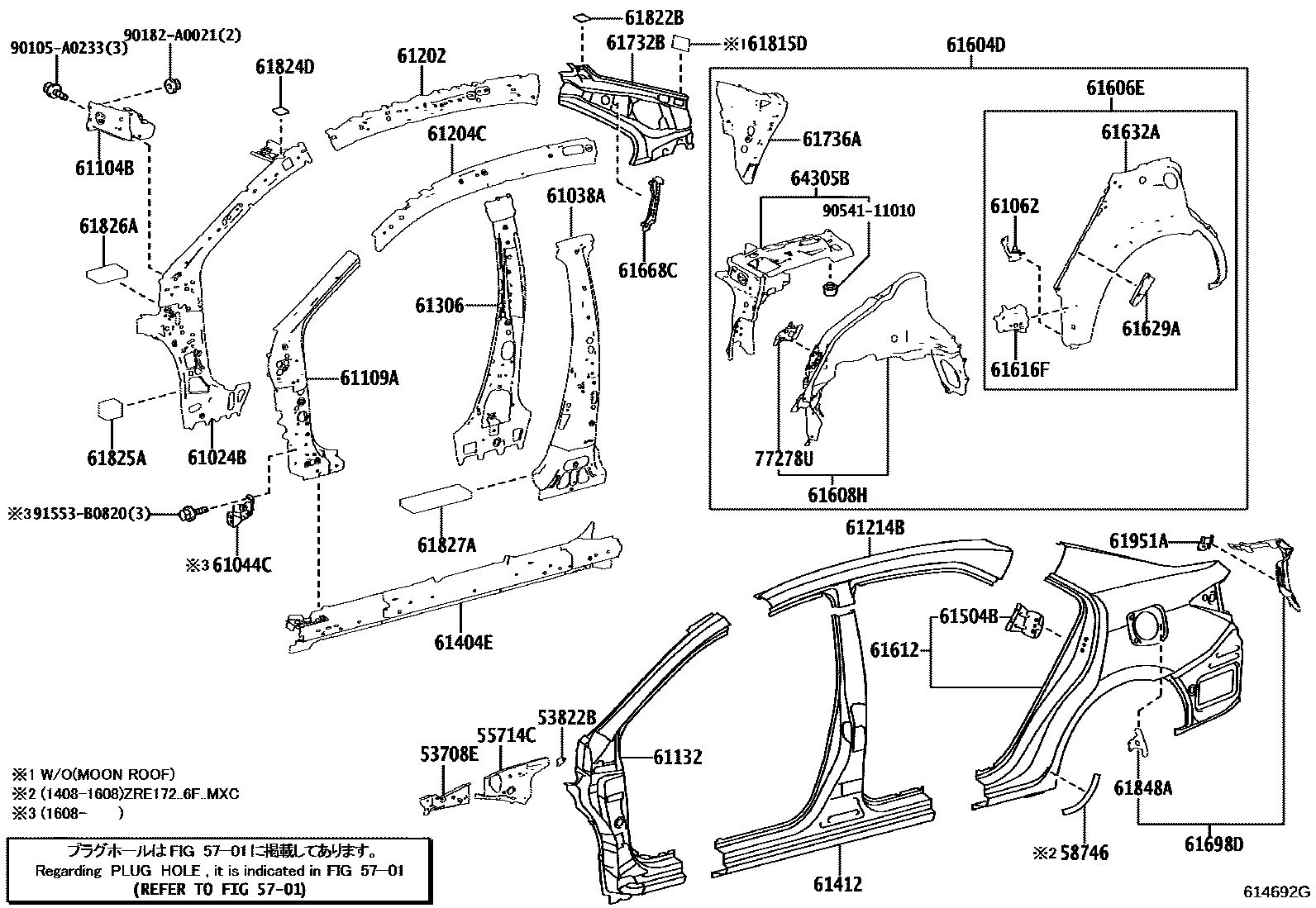

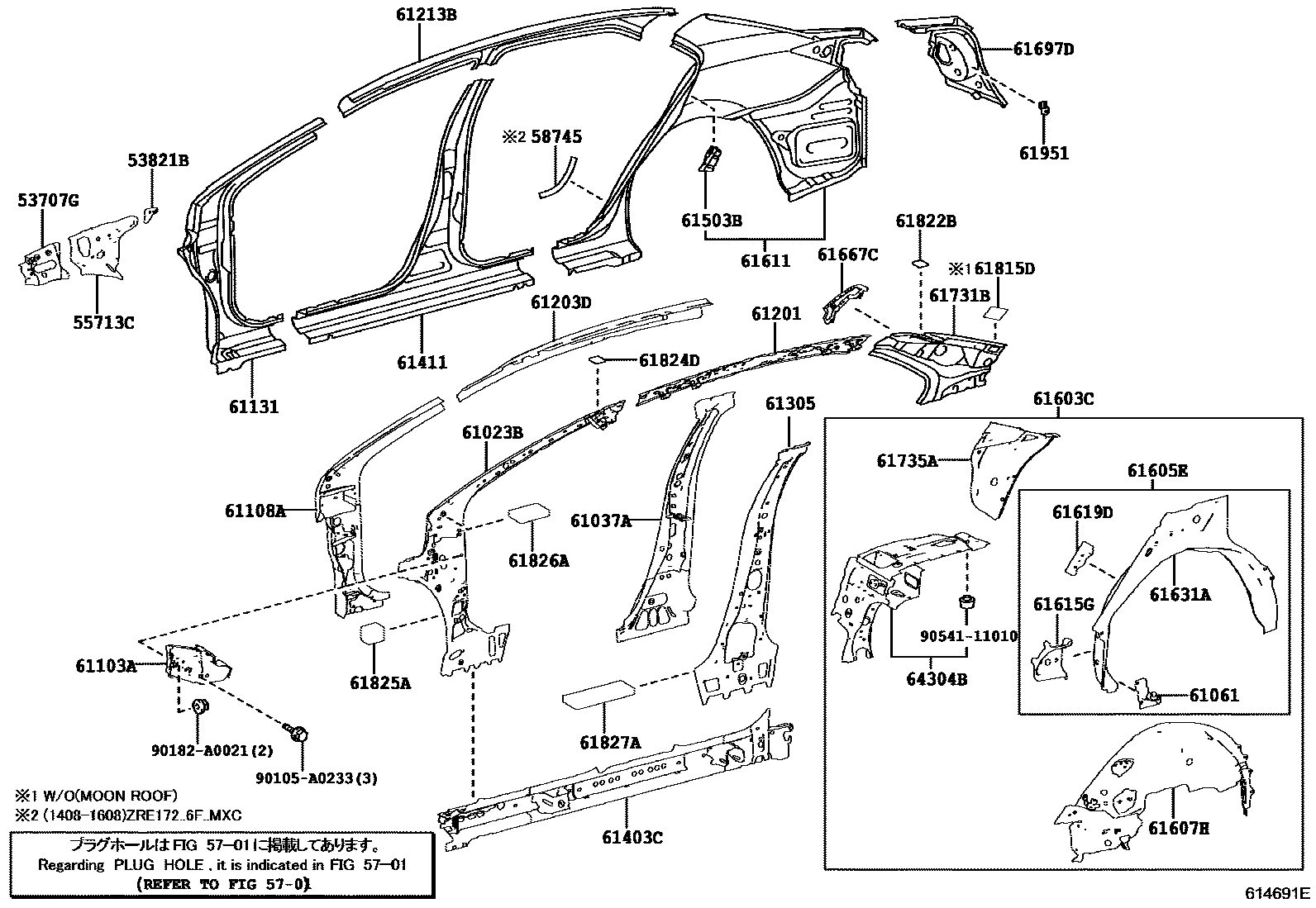

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53707G | SS-ENSEMBLE EXTENSION, JUPE D'AILE AVANT, AVANT MD | 53707-02020 |
| 53708E | SS-ENSEMBLE EXTENSION, JUPE D'AILE AVANT, AVANT MG | 53708-02020 |
| 53821B | Right front fender rear support | 53821-02030 |
| 53822B | Left front fender rear support | 53822-02010 |
| 55713C | Right front wall upper side panel | 55713-02130 |
| 55714C | Left front wall upper side panel | 55714-02130 |
| 58745 | Right front side panel protector | 58741-02170 |
| 58746 | Left front side panel protector | 58742-02160 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02280 · 61023-02340 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02260 · 61024-02320 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02210 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02210 |
| 61044C | Left body front pillar outer extension sub-assembly | 61044-02010 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-02070 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-02070 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-02250 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-02161 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-02192 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-02192 · 61109-02193 · 61109-02300 |
| 61131 | Right body outer front upper pillar | 61131-02310 |
| 61132 | Left body outer front upper pillar | 61132-02340 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-02200 · 61201-02270 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-02200 · 61202-02280 |
| 61203D | SS-ENS. RAIL DE GUIDAGE, COTE DU TOIT, EXTERIEUR NO.2 MD | 61203-02140 · 61203-02903 |
| 61204C | SS-ENS. RAIL DE GUIDAGE, COTE DU TOIT, EXTERIEUR NO.2 MG | 61204-02140 · 61204-02141 · 61204-02903 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-02100 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-02100 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02110 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02110 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02901 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02901 · 61404-02903 · 61404-02904 |
| 61411 | Right door outer sill panel | 61311-02300 |
| 61412 | Left door outer sill panel | 61312-02290 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-02140 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-02160 |
| 61603C | Right wheel cover sub-assembly | 61603-02220 |
| 61604D | Left side wheel cover sub-assembly | 61604-02200 |
| 61605E | Right side hoarding | 61605-02110 |
| 61606E | left side panel | 61606-02110 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-02640 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-02530 |
| 61611 | Right side hoarding | 61601-02410 |
| 61612 | left side panel | 61602-02440 |
| 61615G | Right rear body rear side panel reinforcement | 61615-02090 |
| 61616F | Left rear body rear side panel reinforcement | 61616-02100 |
| 61619D | Right side panel reinforcement | 61619-02010 |
| 61629A | Left side panel reinforcement | 61629-02010 |
| 61631A | Right wheel cover outer panel | 61631-02170 |
| 61632A | Left side wheel cover outer panel | 61632-02170 |
| 61667C | No. 1 side panel seal | 61667-02090 |
| 61668C | No. 2 side panel seal | 61668-02050 |
| 61697D | Right side enclosure end cover | 61697-02912 |
| 61698D | Left side enclosure end cover | 61698-02914 |
| 61731B | Roof right inner panel | 61731-02260 · 61731-02261 |
| 61732B | Roof left inner panel | 61732-02260 · 61732-02261 |
| 61735A | Right rear roof inner panel | 61735-02160 |
| 61736A | Left rear roof inner panel | 61736-02160 |
| 61815D | roof side cover | 61815-02060 |
| 61822B | Left side noise control panel | 61824-02190 |
| 61824D | Noise Control Panel No. 1 | 61824-02190 |
| 61825A | Noise Control Panel No. 2 | 61825-02070 |
| 61826A | Noise Control Panel No. 3 | 61824-02270 |
| 61827A | Noise Control Panel No. 4 | 61827-02060 |
| 61848A | Left side panel fixing | 61848-02060 |
| 61951 | Right trim part bracket | 61951-02050 |
| 61951A | Left trim part bracket | 61951-02050 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02150 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02150 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-02010 |
