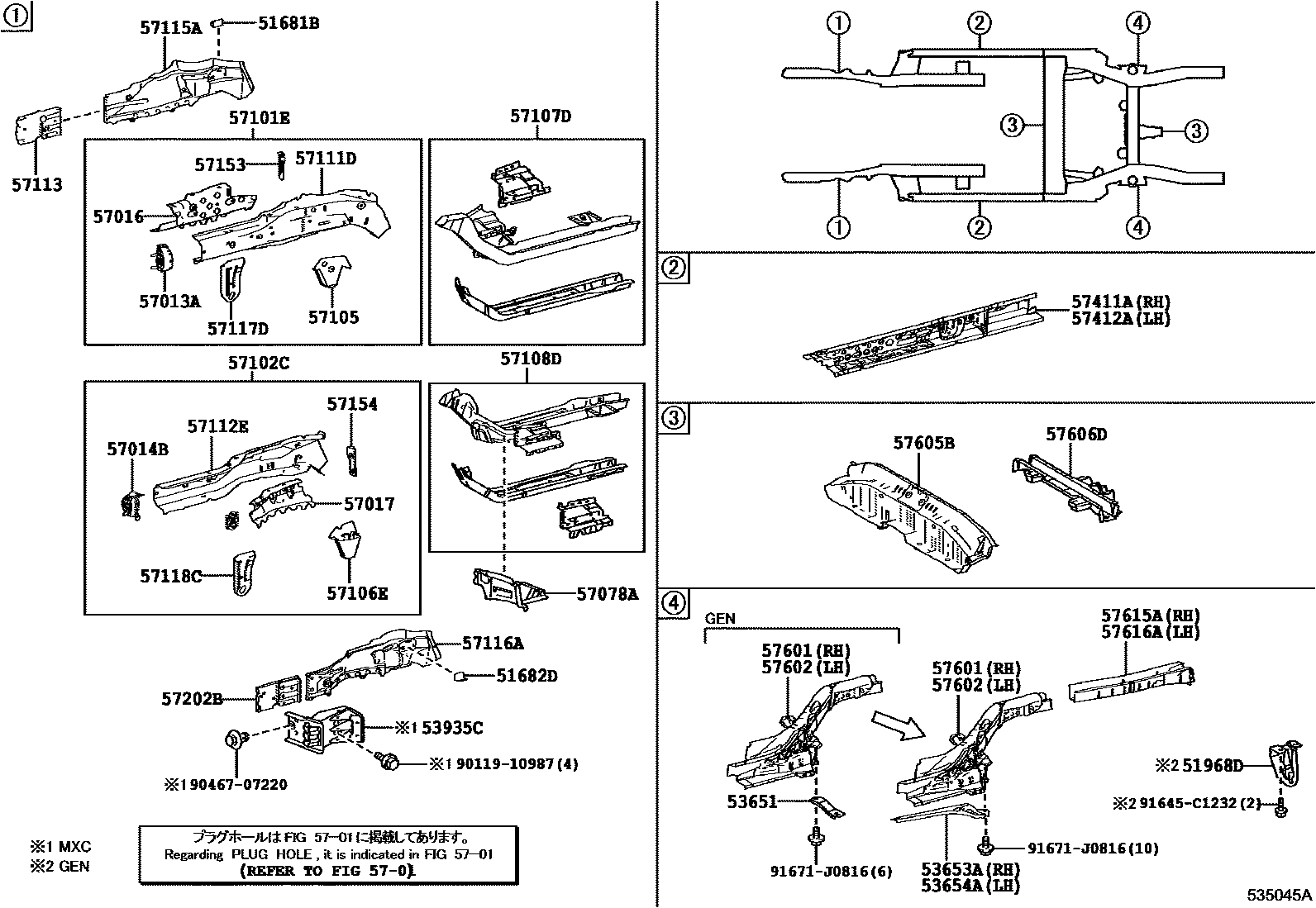

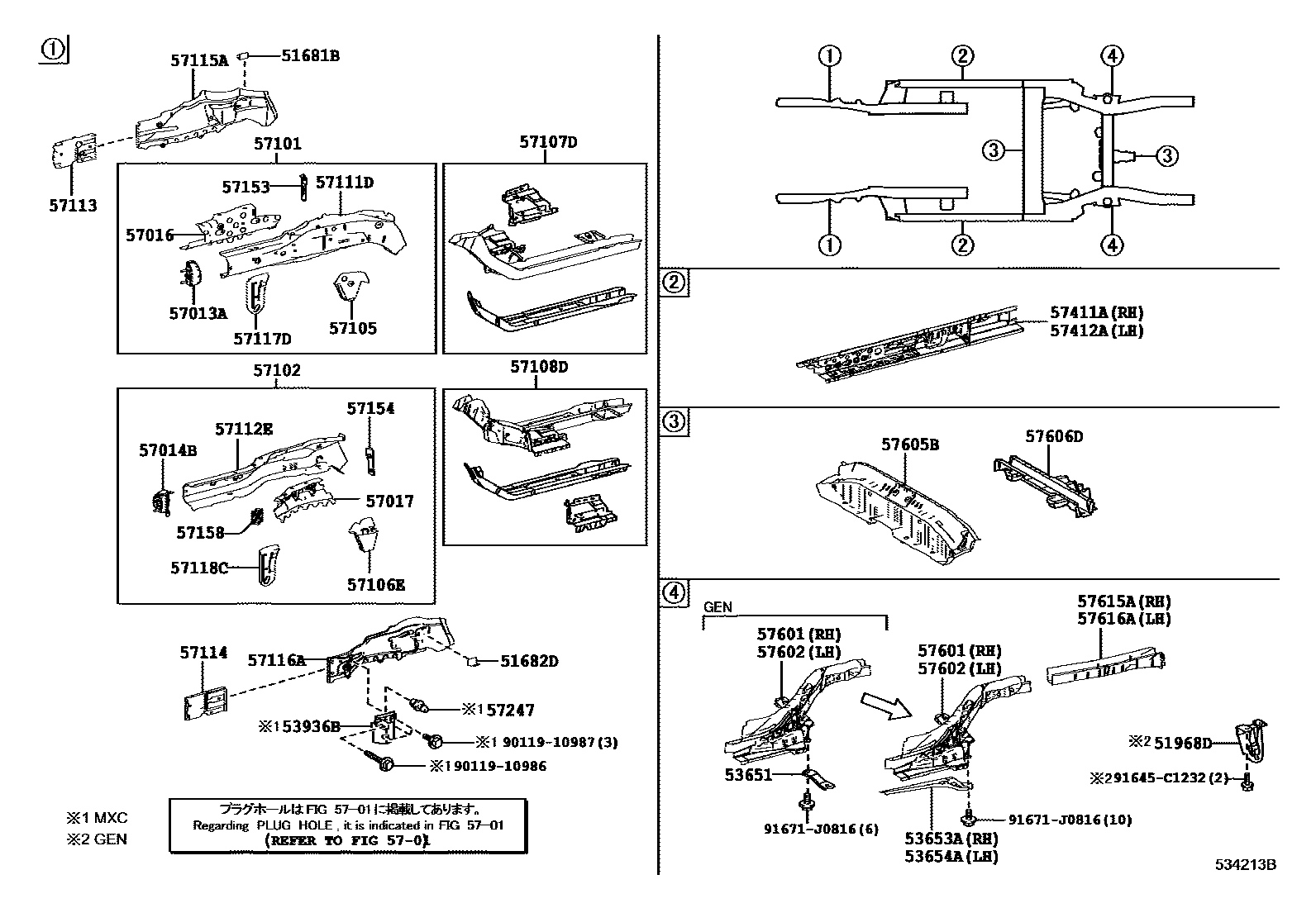

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681B | Right front wheel brake flexible hose support plate | 51681-02020 |
| 51682D | Left front wheel brake flexible hose support plate | 51682-02020 |
| 51968D | Left rear transport hook | 51968-12200 |
| 53651 | Rear floor longitudinal beam bracket | 53651-02070 |
| 53653A | Rear suspension right lower bracket | 53653-02010 |
| 53654A | Rear suspension left lower bracket | 53654-02010 |
| 53935C | Front panel protector | 53935-12040 |
| 53936B | PROTECTEUR, PANNEAU D'EXTREMITE AVANT, GA | 58743-12020 · 58743-12021 |
| 57013A | Right front floor cross member sub-assembly | 57013-02110 |
| 57014B | SOUS-ENSEMBLE SUPPORT, ELEMENT DE COTE AVANT, MG | 57014-02100 · 57014-02101 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-02070 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-01010 · 57017-02060 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-02010 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-02924 |
| 57101E | Right front inner longitudinal beam sub-assembly | 57101-02924 · 57101-02926 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-02939 · 57102-02940 |
| 57102C | Left front inner longitudinal beam sub-assembly | 57102-02942 |
| 57105 | Right front suspension cross member front mounting bracket sub-assembly | 57105-02050 |
| 57106E | Left front suspension cross member front mounting bracket sub-assembly | 57106-02030 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-02904 · 57107-02905 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-02904 · 57108-02905 |
| 57111D | Inner right front longitudinal beam | 57111-02051 · 57111-02052 |
| 57112E | Inboard left front longitudinal beam | 57112-02082 |
| 57113 | Right front longitudinal beam extension | 57113-02101 |
| 57114 | Left front longitudinal beam extension | 57114-02101 |
| 57115A | Right front longitudinal beam outer panel | 57115-02030 |
| 57116A | Left front longitudinal beam outer panel | 57116-02080 · 57116-02081 |
| 57117D | Front bumper arm right fixing part | 57117-02010 |
| 57118C | Front bumper arm left fixing part | 57118-02010 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57153-02030 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57154-02020 |
| 57158 | No. 4 left front longitudinal beam reinforcement | 57158-02070 |
| 57202B | Left front longitudinal beam extension sub-assembly | 57202-12020 |
| 57247 | Front bumper bracket spacer No. 1 fixing piece | 57247-02010 |
| 57411A | Floor right inner longitudinal beam | 57401-02230 |
| 57412A | Floor left inner longitudinal beam | 57402-02230 · 57402-02320 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57041-02030 · 57611-02906 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57042-02030 · 57612-02906 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02210 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-02270 |
| 57615A | Rear floor right rear longitudinal member | 57615-02920 |
| 57616A | Rear floor left rear longitudinal member | 57616-02907 |
