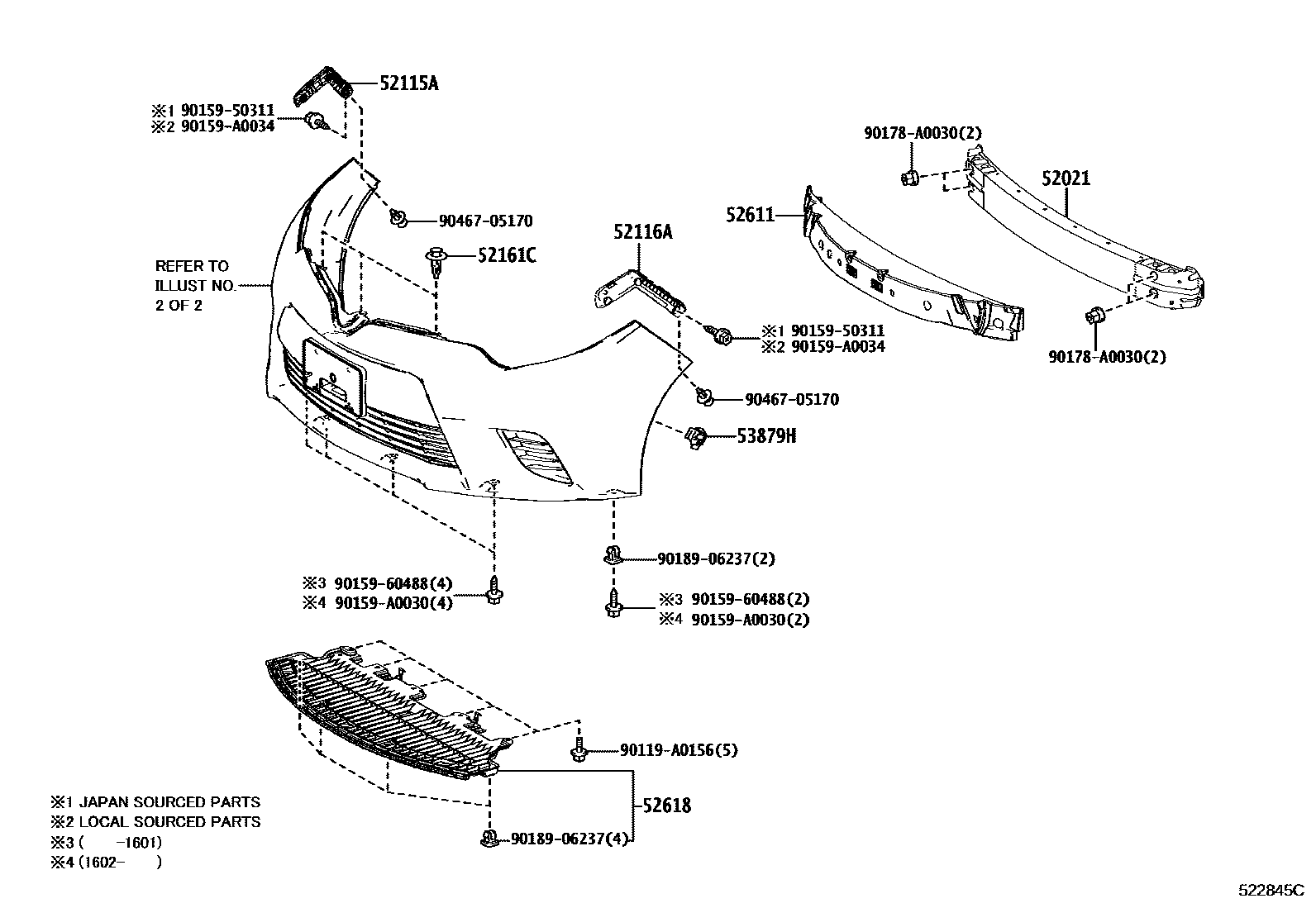

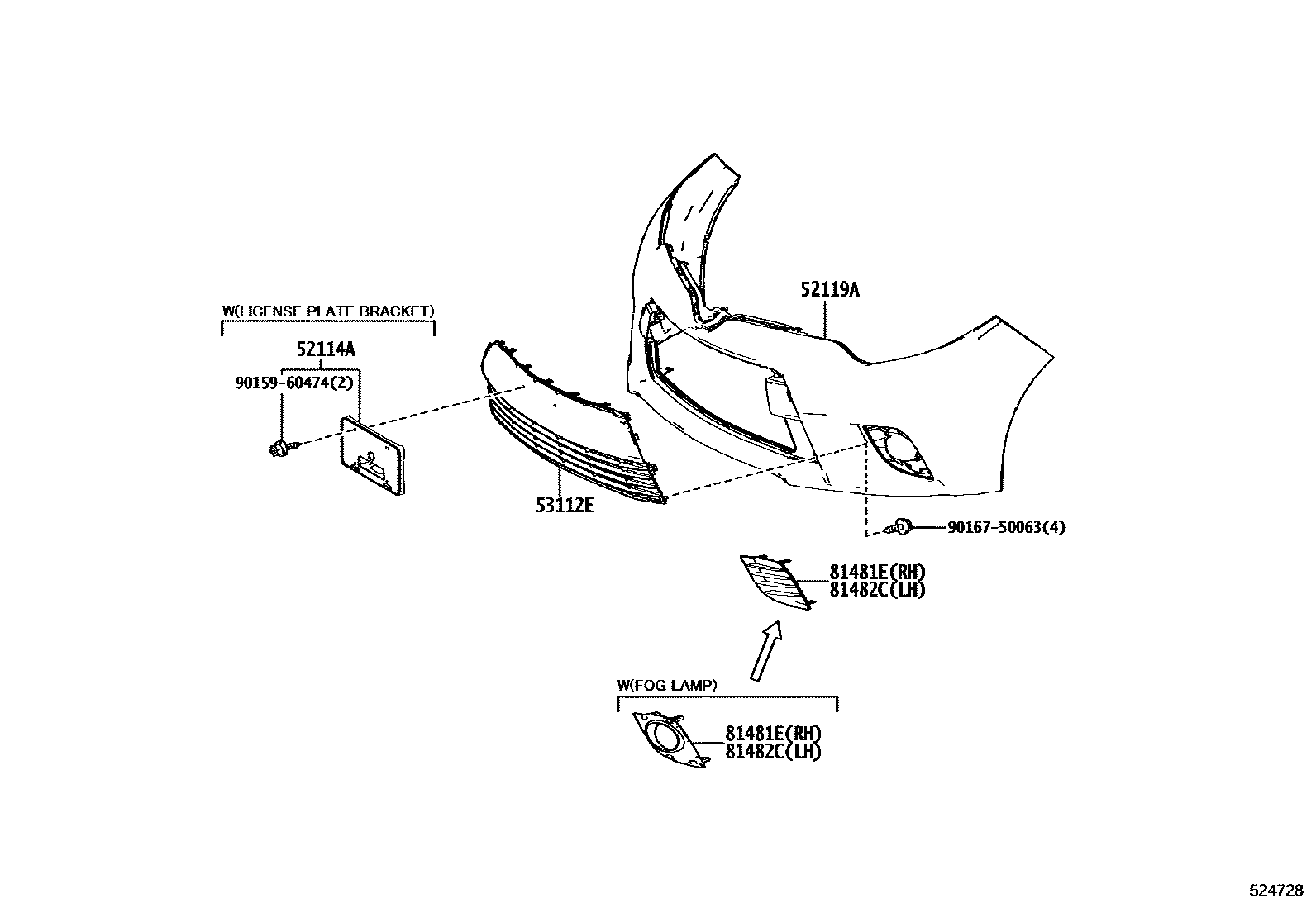

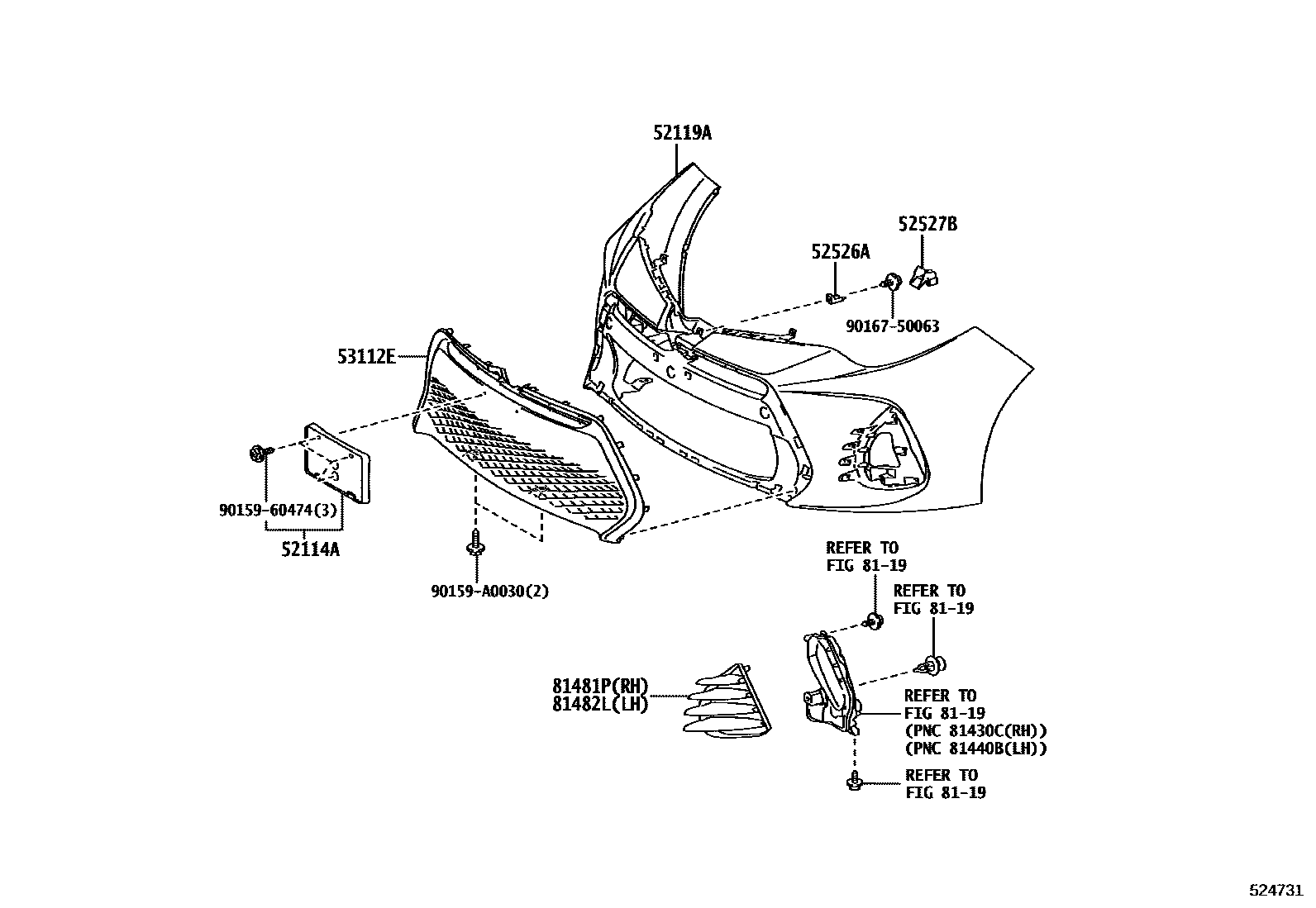

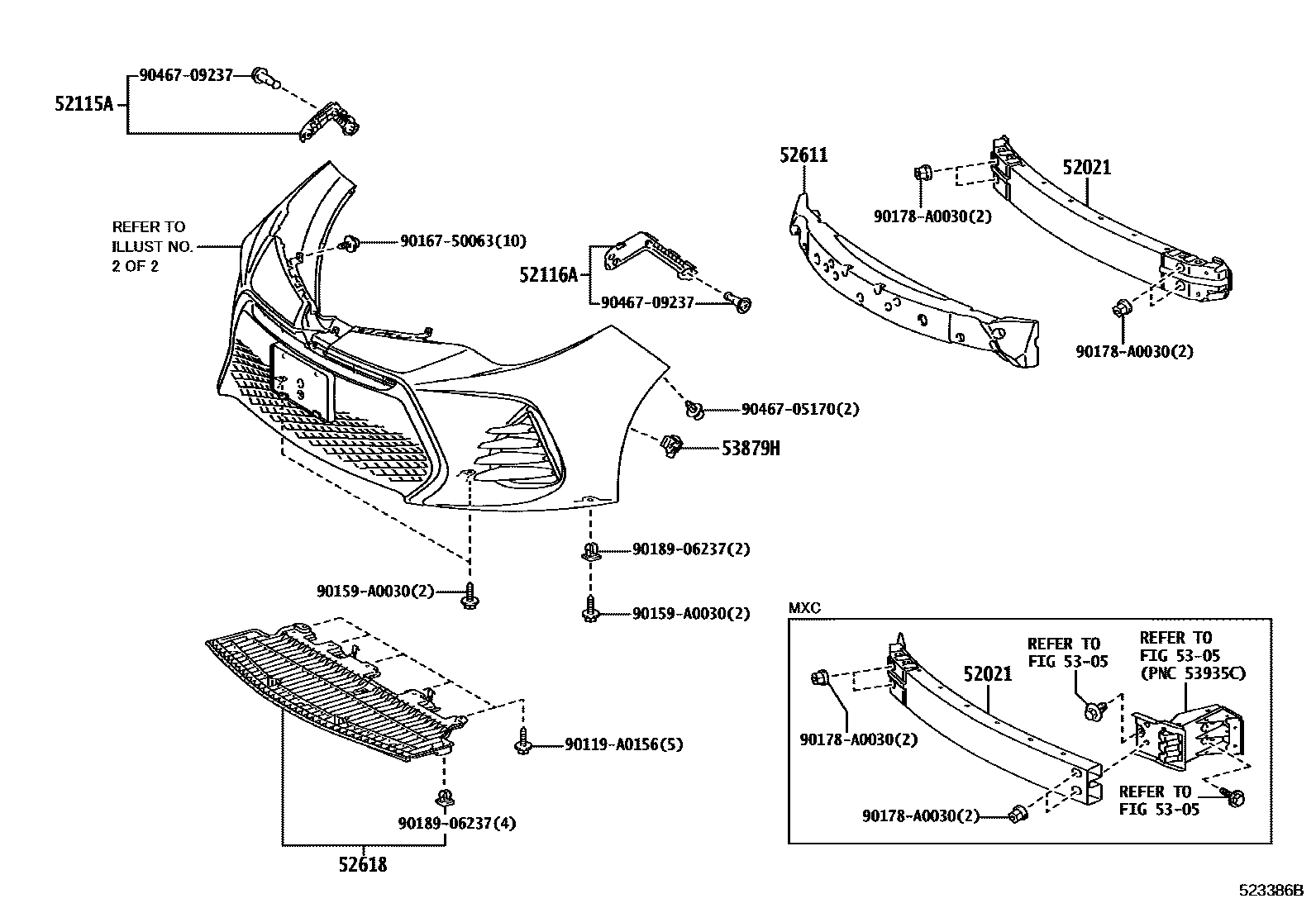

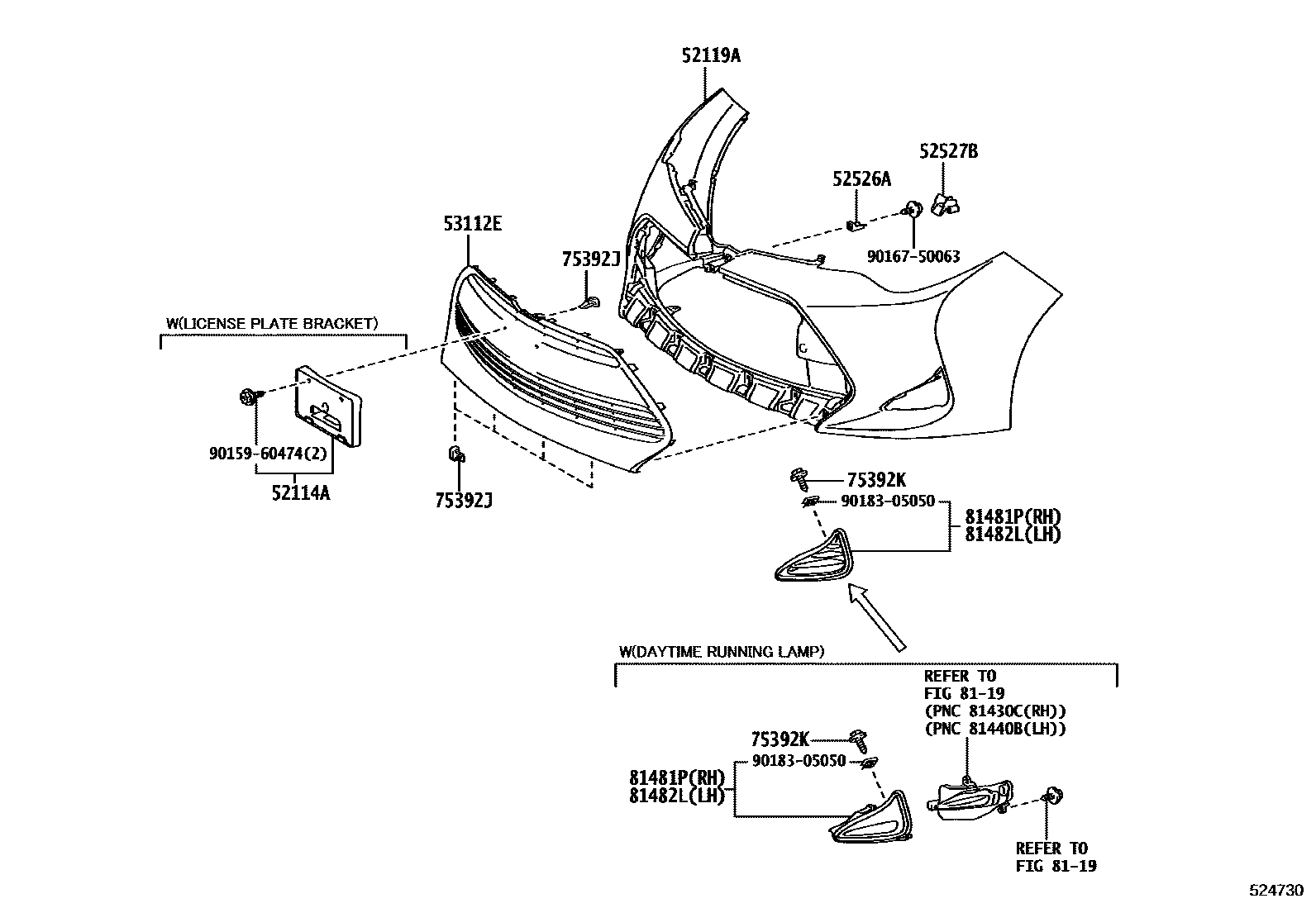

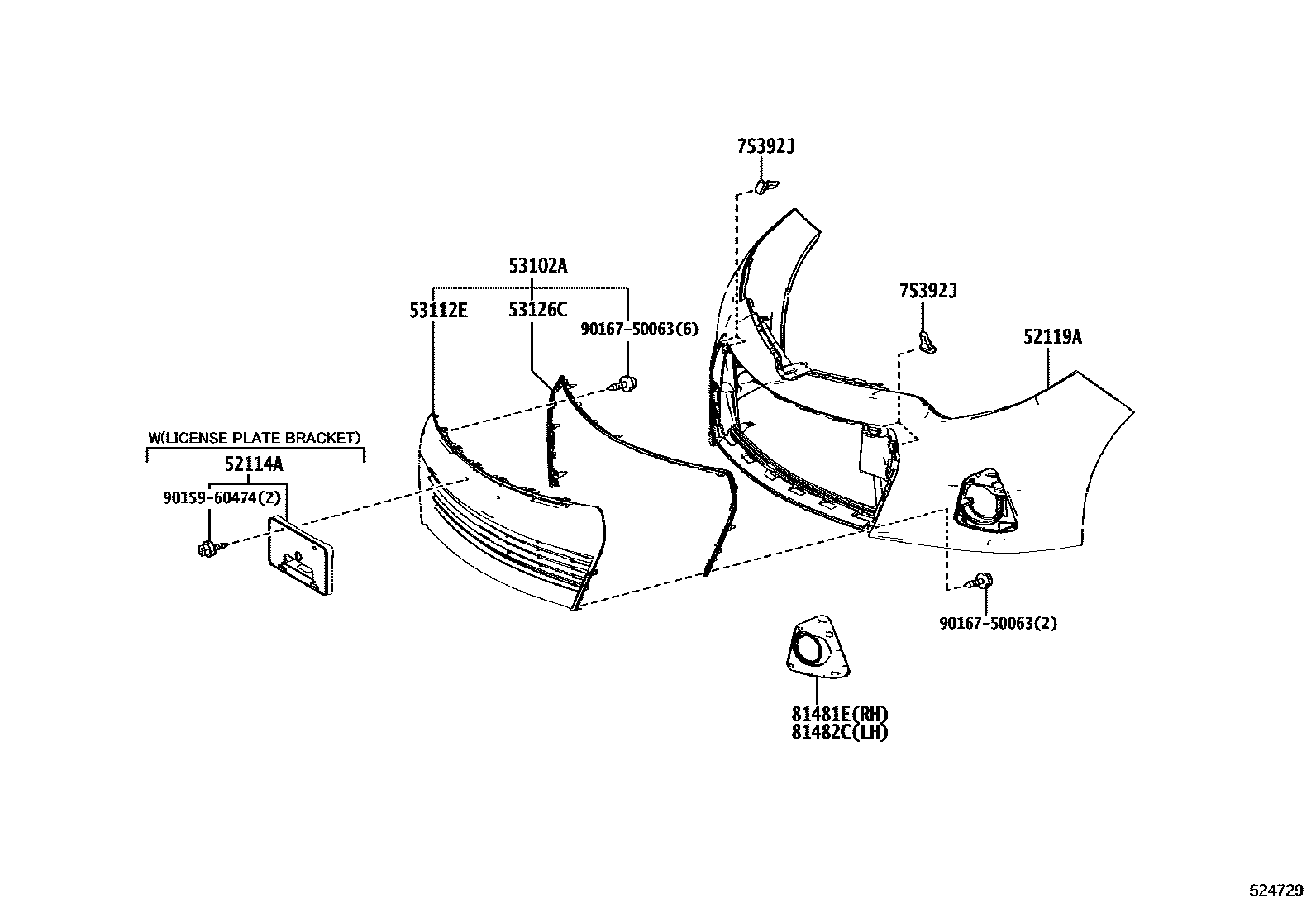

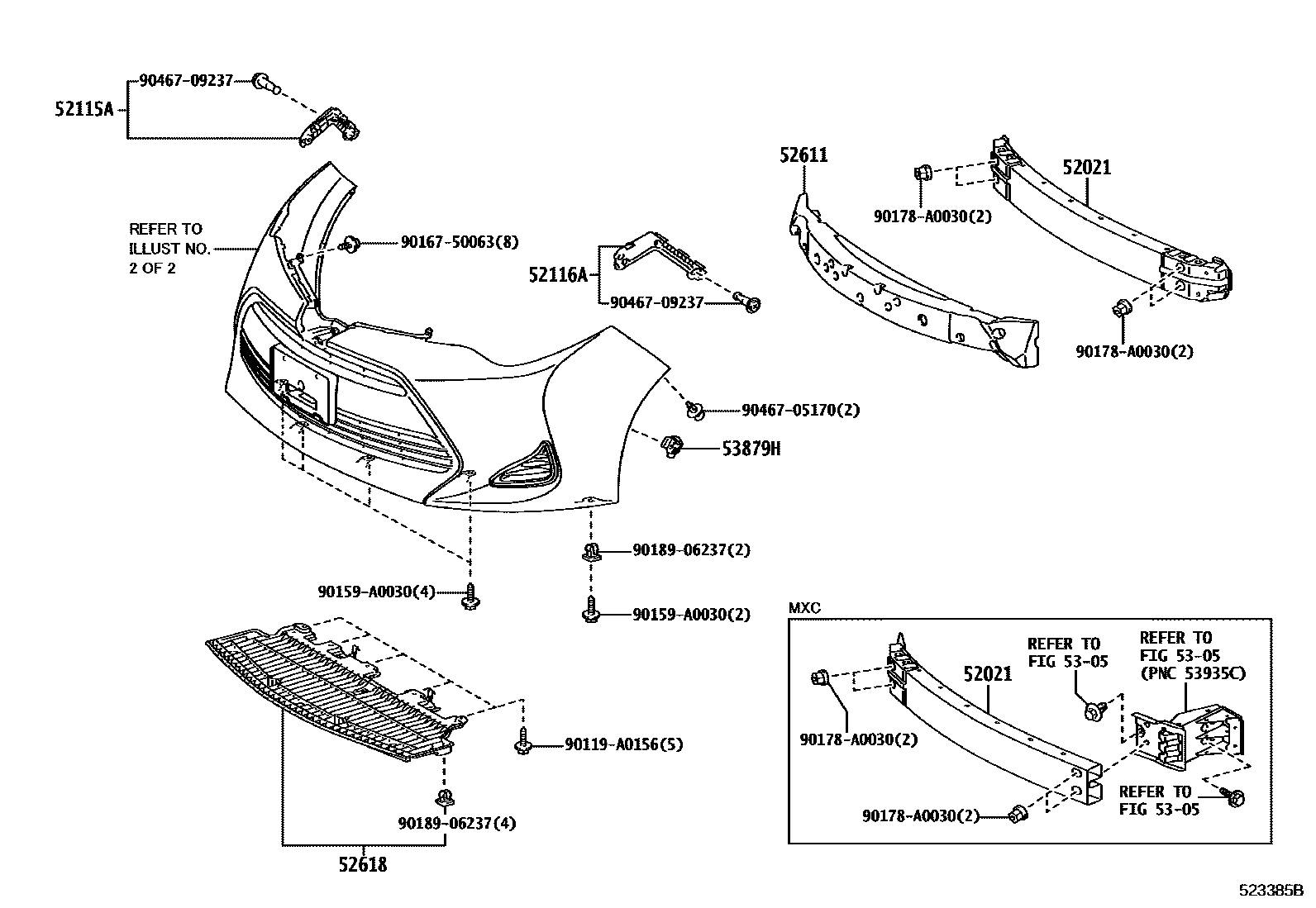

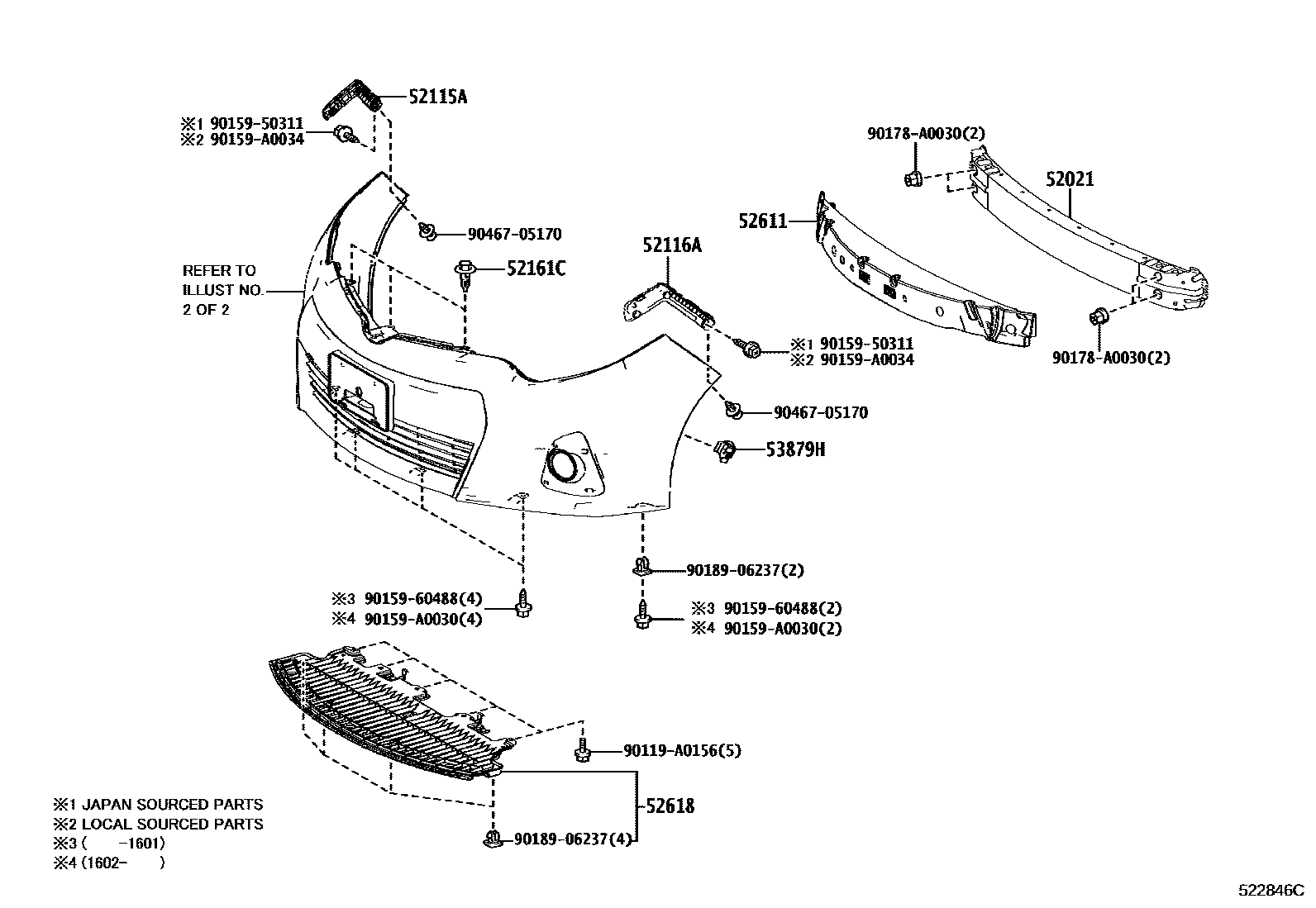

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 8 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02240 · 52021-02300 |
| 52114A | Front bumper extension mounting bracket | 52114-02080 · 52114-02090 · 52114-02100 · 52114-02110 |
| 52115A | Front bumper right side bracket | 52115-02240 · 52115-02350 |
| 52116A | Front bumper left bracket | 52116-02240 · 52116-02330 |
| 52119A | front bumper cover | 52119-03904 · 52119-03906 · 52119-03907 · 52119-03908 |
| 52161C | front bumper insert | 52161-02020 |
| 52526A | Front bumper No. 1 lower fixing bracket | 52526-02030 |
| 52527B | Front bumper No. 2 lower fixing bracket | 52527-02020 |
| 52611 | front bumper energy absorber | 52611-02280 · 52611-02410 |
| 52618 | Front bumper lower shock absorber | 52618-02060 · 52618-02130 |
| 53102A | SOUS-ENSEMBLE GRILLE, RADIATEUR, INFERIEURE | 53102-02210 |
| 53112E | No. 1 radiator lower grille | 53112-02450 · 53112-02510 · 53112-02640 · 53112-02730 · 53112-02740 |
| 53126C | Radiator grille No. 6 protective strip | 53126-02090 |
| 53879H | Front fender lining fixing parts | 53879-02070 · 53879-58010 |
| 75392J | External protective strip fixings | 75392-35220 |
| 75392K | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-42030 |
| 81481E | Right fog light cover | 81481-02330 · 81481-02340 · 81481-02480 · 81481-02520 · 81481-02530 |
| 81481P | CACHE, ECLAIRAGE DE JOUR, MD | 81481-02410 · 81481-02411 · 81481-02670 · 81481-02671 · 81481-02680 · 81481-02681 |
| 81482C | Left fog light cover | 81482-02320 · 81482-02330 · 81482-02470 · 81482-02510 · 81482-02520 |
| 81482L | CACHE, ECLAIRAGE DE JOUR, MG | 81482-02400 · 81482-02401 · 81482-02660 · 81482-02661 · 81482-02670 · 81482-02671 |
