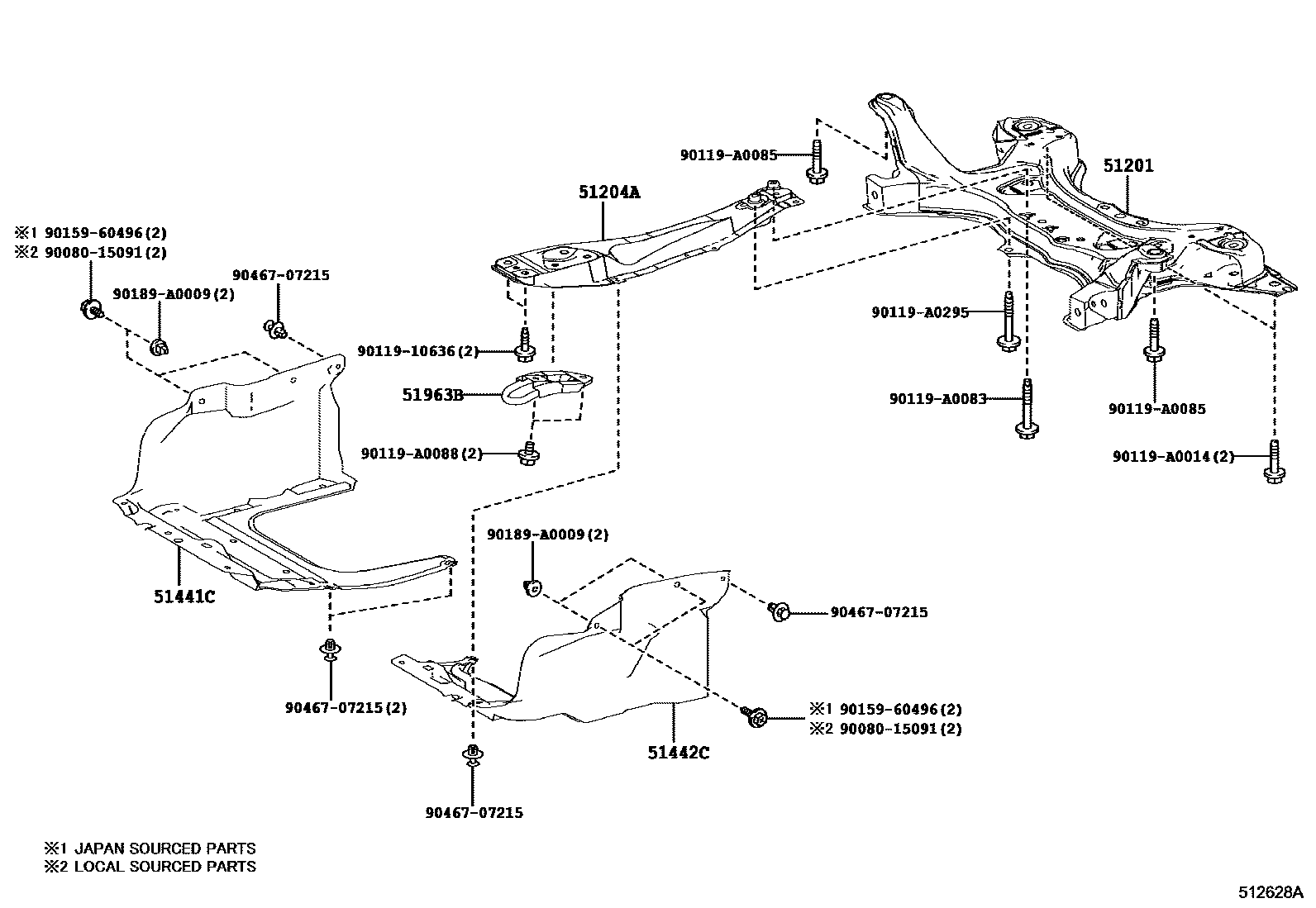

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02151 · 51201-02152 |
| 51204A | Engine center mount beam sub-assembly | 51204-02080 |
| 51441C | Engine right bottom cover | 51441-02350 |
| 51442C | Engine left bottom cover | 51442-02400 · 51442-02470 |
| 51963B | Right front transport hook | 51960-02100 |
