Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

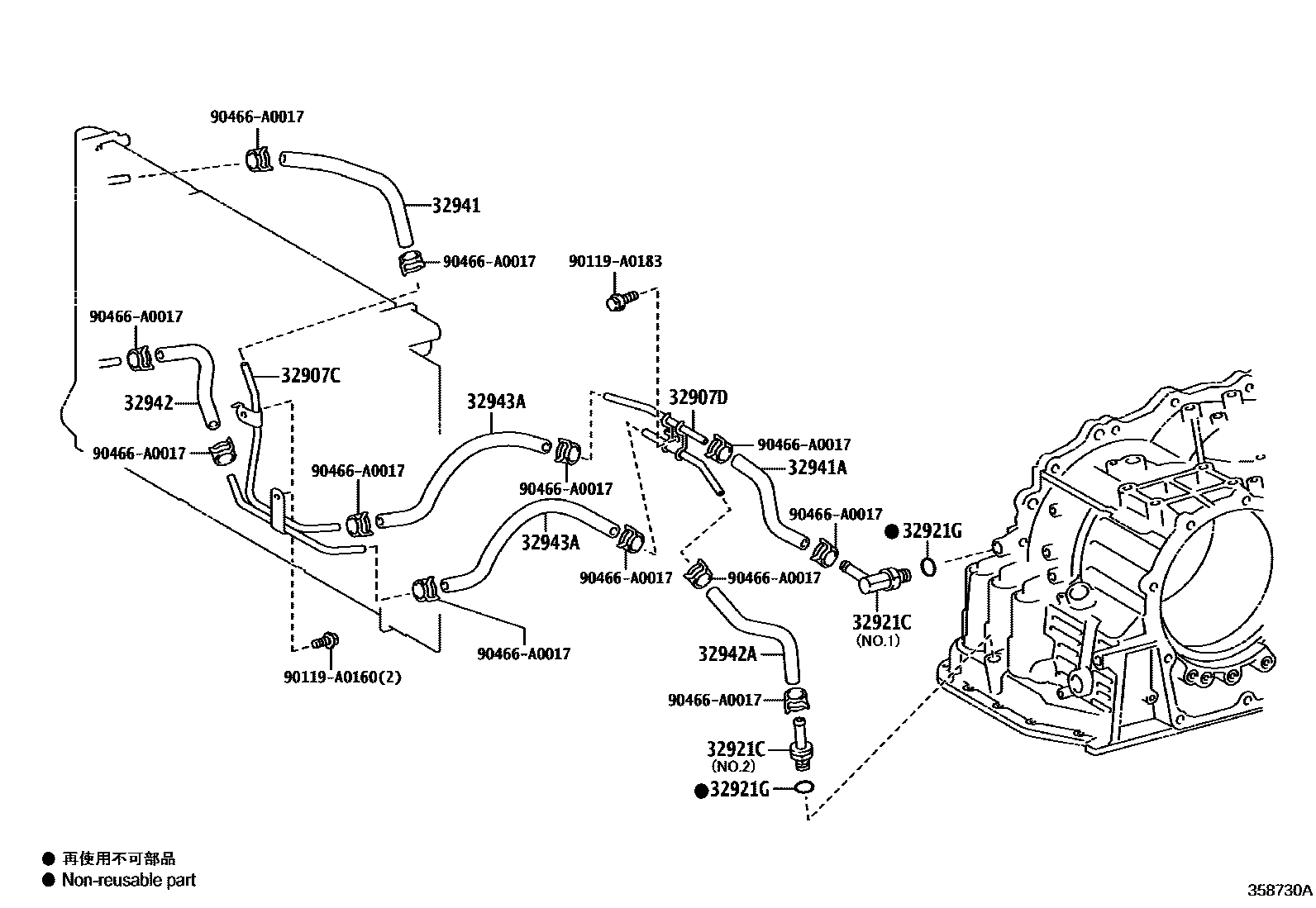

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-02290 |
| 32907D | No. 2 transmission oil cooler pipe sub-assembly without hose | 32907-02050 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13005 · 90404-13007 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10018 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32943-02490 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 32943-02030 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32943-02020 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 32943-02040 |
| 32943A | No. 2 transmission oil cooler hose | 90080-44037 |
