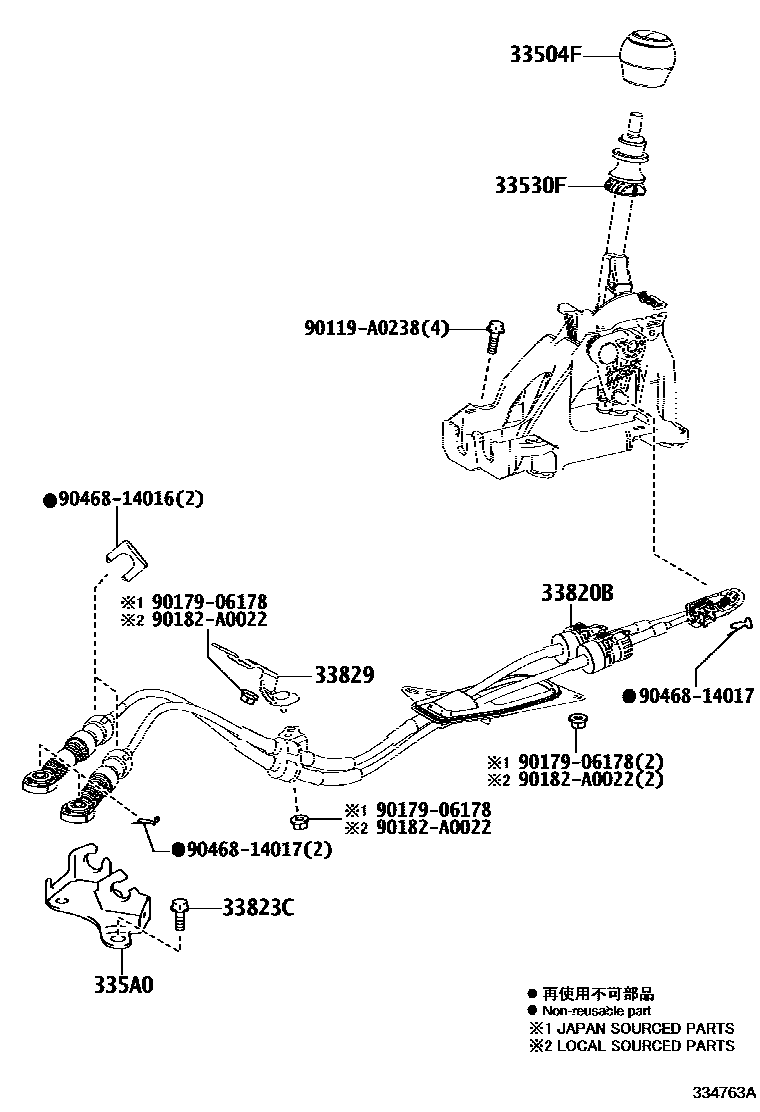

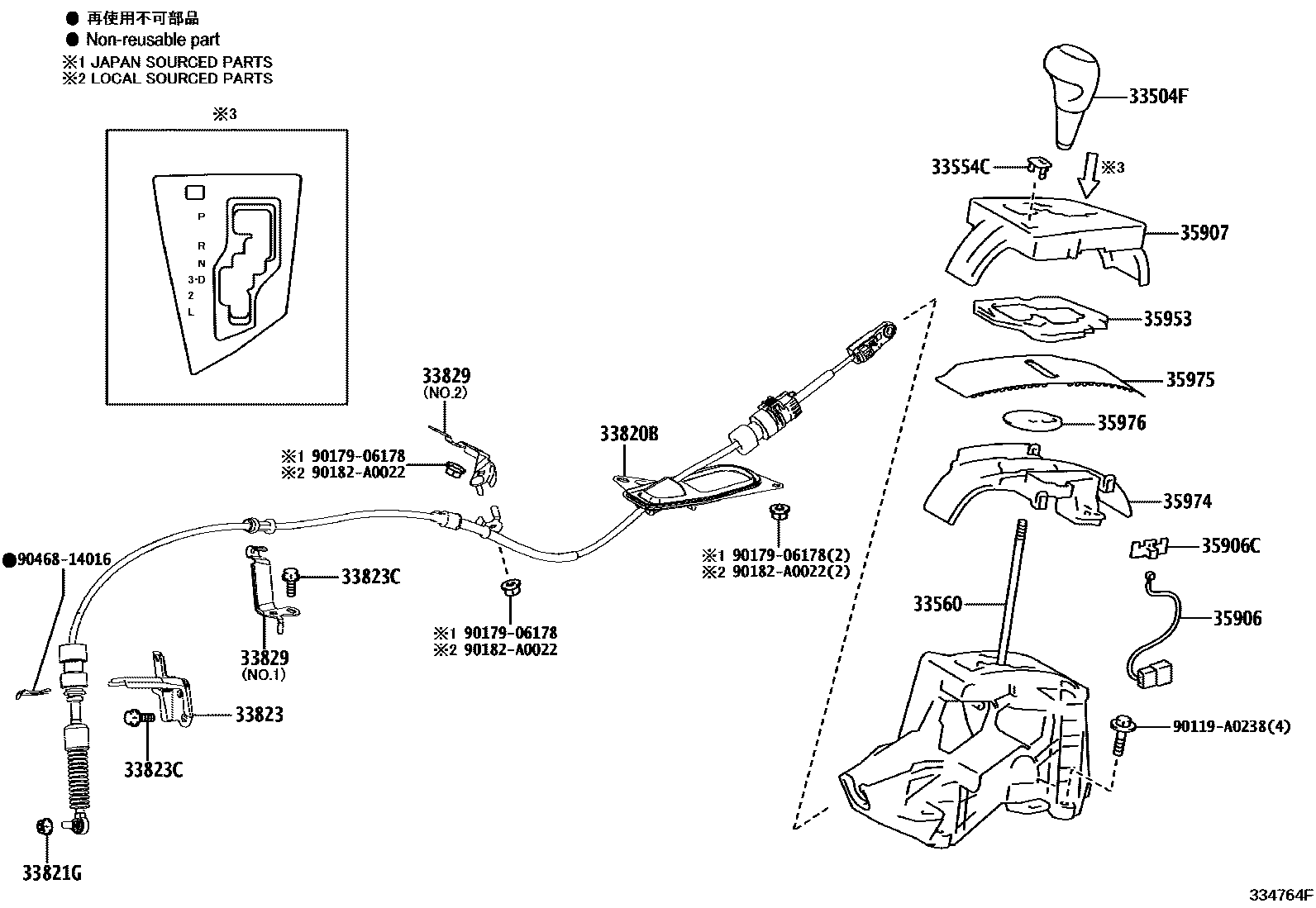

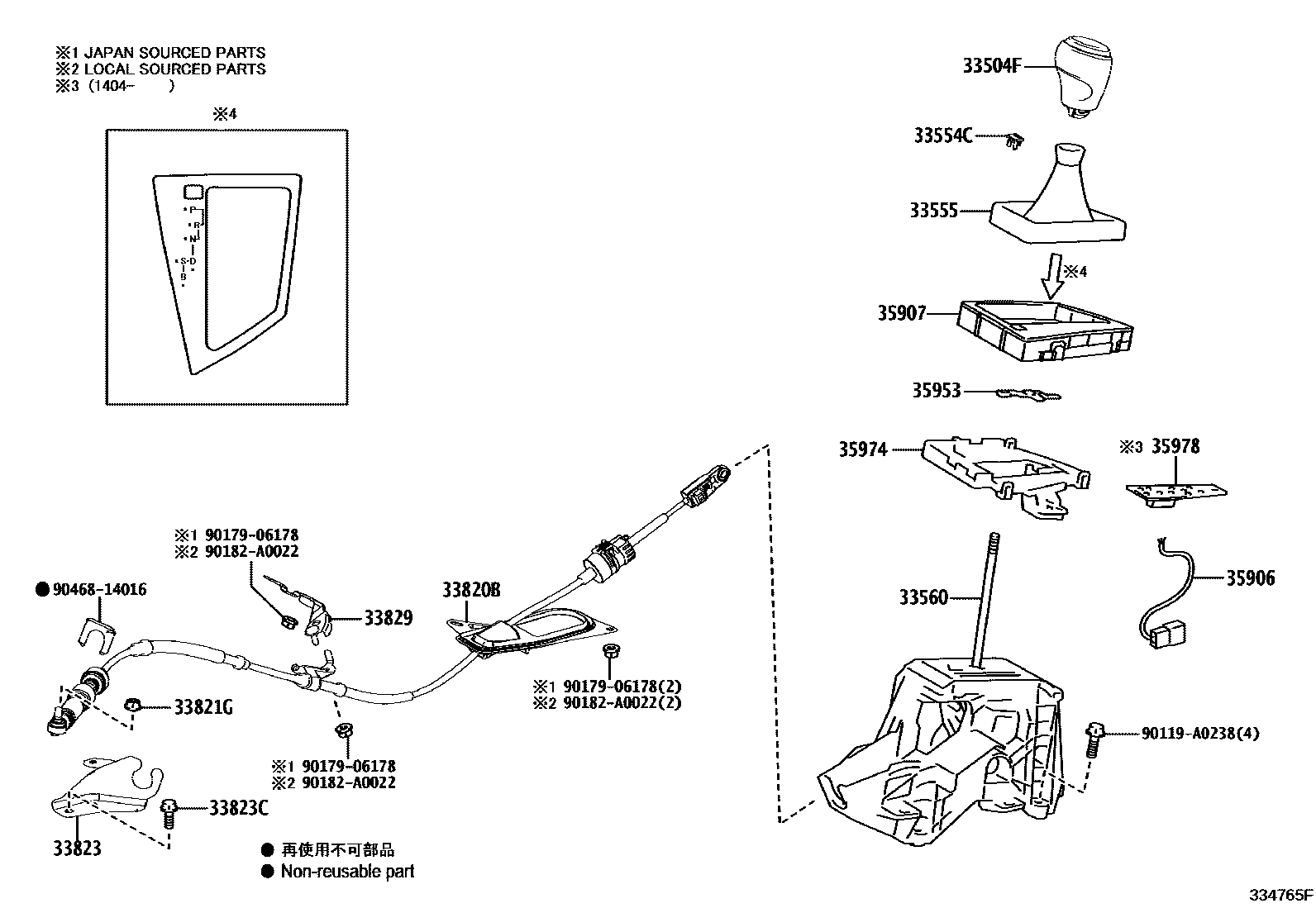

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33530F | Shift lever assembly (for floor shift) | 33530-12C40 |
| 33554C | Shift lock release button cover | 33554-02110 |
| 33560 | Shift lock control unit assembly | 33560-02230 · 33560-02240 · 33560-02250 |
| 335A0 | Control cable bracket assembly | 335A0-12020 · 335A0-12021 |
| 33820B | Transmission control cable assembly | 33820-02850 · 33820-02860 · 33820-02A40 |
| 33821G | Nut (for transmission control cable) | 90178-A0017 |
| 33823 | No. 1 transmission control cable bracket | 33823-02100 · 33823-02200 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 90119-A0234 |
| 33829 | Transmission control cable bracket | 33829-02070 · 33829-02080 · 33829-02260 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-02110 · 35906-02120 · 35906-02130 |
| 35906C | PUCE, TEMOIN LUMINEUX | 35906-49005 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-02110 · 35907-02120 · 35907-02270 |
| 35953 | Position indicator light guide | 35953-02060 · 35953-02080 |
| 35974 | Position indicator light lower shell | 35974-02120 · 35974-02130 |
| 35975 | Slide cover (for position indicator light) | 35975-02110 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-02090 |
| 35978 | Shift lever position indicator light | 35978-09005 · 35978-09015 |
