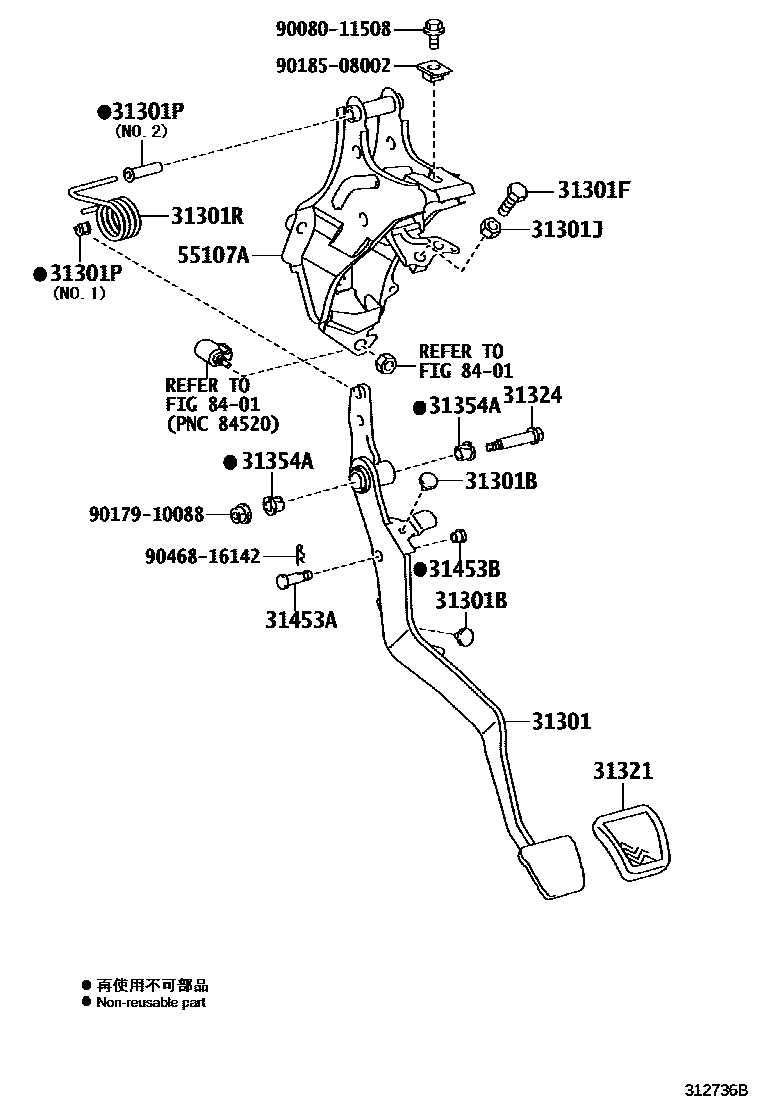

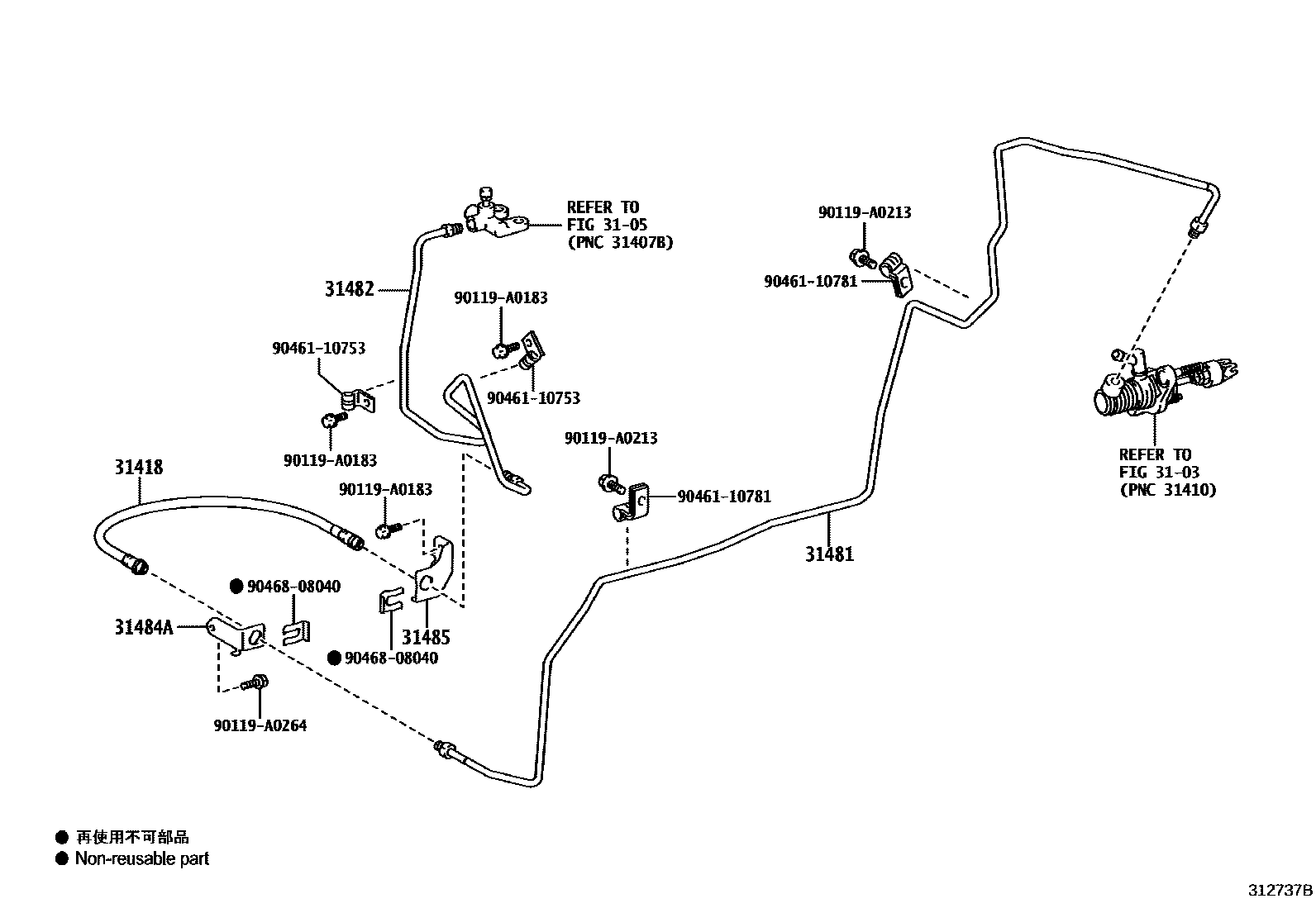

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-02430 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10055 |
| 31301J | Nut (for clutch pedal stop) | 46441-12020 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90386-05017 · 90389-05019 |
| 31301R | Compression spring (for flip spring seat) | 90949-03138 |
| 31321 | clutch pedal pad | 31321-42010 |
| 31324 | clutch pedal shaft | 90109-10174 |
| 31354A | Bushing (for clutch pedal spring upper seat) | 90386-13015 |
| 31418 | clutch hose | 90947-A2021 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-02520 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-02440 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-02240 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-02250 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-02341 |
