Toyota COROLLA Alternator — Figure 1903

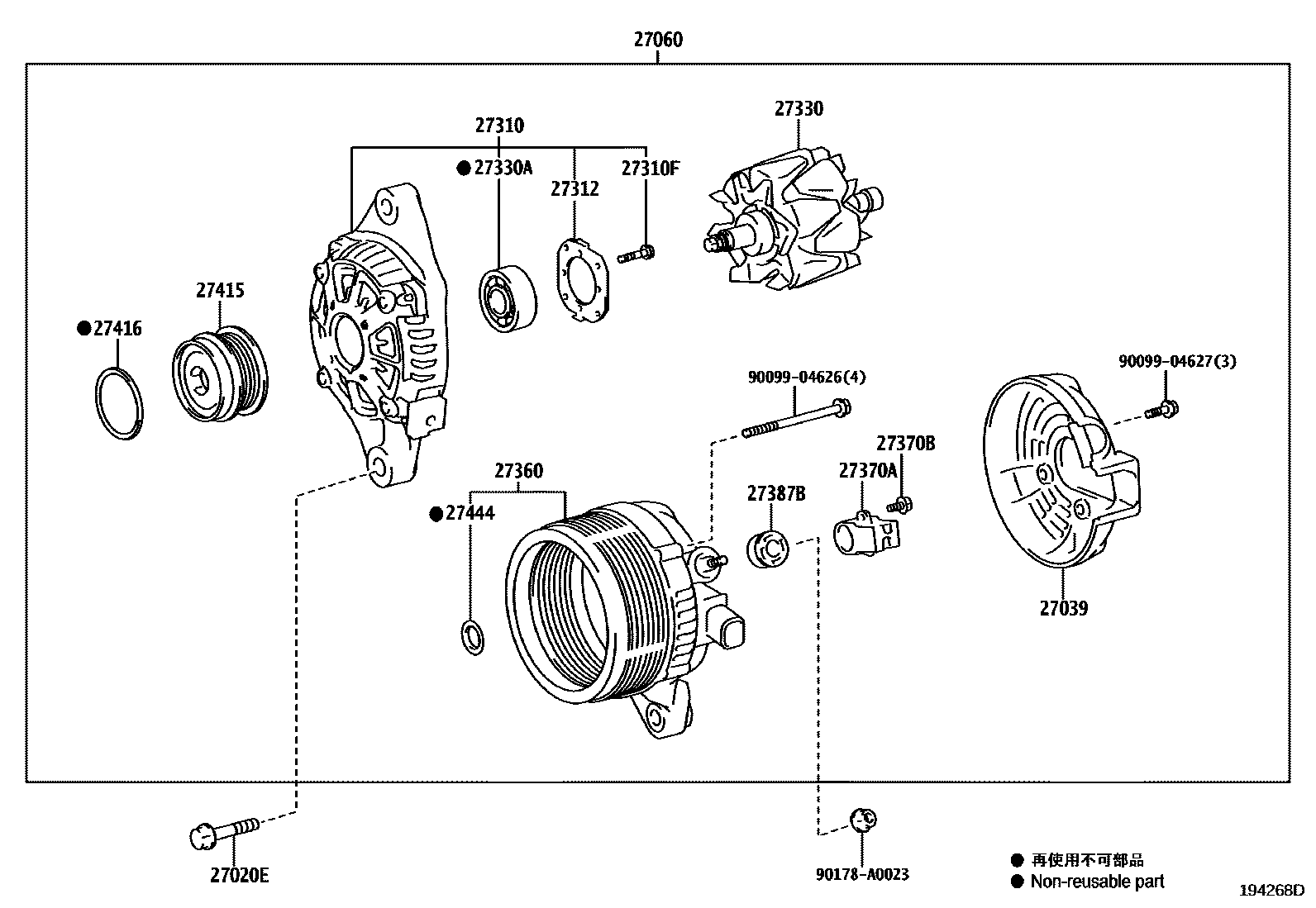

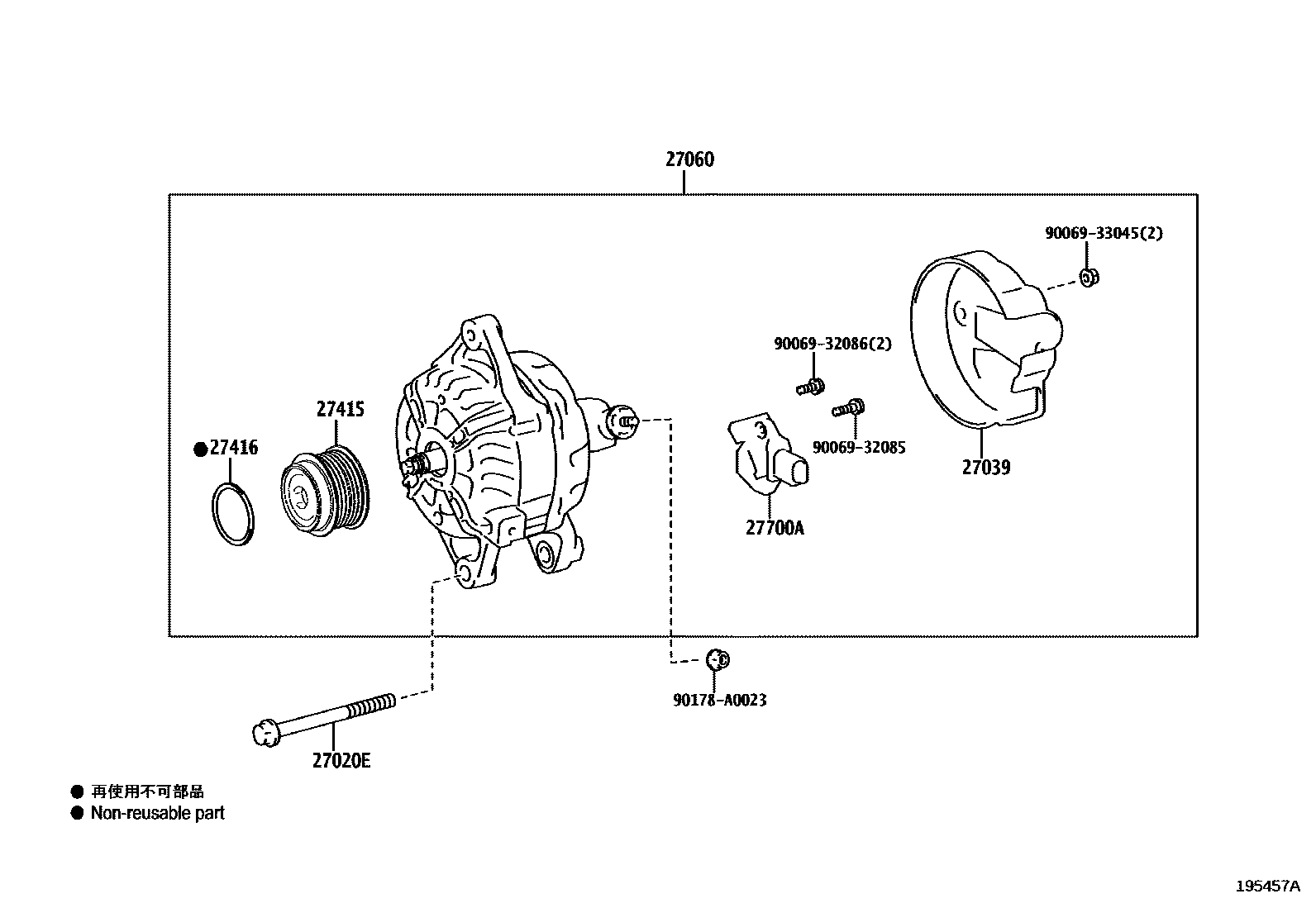

Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020E | Bolts (for generator) | 90105-10307 · 90105-A0267 |
| 27039 | Alternator Rear End Cover | 27039-0C170 · 27039-0T210 · 27039-37220 · 27039-47330 |
| 27060 | Generator assembly with regulator | 27060-0T230 · 27060-0T240 · 27060-0T260 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0T440 · 27310-37130 |
| 27310F | VIS(POUR CHASSIS COTE ENTRAINEMENT ALTERNATEUR) | 90068-00022 · 90099-00268 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0C170 · 27330-47330 |
| 27330A | Bearings (for generator rotor) | 90068-10033 · 90099-10223 |
| 27360 | Alternator Stator Coil Assembly | 27360-0T221 · 27360-0T241 |
| 27370A | Alternator Brush Holder Assembly | 27370-0V160 · 27370-31220 |
| 27370B | VIS(POUR PORTE-BALAIS ALTERNATEUR) | 90068-00023 · 90099-00197 |
| 27387B | Generator terminal insulation pad | 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0T031 · 27415-0T060 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0C170 · 27444-21190 |
| 27700A | Generator voltage regulator assembly | 27700-0T060 |
