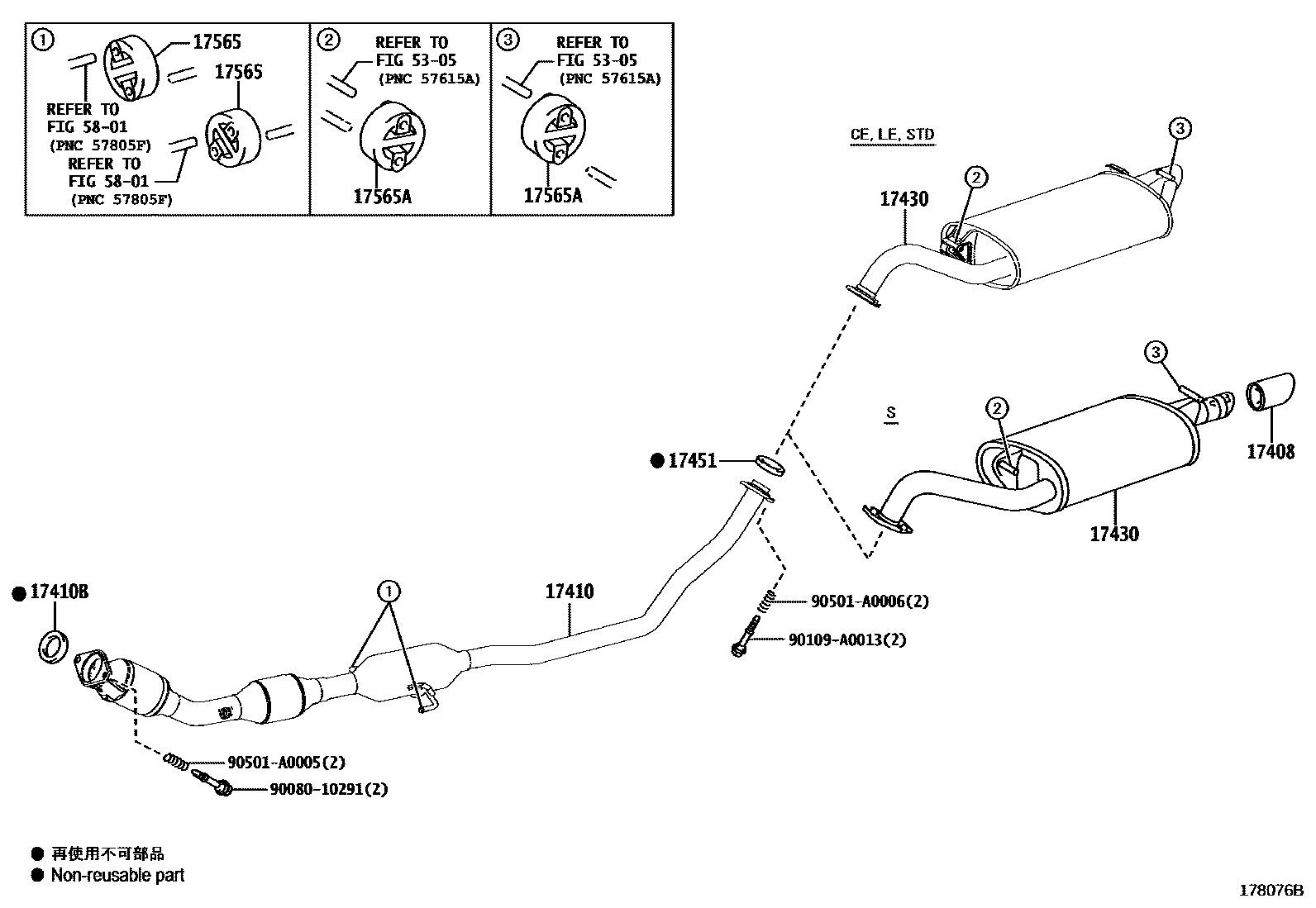

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-37010 |
| 17410 | Front exhaust pipe assembly | 17410-0T550 · 17410-0T551 · 17410-0T561 · 17410-0T620 · 17410-0T890 · 17410-0TA00 |
| 17410B | Exhaust pipe gasket | 17451-0D140 |
| 17430 | Exhaust tailpipe assembly | 17430-0T250 · 17430-0T251 · 17430-0T260 · 17430-0T261 |
| 17451 | Exhaust pipe gasket | 17451-0D132 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P031 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0P041 |
