Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

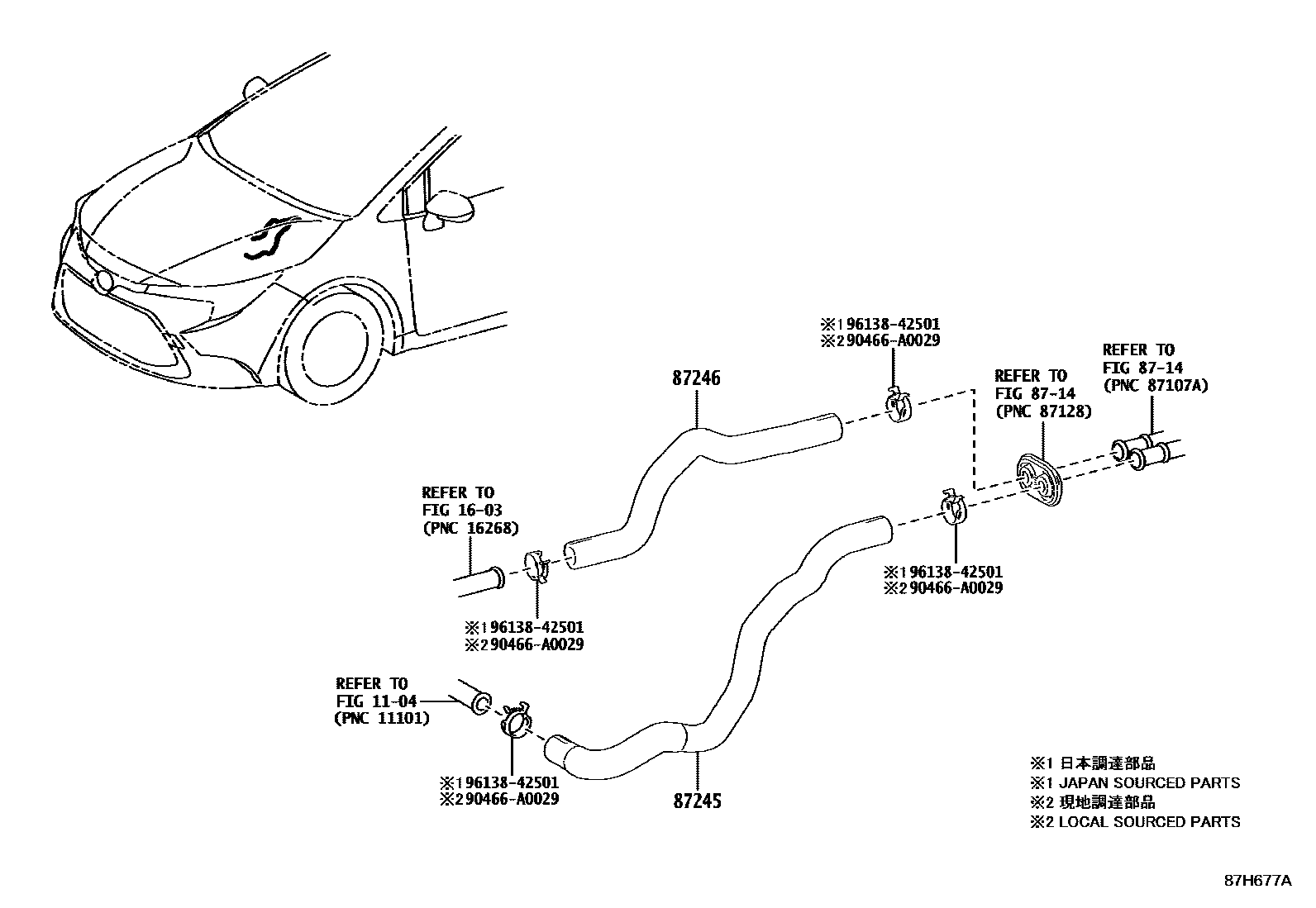

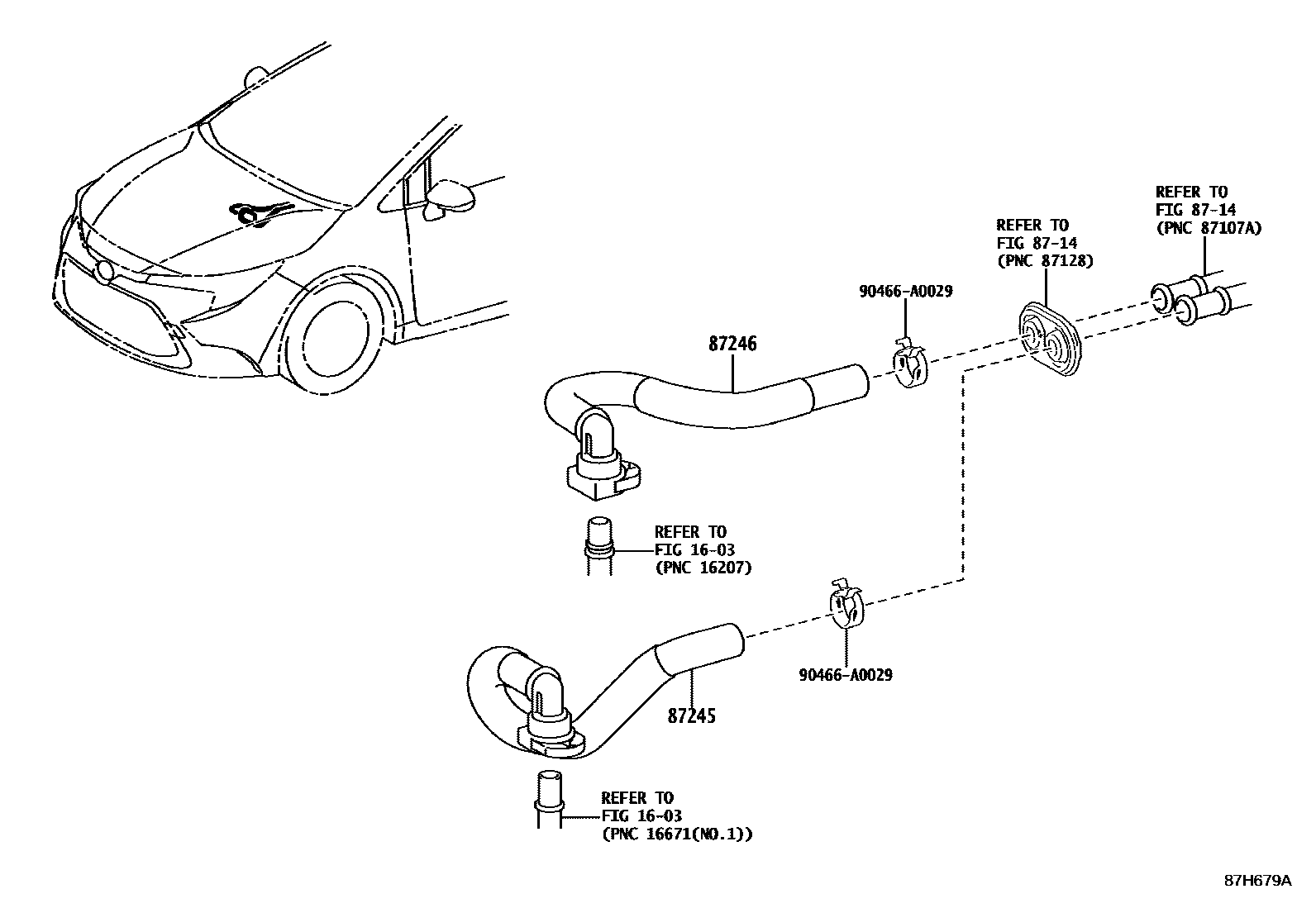

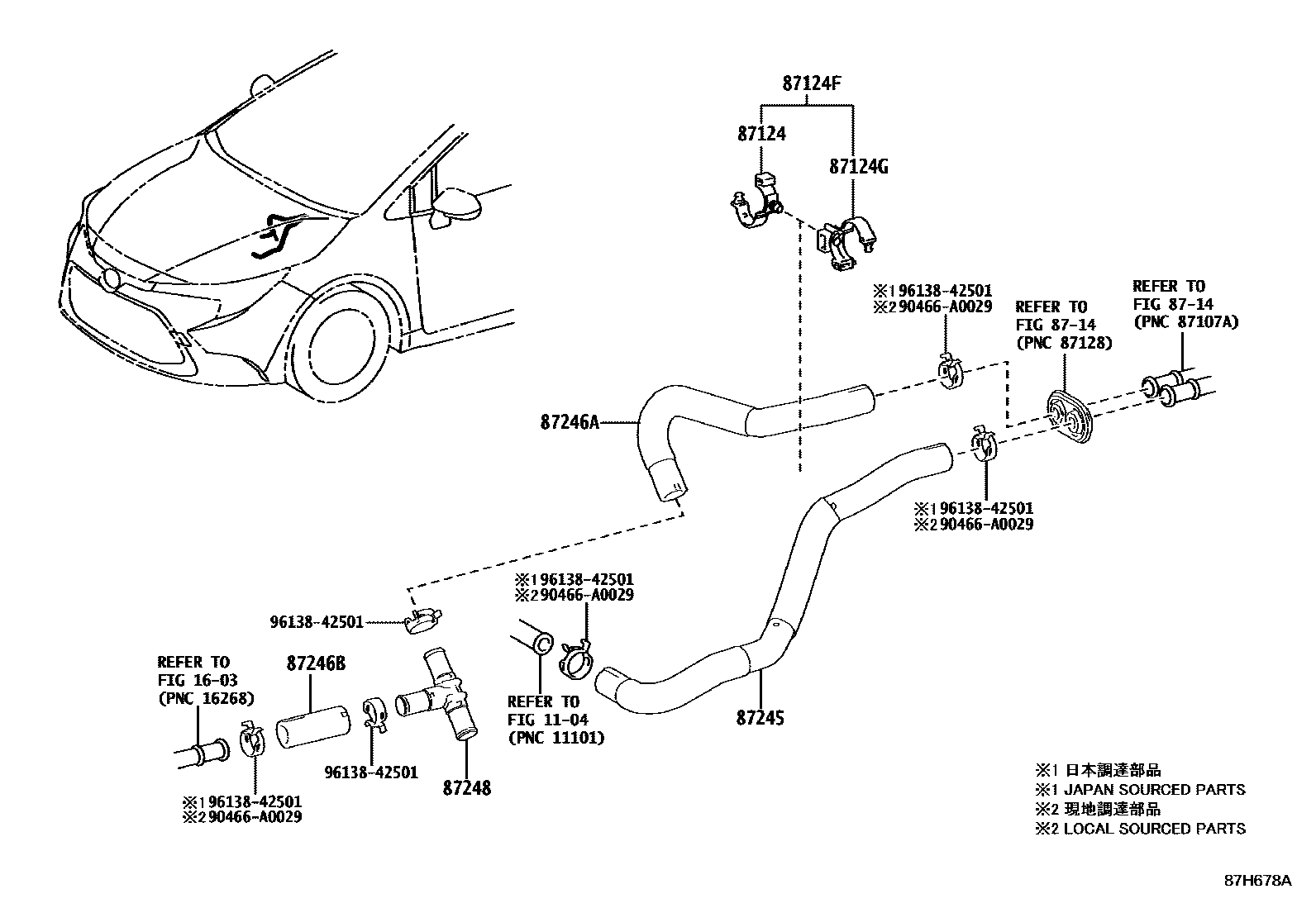

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124 | heater clip | 87124-11030 |
| 87124F | No. 1 heater hose clamp | 16581-70060 |
| 87124G | No. 2 heater hose clamp | 87124-50060 |
| 87245 | Heater water inlet hose | 87209-F2010 · 87245-02Q90 · 87245-02W10 |
| 87246 | Heater outlet hose | 87209-F2020 · 87245-02R00 |
| 87246A | Heater outlet hose A | 87245-02R10 |
| 87246B | Heater outlet hose B | 87245-02R20 |
| 87248 | Water pipe sub-assembly | 87248-12330 |
