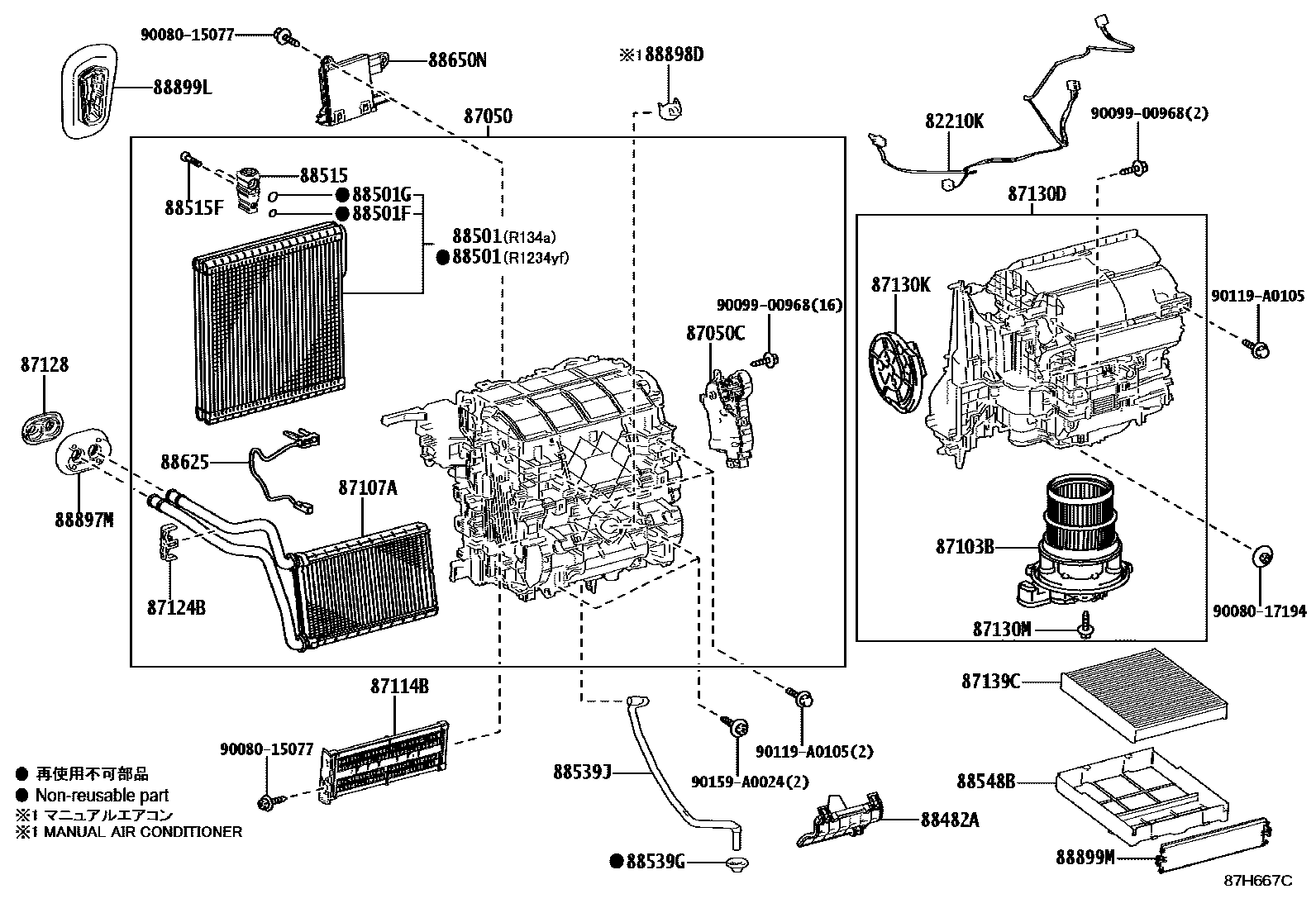

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02560 |
| 87050 | Air conditioning radiator assembly | 87050-0ZC30 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-02870 |
| 87103B | Blower motor sub-assembly with fan | 87103-0E090 · 87103-0E150 |
| 87107A | Heater radiator device sub-assembly | 87107-02370 |
| 87114B | heater cover | 87114-02110 |
| 87124B | heater clip | 87124-07030 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-06410 · 87130-06411 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-0E130 |
| 87130M | VIS(POUR SOUFFLERIE) | 87193-87101 |
| 87139C | air purification filter | 87139-0E040 · 87139-28020 |
| 88482A | cover | 87114-02150 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02630 |
| 88501F | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(DECHARGE) | 90069-08007 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90069-08009 |
| 88515 | Cooler expansion valve | 88515-02740 |
| 88515F | BOULON(POUR DETENDEUR DU REFROIDISSEUR) | 90099-04542 |
| 88539G | Seal (for cooler unit drain hose) | 88888-06020 |
| 88539J | Cooler drain hose | 88539-02430 |
| 88548B | air filter housing | 88899-0R010 |
| 88625 | Cooler No. 1 Thermistor | 88620-0E050 |
| 88650N | Air conditioning amplifier assembly | 88650-02L30 · 88650-02L50 · 88650-02Q00 · 88650-0A160 |
| 88897M | Seals (for heater tubes) | 87128-02200 |
| 88898D | gasket | 88899-06260 |
| 88899L | Cooling unit parts | 88899-02430 |
| 88899M | cover (for air cleaner) | 88899-06310 |
