Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 4 PNC and OE references.

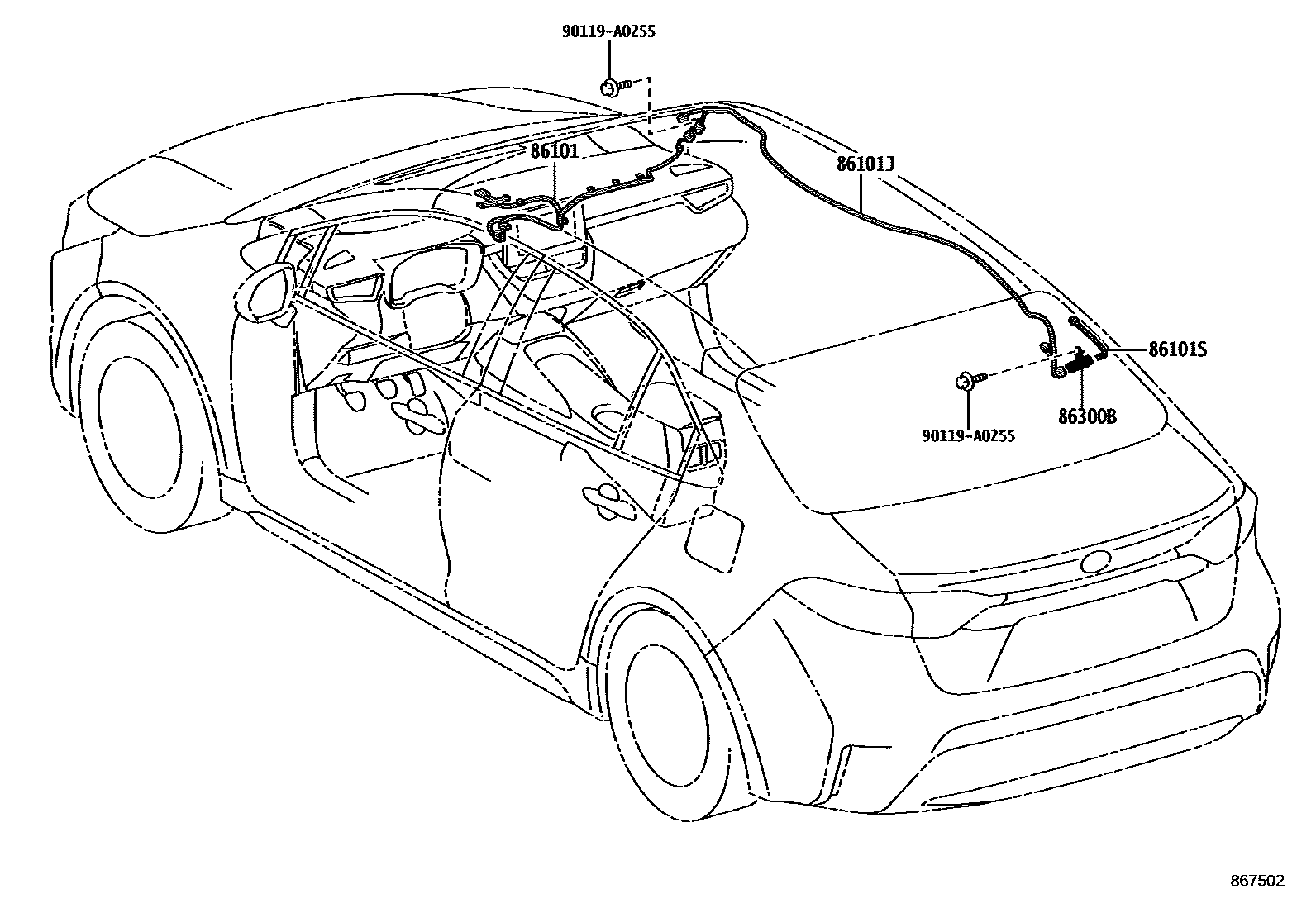

Toyota COROLLA antenna EPC diagram — 867502
antenna — 867502 (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-02870 · 86101-02K40 · 86101-02K50 · 86101-02Q20 · 86101-02Q30 · 86101-02Q40 · 86101-02W00
86101JNo. 2 antenna wire sub-assembly86101-02840 · 86101-02M30 · 86101-02V40 · 86101-02V70
86101SAntenna wire sub-assembly86101-02810
86300BAmplifier antenna assembly86300-02570
