Toyota COROLLA 遥控门锁 — Figure 8420

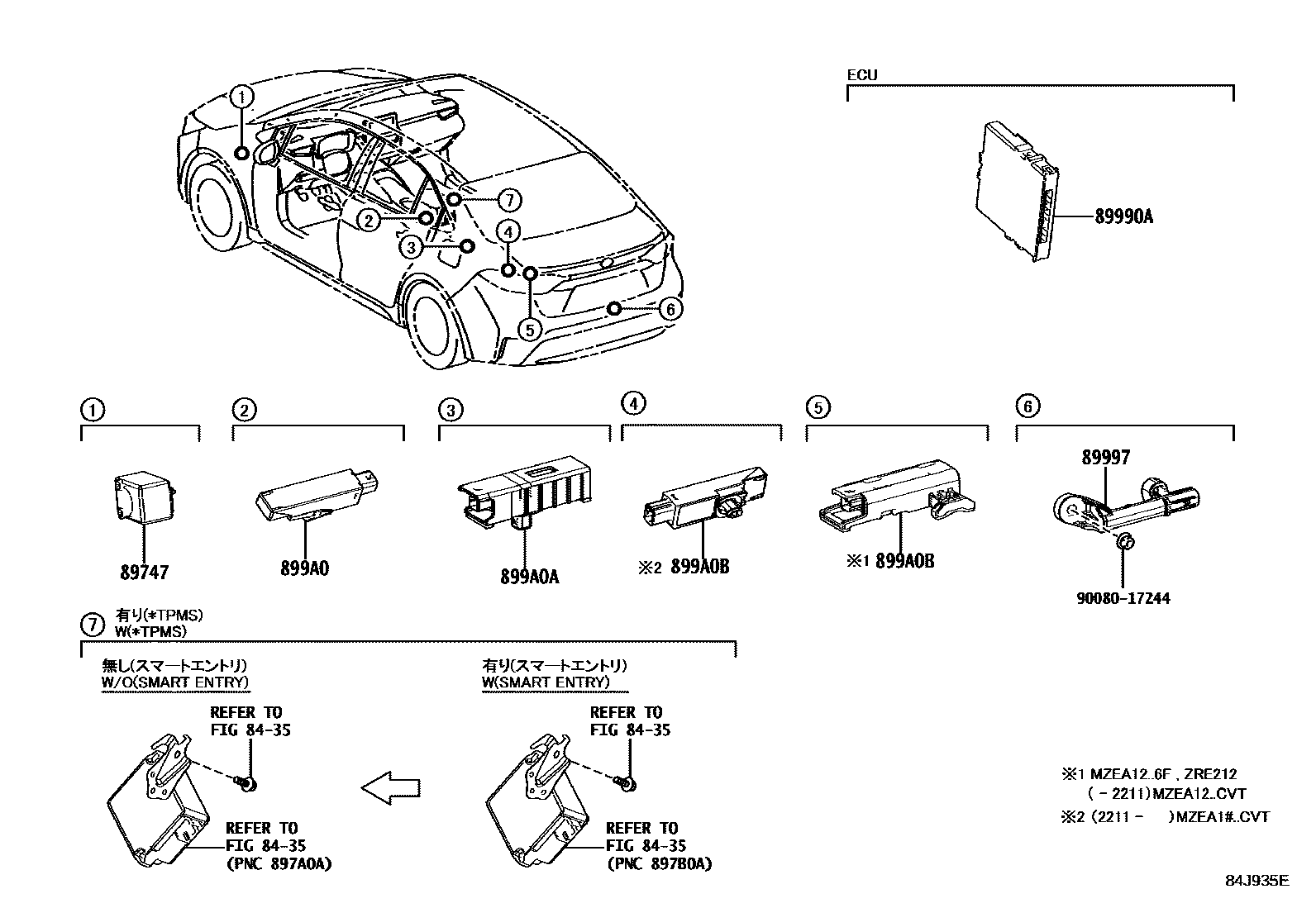

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89747 | Remote door lock buzzer | 89747-0R020 |
| 89990A | Smart key ECU assembly | 899H0-02170 · 899H0-02370 · 899H0-02390 · 899H0-02B40 |
| 89997 | electronic key antenna | 89997-0E050 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02190 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02200 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-02210 · 899A0-0A020 |
