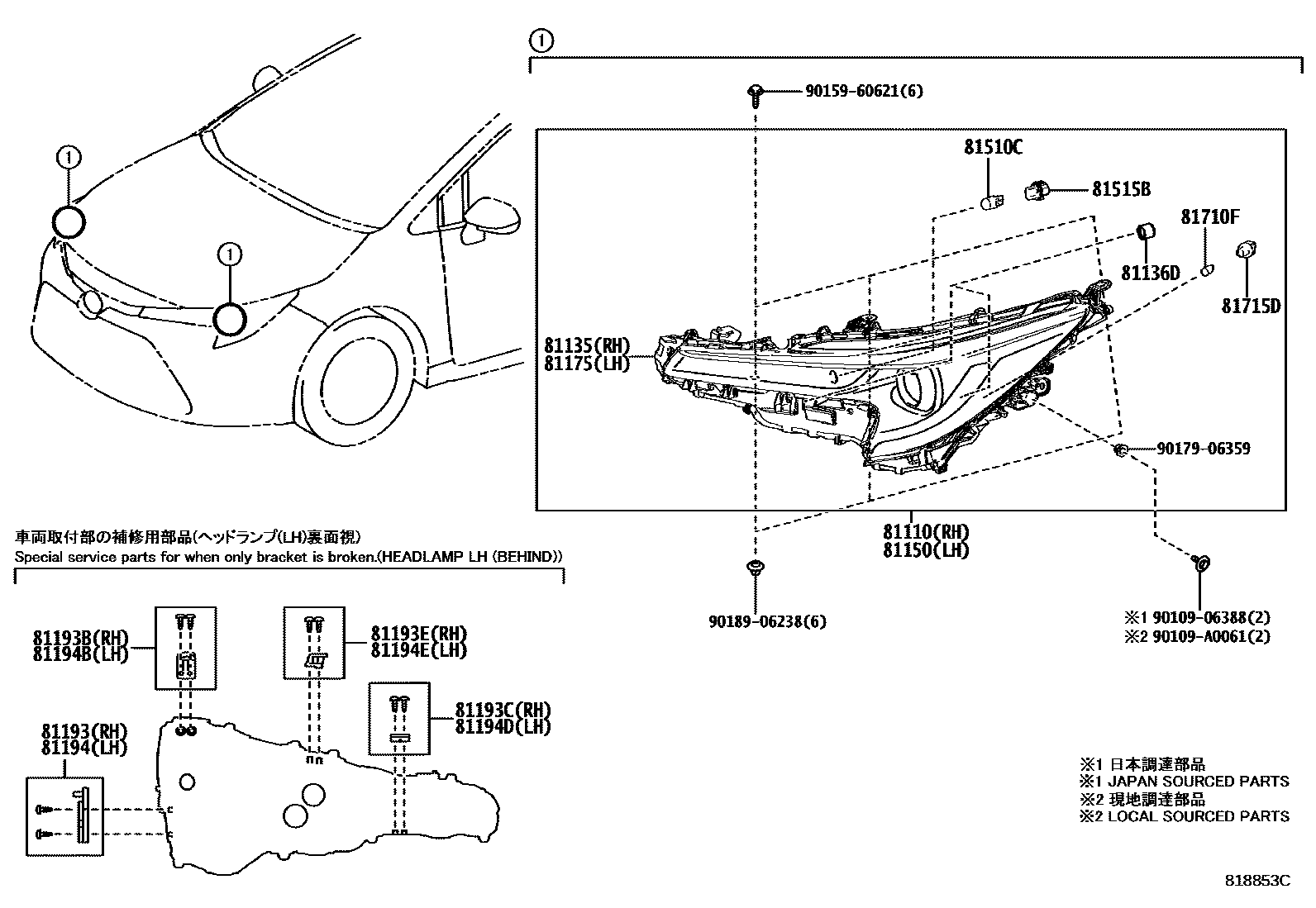

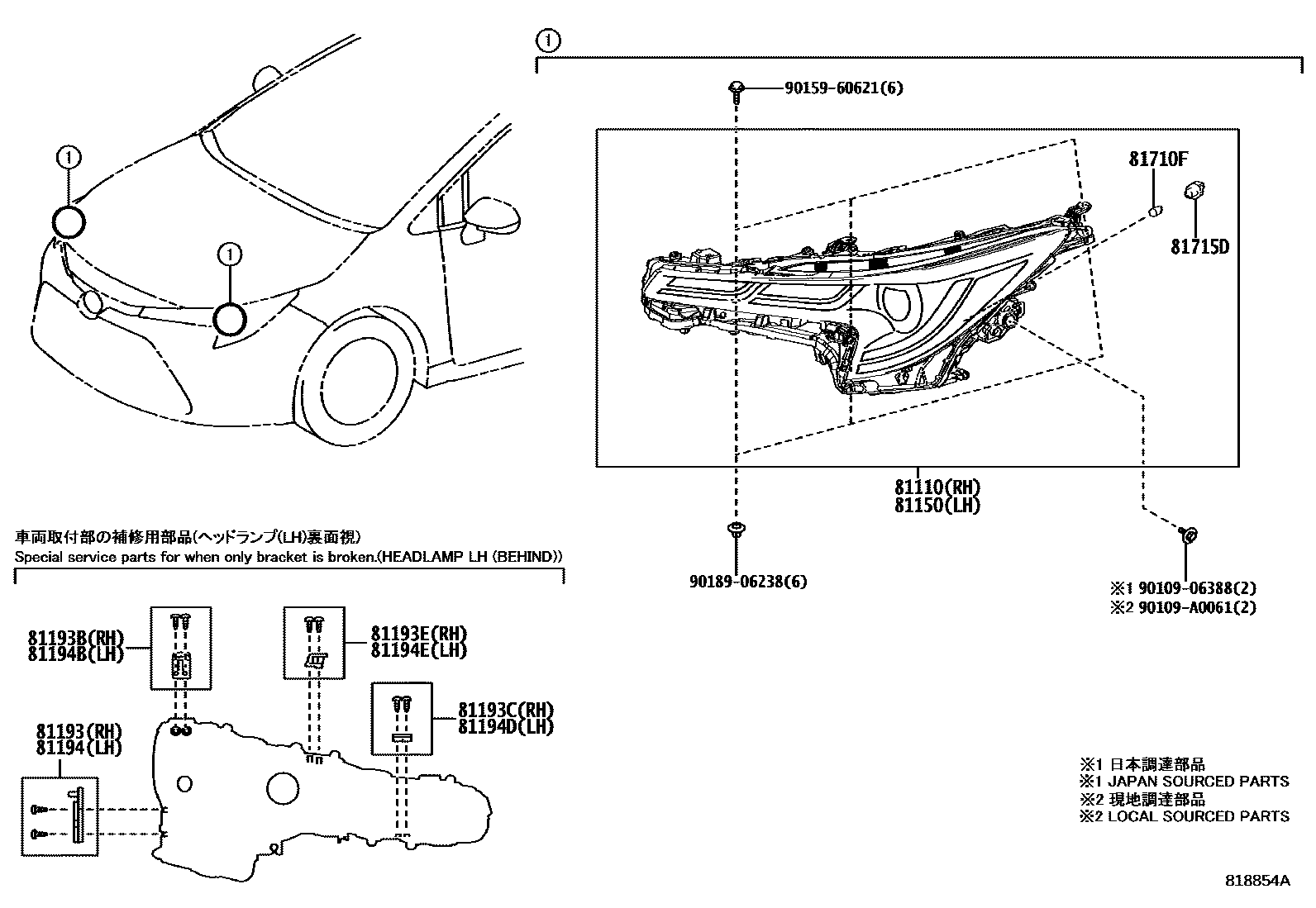

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-02Q70 · 81110-02S30 · 81110-02S50 · 81110-02T70 · 81140-02S30 |
| 81135 | Right headlight assembly | 81140-02S30 |
| 81136D | headlight cover | 90075-15517 |
| 81150 | Left headlight assembly | 81070-02S30 · 81150-02Q70 · 81150-02S30 · 81150-02S50 · 81150-02U60 |
| 81175 | Left headlight assembly | 81070-02S30 |
| 81193 | Right headlight upper protective ring | 81193-12250 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-12260 |
| 81193C | Right headlight upper right protection ring | 81193-12270 |
| 81193E | RETENUE, PROTECTEUR PHARE, SUP. DR. NO.3 | 81193-12280 |
| 81194 | Left headlight upper protective ring | 81194-12250 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-12260 |
| 81194D | Left headlight upper left protective ring | 81194-12270 |
| 81194E | RETENUE, PROTECTEUR PHARE, SUP. GAUCHE NO.3 | 81194-12280 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15024 |
| 81515B | Front turn signal lamp holder | 81128-06470 |
| 81710F | Front width light bulb | 90981-11067 · 90981-11069 |
| 81715D | PRISE, FEUX GABARIT AVANT | 90075-60077 · 90075-60089 |
