Toyota COROLLA 扶手和遮阳板 — Figure 7401

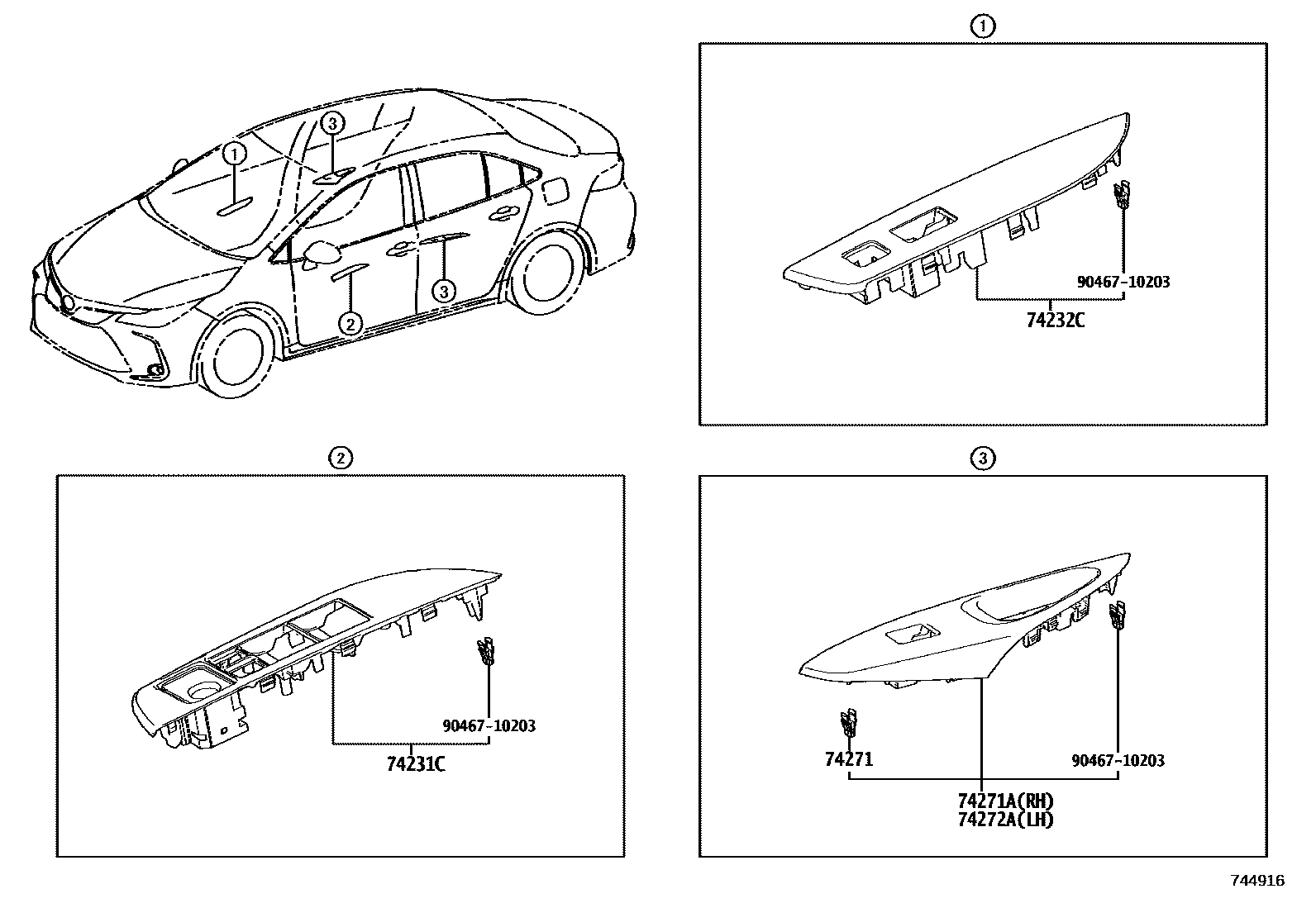

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231C | Driver's side front armrest upper panel | 74232-02B10 · 74232-02G10 |
| 74232C | Passenger side front armrest seat upper panel | 74231-02D80 · 74231-02F20 |
| 74271 | door armrest fixings | 55416-60030 |
| 74271A | Right rear door armrest upper panel | 74271-02680 · 74271-02780 |
| 74272A | Left rear door armrest upper panel | 74272-02680 · 74272-02770 |
