Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 9 PNC and OE references.

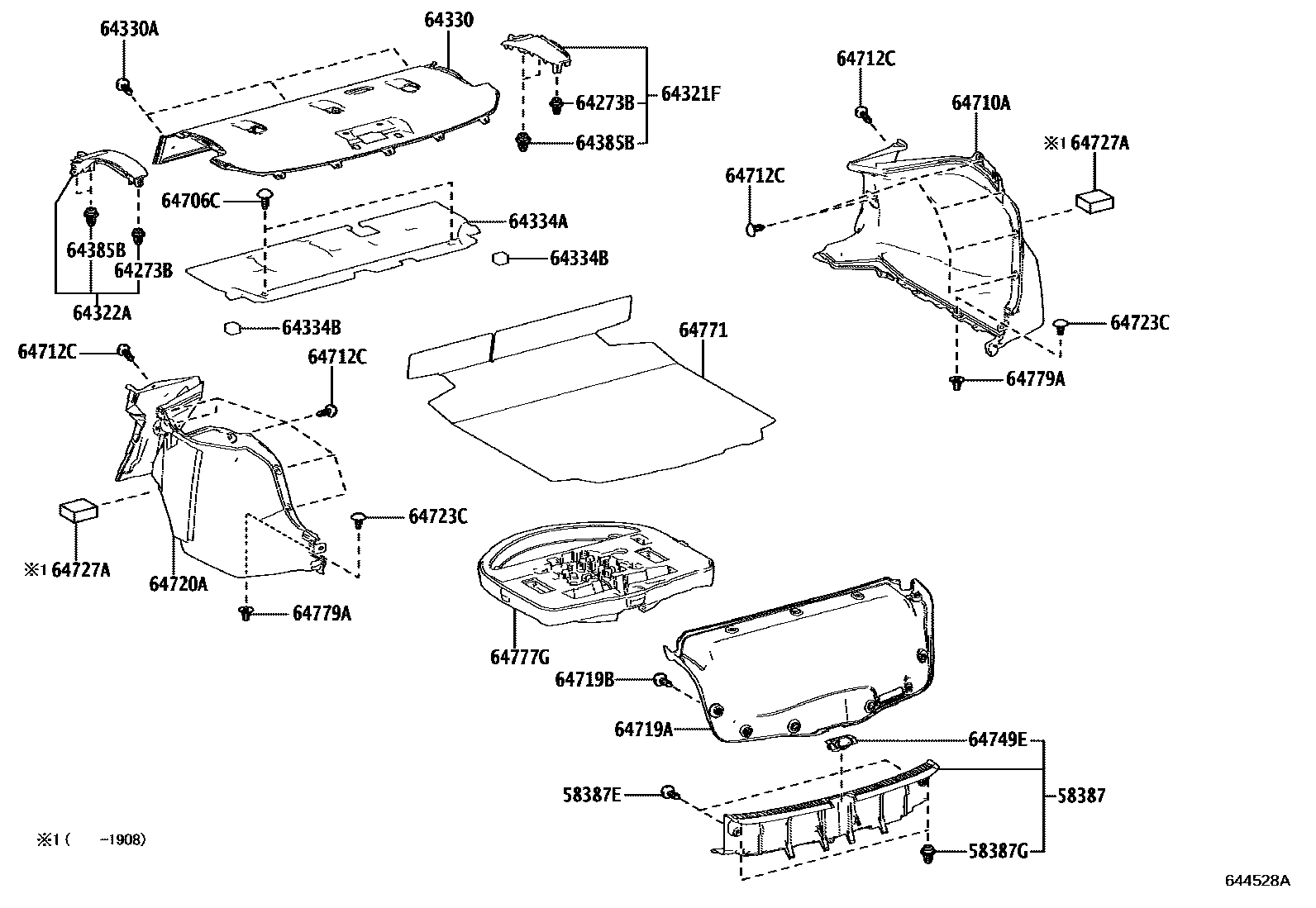

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 644528A
杂物箱板和行李箱垫 — 644528A (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387GClip (for rear floor trim panel)90467-A0006
64273BBack panel decorative bag90467-09240
64330Glove box decorative panel assembly64330-02F81
64334AGlove box decorative mat64334-02450
64334BREMB., GARNITURE VIDE-POCHES, NO.263352-02030
64385Bclip90467-A0006
64727ALuggage interior decorative mat64727-02100
64777GSpare tire cushion64777-02340 · 64777-02520
64779ASpare tire cover stop64779-26010
