Toyota COROLLA 地板隔热垫 — Figure 5802

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 2 images and 3 PNC and OE references.

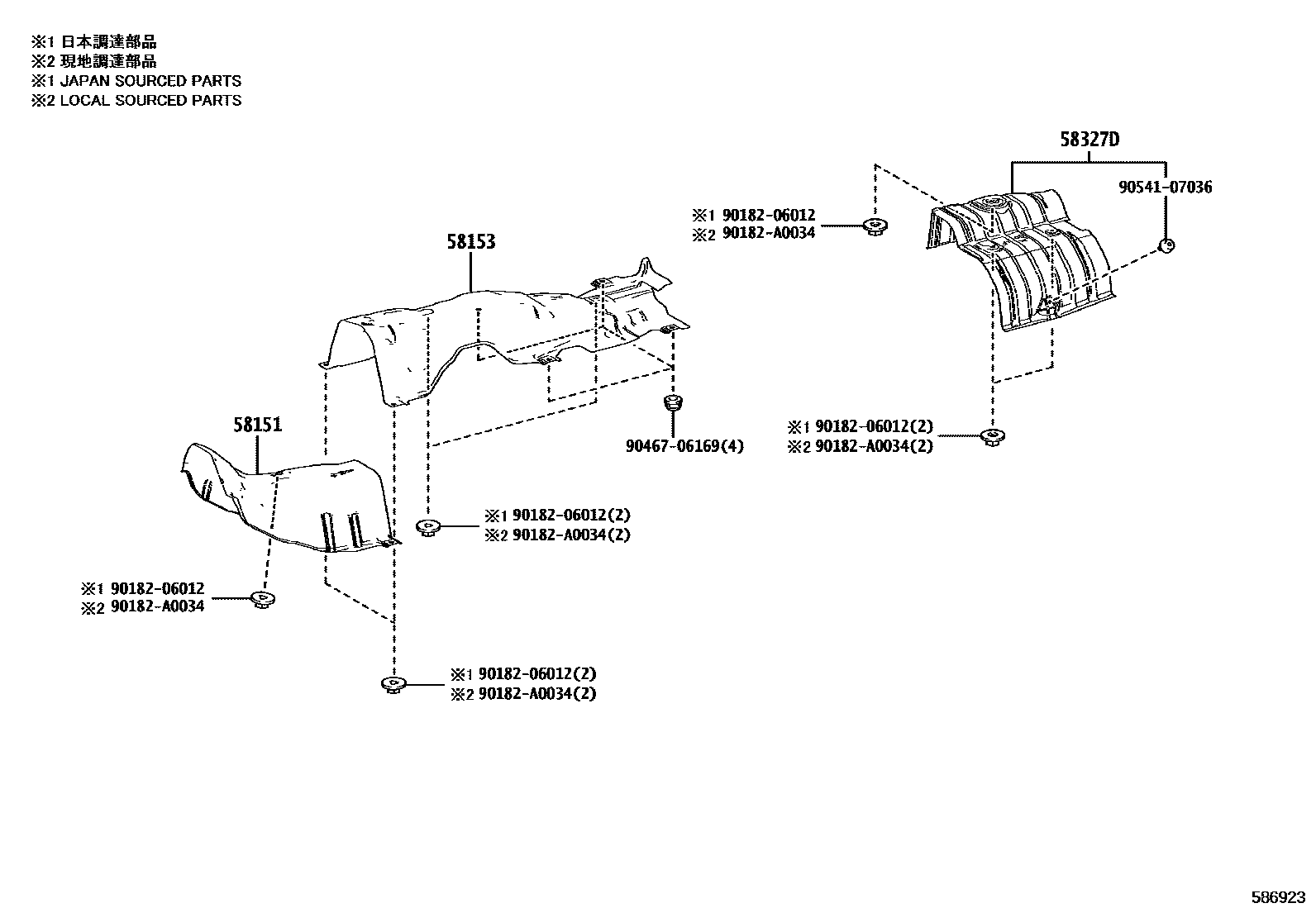

Toyota COROLLA 地板隔热垫 EPC diagram — 586923
地板隔热垫 — 586923 (201903 – 999999)
Toyota COROLLA 地板隔热垫 EPC diagram — 586924
地板隔热垫 — 586924 (201903 – 202211)

PNC and OE references

PNCPart nameOE numbers
58151Front floor insulation mat No. 158151-02490 · 58151-02510
58153Front floor insulation mat No. 258153-02320
58327DHeat insulation pad on main muffler58327-02230
