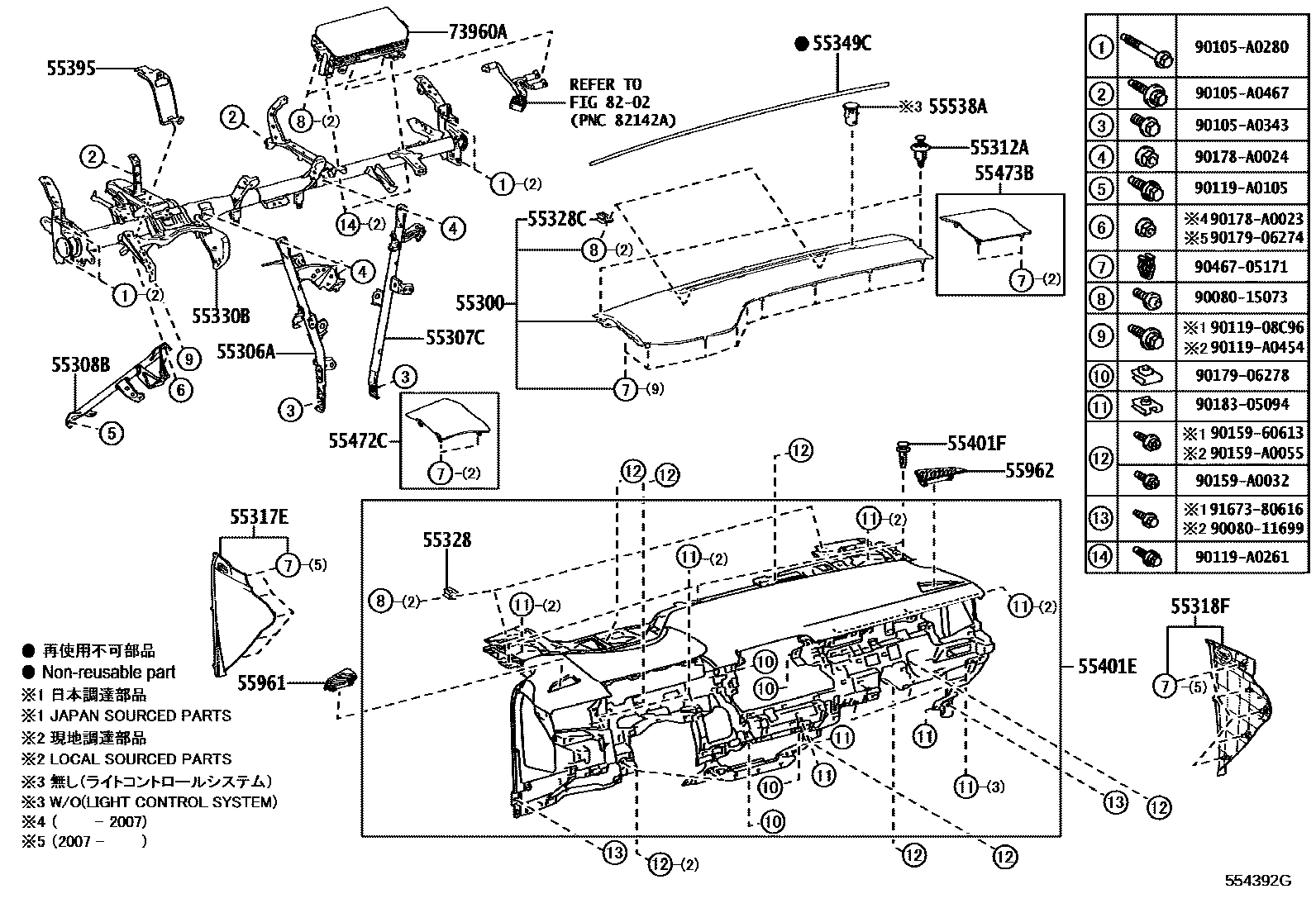

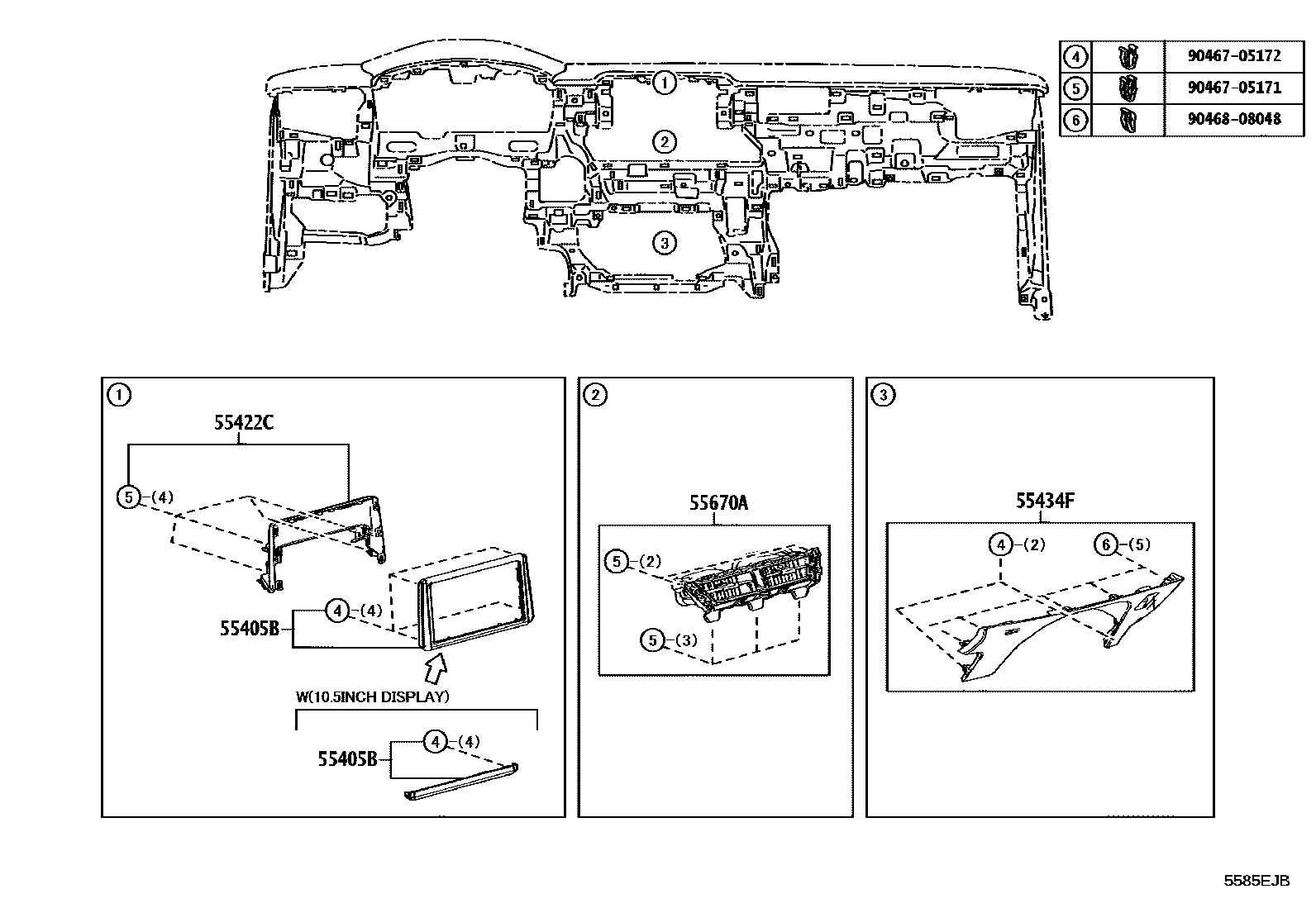

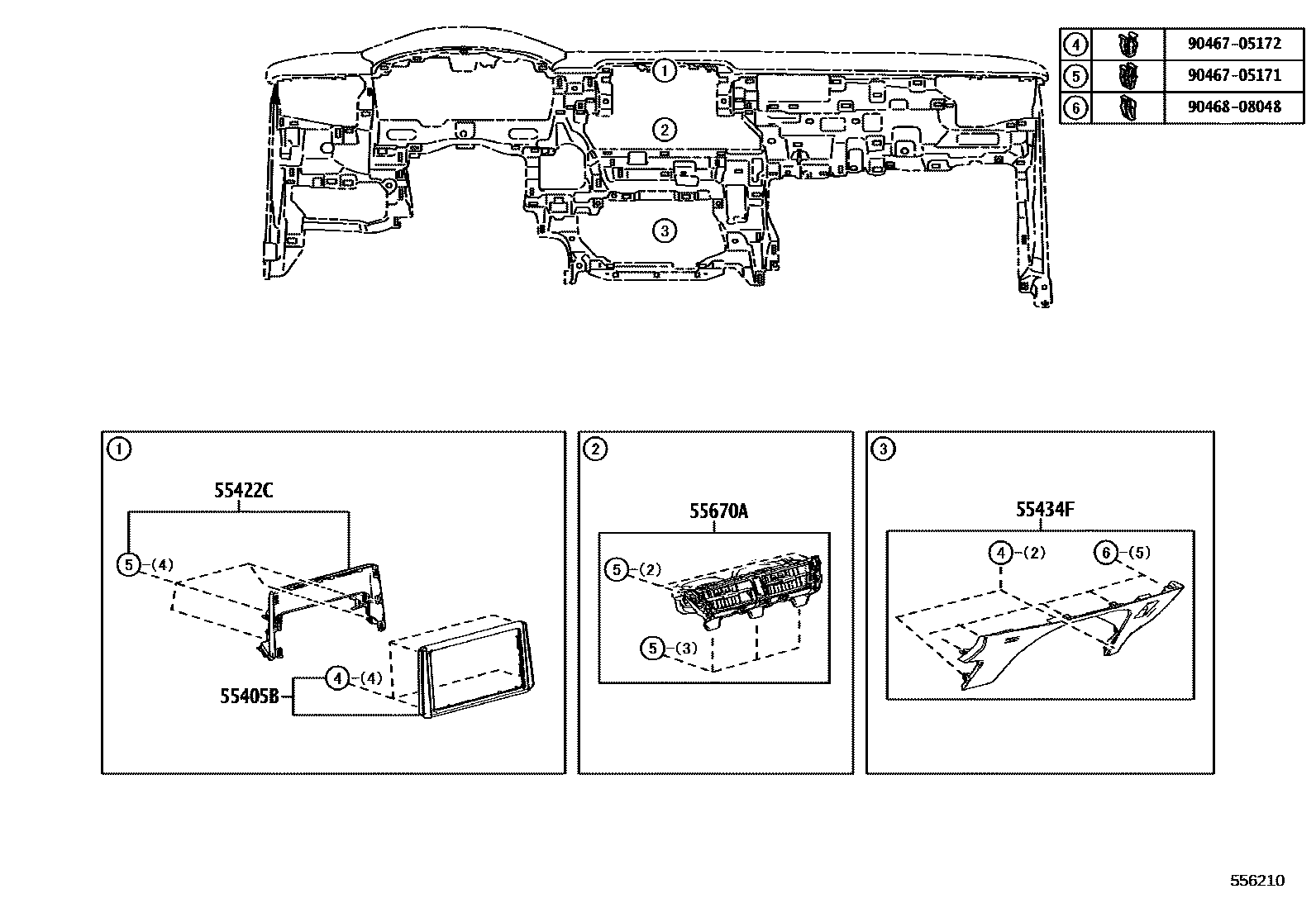

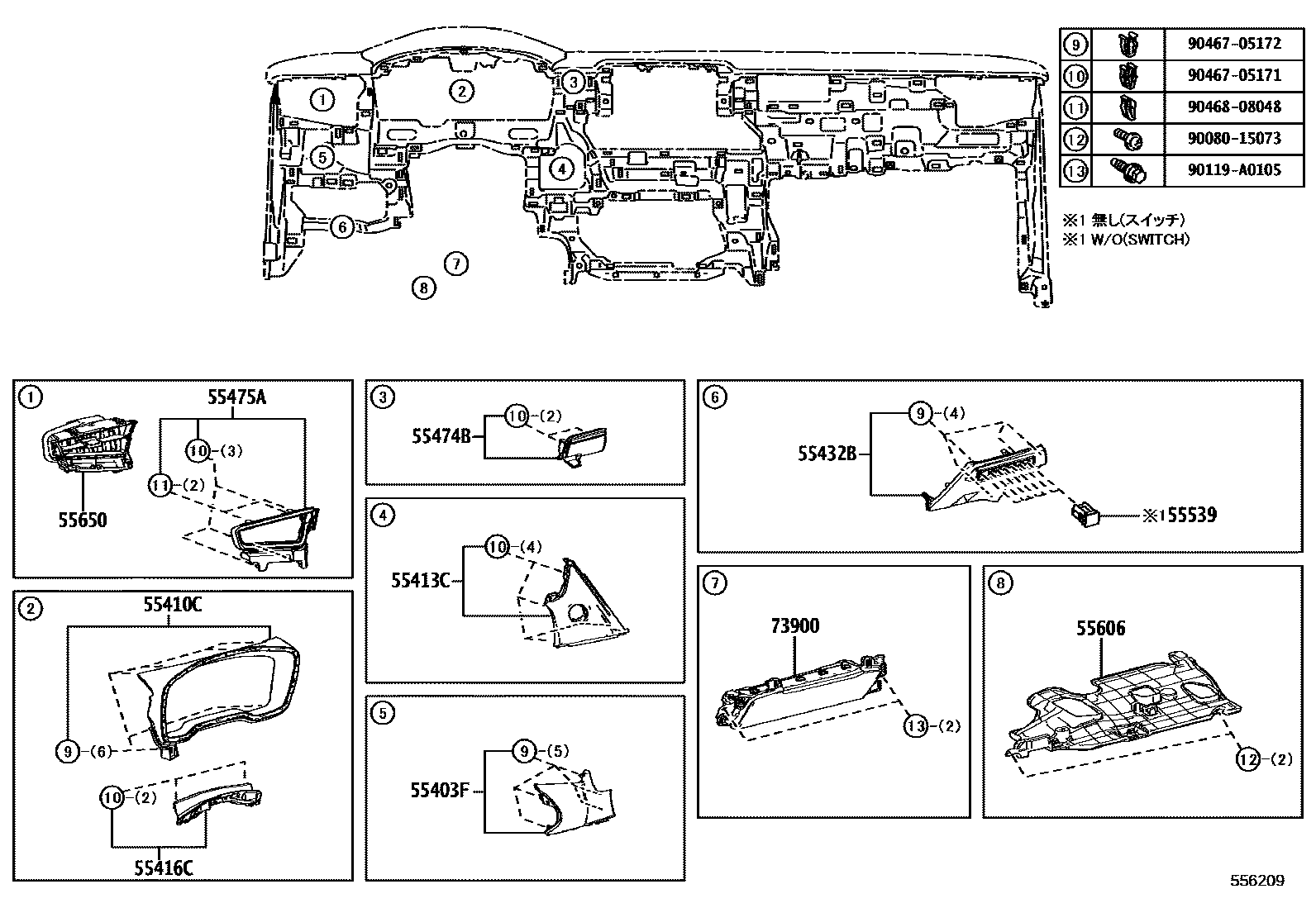

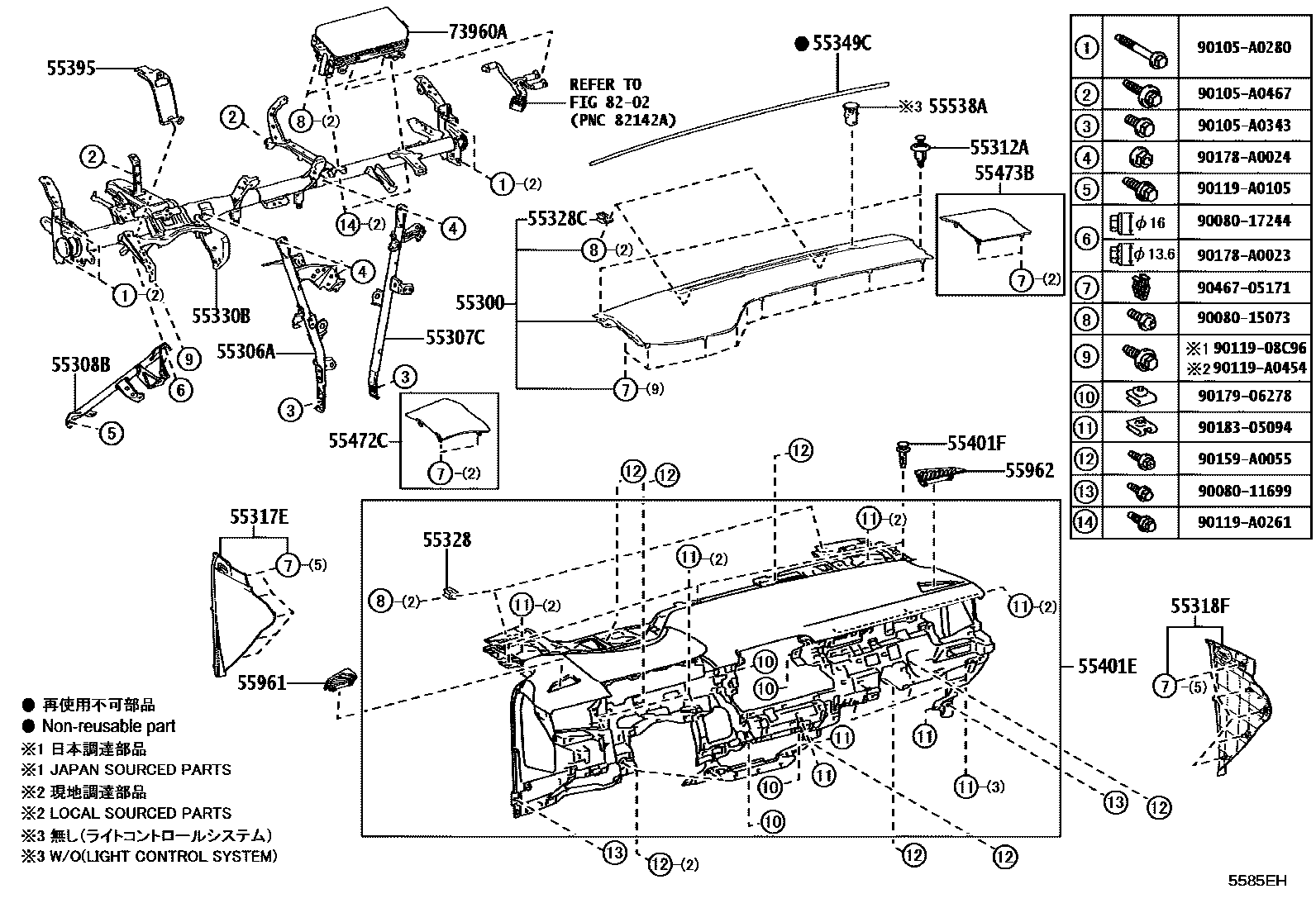

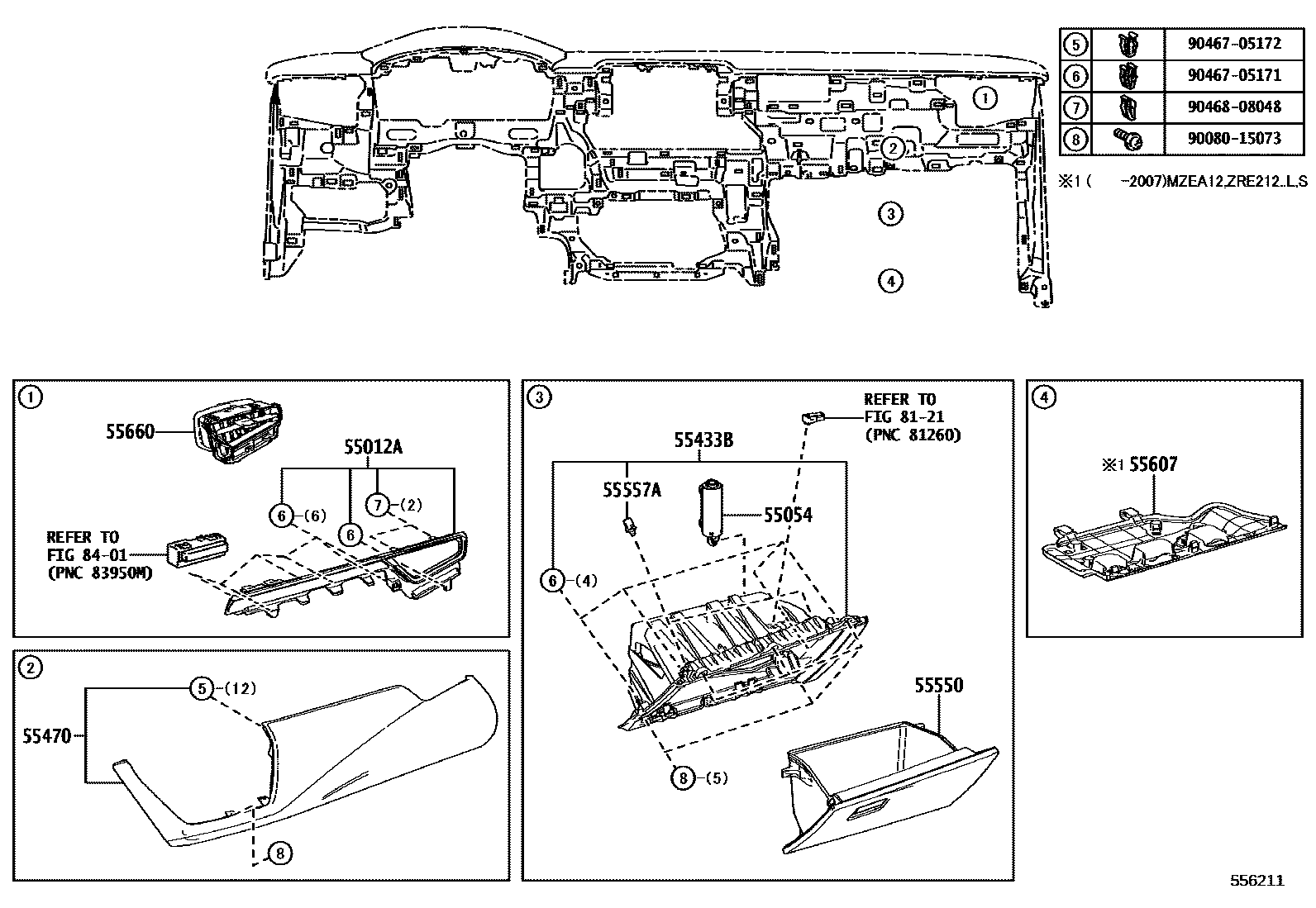

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02490 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02490 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-02130 |
| 55312A | Dashboard clip | 90467-07217 |
| 55328 | Instrument panel pin 1 | 55328-0E060 · 55328-12430 |
| 55328C | Instrument panel pin 2 | 55328-02880 · 55328-12440 |
| 55330B | Instrument panel reinforcement assembly | 55330-02A30 · 55330-02D00 |
| 55349C | Dashboard cushion | 55349-02320 |
| 55395 | SUPPORT, DU TABLEAU DE BORD A LA PEDALE | 55395-02030 |
| 55401F | Clip (for safety mat) | 52161-02020 · 52161-16010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02E10 · 55405-16040 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02310 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-02391 |
| 55539 | Spare switch hole cover | 55539-06110 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02250 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02280 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-02800 · 55650-02820 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-02470 · 55660-02490 |
| 55670A | Instrument panel central air register assembly | 55670-02780 · 55670-02790 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02310 |
