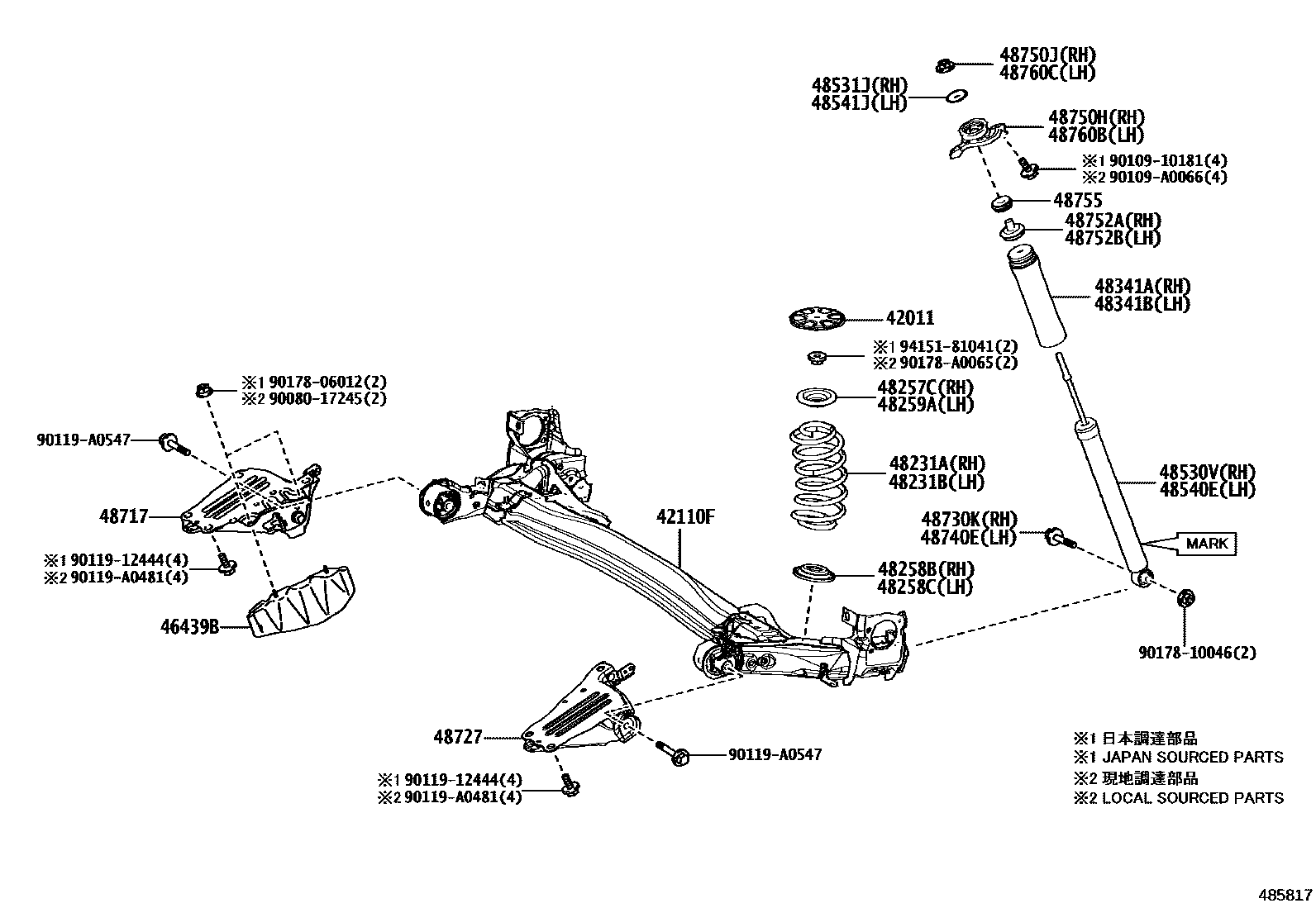

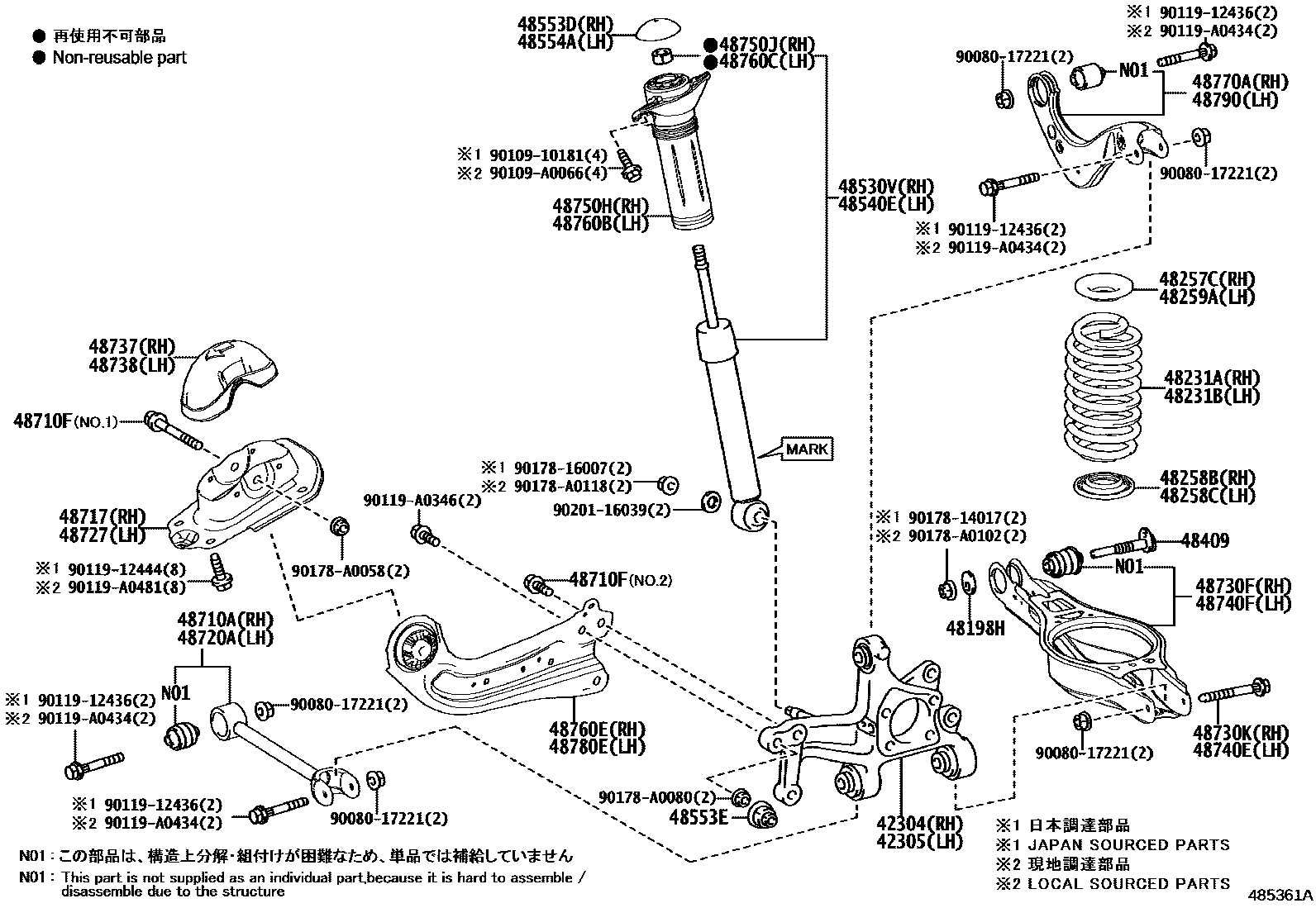

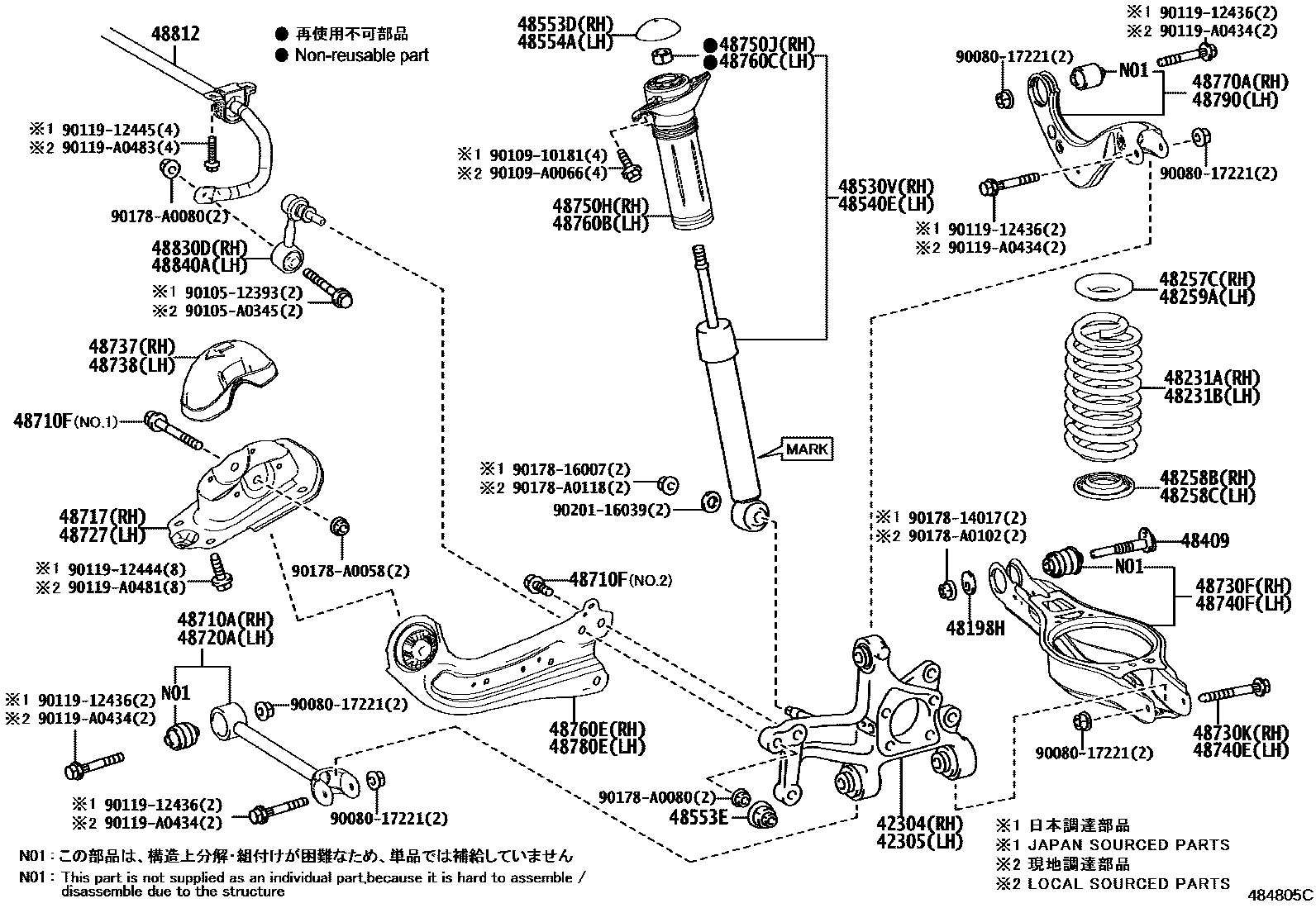

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42011 | SOUS-ENS. SIEGE, RESSORT ARRIERE | 42011-0A040 |
| 42110F | rear axle assembly | 42110-02640 |
| 42304 | Rear axle right bracket sub-assembly | 42304-02220 |
| 42305 | Rear axle left bracket sub-assembly | 42305-02220 |
| 46439B | ISOLANT THERMIQUE DE CABLE DE FREIN DE STATIONNEMENT | 46439-0A050 |
| 48198H | No. 2 camber angle adjustment cam | 48198-07010 · 48198-47010 |
| 48231A | Right rear coil spring | 48231-02K10 · 48231-02K20 · 48231-02S90 · 48231-02V30 · 48231-02V40 |
| 48231B | Left rear coil spring | 48231-02K10 · 48231-02K20 · 48231-02S90 · 48231-02V30 · 48231-02V40 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-06030 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06230 · 48258-0A040 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06230 · 48258-0A040 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-06030 |
| 48341A | No. 1 right rear spring buffer block | 48341-02160 |
| 48341B | No. 1 left rear spring buffer block | 48341-02160 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-06010 · 48409-47011 |
| 48530V | KIT AMORTISSEUR, CHOC, ARRIERE MD | 48530-8Z111 · 48530-8Z115 · 48530-8Z208 · 48530-8Z227 · 48530-8Z228 |
| 48531J | Right rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48540E | KIT AMORTISSEUR, CHOC, ARRIERE MG | 48530-8Z111 · 48530-8Z115 · 48530-8Z208 · 48530-8Z227 · 48530-8Z228 |
| 48541J | Left rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48553D | Right rear shock absorber cover | 48553-06010 |
| 48553E | CAPUCHON | 48553-52030 |
| 48554A | Left rear shock absorber cover | 48553-06010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-06160 |
| 48710F | Bolt (for rear trailing arm) | 90105-14195 · 90105-14197 · 90105-A0346 · 90105-A0365 |
| 48717 | Right rear suspension arm bracket | 48717-06030 · 48717-0A040 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-06160 |
| 48727 | Left rear suspension arm bracket | 48727-06060 · 48727-0A040 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-02060 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-10A10 · 90119-12426 · 90119-A0433 · 90119-A0544 · 91674-N1065 |
| 48737 | Right rear suspension arm cover | 48753-06080 |
| 48738 | Left rear suspension arm cover | 48753-06090 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-10A10 · 90119-12426 · 90119-A0433 · 90119-A0544 · 91674-N1065 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-02060 |
| 48750H | Right rear suspension support assembly | 48750-02110 · 48750-0A060 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90170-A0008 · 90178-12023 · 90178-A0125 |
| 48752A | Rear suspension mount block | 48752-0A070 |
| 48752B | BUTEE SUPPORT SUSPENSION ARRIERE, NO.2 | 48752-0A070 |
| 48755 | rear suspension mount | 48755-0A070 |
| 48760B | Left rear suspension support assembly | 48750-02110 · 48760-0A070 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90170-A0008 · 90178-12023 · 90178-A0125 |
| 48760E | Right rear trailing arm assembly | 48760-02020 |
| 48770A | Right rear upper control arm assembly | 48770-06010 |
| 48780E | Left rear trailing arm assembly | 48780-02070 |
| 48790 | Left rear upper control arm assembly | 48790-06010 |
| 48812 | rear stabilizer bar | 48805-02110 · 48805-02120 · 48805-02210 |
| 48830D | Right rear stabilizer bar link assembly | 48830-06090 · 48830-0A010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-06090 · 48830-0A010 |
