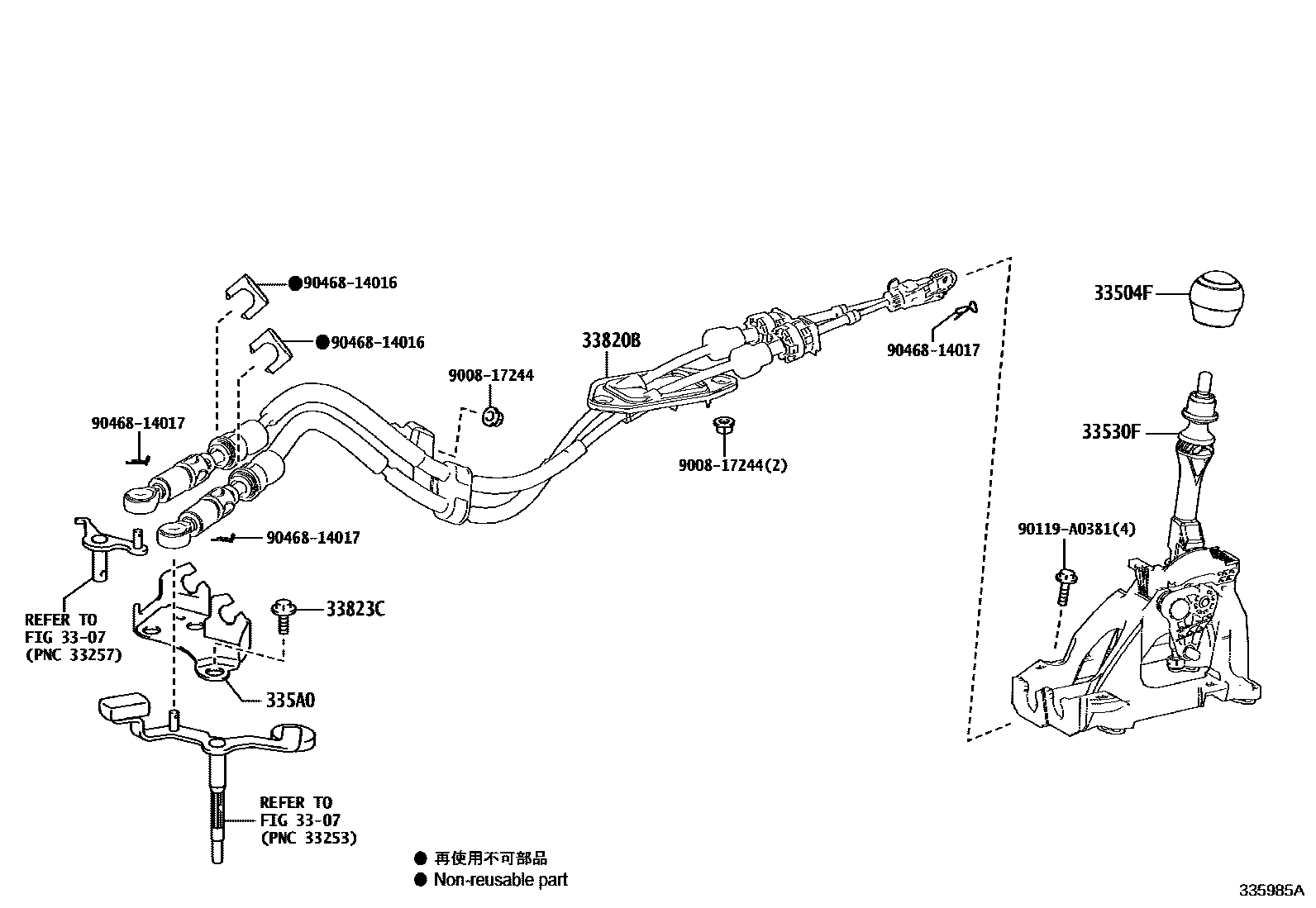

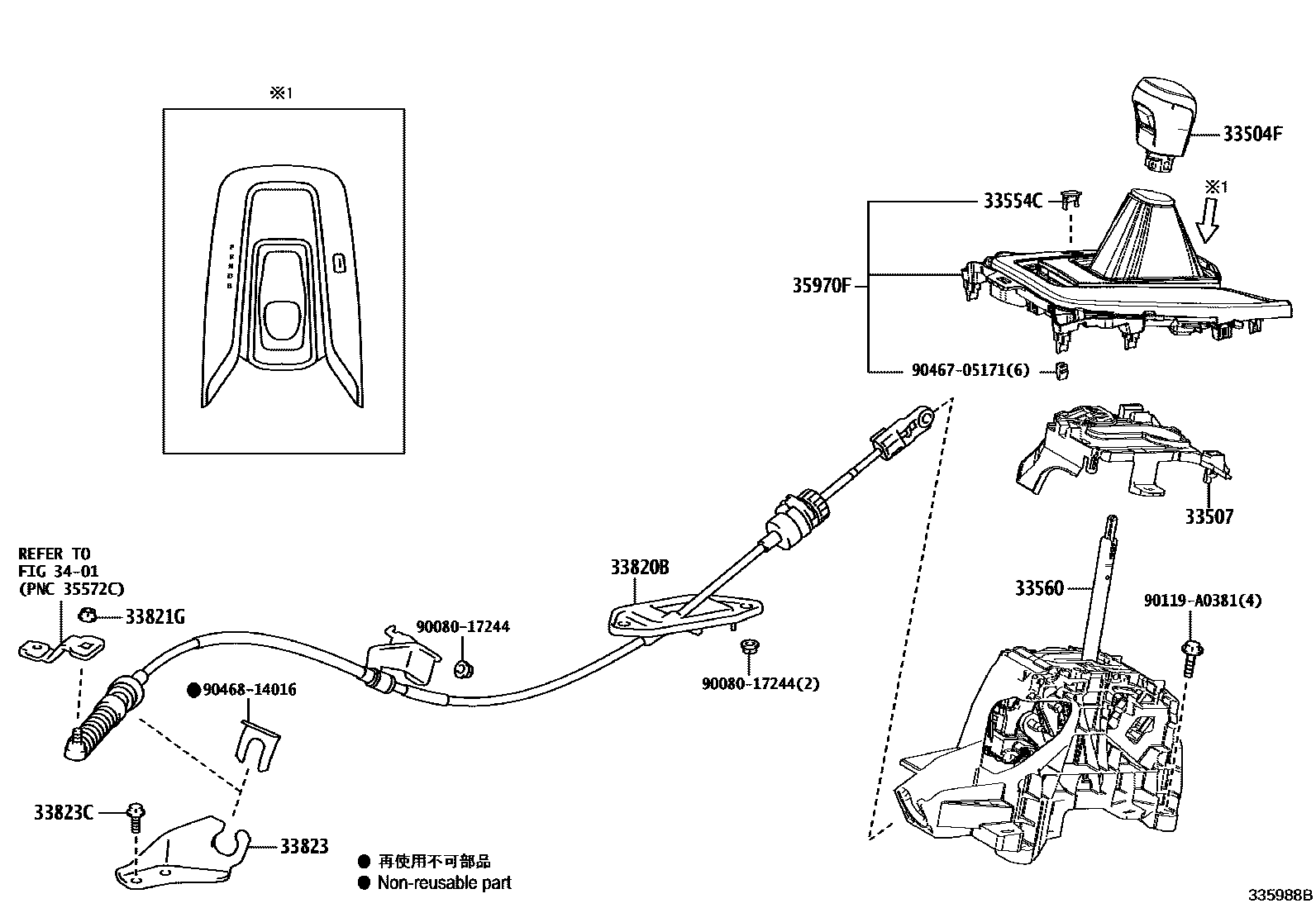

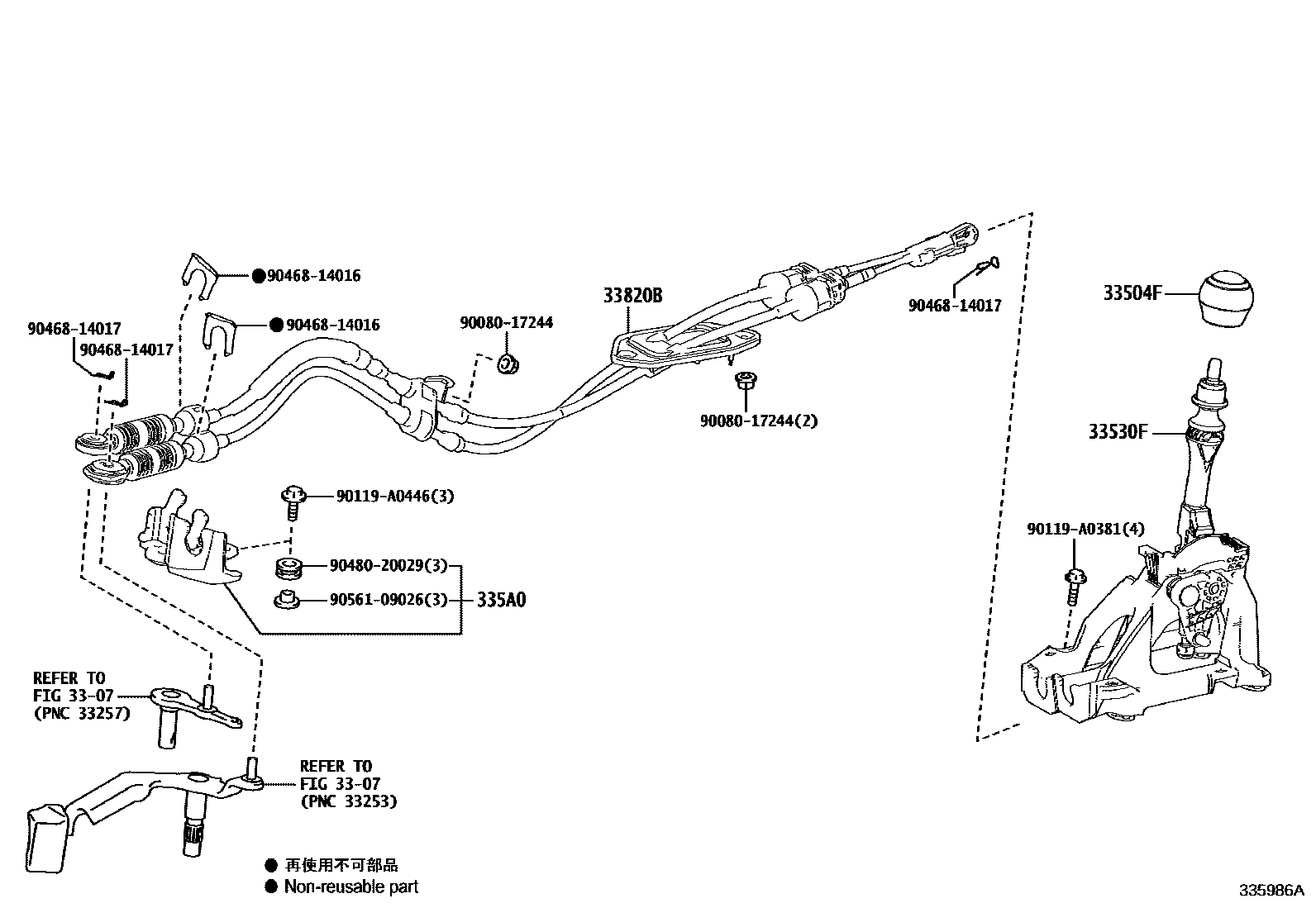

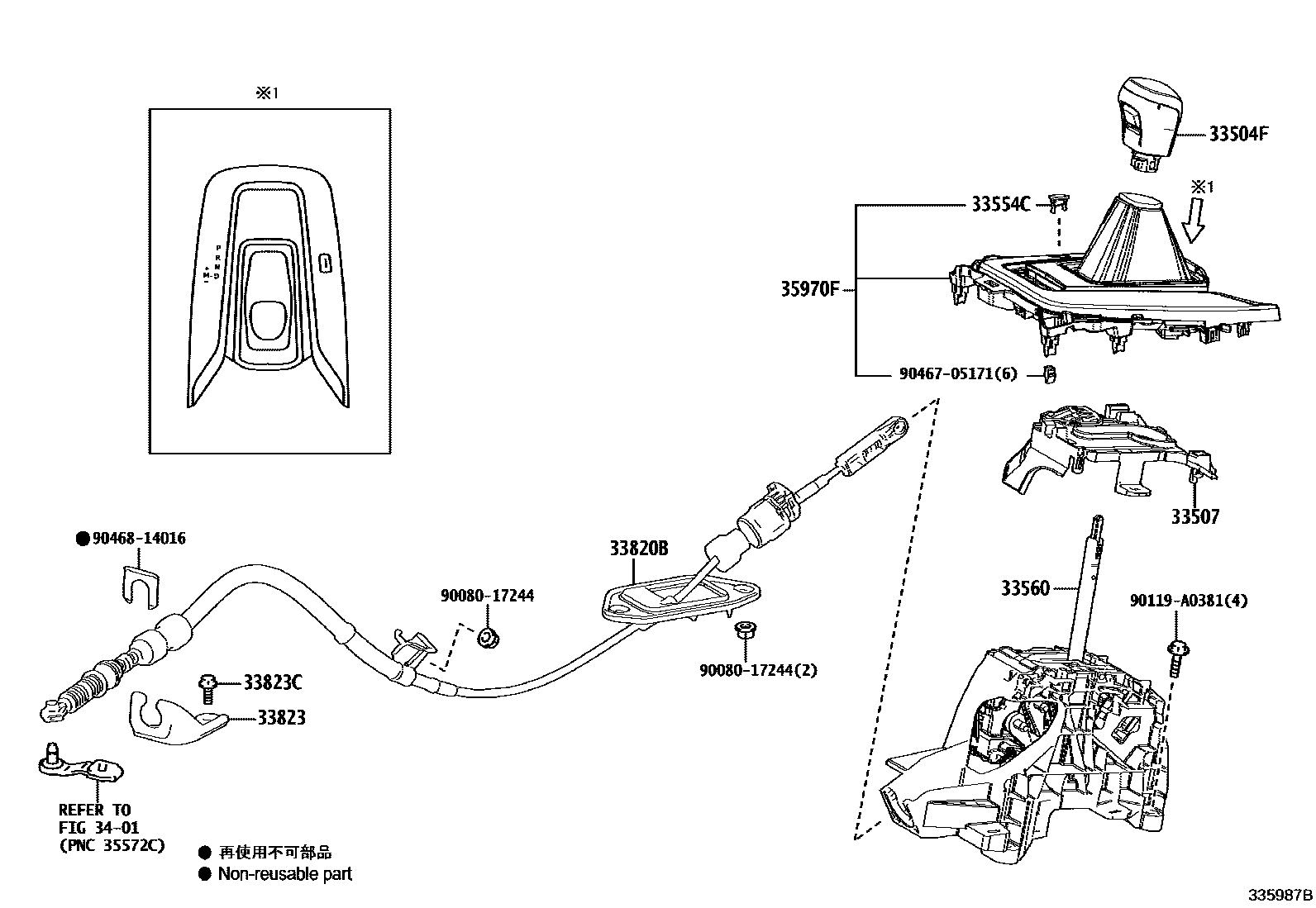

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33507 | Shift lever housing bracket sub-assembly | 33507-02010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12C50 |
| 33554C | Shift lock release button cover | 33554-02090 |
| 33560 | Shift lock control unit assembly | 33560-02430 · 33560-02440 · 33560-0R060 · 33560-0R070 |
| 335A0 | Control cable bracket assembly | 335A0-02010 · 335A0-12040 · 335A0-20010 |
| 33820B | Transmission control cable assembly | 33820-02830 · 33820-02A00 · 33820-02A10 · 33820-02A50 |
| 33821G | Nut (for transmission control cable) | 90178-A0024 |
| 33823 | No. 1 transmission control cable bracket | 33823-02270 · 33823-02330 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 90119-A0127 |
