Toyota COROLLA Alternator — Figure 1903

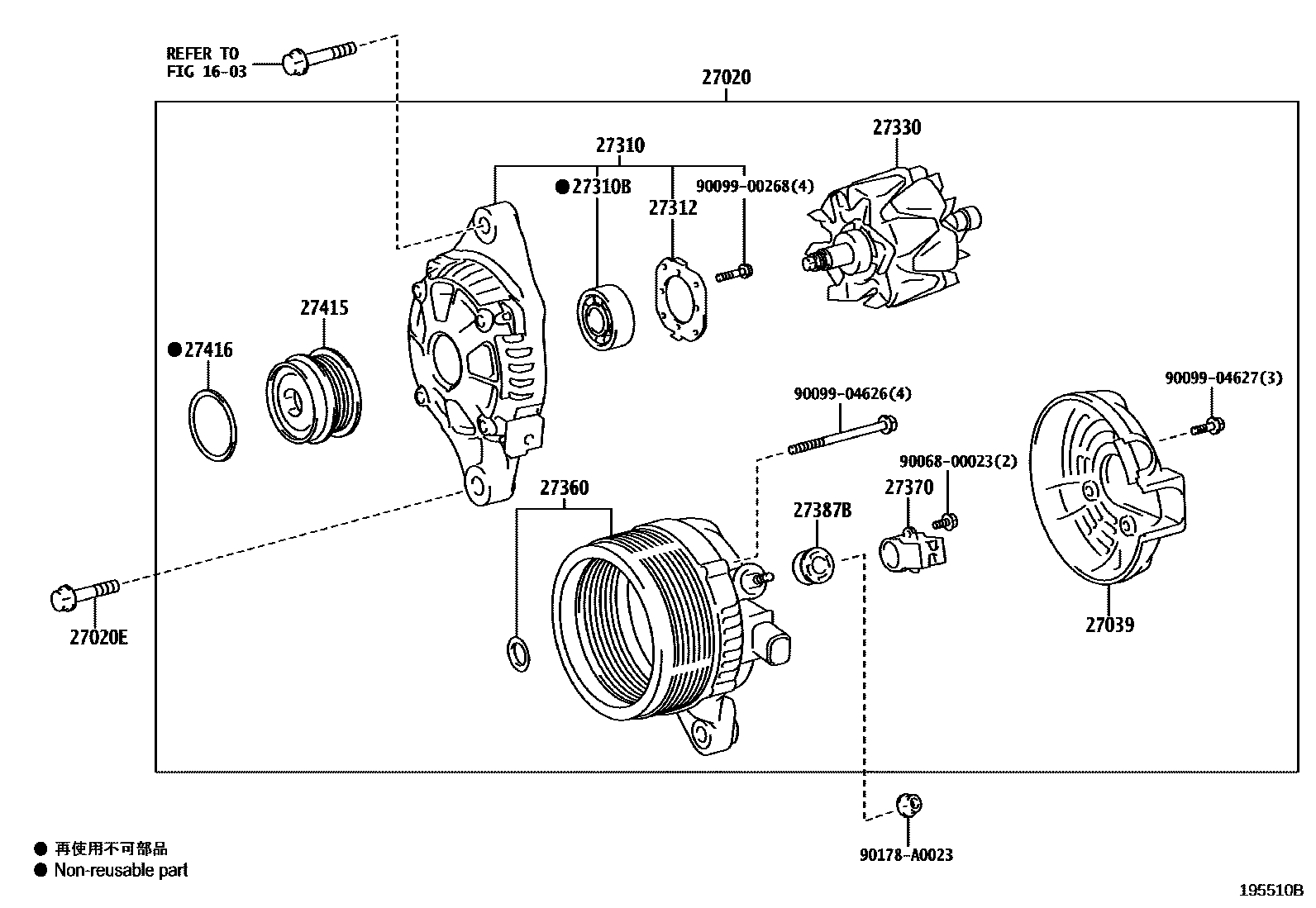

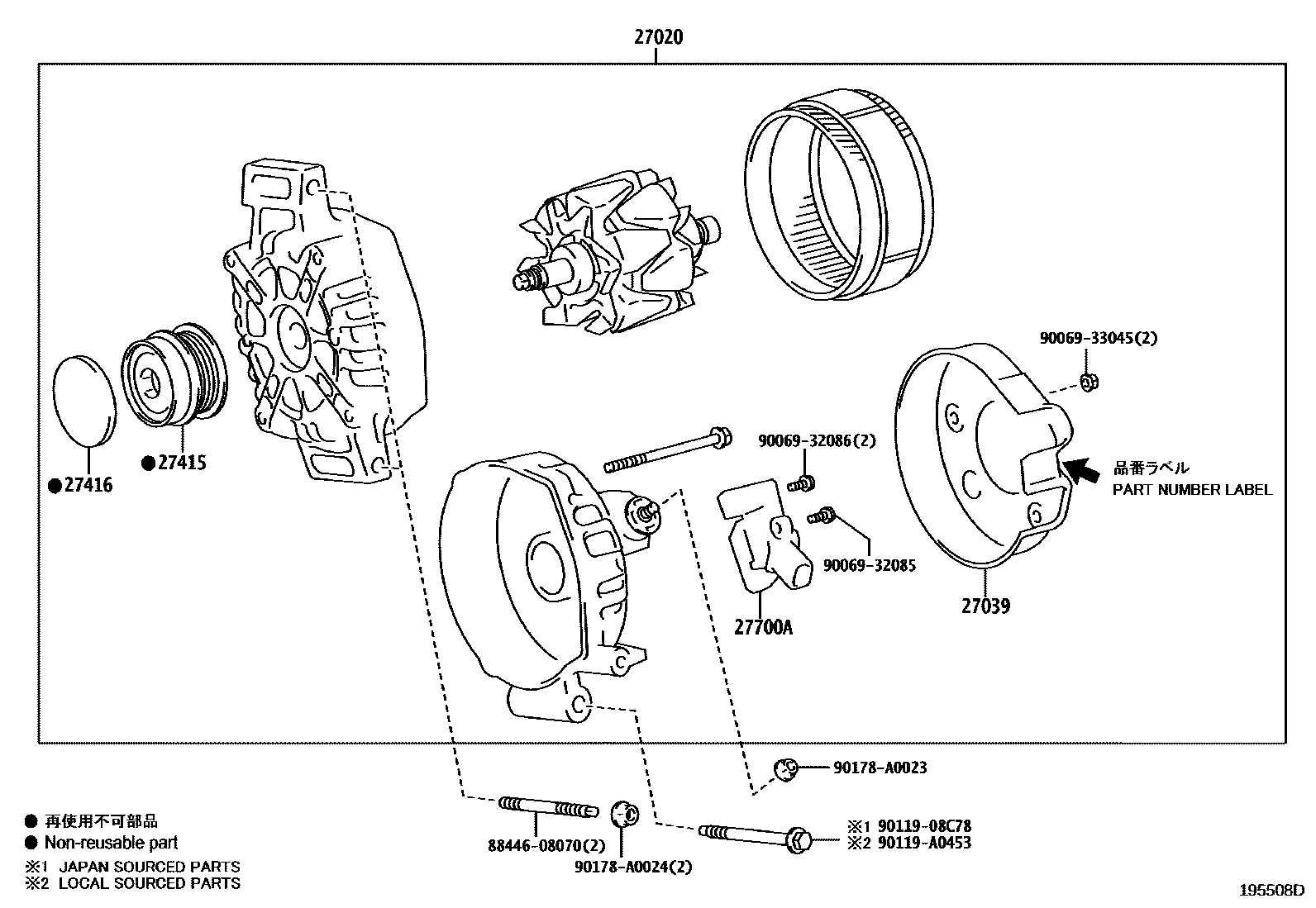

Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0T480 · 27060-F2010 · 27060-F2230 |
| 27020E | Bolts (for generator) | 90105-10307 · 90105-A0267 |
| 27039 | Alternator Rear End Cover | 27039-0C170 · 27039-F2010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0T440 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0C170 |
| 27360 | Alternator Stator Coil Assembly | 27360-0T440 |
| 27370 | Alternator Brush Holder Assembly | 27370-0P020 |
| 27387B | Generator terminal insulation pad | 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0T060 · 27415-F0040 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27700A | Generator voltage regulator assembly | 27700-F2010 |
