Toyota COROLLA vacuum tube — Figure 1708

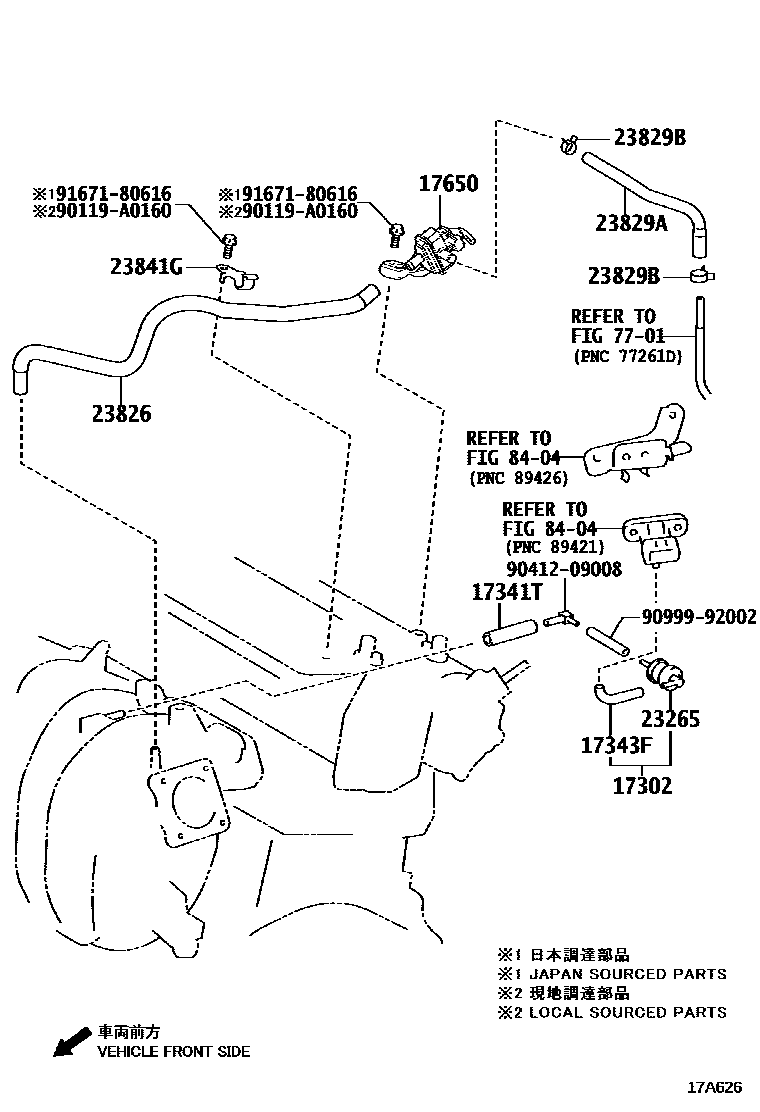

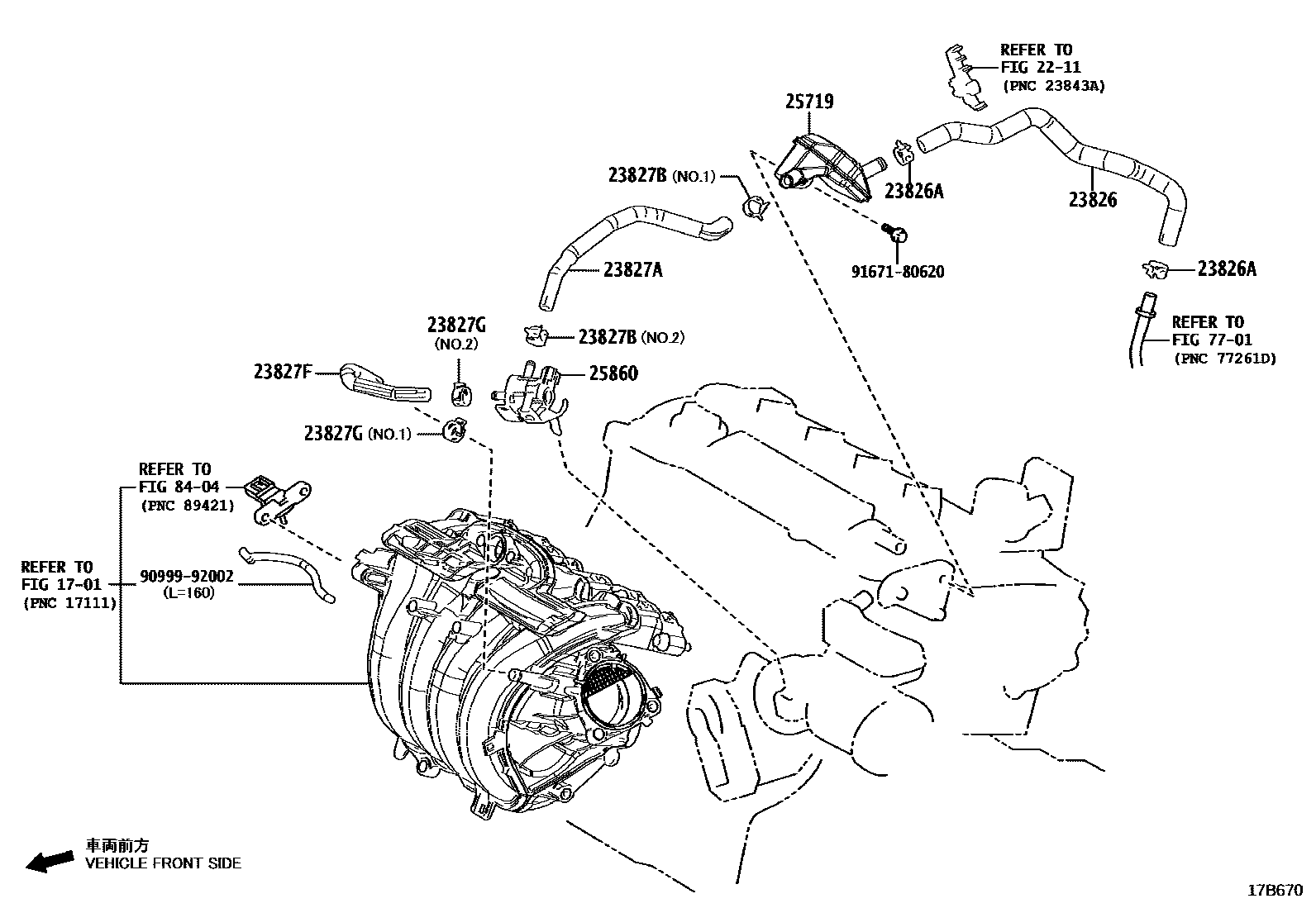

Toyota COROLLA EPC diagram 1708, vacuum tube, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-37010 |
| 17341T | Air hose No. 1 | 17341-37070 |
| 17343F | No. 3 air hose | 17343-37050 |
| 17650 | Vacuum switch valve assembly | 25860-0T050 · 25860-37130 |
| 23265 | No. 1 gas filter | 90917-11038 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0T510 · 23826-37220 · 23826-37360 · 23826-F2010 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-A0032 |
| 23827A | No. 2 fuel vapor supply hose | 23826-24100 · 23826-F2030 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-A0032 · 96136-41801 · 96138-41501 |
| 23827F | TUYAU, ALIMENTATION VAPEUR CARBURANT, NO.3 | 23826-24110 · 23826-F2040 |
| 23827G | AGR. FIX. (DE COND. FLEX. VAP.ESSENCE NO.3) | 90466-A0032 · 96136-41801 · 96138-41501 |
| 23829A | Fuel vapor supply hose | 23826-0T460 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51300 |
| 23841G | fuel hose clamp | 23841-0T060 |
| 25719 | Vacuum pressure tank | 25719-24020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-24040 · 25860-24050 |
