Toyota COROLLA Air Cleaner — Figure 1703

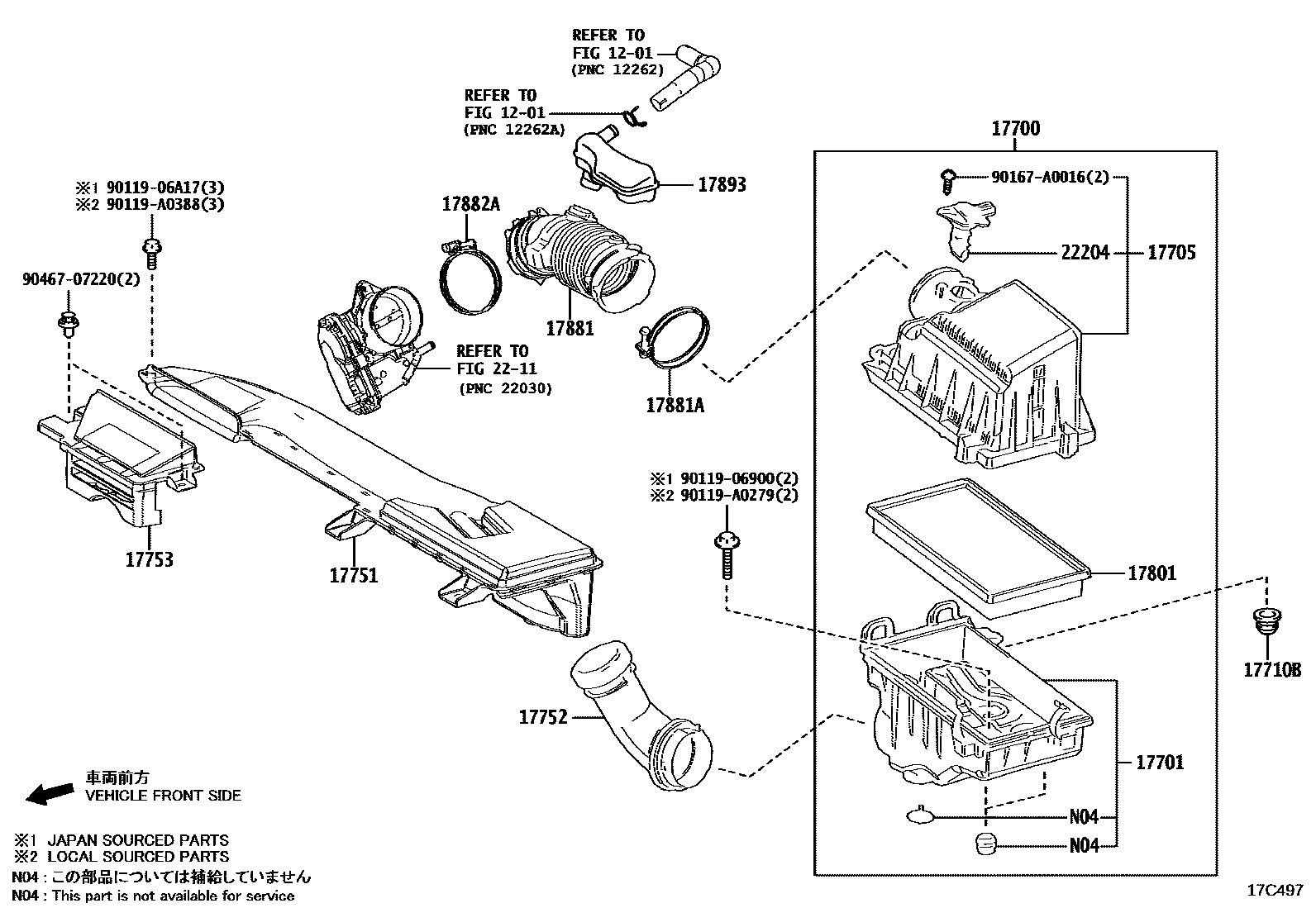

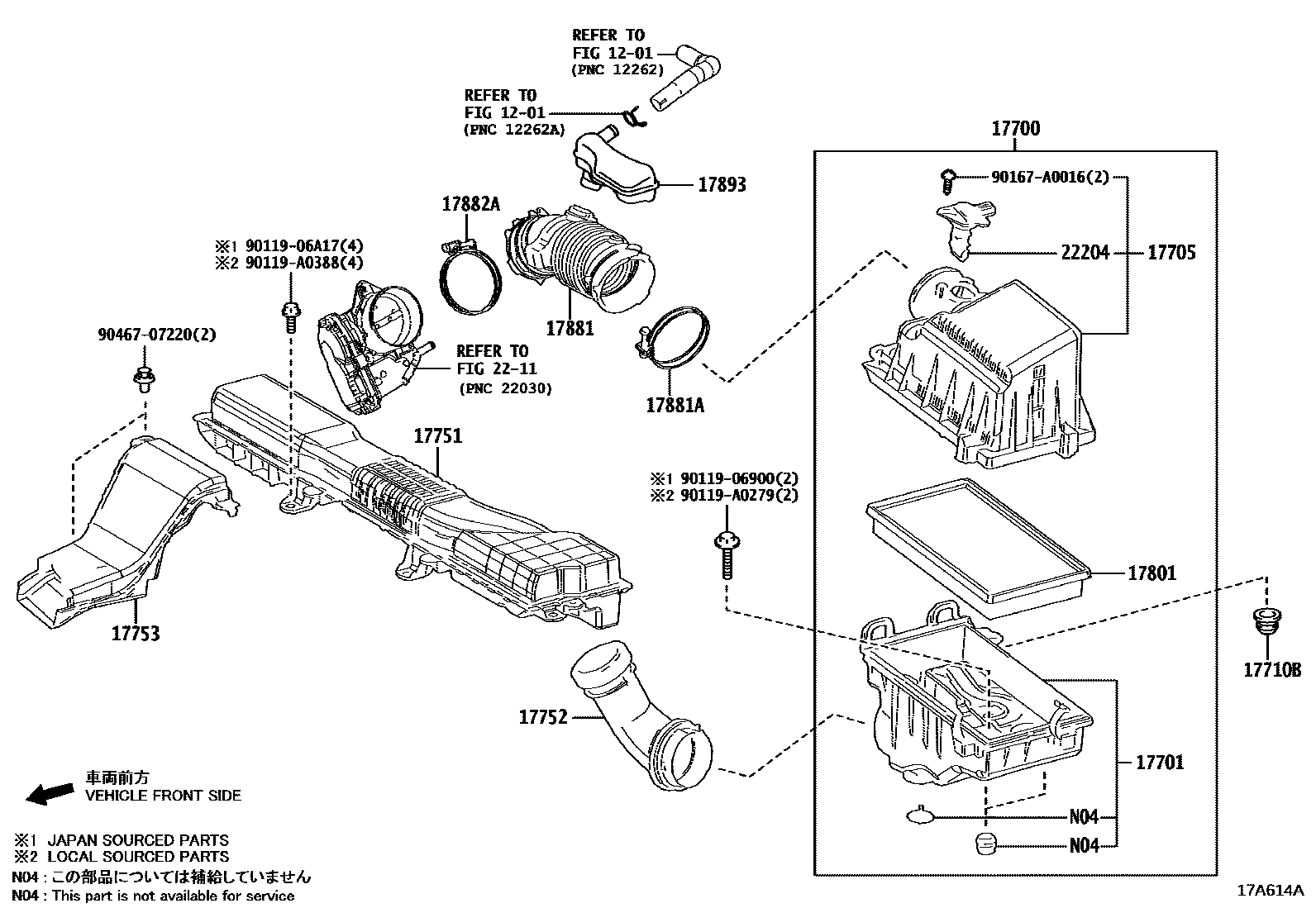

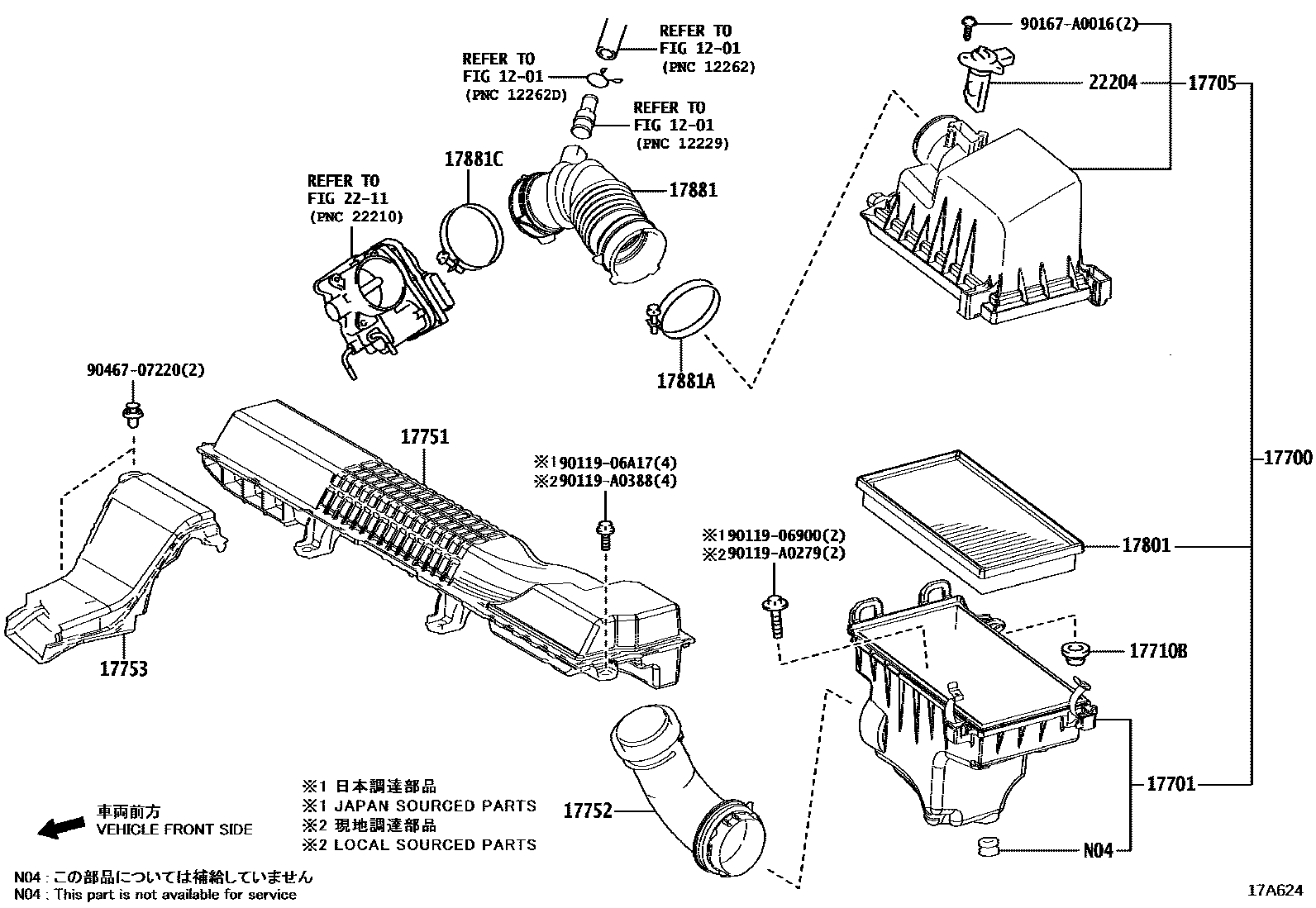

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-0T350 · 17700-F2100 |
| 17701 | Air filter housing sub-assembly | 17701-0T210 · 17701-F2010 |
| 17705 | Air filter cover sub-assembly | 17705-0T360 · 17705-F2090 |
| 17710B | gasket | 90480-18006 |
| 17751 | No. 1 air filter air inlet | 17751-0T230 · 17751-F2010 · 17751-F2070 |
| 17752 | No. 2 air filter air inlet | 17752-0T080 · 17752-F2010 |
| 17753 | No. 3 air filter air inlet | 17753-0T030 · 17753-F2050 |
| 17801 | Air filter element sub-assembly | 17801-77050 · 17801-F0020 |
| 17881 | No. 1 air cleaner hose | 17881-0T390 · 17881-F2010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10780 · 96111-10850 |
| 17881C | Clamp (for No. 1 air cleaner hose) | 96111-10750 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10800 |
| 17893 | Intake resonator | 17893-F2020 |
| 22204 | Intake air flow meter assembly | 22204-75040 |
