Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 8 PNC and OE references.

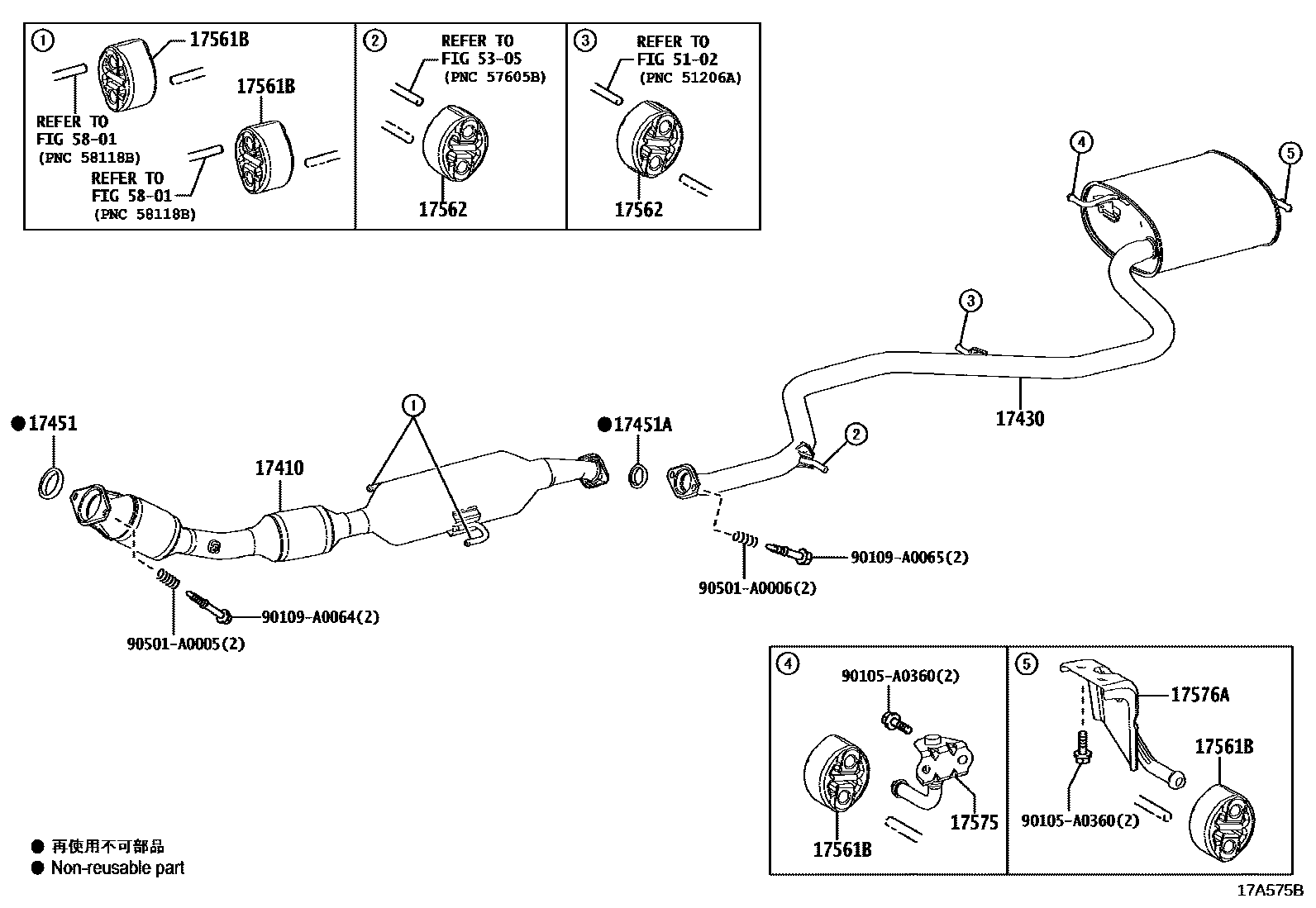

Toyota COROLLA Exhaust Pipe EPC diagram — 17A575B
Exhaust Pipe — 17A575B (201903 – 999999)

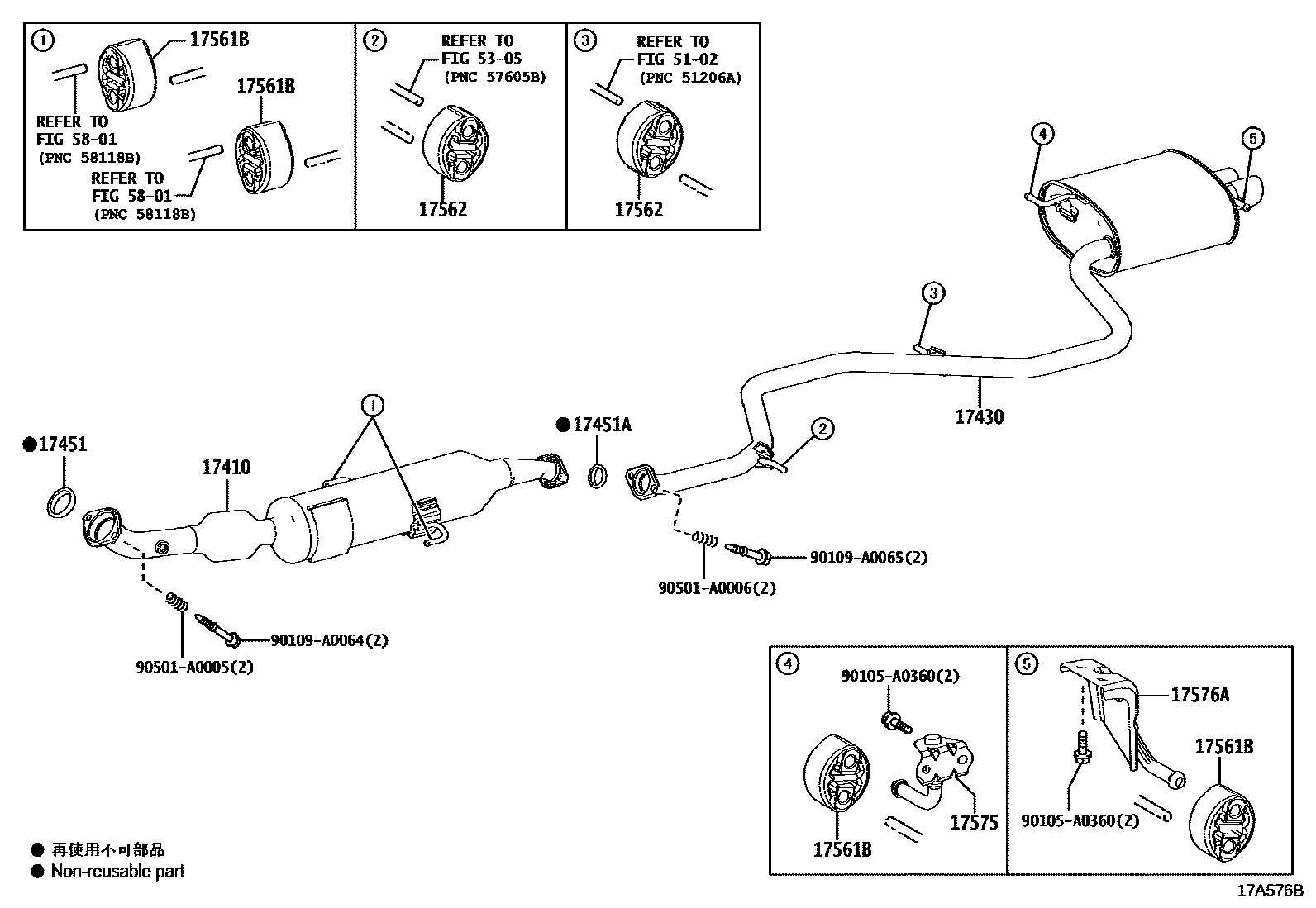

Toyota COROLLA Exhaust Pipe EPC diagram — 17A576B
Exhaust Pipe — 17A576B (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0TC60 · 17410-F2010 · 17410-F2450 · 17410-F2480
17430Exhaust tailpipe assembly17430-0T330 · 17430-F2010 · 17430-F2270
17451Exhaust pipe gasket17451-0D140
17451ANo. 2 exhaust pipe gasket17451-F2010
17561BNo. 1 exhaust pipe lifting lug17565-0P041
17562No. 2 exhaust pipe lifting lug17565-0S011
17575No. 5 exhaust pipe bracket17575-F2010
17576ANo. 6 exhaust pipe bracket17576-F2010
