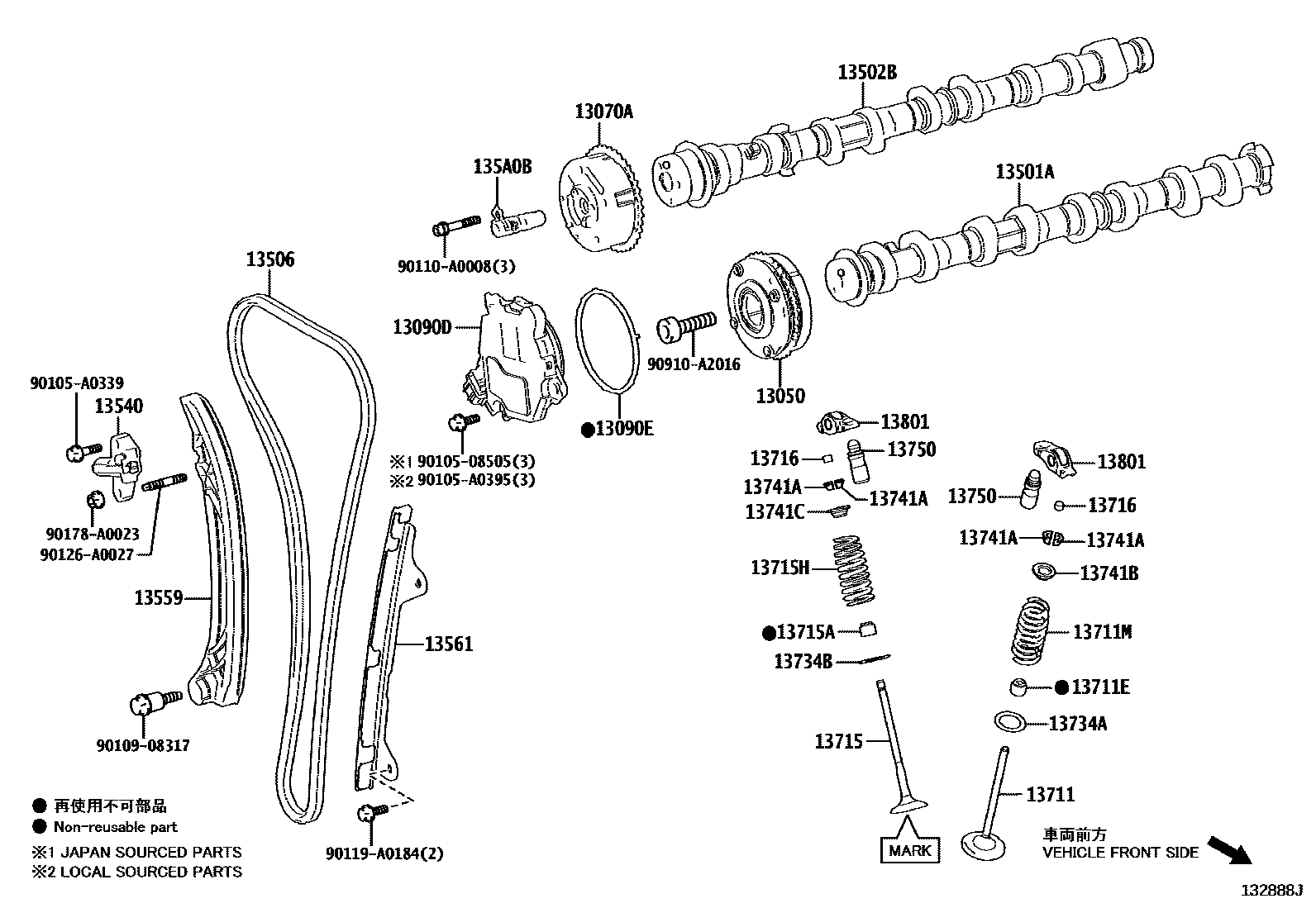

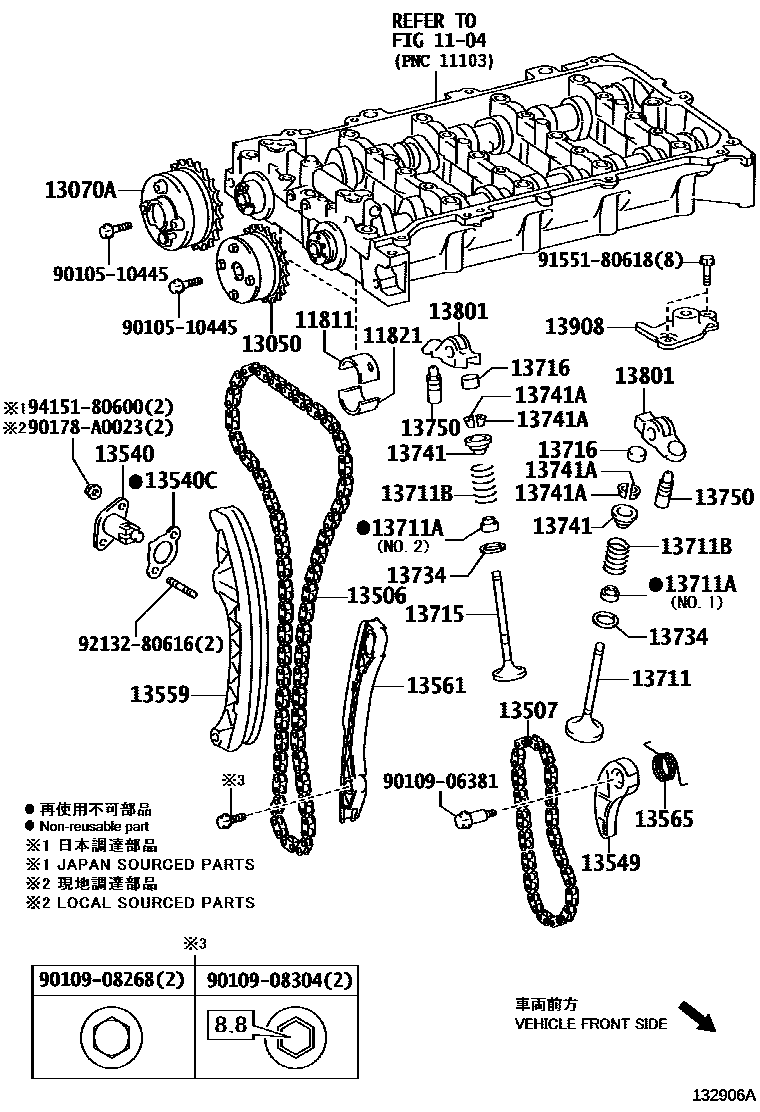

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-0T050 · 11811-37020 |
| 11821 | No. 2 camshaft bearing | 11821-0T050 · 11821-37020 |
| 13050 | Camshaft timing gear assembly | 13050-0T040 · 13050-25010 · 13050-37050 · 13050-F0010 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0T040 · 13070-25020 · 13070-25030 · 13070-37020 · 13070-F0020 · 13070-F0030 |
| 13090D | ENS. MOTEUR, COM. AVAN. ALLUM. CAME AVEC EDU | 13090-25010 · 13090-F0010 |
| 13090E | JOINT TOR. (DE MOTEUR COM. AVAN. ALLUM. CAME) | 90301-92005 |
| 13501A | SS-ENS. ARBRE A CAMES, ADMISSION | 13501-24020 · 13501-F2010 |
| 13502B | SS-ENS. ARBRE A CAMES, ECHAPPEMENT | 13502-24010 · 13502-F2010 |
| 13506 | Chain sub-assembly | 13506-0T070 · 13506-37050 · 13506-F2010 |
| 13507 | No. 2 chain sub-assembly | 13507-28010 |
| 13540 | No. 1 chain tensioner assembly | 13540-0T020 · 13540-25020 · 13540-37030 · 13540-F0010 |
| 13540C | Pad (for chain tensioner) | 13552-0T020 · 13552-37010 |
| 13549 | chain tensioner pressure plate | 13549-0T020 · 13549-37020 |
| 13559 | chain tensioner guide plate | 13559-0T090 · 13559-24010 · 13559-37050 |
| 13561 | No. 1 chain shock absorber | 13561-0T090 · 13561-15010 · 13561-24020 · 13561-37060 |
| 13565 | chain damper spring | 13565-0T020 · 13565-37010 |
| 135A0B | ENS. SOUPAPE, DISTRIB ARBRE A CAMES | 135A0-25010 · 135A0-25020 · 135A0-F0010 · 135A0-F0020 |
| 13711 | intake valve | 13711-0T010 · 13711-24040 · 13711-37020 · 13711-F2010 |
| 13711A | Oil seal or O-ring (for valve stem) | 90080-31043 · 90080-31101 · 90913-02101 · 90913-02112 |
| 13711B | Compression spring (for inner side) | 90501-A0142 |
| 13711E | Intake valve stem oil seal | 90080-31043 |
| 13711M | RESSORT, COMPRESSION(POUR SOUPAPE ADMISSION) | 90501-A0141 |
| 13715 | exhaust valve | 13715-0T010 · 13715-15090 · 13715-24040 · 13715-37030 · 13715-F2010 |
| 13715A | Exhaust valve stem oil seal | 90080-31101 |
| 13715H | RESSORT, COMPRESSION(POUR SOUPAPE ECHAPPEMENT) | 90501-A0139 |
| 13716 | valve stem cover | 13716-75020 · 13716-F0010 |
| 13734 | Valve spring seat | 13734-0P010 · 13734-62020 |
| 13734A | Intake valve spring seat | 13734-0P010 · 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-0P010 · 13734-62020 |
| 13741 | Valve spring seat ring | 13741-0P020 · 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-A3001 |
| 13741B | Intake valve spring seat ring | 13741-0P020 |
| 13741C | Exhaust valve spring seat ring | 13741-0P020 |
| 13750 | Valve lash adjuster assembly | 13750-0V050 · 13750-25010 · 13750-36020 · 13750-F0010 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0P030 · 13801-25010 · 13801-36020 · 13801-F0010 |
| 13908 | Valve rocker arm lost motion damper sub-assembly | 13908-37012 |
