Toyota COROLLA Engine Mounting — Figure 1107

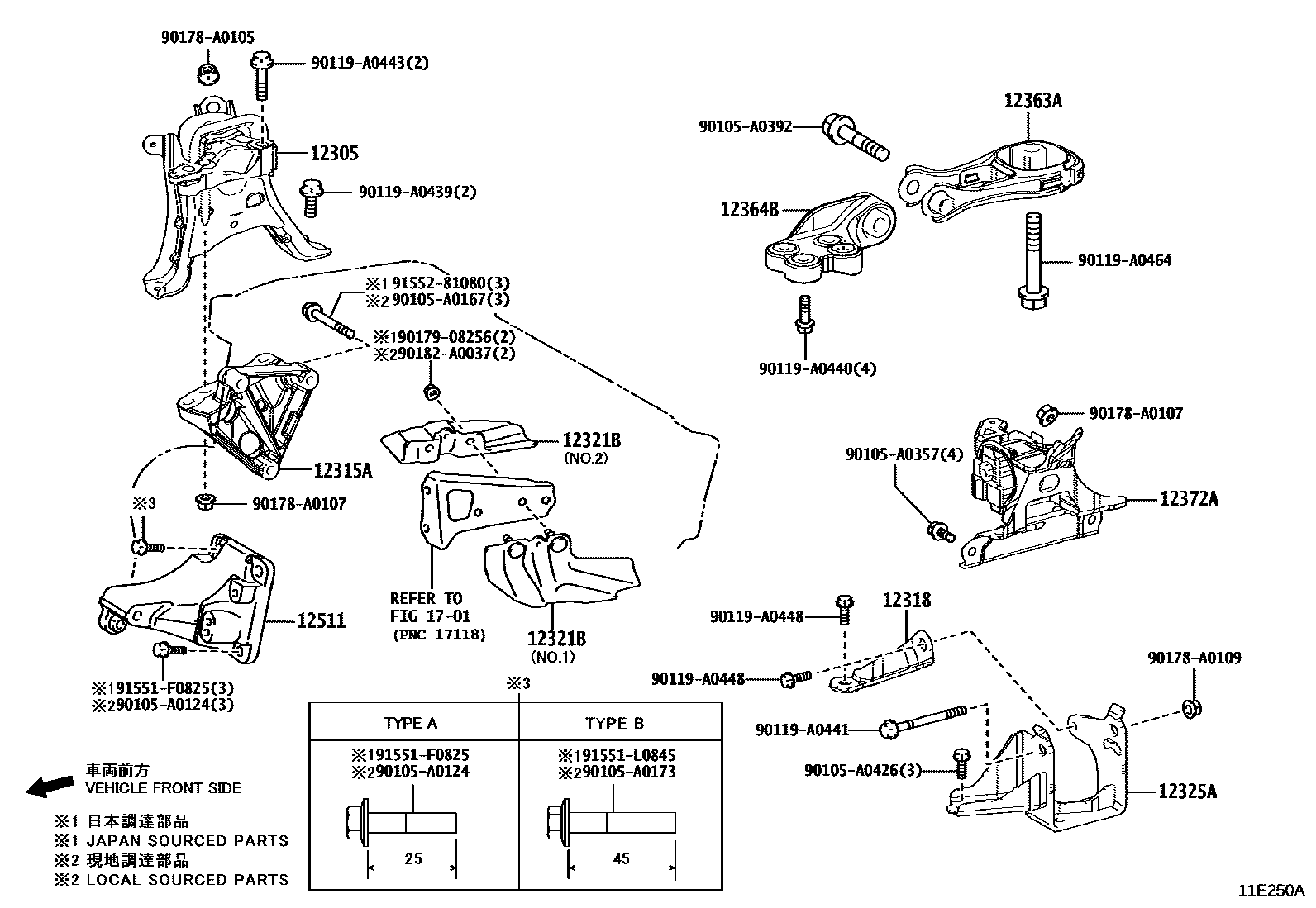

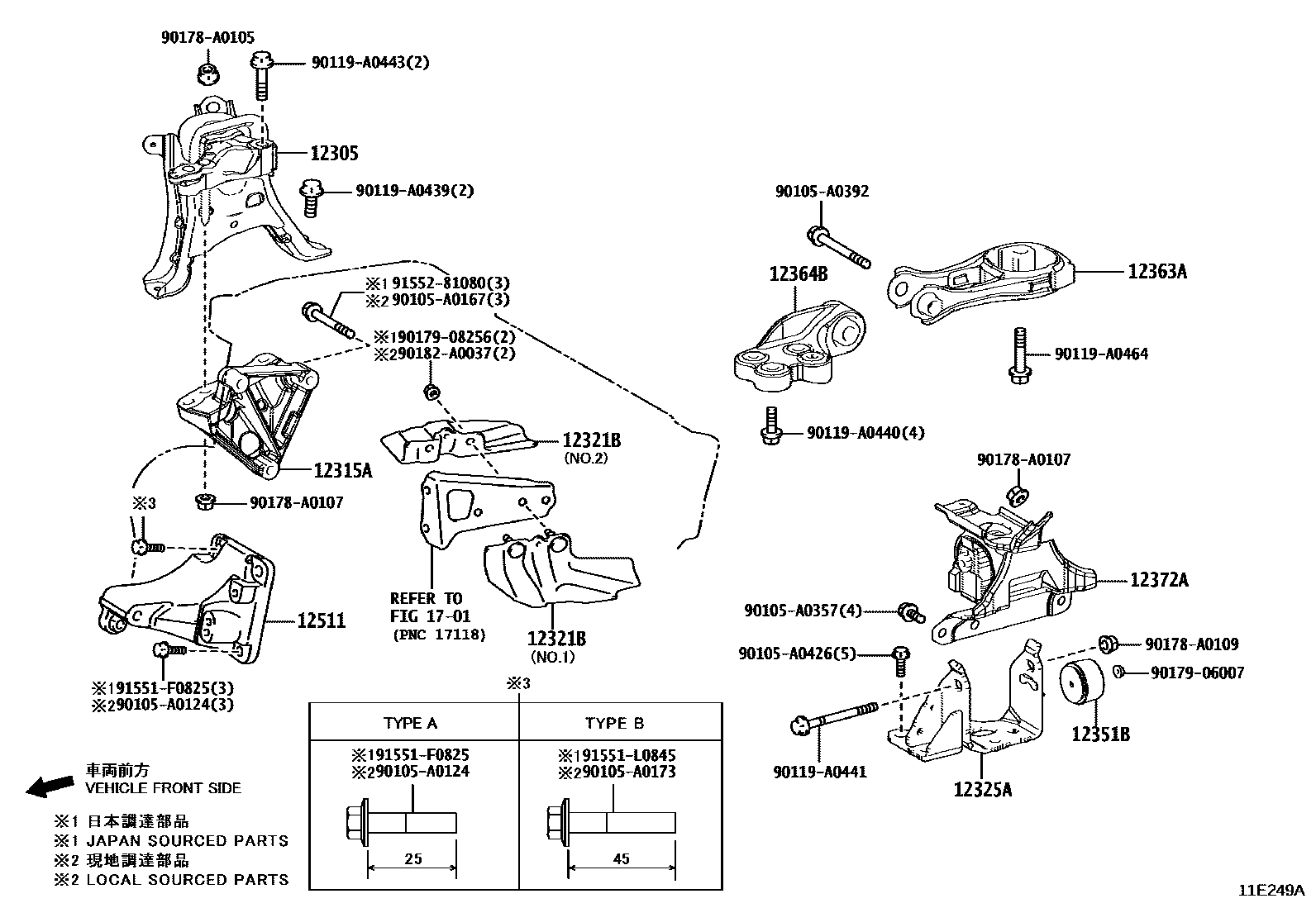

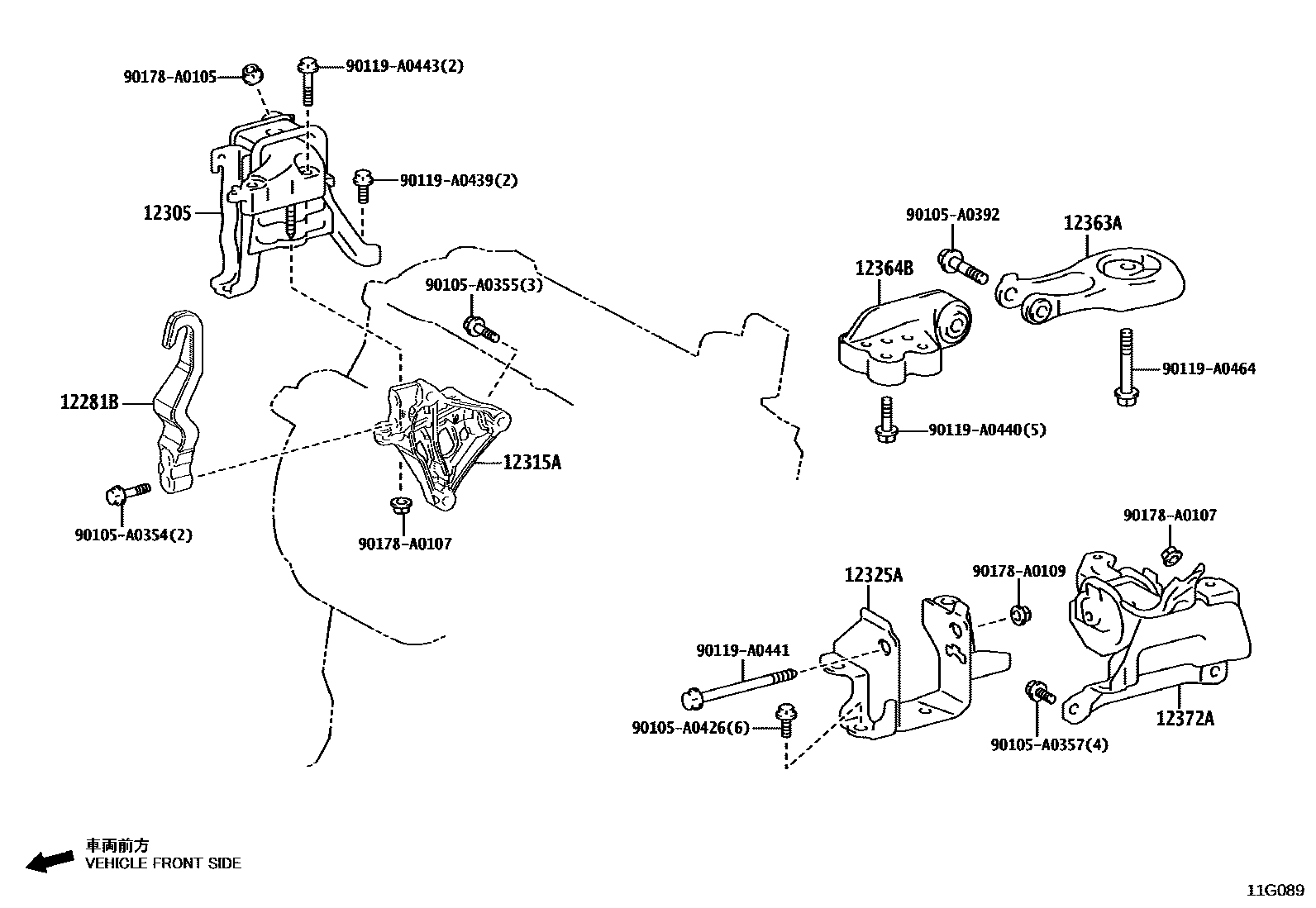

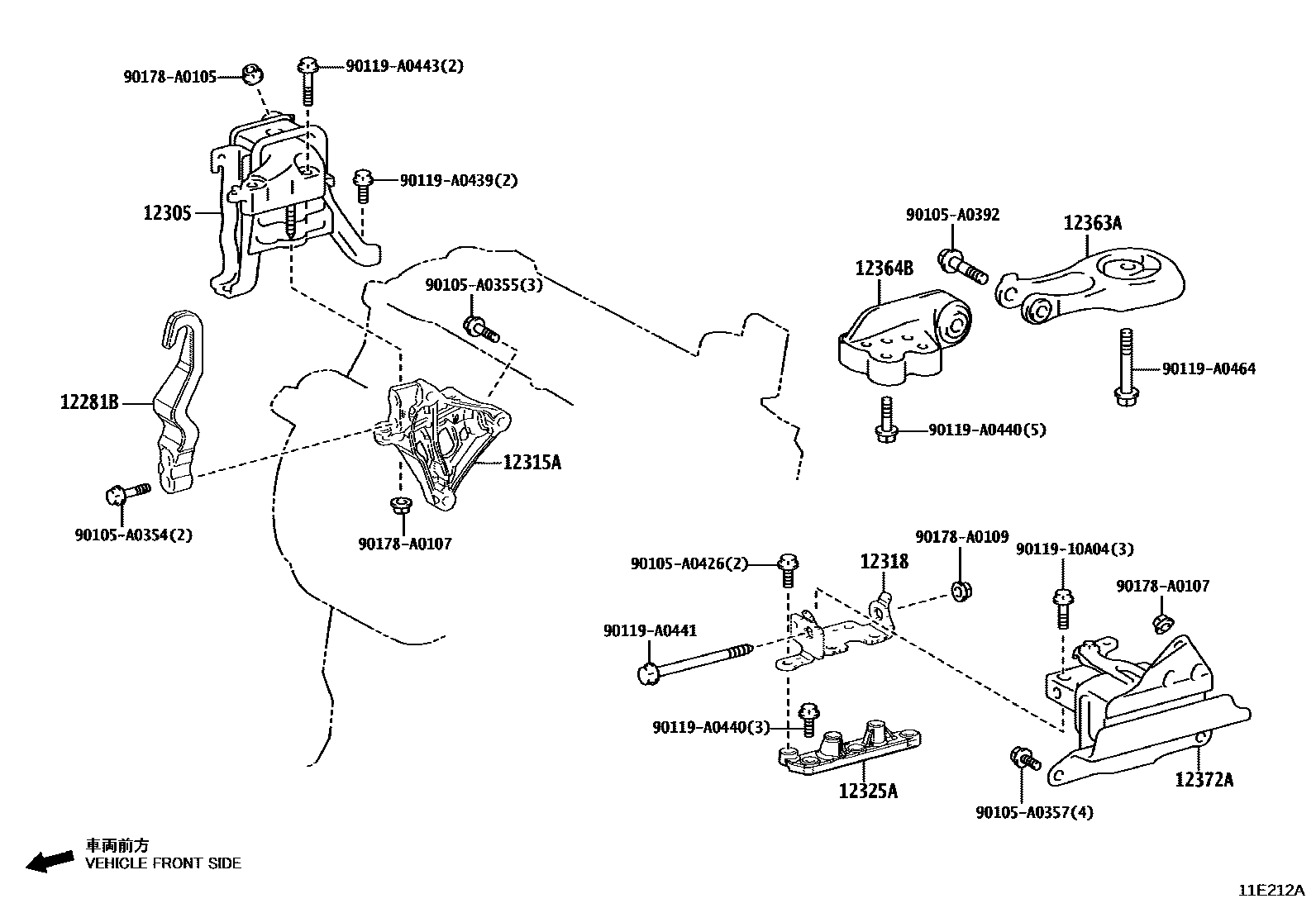

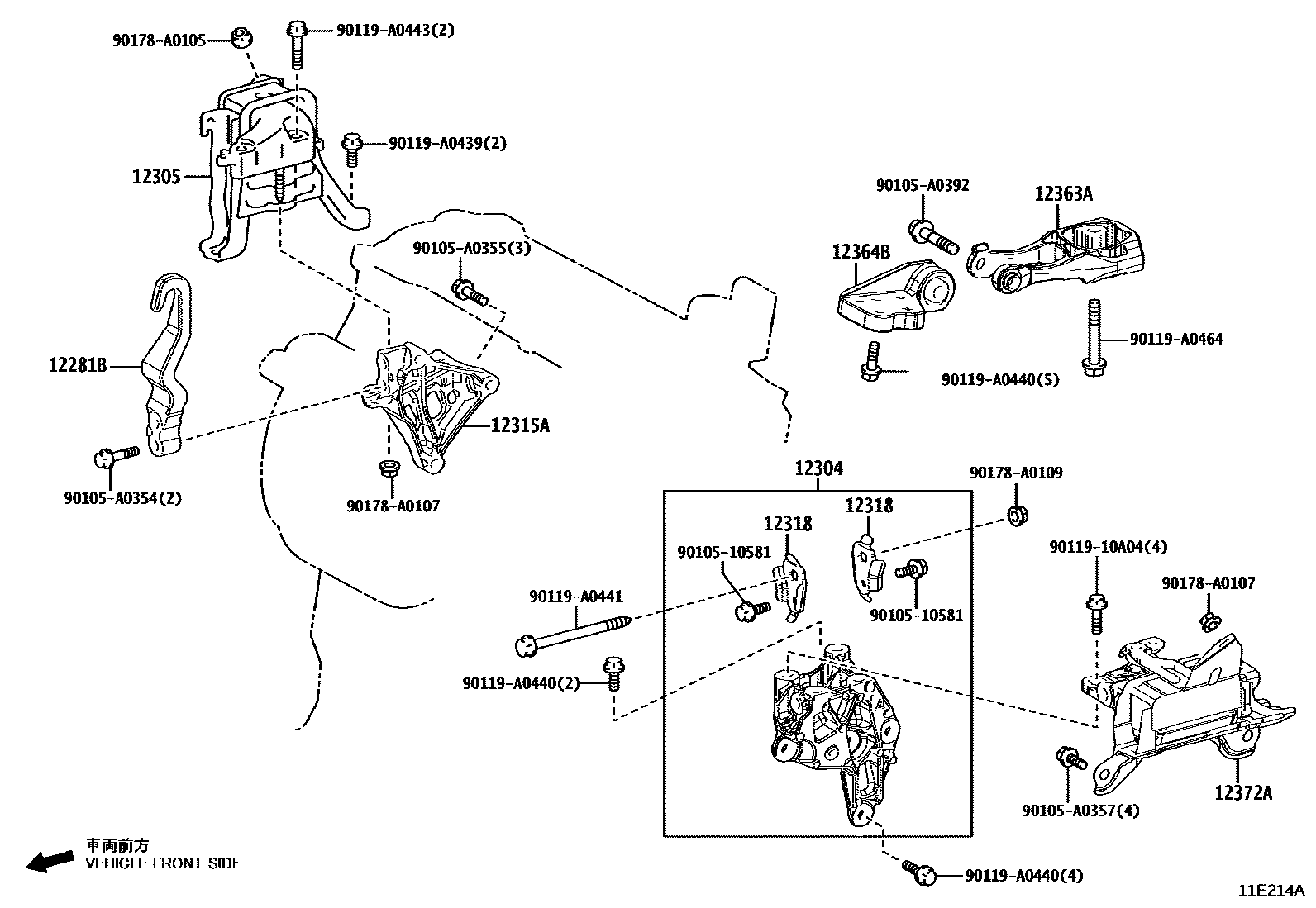

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | CROCHET SUSPENSION MOTEUR NO.1 | 12281-25030 |
| 12304 | SOUS-ENS. SUPPORT, PROTECTION MOTEUR, MG | 12304-24030 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0T360 · 12305-F2010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-37060 · 12315-F2070 · 12315-F2071 |
| 12318 | Engine left mounting bracket | 12318-0T040 · 12318-24030 · 12318-F2010 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-02010 · 43498-02020 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0T520 · 12325-47150 · 12325-F2010 · 12325-F2090 |
| 12351B | engine mount shock absorber | 12351-37070 |
| 12363A | Engine movement control lever | 12363-0T040 · 12363-24010 · 12363-37040 · 12363-F2010 |
| 12364B | Engine No. 2 motion control lever | 12364-0T050 · 12364-24010 · 12364-37060 · 12364-F2010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0T600 · 12372-0T610 · 12372-24010 · 12372-24021 · 12372-F2010 · 12372-F2110 · 12372-F2111 |
| 12511 | No. 1 generator bracket | 12501-0T030 · 12501-37010 |
