Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

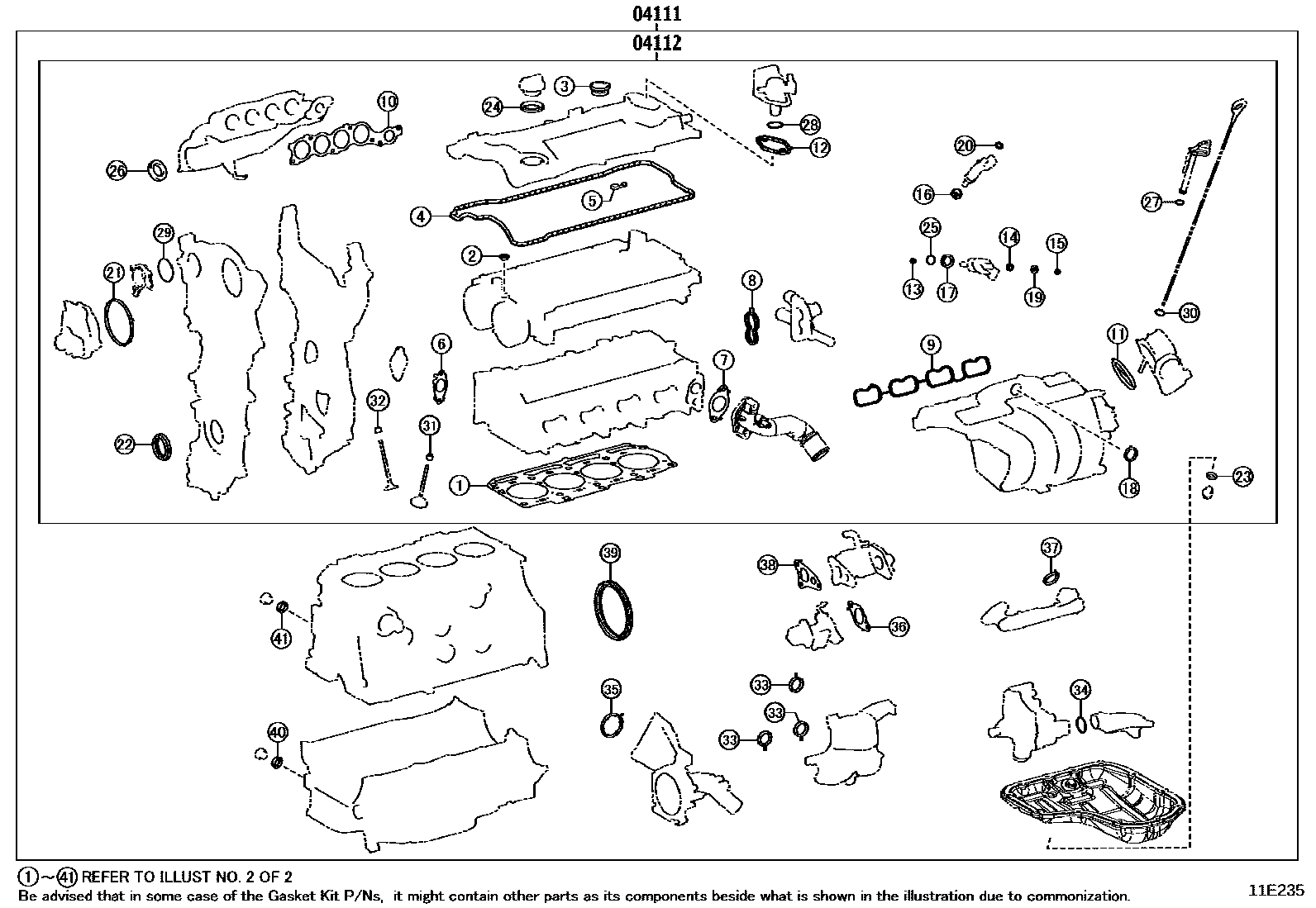

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E235
Engine Overhaul Gasket Kit — 11E235 (201903 – 999999)

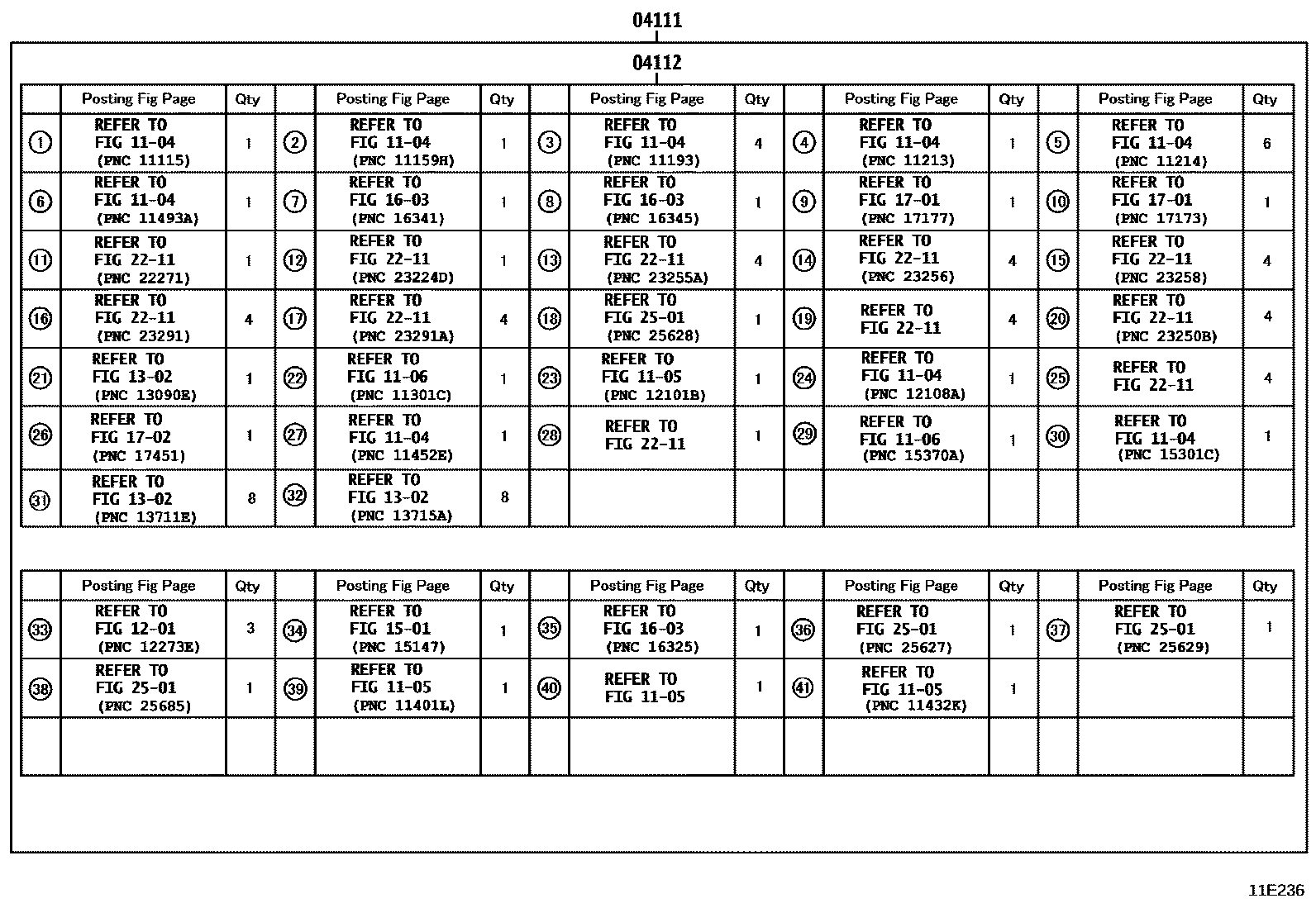

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E236
Engine Overhaul Gasket Kit — 11E236 (201903 – 999999)

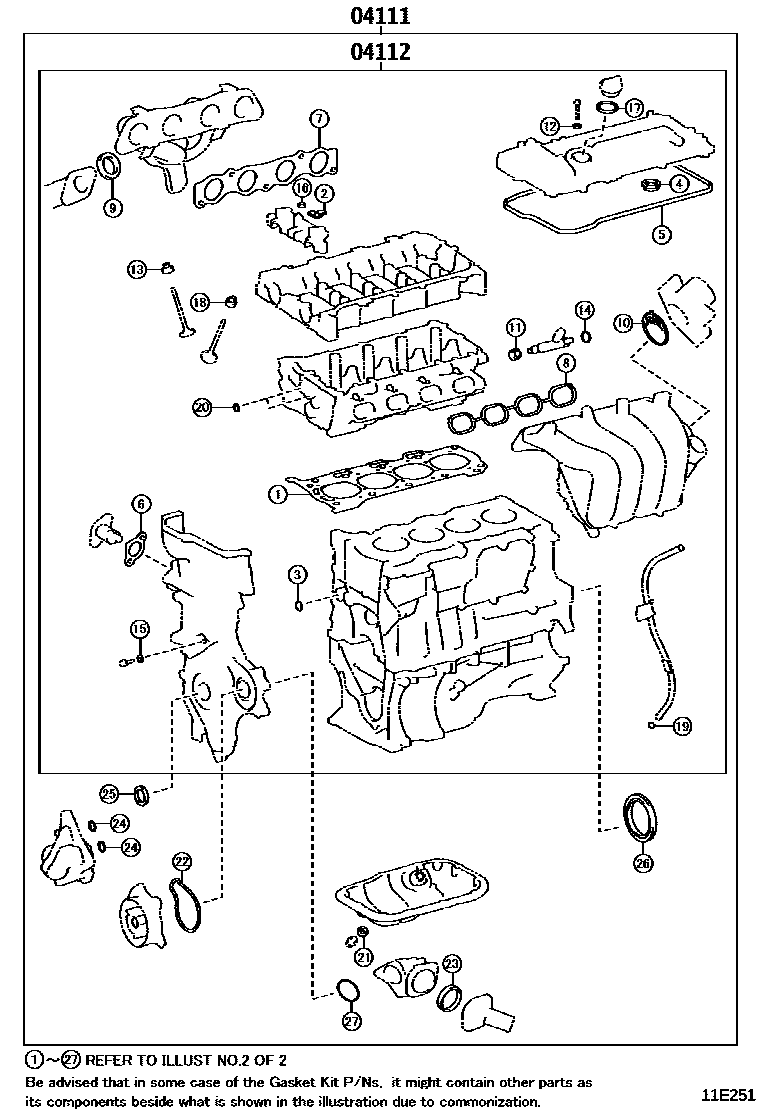

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E251
Engine Overhaul Gasket Kit — 11E251 (201902 – 999999)

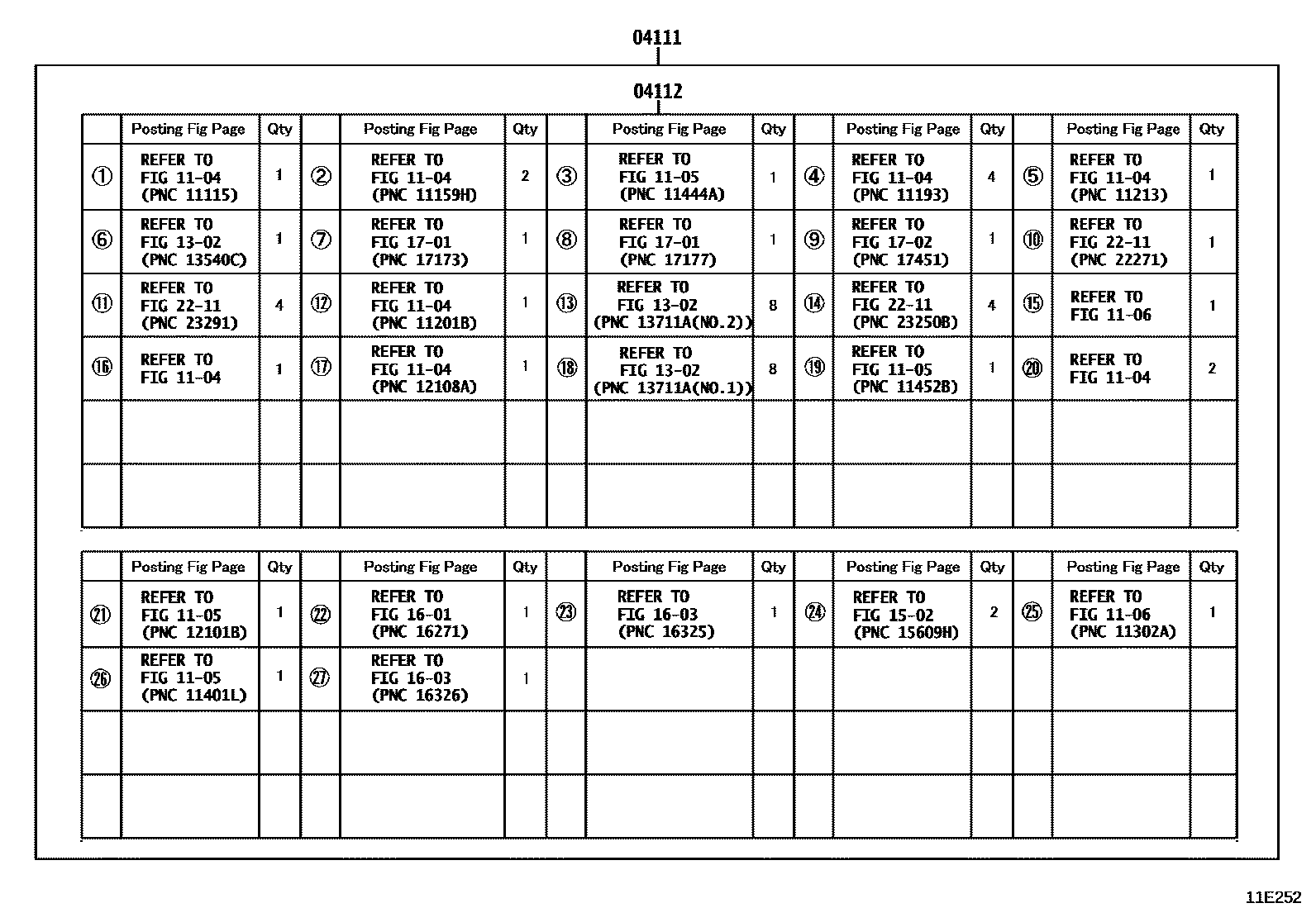

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E252
Engine Overhaul Gasket Kit — 11E252 (201902 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T201 · 04111-0T202 · 04111-F2020 · 04111-F2021
04112Engine valve grinding pad assembly04112-0T133 · 04112-0T134 · 04112-F2020 · 04112-F2021
