Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

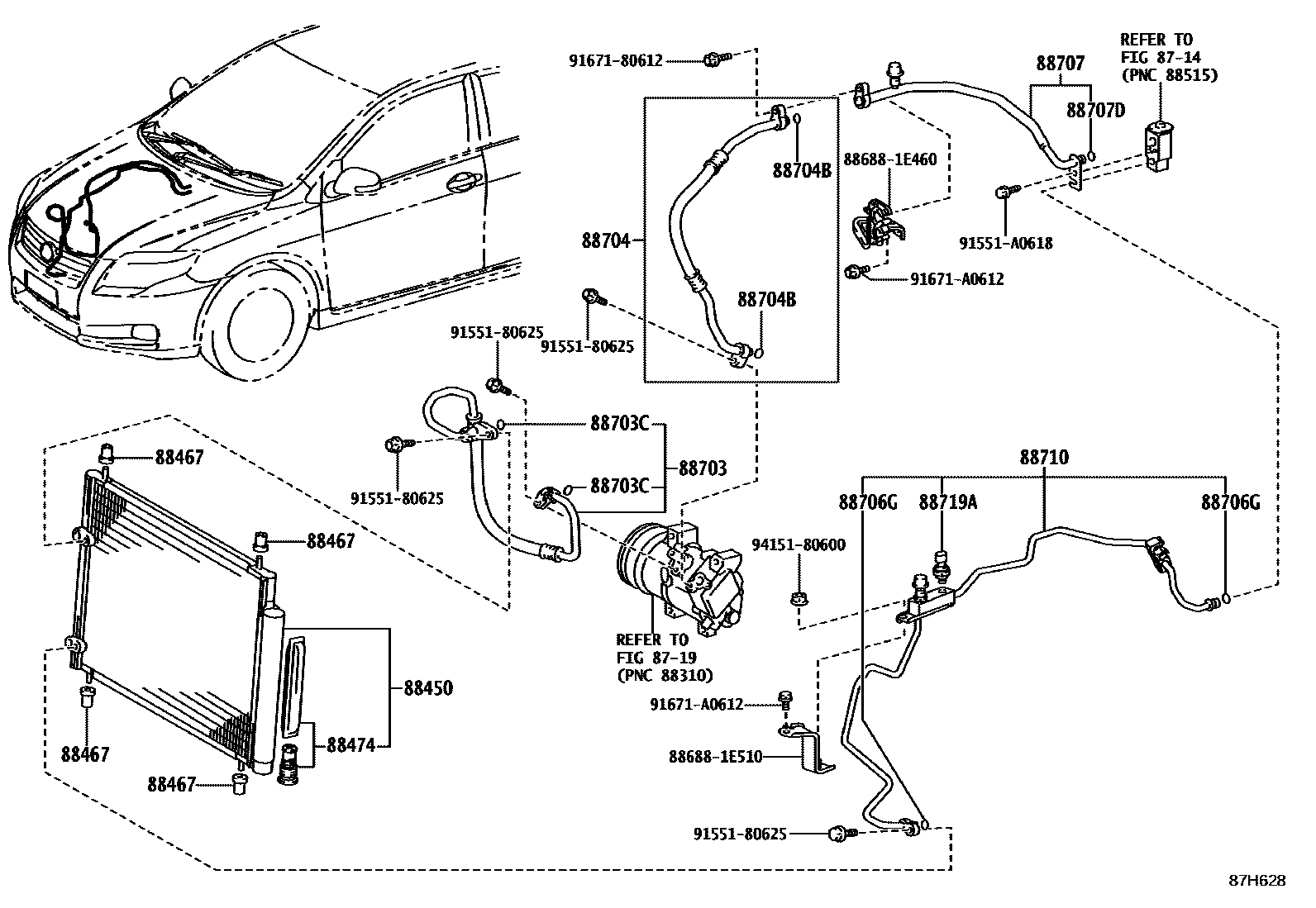

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88450 | Condenser assembly with liquid reservoir | 88450-12280 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-12030 |
| 88703 | Discharge hose sub-assembly | 88703-1A070 · 88703-1A141 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-1A300 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90099-14121 |
| 88706G | JOINT, TORIQUE(POUR TUYAU LIQUIDE) | 90099-14119 |
| 88707 | Suction pipe sub-assembly | 88707-12290 |
| 88707D | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90099-14121 |
| 88710 | Air conditioning pipe assembly | 88710-12860 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
