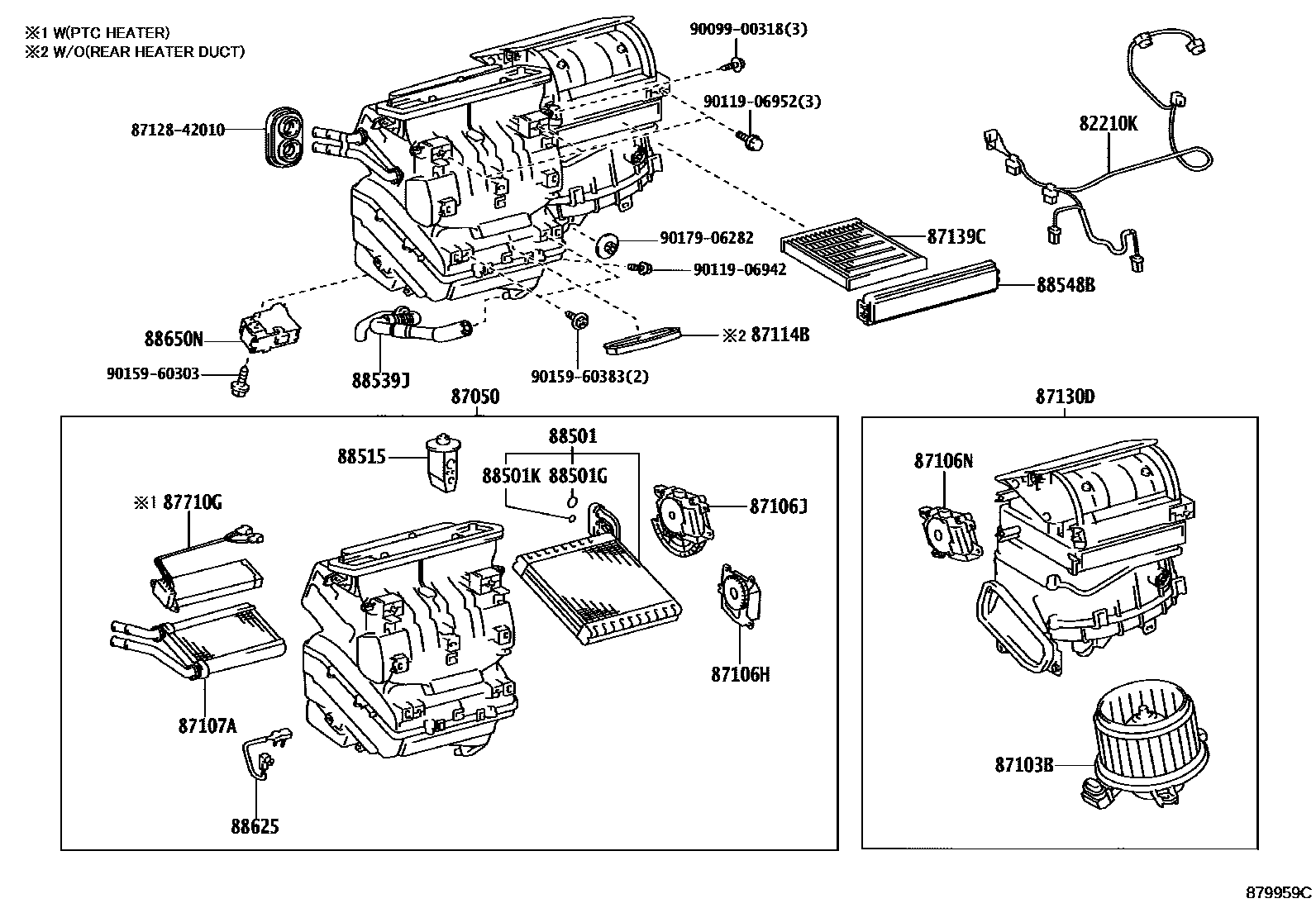

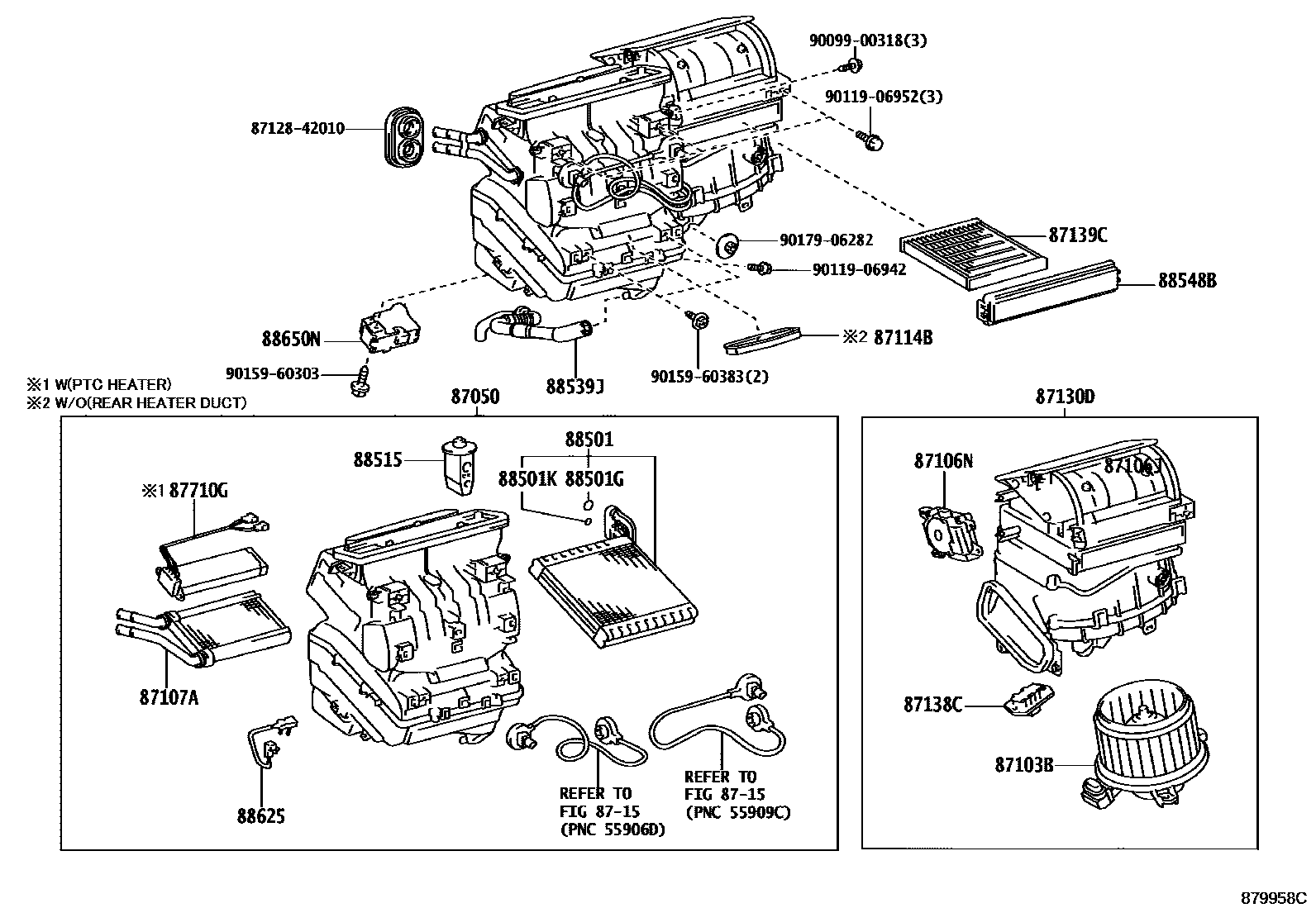

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-12010 |
| 87050 | Air conditioning radiator assembly | 87050-12290 · 87050-12291 · 87050-12300 · 87050-12301 · 87050-12390 · 87050-12391 · 87050-12400 · 87050-12401 |
| 87103B | Blower motor sub-assembly with fan | 87103-12080 · 87103-42090 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-12170 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-42100 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-42130 · 87106-42140 · 87106-47130 |
| 87107A | Heater radiator device sub-assembly | 87107-42170 |
| 87114B | heater cover | 87114-12080 |
| 87130D | Blower assembly | 87130-12410 · 87130-12411 · 87130-12420 · 87130-12421 · 87130-12550 · 87130-12551 · 87130-12560 · 87130-12561 |
| 87138C | Blower resistor | 87138-26160 |
| 87139C | air purification filter | 87139-50060 · 87139-50100 · 87139-52020 |
| 87710G | Rapid heater assembly | 87710-12020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-26210 · 88501-26211 · 88501-72020 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90099-14121 |
| 88501K | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(LIQUIDE) | 90099-14120 |
| 88515 | Cooler expansion valve | 88515-12100 · 88515-26070 · 88515-42090 |
| 88539J | Cooler drain hose | 88539-12200 |
| 88548B | air filter housing | 88548-42020 |
| 88625 | Cooler No. 1 Thermistor | 88625-26090 |
| 88650N | Air conditioning amplifier assembly | 88650-12A80 · 88650-12B40 · 88650-12D80 · 88650-12D90 · 88650-12F10 · 88650-12F20 · 88650-12F40 |
